01
Chip Evacuation
Upcut geometry pulls chips upward and out of the toolpath. In small pockets, narrow slots, and fine details, this helps reduce chip packing, recutting, friction, and heat build-up around a small-diameter cutter.

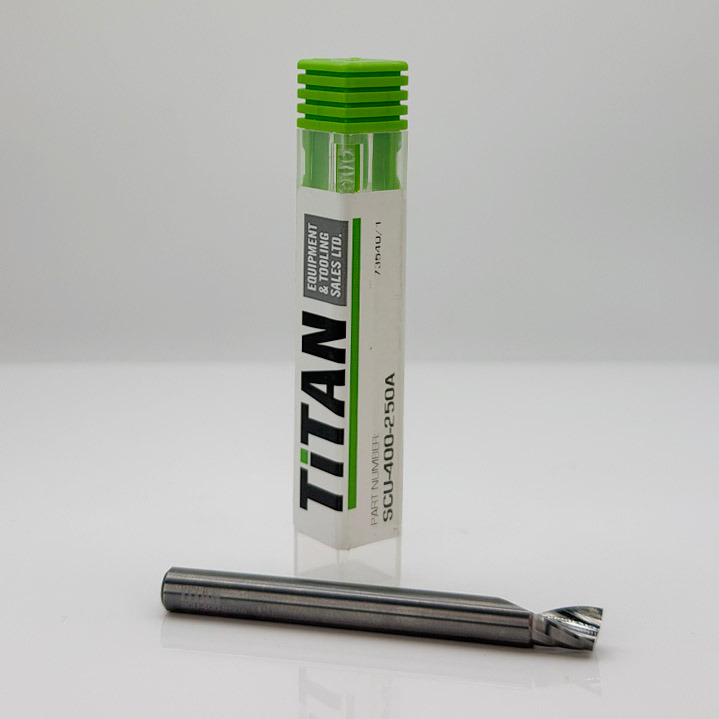

GreenCap Solid Carbide Up Cut 1/4 (6.35mm)
CA$71.00
In stock
SKU
SCU-400-250A
Product Type
Solid Carbide Up Cut Router Bit
Diameter
1/4 in (6.35 mm)
Cutting Length
3/8 in (9.53 mm)
Shank Diameter
1/4 in (6.35 mm)
Overall Length
2-1/2 in (63.50 mm)
Flute Quantity
1 Flute
Cut Direction
Up Cut
Titan Equipment and Tooling Sales
GreenCap 1/8 Inch Solid Carbide Upcut Bit For Fine Details, Small Pockets, and Chip Evacuation
The GreenCap 1/8 inch solid carbide upcut bit is a precision CNC router tool for small features where chip evacuation, bottom-edge cleanliness, narrow geometry, and toolpath control matter more than heavy production speed. It is built for the fine end of CNC routing: small slots, narrow dados, pocket clearing, inlay work, detail profiling, hardware recesses, template features, and tight internal radii that standard 3/8 inch or 1/2 inch tools cannot physically produce.
An upcut tool pulls material upward as it cuts. That makes it especially useful when chips need to be lifted out of a narrow slot or pocket instead of being pushed down and packed into the cut. The tradeoff is top-face pressure: upcut geometry can lift fibres or chip the top surface on delicate laminates and veneer faces. That is why this tool should be selected with intent. Use it when chip removal, bottom-edge quality, pocket clearing, and small geometry are the priorities. Use a downcut when the visible top face is the main concern.
The Practical Shop Answer
Use 1/8 Inch Upcut When the Cut Is Small and Chips Need to Escape. Use Larger Tools When the Feature Allows It.
A 1/8 inch upcut bit gives the programmer access to fine details and tight internal radii that larger tooling cannot reach. It is a specialty cutter, not a replacement for 3/8 inch or 1/2 inch production tooling.
The upcut spiral helps pull chips out of narrow slots, pockets, and small dados. That matters because small tools have less flute volume and less room around the cutter. When chips pack into the cut, heat rises quickly and the small edge can fail before the part is complete.
The correct use case is controlled small-feature routing. The wrong use case is forcing the 1/8 inch tool into heavy full-depth panel cutting, large perimeter passes, or aggressive roughing that should be handled by stronger 3/8 or 1/2 inch tooling.
1/8 Inch Upcut
Solid Carbide
Chip Evacuation
Small Pockets
Narrow Dados
Inlay Work
Tight Inside Radius
Fine CNC Routing
1/8 Inch Upcut Advantages
Built for Small Geometry, Pocket Clearing, and Chip Control
The GreenCap 1/8 inch upcut is selected when the job calls for a small cutter that can pull chips out of a narrow feature. It is most valuable in fine routing operations where the feature size makes 3/8 inch and 1/2 inch tooling too large.
02
Tight Inside Radius
A 1/8 inch diameter can create much tighter internal corner geometry than 3/8 inch or 1/2 inch tools. Use it for small interior corners, inlays, templates, narrow grooves, and details where the radius is part of the design.
03
Small Dados and Slots
A small dado should be machined as a controlled rectangular feature, not just a single centreline cut. The 1/8 inch upcut lets the programmer define both walls of a narrow dado when larger tools are too wide.
04
Pocket Clearing
For small pocket dados, hardware recesses, fixture features, and rectangular pockets, an upcut can help remove chips from the pocket instead of compressing them into the floor of the cut.
05
Bottom-Edge Support
Upcut spiral action tends to support chip evacuation and bottom-side cutting behaviour. It is useful when the bottom of a groove, slot, or pocket needs to be clean and chips need a clear path out of the feature.
06
Top Face Caution
Upcut tools can pull fibres upward. On melamine, laminate, veneer, or prefinished surfaces, test first. If the visible top face is the priority, a downcut version may be the cleaner choice.
07
Solid Carbide Precision
Solid carbide construction helps the cutter hold its edge and geometry during high-speed detail work. That matters on a tool this small, where runout, stickout, heat, and side load have a major impact on performance.
08
Specialty Cutter Logic
Use 1/8 inch when geometry demands it. Use 3/8 inch when the feature is larger and needs more strength. Use 1/2 inch when the job needs maximum stability and production confidence.
Selection Logic
Why Choose 1/8 Inch Upcut Over Standard 3/8 or 1/2 Inch Tooling?
The reason to choose a 1/8 inch upcut bit is feature access and chip removal, not raw strength. Standard 3/8 inch and 1/2 inch tools are stronger, faster, and more forgiving. The 1/8 inch tool is selected when the part geometry is too small for those cutters or when a narrow pocket needs chips pulled out of the cut.
1
Geometry Comes First
If a 3/8 or 1/2 inch cutter cannot physically fit the slot, pocket, radius, or detail, the 1/8 inch upcut gives the programmer access to the feature.
2
Chips Need an Exit
Narrow slots and pockets can trap chips. Upcut geometry helps lift material out of the cut, reducing heat and dust recutting.
3
Dados Are Shapes
A proper dado is a rectangular feature with two controlled walls. A pocket dado needs four clean edges. The toolpath should define the shape, not just run one line through the centre.
4
Respect the Cutter Size
Use controlled depth steps, smooth entries, correct chip load, minimal stickout, and toolpaths that avoid heavy side loading.
5
Do Not Force It Into Heavy Work
If a 3/8 or 1/2 inch bit can make the feature properly, the larger tool is usually the better production choice.
Compared With a 1/8 Downcut
Choose the 1/8 upcut when chip evacuation, pocket clearing, bottom-edge behaviour, and heat control in the cut are the priorities. Choose a 1/8 downcut when the visible top face must be protected and the feature is shallow enough that chip packing can be controlled.
Compared With 3/8 Inch
A 3/8 inch tool is much stronger and better suited to everyday cabinet-part routing, larger dados, perimeter profiles, and production work. The 1/8 inch upcut wins only when the feature is too small for 3/8 inch tooling or when the inside radius needs to be much tighter.
Compared With 1/2 Inch
A 1/2 inch cutter is the better option for stability, feed-rate confidence, heavier material removal, and larger full-depth operations. The 1/8 inch upcut is not competing with it for throughput; it is used when the 1/2 inch tool is simply too large for the feature.
Top Surface Warning
Because upcut tools pull upward, they can lift fibres on the top face. On melamine, laminate, veneer, and prefinished materials, test the edge before committing to production. If top-edge finish is the main goal, use a downcut or compression tool where appropriate.
Best-Practice Playbook
How to Get the Most From 1/8 Inch Upcut Tooling
Treat the GreenCap 1/8 inch upcut as a precision detail and pocketing tool. Let larger cutters handle roughing, through-cutting, and heavy material removal whenever the geometry allows it. Bring the 1/8 inch tool in for fine pockets, tight inside radii, small slots, inlays, and narrow rectangular features where chip evacuation and access matter.
The smaller the tool, the more important programming becomes. Use smooth entry moves, realistic depth steps, clean toolholders, minimal stickout, and a chip load that makes chips instead of dust. In pockets and narrow slots, give chips somewhere to go. An upcut bit helps with evacuation, but it still needs a toolpath that does not trap heat inside the feature.
Use It For
Small pockets, narrow slots, inlays, detail profiles, tight inside corners, small dados, and chip-sensitive fine routing.
Do Not Use It For
Heavy full-depth panel cutouts, large perimeter profiling, aggressive roughing, or any feature that can be made better with a stronger 3/8 or 1/2 inch tool.
Dado Strategy
Program small dados as rectangles with two controlled walls. Program pocket dados as pocket shapes with four controlled edges.
Chip Control
Use the upcut spiral to pull chips out, but still manage depth, stepover, dust collection, and clearing passes so chips do not pack in the feature.
Top Face Rule
If the top surface is delicate or customer-facing, test first. Upcut geometry can lift fibres where downcut geometry would press them down.
Tool Life Rule
Small cutters are sensitive to runout, heat, and side load. Keep the setup clean, the stickout short, and the toolpath controlled.
Validation Notes for Shop Teams
Prove the Cut On Your CNC
Every router, spindle, vacuum table, spoilboard, dust collector, material batch, and toolholder behaves differently. Use this as the product-use starting point, then validate the process on your actual materials.
Test the Top Edge
Because upcut geometry pulls upward, inspect the top surface carefully on melamine, laminate, veneer, and prefinished panels before running production.
Watch the Chips
The tool should produce chips, not powder. Fine dust, heat, squealing, or rapid edge dulling usually means feed, RPM, engagement, or chip clearing needs adjustment.
Compare Against Larger Tools
Only use 1/8 inch when the geometry requires it. If a 3/8 or 1/2 inch tool can do the job, the larger cutter will usually provide more rigidity and production confidence.
Final Recommendation: Use 1/8 Inch Upcut for Small Features That Need Chip Evacuation
The GreenCap 1/8 inch solid carbide upcut bit is the right choice when the part feature is too small for standard tooling and the cut needs chips pulled out of the slot or pocket. It is a precision tool for small geometry, narrow dados, inlays, pockets, tight radii, and detail routing.
For heavier cabinet production, larger profiles, broad dados, long cuts, and faster material removal, use 3/8 inch or 1/2 inch tooling when the geometry allows. The 1/8 inch upcut is not the brute-force cutter in the lineup. It is the small-feature problem solver.
Choose 1/8 Upcut
For fine details, small pockets, narrow slots, chip evacuation, and tight internal geometry.
Choose 1/8 Downcut
When the same small feature needs stronger top-face protection and chip packing can be managed.
Choose 3/8
When the feature is larger and the job needs more rigidity, speed, and everyday cabinet-production strength.
Choose 1/2
For the strongest standard option when the feature allows a larger tool and production stability matters most.
Geometry
1/8 inch diameter fits tight features larger tools cannot reach.
Evacuation
Upcut spiral pulls chips out of narrow slots and pockets.
Precision
Solid carbide supports controlled small-feature routing.
Comparison
Use 3/8 or 1/2 when the feature allows stronger tooling.
Top Face
Test delicate top surfaces because upcut geometry pulls upward.
Quick HighlightsFast overview of the cutter, diameter, chip evacuation, and shop fit.
