A high-capacity SCM Class sliding table saw for professional shops that need a 550 mm main blade, scoring support, double-tilt flexibility, strong cutting height, and production-ready accuracy across panel and solid-wood work.
Large-capacity Class-series cutting with double-tilt flexibility, scoring support, and configurable production control.

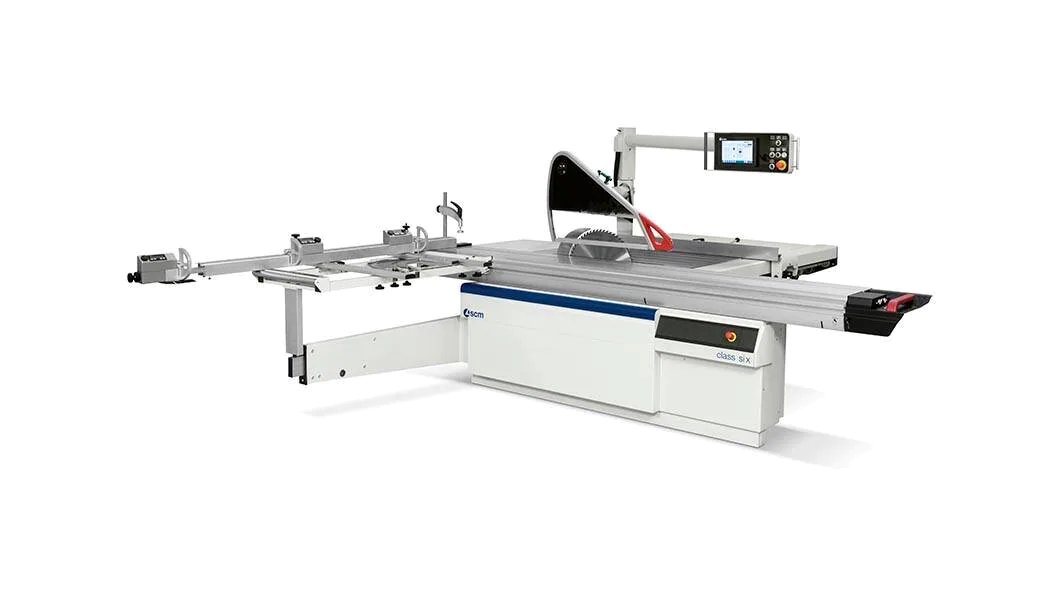

The SCM Class SI X is the large-capacity double-tilting saw in SCM’s Class sliding-table saw range. It is built for cabinet, furniture, architectural millwork, door, stair, and solid-wood shops that need stronger cutting height, scoring support, bevel flexibility, and a stable production platform.
Published Class SI X data identifies a 550 mm maximum main blade, 160 mm scoring-blade compatibility, blade projection of 200 mm at 90°, 130 mm at +45°, and 105 mm at −45°, plus a −46° to +46° tilt range.
Rip capacity, squaring capacity, control, scoring, fence, guarding, and speed-control packages are configuration-dependent and should be matched to the final production requirements.
550 mmMaximum Main Blade
200 mmProjection at 90°
−46° / +46°Double-Tilt Range
3000–5000 rpmMain-Blade Speed
Capability Matrix
One high-capacity sliding saw. Five practical cutting and setup capabilities.
The Class SI X combines precise rip work, scored panel cutting, thick solid-wood capacity, left/right bevel cutting, and configurable production setup in one substantial SCM Class platform.
Mode 01
Precision Rip Cutting
Configurable 1000–1500 mm rip-fence capacity supports accurate repeat sizing across cabinet panels, furniture parts, sheet goods, and solid-wood components.
Mode 02
Scored Panel Cutting
A correctly configured 160 mm scoring unit supports cleaner cutting on veneer, laminate, melamine, MDF, plywood, and decorative panel surfaces.
Mode 03
Heavy Solid-Wood Cutting
A 550 mm main blade and 200 mm projection at 90° support thick solid wood, door stock, stair components, rails, posts, frames, and demanding shop work.
Mode 04
Double-Tilt Bevel Work
The −46° to +46° saw-unit range supports left and right bevels, mitres, angled panels, millwork details, and specialty production components.
Mode 05
Configurable Setup Workflow
EASY or eye-S control, powered fence options, scoring adjustment, guarding, and inverter packages can be matched to the quoted production configuration.
Production Advantages
Built around cutting capacity, double-tilt versatility, and stable production setup.
The Class SI X gives professional shops a substantial cutting platform for mixed panel and solid-wood work, with capacity and flexibility beyond conventional production saws.
High-Capacity Saw Unit
The 550 mm main blade and 200 mm projection at 90° support thick material, heavy solid-wood components, door stock, stair parts, and large production sections.
Clean Panel-Cutting Support
A configured 160 mm scoring blade helps protect veneered, laminated, melamine, MDF, plywood, and decorative panel surfaces during finished cutting.
Left and Right Bevel Flexibility
The −46° to +46° tilt range expands the machine’s role across mitres, bevels, angled millwork, stair work, frames, and specialty components.
Equipment Range
Lineup Positioning
Compact and General Production
Minimax / Nova Sliding Saws
Practical SCM platforms for smaller shops, general cabinet production, and customers prioritizing compact dimensions or conventional operation.
Professional Class Production
SCM Class SI / Class SI 400
Professional saw platforms for shops requiring scoring support, strong daily capacity, and a substantial upgrade from entry-level sliding saws.
High-Capacity Double-Tilt Cutting
SCM Class SI X
A 550 mm main blade, 200 mm projection at 90°, −46° to +46° tilt, scoring compatibility, and configurable production controls in the Class platform.
Technical Specifications
Class SI X
Machine Profile
ManufacturerSCM
SeriesClass
ModelSI X
Machine TypeDouble-tilting sliding table saw
Cutting Capacity
Maximum Main Blade Diameter550 mm
Scoring Blade Compatibility160 mm
Blade Projection200 / 130 / 105 mm at 90° / +45° / −45°
Blade Tilt−46° to +46°
Table and Squaring Range
Rip Fence Capacity1000–1500 mm, configuration-dependent
Squaring Capacity2200–3800 mm, configuration-dependent
Sliding CarriageSCM sliding-table platform
Panel Support PackageConfirm table, extension, fence, and support configuration
Rip FenceManual or powered programmable configuration
Scoring AdjustmentPackage-dependent
Speed ControlInverter package available according to configuration
Configuration Notes
Saw and Scoring PackageConfirm blades, scoring unit, adjustment, and guards
Electrical RequirementsConfirm voltage, phase, frequency, amperage, and certification
Extraction and GuardingConfirm outlets, airflow, overhead protection, and safety package
Installation ScopeConfirm footprint, delivery, commissioning, and operator training
Production Environments
Where the Class SI X Fits
Cabinet and Finished-Panel Production
A strong fit for finished ends, shelves, stretchers, drawer components, veneer, laminate, melamine, MDF, plywood, and decorative panel work.
Furniture and Heavy Solid-Wood Manufacturing
Supports tabletops, frames, panels, rails, posts, thick solid-wood parts, mitres, bevels, and repeat production components.
Architectural Millwork, Doors, and Stairs
Well suited to door and frame parts, stair components, angled millwork, feature elements, custom trim stock, and demanding mixed-material cutting.
High-Capacity Class Production
A substantial cutting centre for thick material, finished panels, bevel work, and repeat daily production.
The SCM Class SI X gives professional shops a stable, high-capacity platform for heavy solid wood, finished panels, left and right bevel work, repeat sizing, and demanding custom components.
Its large saw unit, scoring compatibility, substantial sliding-table architecture, and configurable control and fence packages create an organized station for moving between varied cutting requirements.
The result is a machine with serious shop-floor presence and practical versatility—built to handle thick sections and finished panels while keeping setup, support, and material movement controlled.
