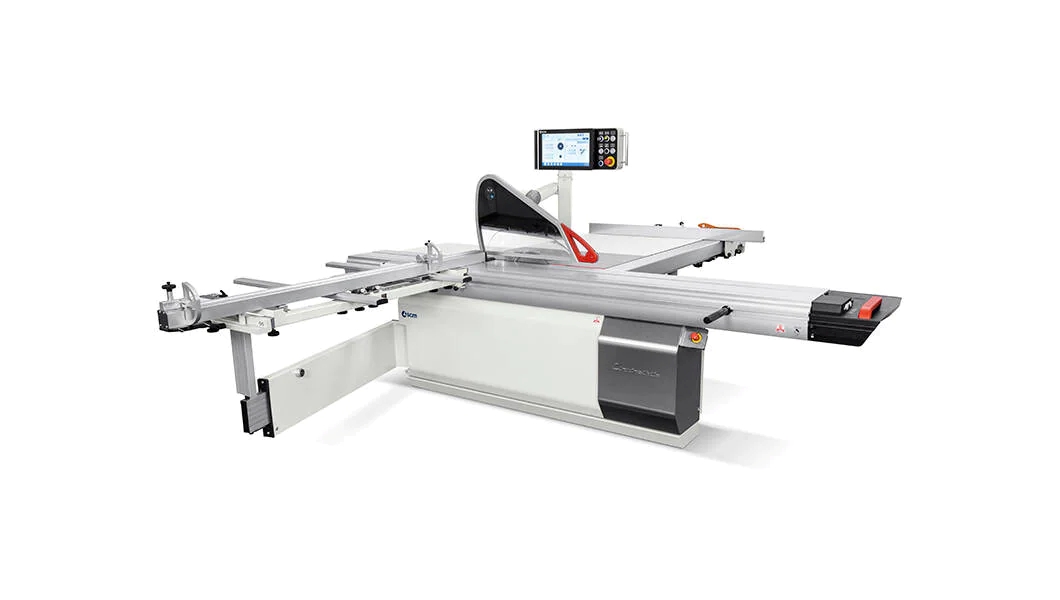

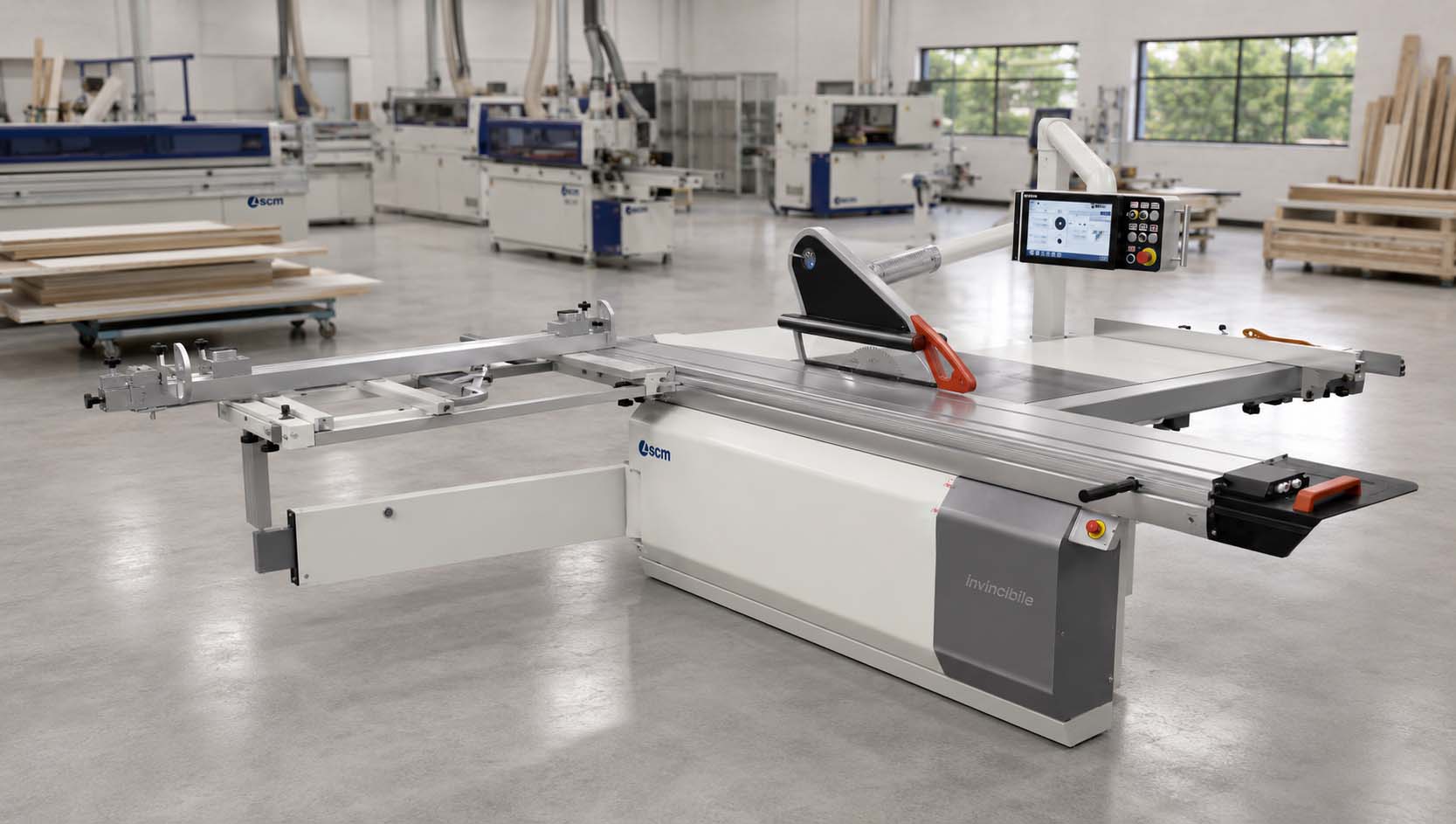

SCM L’invincibile SI 5 Sliding Table Saw
A premium L’invincibile sliding table saw for shops that need high blade capacity, scoring support, programmable rip fence control, eye-S touchscreen workflow, and long-term SCM carriage accuracy.
Premium L’invincibile cutting capacity without stepping into the SI X flagship package.
The SCM L’invincibile SI 5 is a premium sliding table saw / circular panel saw in SCM’s L’invincibile range. It is built for professional shops that need clean panel cutting, solid wood capacity, veneered-panel performance, repeatable setup, electronic control, and long-term sliding carriage accuracy.
The SI 5 sits below the flagship L’invincibile SI X and above SI 3, Class, Nova, and Minimax saw platforms. The clean distinction is that the SI 5 gives the customer premium L’invincibile control, carriage quality, 550 mm blade capacity, scoring support, and strong production accuracy without requiring the SI X double-tilting flagship package.
Best-fit shop profile
The SI 5 is the right machine conversation when a shop needs a serious premium sliding table saw for finished panel cutting and heavier solid wood work, without moving into a beam saw or the SI X flagship step.
Key Advantages
The SI 5 gives professional shops high blade capacity, scoring support, programmable setup, eye-S touchscreen operation, Maestro active workflow, SCM Thundercut compatibility, and premium L’invincibile sliding-carriage precision.
550 mm Maximum Blade
Supports serious cutting height for thick solid wood, stair parts, furniture components, doors, frames, and heavy-duty shop work.
Scoring Support
SCM lists 450 mm maximum blade capacity with mounted scorer, making the SI 5 a strong fit for clean panel cutting.
Programmable Rip Fence
The motorized programmable rip fence runs on recirculating ball screw and linear guides for faster setup and repeatable accuracy.
eye-S Control
The 15-inch eye-S touchscreen with Maestro active supports connected setup, tool data, diagnostics, and Thundercut workflow.
Applications
Veneered & Laminated Panels
Strong fit for veneered panels, laminate, melamine, MDF, plywood, particleboard, decorative panels, and cabinet sheet goods where scoring support matters.
Solid Wood Cutting
With 550 mm maximum blade diameter and 200 mm cutting height at 90°, the SI 5 is useful for thicker solid wood, stair parts, furniture components, and joinery.
Cabinet & Furniture Production
Ideal for cabinet sides, shelves, stretchers, drawer components, furniture panels, finished ends, tabletops, and precision shop cutting.
Architectural Millwork
Strong fit for veneer panels, solid wood panels, door parts, frame components, decorative panels, feature walls, stair components, and custom trim stock.
Machine Information
Premium SCM sliding table saw positioning with Titan-focused sales guidance and package confirmation notes.
The SCM L’invincibile SI 5 is a premium sliding table panel saw in SCM’s L’invincibile range. It is built for cabinet, furniture, millwork, solid wood, door, stair, and panel-processing shops that need more capacity and control than a standard sliding table saw.
SCM’s technical positioning lists 450 mm maximum saw blade diameter with mounted scorer, 550 mm maximum saw blade diameter, 200 / 130 mm blade projection at 90° / 45°, 1500 mm rip capacity, 3200–3800 mm x 3200 mm maximum squaring stroke, and 7 kW / 8 kW three-phase power depending on frequency.
The SI 5’s strongest production message is the combination of large blade capacity and scoring capability. It can be positioned for thicker solid wood cutting with the larger blade, while still supporting clean panel cutting when the scoring unit is mounted.
The workflow is built around SCM’s eye-S 15″ touchscreen, Maestro active interface, motorized programmable rip fence, SCM Thundercut connectivity, and premium arch-ground steel sliding carriage. These features help improve repeatability, setup speed, cut planning, and long-term accuracy.
Lineup Positioning
Use the SI 5 as the premium L’invincibile sliding table saw conversation when the customer needs serious capacity and electronic setup control, but does not require the SI X double-tilting flagship package.
Good: Nova / Class
Best for production shops that need dependable SCM saw performance but do not need full L’invincibile capacity and control.
Better: SI 5
Best for premium sliding-table saw customers needing 550 mm blade capacity, scoring support, programmable rip fence, and eye-S workflow.
Best: SI X
Best when the customer needs the flagship double-tilting L’invincibile platform with maximum flexibility and top-tier SI X positioning.
Technical Features
This page uses the locked SCM text-only technical feature layout with side-by-side specification cards.
Large blade capacity
The 550 mm maximum blade capacity supports thick solid wood, heavy furniture parts, stair work, doors, and demanding shop cutting.
Clean panel cutting
The 450 mm blade capacity with mounted scorer supports clean cutting for laminated, veneered, melamine, MDF, plywood, and decorative panels.
Programmable setup
The motorized programmable rip fence helps reduce setup time and improve repeat cutting accuracy on production work.
Connected workflow
eye-S control, Maestro active, and Thundercut connectivity help modernize cut planning, setup, diagnostics, and operator workflow.
Where the SI 5 Fits
High-End Cabinet Shops
Best for shops cutting finished panels, cabinet components, islands, furniture-grade parts, and precision sheet goods.
Furniture & Millwork
Supports veneer panels, solid wood panels, decorative sheet goods, frames, table parts, and architectural components.
Doors, Stairs & Solid Wood
Fits shops needing greater blade capacity for thick solid wood, stair parts, door components, frames, and joinery work.
