SCM Class F 520- Class F410
SCM Class F 520 / Class F 410 Surface Planer Jointers
Professional SCM Class surfacer planers / jointers for shops that need accurate reference faces, long-table support, wide solid-wood preparation, clean glue joints, and production-grade ergonomics.
Professional Class-series surfacing for shops that need dependable solid-wood preparation.

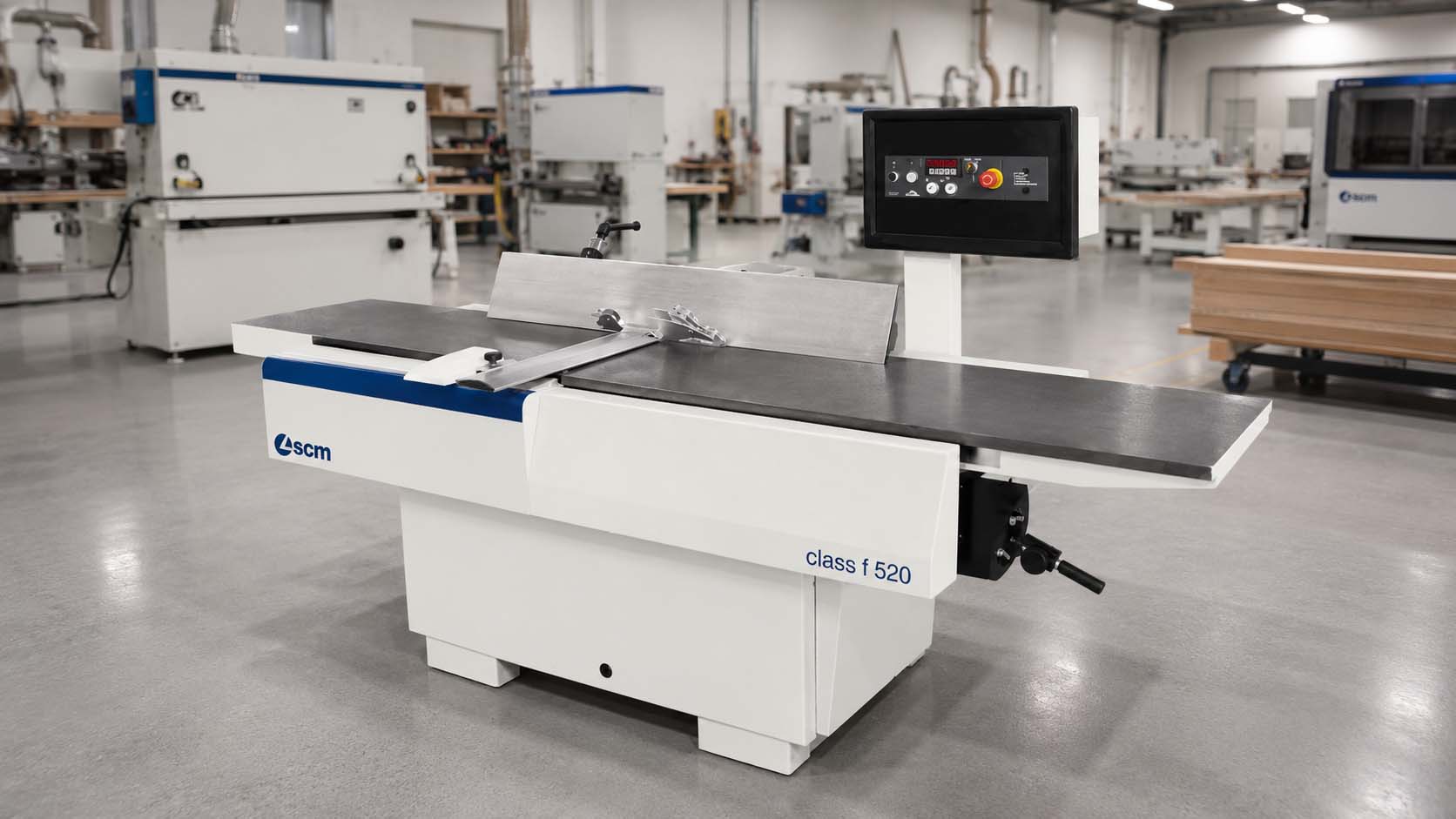

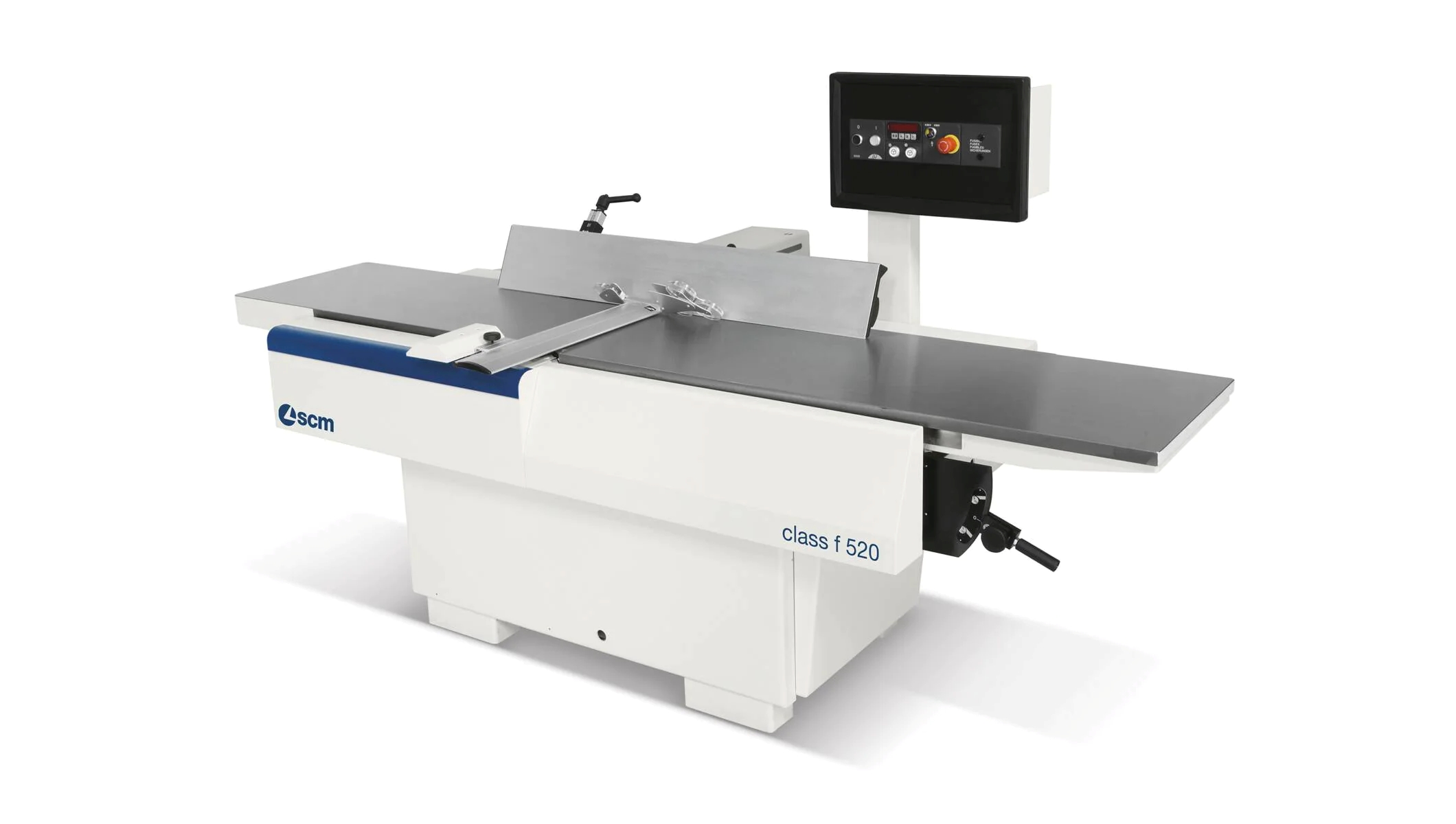

The SCM Class F 520 and Class F 410 are professional surface planer / jointer machines built for accurate face jointing, edge jointing, long-table support, and clean stock preparation before thicknessing, ripping, gluing, moulding, CNC machining, or final assembly.
For Titan, these machines sit between smaller Nova / Minimax surfacer planer options and the flagship L’invincibile F 7. They are the right conversation when a shop needs professional build quality, long tables, cutterhead upgrade options, and stronger ergonomics without jumping all the way into the premium L’invincibile platform.
Best-fit shop profile
The Class F 520 / F 410 should be positioned for professional shops fighting poor glue joints, short jointer beds, undersized working width, inconsistent reference faces, or rework caused by poor solid-wood stock preparation.
Two working widths, long cast-iron table support, Smart Lifter safety, and cutterhead upgrade flexibility.
The Class F 520 gives shops a 520 mm working width with 2750 mm total surface table length, while the Class F 410 provides a 410 mm working width with 2610 mm total table length. Both share a 120 mm cutterblock with four standard knives and available cutterhead paths including HSS, TERSA, and Xylent depending on package.
Two width choices
Quote the F 520 for wider stock and larger components, or the F 410 when the shop needs a more compact professional Class-series platform.
Long table support
The long surfacing tables help support straighter jointing on longer stock and improve operator confidence when preparing solid wood.
Smart Lifter protection
SCM’s Smart Lifter guard supports cutterhead coverage before, during, and after machining, while improving ergonomics on an operator-dependent machine.
Cutterhead upgrade path
HSS, TERSA, and Xylent options give Titan a clean way to match the machine to knife-change speed, finish quality, noise, and insert-tooling preferences.
Built for face jointing, edge jointing, glue-up preparation, wide boards, long stock, and professional solid-wood prep.
The Class F 520 / F 410 machines are designed for cabinet, furniture, millwork, door, window, and solid-wood shops where the first reference surface affects downstream machining quality.
Cabinet Shop Stock
Ideal for face-frame stock, hardwood rails and stiles, island posts, cabinet components, glue-joint preparation, and long straight edges.
Furniture Production
Useful for tabletop stock, legs, rails, wide boards, solid-wood blanks, and premium component preparation.
Architectural Millwork
Strong fit for trim stock, frames, long boards, wide custom components, and solid-wood parts requiring accurate reference faces.
Door & Window Production
Supports frame stock, stiles, rails, edge preparation, and straightening longer components before downstream machining.
Glue-Up Preparation
Helps shops prepare cleaner glue joints, straighter mating edges, and more consistent panels or laminated components.
Solid Wood Shops
Built for face jointing, edge jointing, stock flattening, glue-up preparation, and general production surfacing.
SCM Class F 520 / F 410
Professional Class-series surface planer / jointer machines for solid-wood shops that need accurate reference faces, straight edges, long-table support, and production-grade ergonomics.
The SCM Class F 520 and Class F 410 are professional surface planer / jointer machines designed for solid-wood preparation in cabinet, furniture, millwork, door, window, and general woodworking production. They are used to create accurate reference faces and straight edges before the material moves into thickness planing, ripping, gluing, moulding, CNC machining, or final assembly.
The difference between the two models is mainly working capacity. The Class F 520 provides a 520 mm working width and 2750 mm total surface table length, making it the stronger option for wider boards, larger components, and shops that want more surfacing width available on the floor. The Class F 410 provides a 410 mm working width and 2610 mm table length, making it a more compact professional option for shops that do not need the wider 520 mm platform.
Both machines share a 120 mm cutterblock with four standard knives. Dealer configuration data shows available cutterhead choices including standard HSS, TERSA, and SCM’s Xylent spiral-knife cutterblock. For Titan, that turns the machine into a clean quoting conversation: HSS is the baseline, TERSA supports faster knife changes, and Xylent is the premium option for customers focused on finish quality, lower noise, and insert-style tooling convenience.
SCM highlights Smart Lifter protection as a key Class F feature. The guard is integrated into the machine base and designed to provide coverage through vertical, horizontal, and tilted movement before, during, and after machining. For professional shops, this is a strong ergonomic and safety message because jointers are heavily operator-dependent machines.
Titan sales position
Position the Class F 520 / F 410 around accurate reference faces, cleaner glue joints, long-table support, cutterhead upgrade options, and reduced frustration in solid-wood preparation.
Choose the F 520 for wider stock. Choose the F 410 for compact professional Class-series surfacing.
Titan can keep these on one combined product page or split them into separate pages later. The customer conversation should separate the two by working width, table length, floor-space requirements, and material size.
SCM Class F 520
The wider Class model for shops processing larger boards, wider solid-wood components, higher-value furniture stock, custom panels, and production material where 520 mm width matters.
SCM Class F 410
The compact professional Class model for shops that want SCM build quality, long tables, and production-grade jointing in a 410 mm width where the wider F 520 is not required.
Use Class F 520 / F 410 as the professional middle of the SCM surfacer-planer lineup.
These machines are the better-fit Class conversation when the shop needs professional surfacing performance but does not necessarily need the full flagship L’invincibile F 7 package.
Good: Nova / Minimax
Best for smaller shops, lower-volume environments, and customers who need SCM quality in a more compact or budget-conscious package.
Better: Class F 410 / F 520
Best for professional shops that need stronger table support, wider capacity, better ergonomics, and production-grade jointer performance.
Best: L’invincibile F 7
Best for the premium 520 mm platform with full flagship positioning, high-end cutterhead options, and the strongest standalone surfacing package.
Class F 520 / F 410 specifications without table formatting.
Final published specifications should follow the quoted Titan/Canadian configuration. Confirm whether Titan wants one combined product page or separate F 520 and F 410 pages, then confirm electrical package, cutterhead, control package, Smart Lifter, dust extraction, installation, training, and service details.
For shops that need professional solid-wood surfacing without moving into the full flagship package.
The Class F 520 / F 410 should be sold as a stock-preparation improvement. The correct fit depends on typical board width, board length, species, cutterhead preference, glue-up workflow, dust collection, electrical requirements, and whether the shop needs the F 410, F 520, or L’invincibile F 7.
Strong fit for
Professional shops that need better surfacing quality, longer table support, wider capacity options, and cleaner reference faces before downstream production.
Confirm during quoting
The Class F 520 / F 410 pair is package dependent. Final customer-facing publishing should match Titan’s quoted Canadian configuration.
Request an SCM Class F 520 / F 410 machine quote.
Send Titan your stock widths, board lengths, species, current jointer limitations, cutterhead preference, glue-up workflow, dust collection, shop power, and installation requirements. We will help confirm whether the Class F 410, Class F 520, or L’invincibile F 7 is the right fit.
