SCM Formula S440P - S940P

SCM Formula · S440P–S940P

SCM Formula S440P–S940P Bandsaw Series

A six-model professional-to-industrial vertical bandsaw family built for resawing, straight cutting, curve work, veneer preparation, furniture components, millwork, training environments, and heavier solid-wood production.

6 ModelsProfessional-to-industrial lineup

440–940 mmFlywheel diameter range

425–920 mmPublished cutting-width range

0°–45°Tilting cast-iron worktable

Request Machine Quote

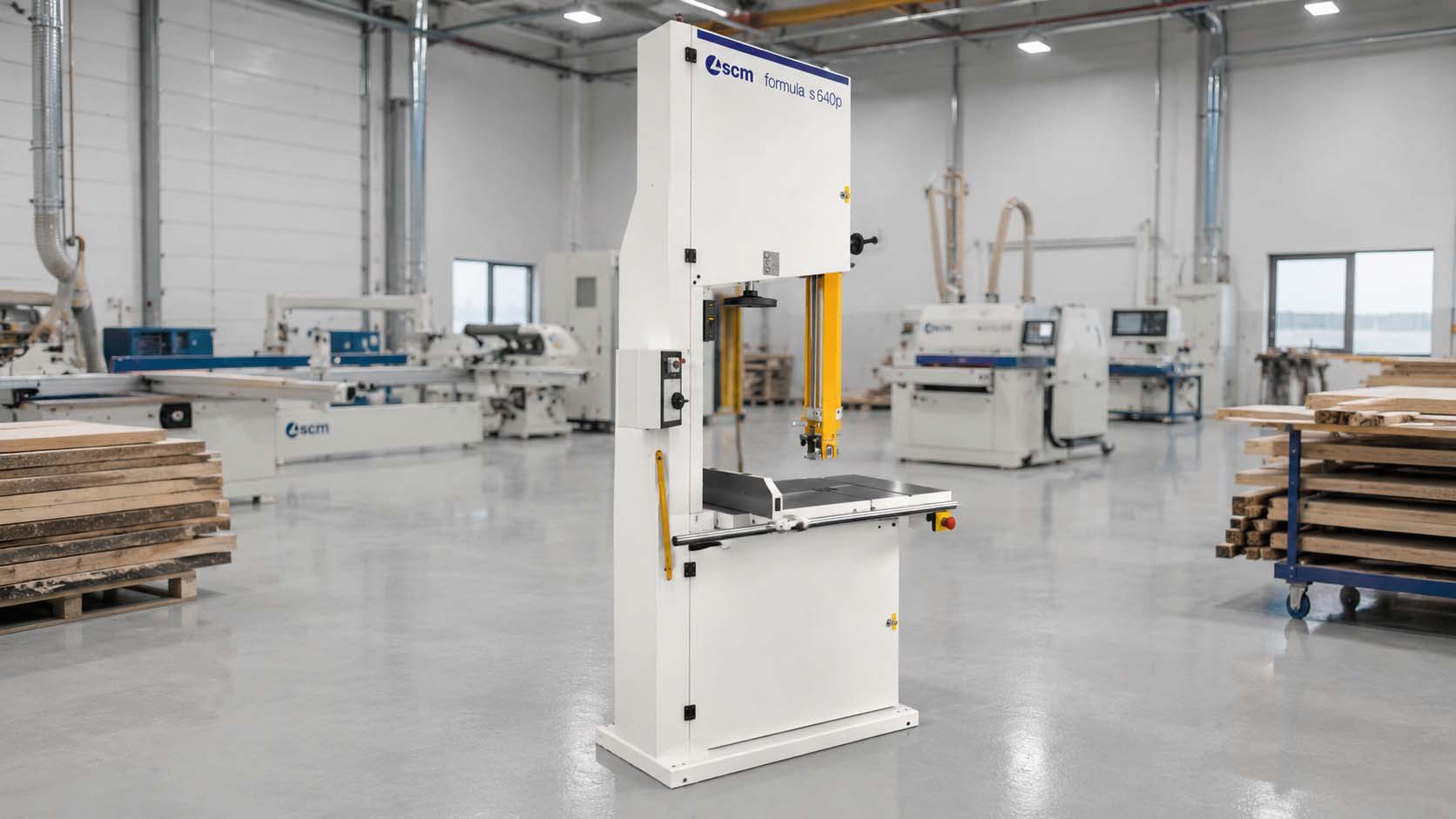

SCM Formula S440P to S940P professional and industrial vertical bandsaw series

Machine Overview

A scalable bandsaw platform for professional shops, resaw departments, and industrial solid-wood production.

The SCM Formula S440P–S940P range covers six vertical bandsaw models, beginning with compact professional-shop capacity and progressing into larger industrial machines for wide stock, thick sections, veneer preparation, and demanding resaw applications.

Across the family, published specifications identify 440–940 mm flywheels, 425–920 mm cutting widths, model-dependent cutting heights from 440 to 600 mm, and worktables that tilt from 0° to 45° for straight and angled cutting.

Cast-iron wheels and worktables, sealed-for-life bearings, telescopic blade protection, and high-precision upper and lower blade guides create a stable platform for solid wood, curved components, patterns, selected plastics, aluminum, and other materials when the correct blade and setup are used.

440–600 mmPublished cutting-height range

3950–6710 mmPublished blade-length range

2 × 120 / 2 × 140 mmModel-dependent dust connections

Cast IronWheels and worktable construction

Capability Matrix

Five cutting modes spanning daily shop work, resaw production, shaped parts, and material-specific applications.

The Formula range combines model-scaled throat and height capacity with controlled blade guidance, tilting cast-iron tables, and blade selection matched to the workpiece.

Mode 01

Solid-Wood Resawing

Boards, slabs, blocks, hardwood, and softwood can be divided into thinner stock or production blanks within the selected model’s published width and height capacity.

Mode 02

Straight Rip Cutting

The fence, rigid frame, cast-iron wheels, and guided blade system support controlled straight cutting for rails, stiles, frame stock, furniture parts, and general shop components.

Mode 03

Curve and Pattern Work

Narrower blade packages can support curves, templates, shaped furniture parts, stair components, railing work, and architectural millwork patterns.

Mode 04

Veneer and Thin Stock

Appropriate resaw blades and setup can prepare veneers and thin stock from larger boards while preserving a conventional operator-controlled cutting process.

Mode 05

Material-Specific Cutting

With the correct blade, speed strategy, and machine setup, the range can support selected plastics, aluminum, and advanced materials in addition to wood.

Production Advantages

Built around stable blade tracking, model-scaled capacity, and controlled professional cutting.

The Formula family gives buyers a consistent SCM construction philosophy while allowing capacity to be selected around the workpiece, resaw height, cutting width, blade package, and shop power.

Cast-Iron Stability

Heavy cast-iron wheels and worktables support stable blade tracking, controlled vibration, and a solid cutting platform for daily professional use.

Precision Blade Control

High-precision upper and lower blade guides, sealed-for-life wheel bearings, and telescopic blade protection support accurate, controlled operation.

Capacity That Scales

Six models allow the machine package to grow from professional-shop use through large industrial resaw work without leaving the Formula platform.

Equipment Range

Lineup Positioning

Professional Shop Range

S440P / S540P

The compact professional end of the family, suited to cabinet shops, furniture makers, schools, and general solid-wood work requiring 440 or 540 mm flywheels and accessible shop capacity.

High-Capacity Professional Range

S640P / S740P

The middle of the lineup adds greater width and resaw capacity for heavier stock, millwork, thick components, and production departments moving beyond compact bandsaws.

Industrial Formula Range

S840P / S940P

The largest Formula models provide 840 or 940 mm flywheels, up to 920 mm cutting width, larger extraction connections, and the broadest industrial capacity in the series.

Technical Specifications

SCM Formula · S440P–S940P

Machine Profile

ManufacturerSCM
SeriesFormula
ModelsS440P / S540P / S640P / S740P / S840P / S940P
Machine TypeProfessional and industrial vertical bandsaw family

Professional Models

S440P440 mm flywheel · 425 mm cutting width · 440 mm cutting height
S540P540 mm flywheel · 520 mm cutting width · 500 mm cutting height
S640P640 mm flywheel · 620 mm cutting width · 600 mm cutting height
S740P740 mm flywheel · 720 mm cutting width · 450 mm cutting height

Industrial Models

S840P840 mm flywheel · 820 mm cutting width · 540 mm cutting height
S940P940 mm flywheel · 920 mm cutting width · 560 mm cutting height
Flywheel Range440–940 mm / 17–37 in
Worktable Tilt0°–45°

Blade System

Blade Length Range3950–6710 mm across the published model range
Blade Width RangeApprox. 1/4 in minimum to 2 in maximum on larger models
Blade GuidesHigh-precision upper and lower guides
Blade ProtectionTelescopic blade protection

Construction and Extraction

Wheel ConstructionCast iron
Wheel BearingsSealed for life
Worktable ConstructionCast iron
Dust Connections2 × 120 mm through S740P · 2 × 140 mm on S840P and S940P

Configuration and Support

Motor PackageModel- and market-specific; confirm final quotation
ElectricalSingle- or three-phase availability depends on model and market; confirm voltage and CSA package
Blade PackageStarter, resaw, curve, and material-specific blades selected to the application
Project SupportDust extraction, installation, operator training, warranty, and service package

Production Environments

Where the Formula Bandsaw Range Fits

A model-scaled cutting platform for professional woodworking, resaw departments, schools, millwork production, and industrial solid-wood processing.

Cabinet, Furniture, and Custom Shops

Supports furniture blanks, frames, face-frame material, curved components, templates, hardwood, softwood, and everyday professional solid-wood cutting.

Millwork and Resaw Departments

Fits architectural millwork, stair and railing work, thick stock, slabs, blocks, veneer preparation, patterns, and repeated resaw applications.

Schools and Material-Specific Shops

Provides a professional training platform and can support selected plastics, aluminum, and advanced materials with the correct blade, guarding, and setup.

Professional Bandsaw Capacity

A serious vertical bandsaw platform with the scale to stay useful as the work gets wider, thicker, and more demanding.

The Formula range combines familiar operator control with a heavier SCM construction package built around cast-iron wheels, cast-iron tables, guided blade tracking, and protected working access.

From the S440P through the S940P, the model progression allows a shop to select the throat, cutting height, blade package, extraction, and electrical configuration around real workpiece demands rather than forcing every application into one machine size.

For furniture, cabinet, millwork, veneer, pattern, training, and industrial resaw environments, the result is a focused cutting station that feels planted on the floor and adaptable across a broad mix of solid-wood work.

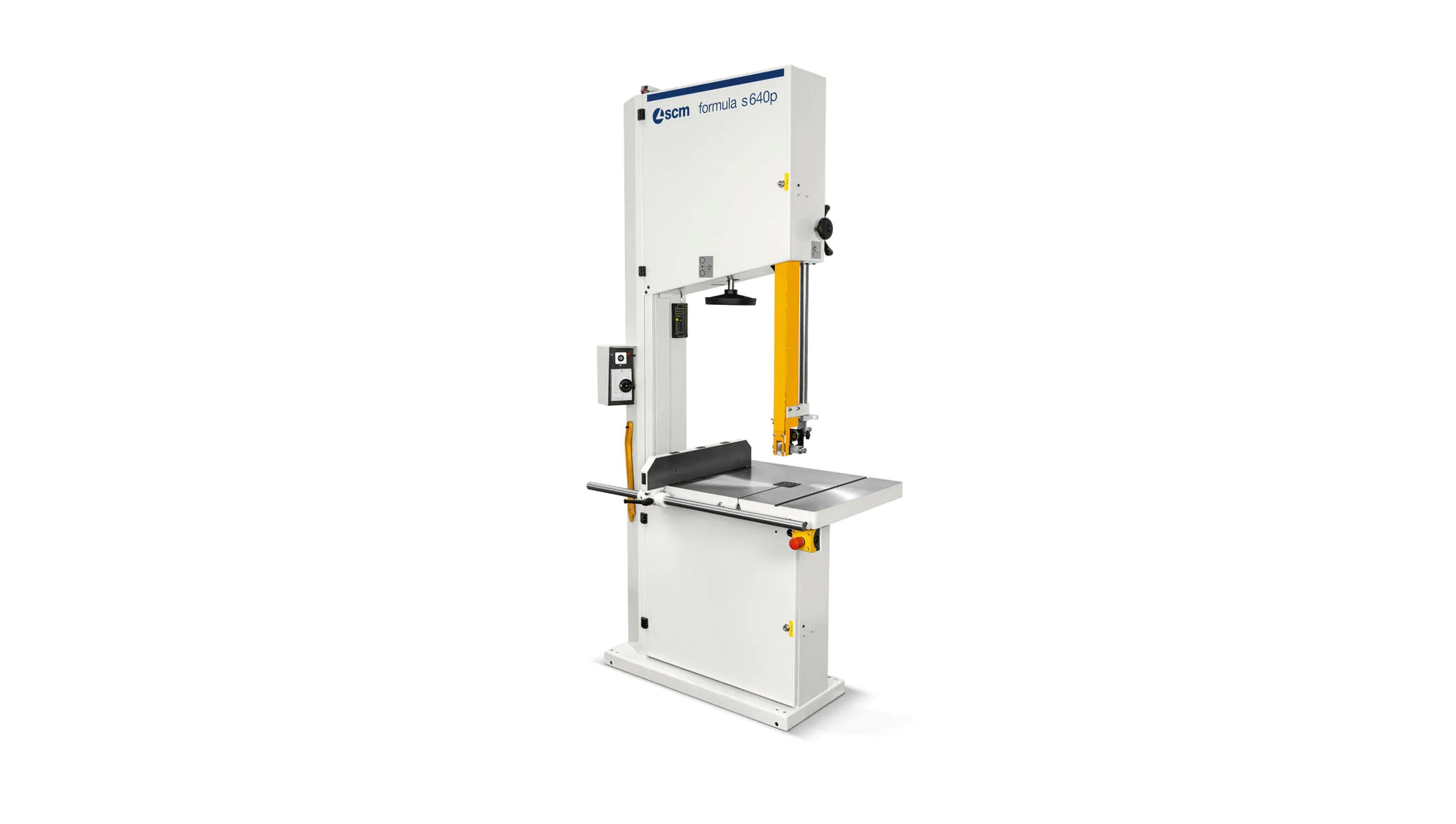

Legacy SCM Formula S440P to S940P bandsaw series image retained from the previous machine page
