A flagship double-tilting sliding table saw for premium panel and solid-wood cutting with 550 mm blade capacity, scoring support, eye-S control, and long-stroke squaring capability.
Flagship cutting capacity, double-tilt versatility, electronic setup control, and premium sliding-carriage support in one saw platform.

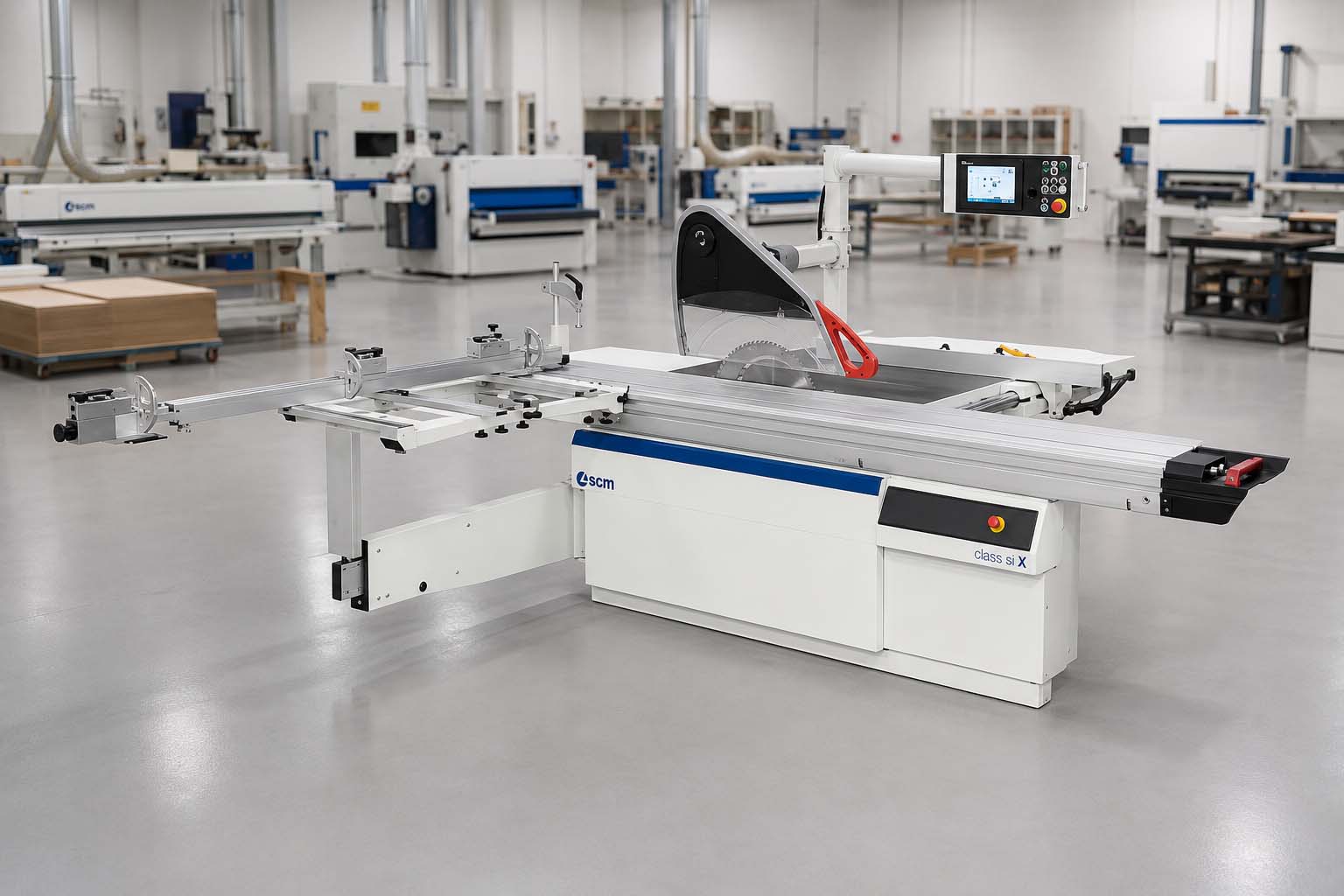

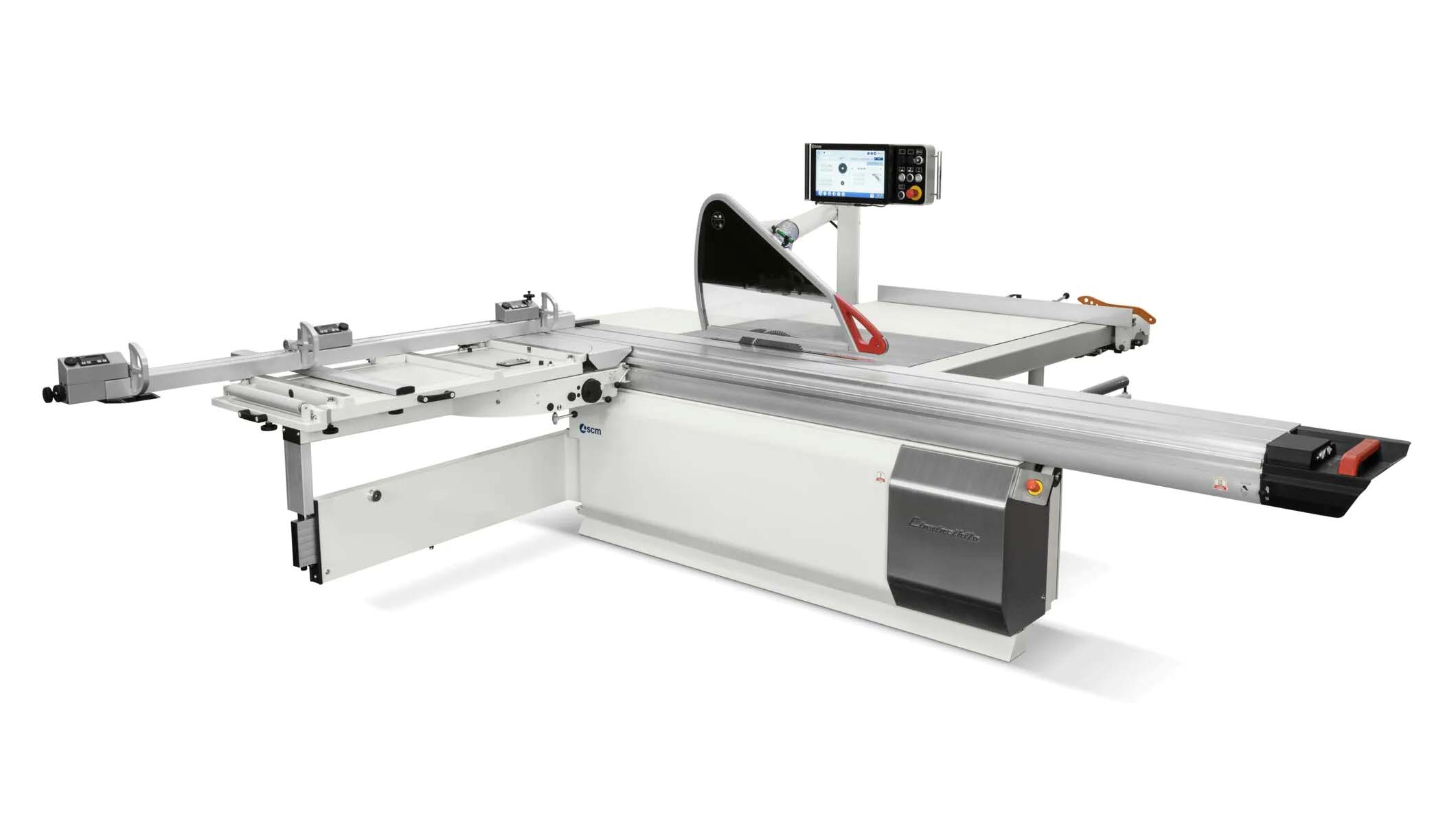

The SCM L'invincibile SI X is the flagship sliding table saw in SCM's L'invincibile range, built for professional shops cutting premium sheet goods, veneered panels, thick solid wood, doors, frames, stair parts, furniture components, and architectural millwork.
Published technical positioning includes a 550 mm maximum main blade with mounted scorer, 160 mm scoring-blade compatibility, ±46° blade tilt, blade projection of 200 / 130 / 105 mm at 90° / +46° / -46°, 3000–5000 rpm blade speed, 1500 mm rip capacity, and available squaring strokes from 2200 to 3800 mm.
The eye-S 15-inch touchscreen and Maestro active interface support electronic setup, tool data, diagnostics, reporting, and connected workflow functions. Final scoring package, carriage length, fence systems, guarding, electrical configuration, extraction, installation, training, and service scope remain configuration-dependent.
550 mmMain Blade Capacity
200 mmProjection at 90°
±46°Double Blade Tilt
2200–3800 mmSquaring Stroke
Capability Matrix
One flagship sliding table saw. Five focused cutting capabilities.
The SI X combines precision rip and crosscut work, scoring support, double-tilt geometry, long-stroke panel handling, and electronic setup assistance.
Mode 01
Precision Rip Cutting
Supports repeat straight-line cutting of panels and solid wood with a published rip capacity of 1500 mm.
Mode 02
Crosscut and Squaring
Available 2200 / 3200 / 3800 mm carriage strokes support large panels, long components, and accurate squaring work.
Mode 03
Scored Panel Cutting
A 160 mm scoring-blade-compatible configuration supports clean results on veneer, laminate, melamine, and surface-sensitive panels.
Mode 04
Double-Tilt Bevel Work
The ±46° blade range supports bevels, mitres, compound geometry, stair parts, frames, and specialty joinery cuts.
Mode 05
Electronic Setup Workflow
eye-S and Maestro active support program data, tool information, diagnostics, reporting, and connected cut-list workflow options.
Production Advantages
Built around cutting precision, broad material flexibility, and faster electronic setup control.
The SI X brings together SCM carriage engineering, high blade capacity, double tilt, and connected operator support for premium mixed-production shops.
Premium Carriage Precision
SCM arch-ground steel slideway construction supports smooth travel, squareness, panel support, and repeatable long-term cutting accuracy.
Panel and Solid-Wood Range
The main-blade and scoring configuration supports clean sheet-good work while retaining capacity for thick solid-wood parts.
Connected Operator Workflow
eye-S, Maestro active, diagnostics, reporting, tele-service, and Thundercut compatibility support a modern production workflow.
Equipment Range
Lineup Positioning
Compact and Conventional Cutting
Minimax / Nova Sliding Saws
A practical path for smaller shops and lower-volume work requiring SCM sliding-saw fundamentals in a compact or value-focused package.
Professional Production Cutting
SCM Class / SI 5
Adds stronger production capability, professional controls, and broader configuration flexibility for regular panel and solid-wood work.
Flagship Double-Tilt Cutting
SCM L'invincibile SI X
Adds 550 mm blade capacity, scoring support, ±46° tilt, eye-S control, long carriage options, and premium sliding accuracy.
Technical Specifications
L'invincibile SI X
Machine Profile
ManufacturerSCM
SeriesL'invincibile
ModelSI X
Machine TypeDouble-tilting sliding table saw
Blade Capacity
Main Blade Diameter550 mm max. with mounted scorer
Scoring Blade160 mm compatible configuration
Blade Projection200 / 130 / 105 mm
Blade Speed3000–5000 rpm
Cutting Geometry
Blade Tilt±46°
Projection Reference90° / +46° / -46°
Rip Capacity1500 mm official baseline
Primary GeometryRip / crosscut / bevel / mitre
Carriage and Capacity
Available Squaring Stroke2200 / 3200 / 3800 mm
Carriage SystemSCM arch-ground steel slideways
Panel SupportSliding table and squaring-frame package
A premium cutting centre for shops that expect clean panels, heavy solid-wood capacity, and precise electronic setup.
The L'invincibile SI X gives demanding cabinet, furniture, millwork, door, stair, and solid-wood shops a polished sliding-saw platform with serious physical capacity and refined operator control.
Its long carriage, high blade capacity, scoring support, double tilt, and electronic interface create a versatile station for changing between finished panels, thick wood, bevel work, mitres, and repeat production parts.
The result is a professional saw cell that looks composed on the shop floor, supports accurate material handling, and keeps complex cutting work centred around one premium SCM platform.
