SCM Profiset 40

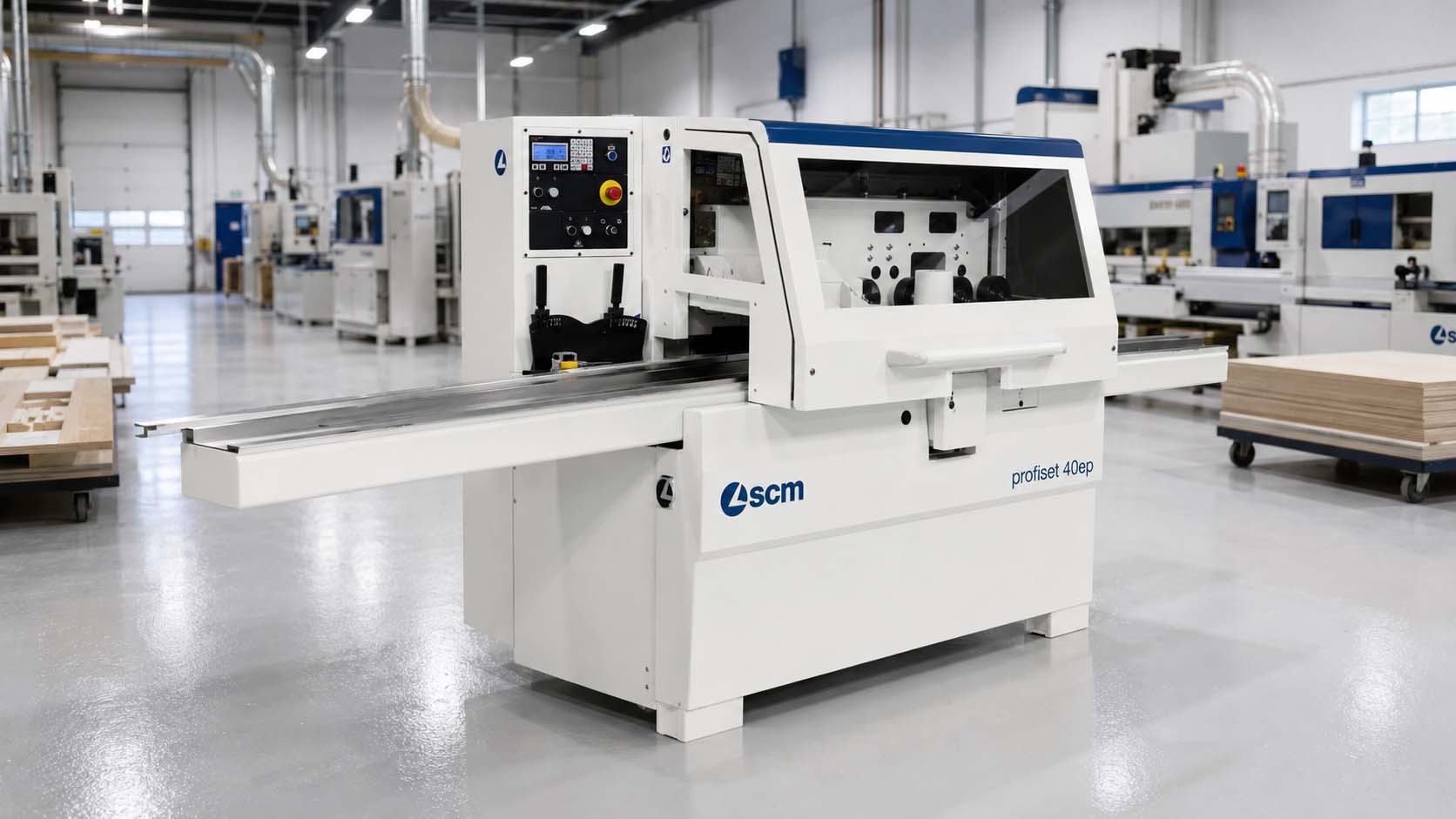

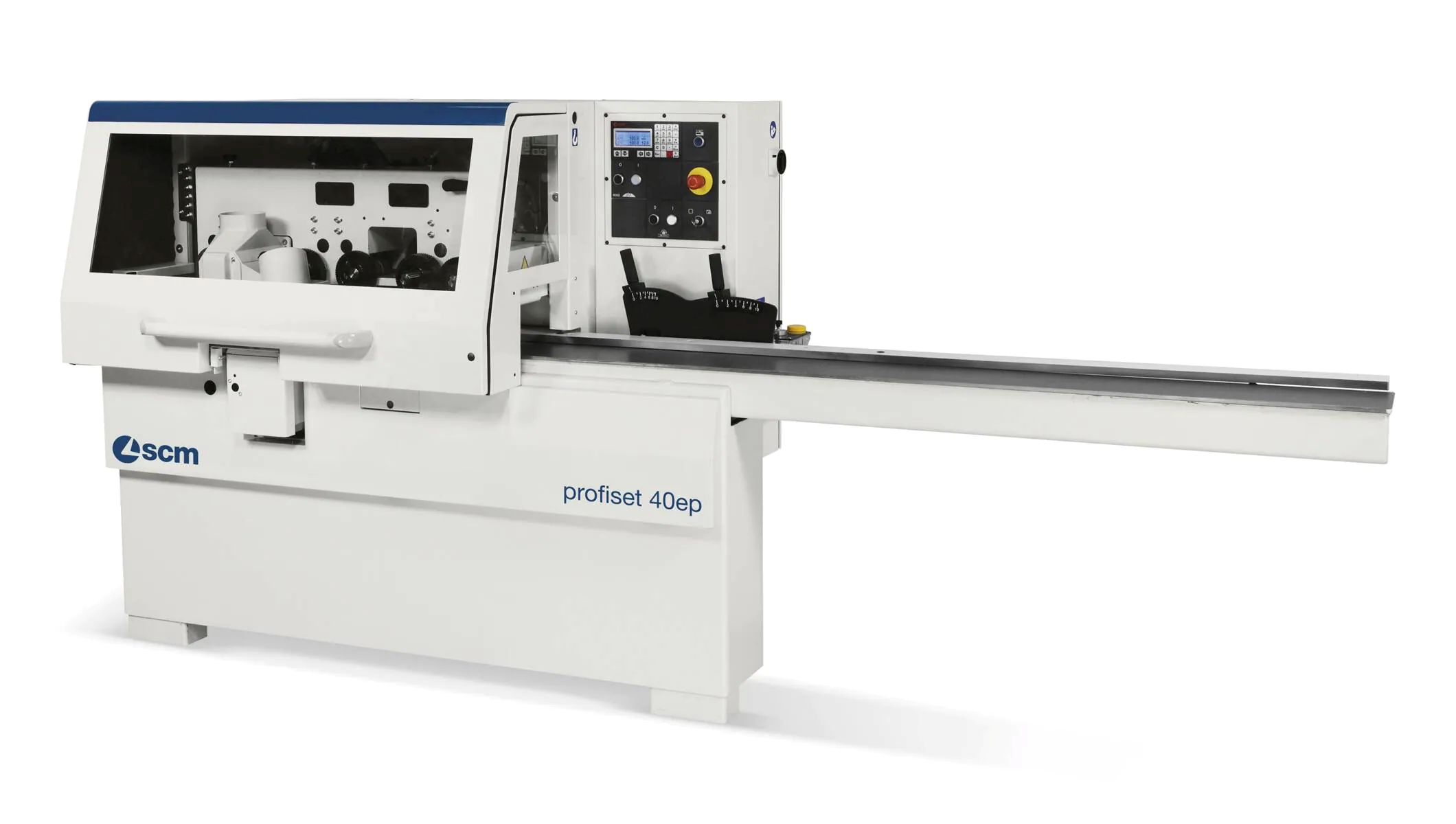

SCM Profiset 40 Automatic Planer & Throughfeed Moulder
A compact 4-spindle automatic planer and throughfeed moulder for shops that need clean four-sided planing, repeatable S4S stock, light profiling, cabinet components, furniture parts, millwork stock, door and window components, stair parts, and solid-wood production flow.
The compact SCM entry point into automatic four-sided planing and light profile production.
The SCM Profiset 40 is a compact automatic planer and throughfeed moulder designed for shops that need more consistency and efficiency than a traditional manual surfacing workflow can provide.
For Titan, the Profiset 40 should be positioned as the entry-level automatic throughfeed moulder in the Profiset family. It is not the machine for heavy profile production or complex spindle layouts. Its strength is compact four-sided planing, repeatable setup, limited profiling through the vertical spindles, and a smaller footprint for shops that need production consistency without overbuying machine capacity.
Best-fit shop profile
The Profiset 40 is the right machine conversation when a smaller or growing shop wants to remove surfacing bottlenecks, reduce manual handling, and create repeatable four-sided stock without stepping into the Profiset 60 or Superset platform.
Compact 4-head throughfeed control for reliable four-sided planing and light profiling.
The Profiset 40 gives small-to-mid-size production shops a compact SCM platform with 4 spindles, 23–180 mm finished working width, 6–105 mm finished working height, 6–12 m/min feed speed, 6000 rpm spindle speed, and 10 mm profiling capacity through the vertical spindles.
4-spindle layout
Four working heads give shops a compact throughfeed process for surfacing and light profile work without stepping into a larger 5- or 6-head moulder.
Light profiling capability
The 10 mm profiling capacity through the vertical spindles supports eased edges, small decorative profiles, simple profile work, and compact production runs.
Compact working section
The 180 x 105 mm working envelope is a good fit for typical cabinet, furniture, trim, joinery, stair, railing, and solid-wood component work.
Operator-friendly setup
Front-positioned controls, mechanical decimal readouts, worktable lubrication, cast-iron tables, and an idle outfeed roller support practical daily use.
Built for face-frame stock, furniture parts, simple millwork profiles, stair stock, and S4S solid wood.
The Profiset 40 is designed for shops that need to process solid-wood components through a controlled throughfeed sequence instead of moving parts across separate manual machines.
Cabinet Shop Stock
Strong fit for face-frame stock, solid-wood rails and stiles, simple cabinet components, square stock preparation, and light decorative profiles.
Furniture Production
Useful for leg blanks, rails, frame parts, straight components, small mouldings, and repeatable solid-wood stock preparation.
Architectural Millwork
A practical machine for straight trim, simple mouldings, frame stock, small casing-style profiles, and consistent four-sided planed material.
Door & Window Components
Good fit for smaller frame components, beads, light profile stock, and straight planed sections where a compact moulder is enough.
Stair & Railing Parts
Useful for linear parts, smaller rails, blocking, trim stock, and repeatable surfaced components that benefit from four-sided machining.
S4S Solid Wood Production
Supports S4S planing, straightening, light profile work, and production stock preparation in a compact throughfeed workflow.
SCM Profiset 40
A compact 4-spindle automatic planer and throughfeed moulder for repeatable four-sided planing, light profiling, S4S stock preparation, and smaller solid-wood production workflows.
The SCM Profiset 40 is a compact automatic planer and throughfeed moulder designed for shops that need more consistency and efficiency than a traditional manual surfacing workflow can provide. It combines four-sided planing and light profiling capability in a small-footprint SCM platform.
SCM lists the Profiset 40 as a 4-spindle automatic planer and throughfeed moulder with 10 mm profiling capacity by means of vertical spindles. Its official working range is 23–180 mm in finished width and 6–105 mm in finished height, with 6–12 m/min feed speed and 6000 rpm spindle speed.
The Profiset 40 is especially useful for shops trying to reduce material handling. Instead of surfacing and shaping parts across multiple separate machines, the operator feeds material through a controlled sequence, helping create more consistent stock and reducing process variation.
The machine is also designed with operator access in mind. SCM highlights controls positioned at the operator’s fingertips, a manual pump for worktable lubrication located in the working area, and an idle outfeed roller that improves feeding and finish quality. Dealer technical copy adds heavy ribbed steel-base construction, cast-iron worktables, steel feed rollers, and front-side adjustment of working units using mechanical decimal readouts.
Titan sales position
Position the Profiset 40 as the compact production improvement for shops losing time moving parts between separate surfacing and shaping machines. The sales story is cleaner workflow, fewer handling steps, repeatable four-sided stock, light profiling capability, and a practical path into throughfeed moulding.
Use the Profiset 40 as the compact entry point into SCM throughfeed moulding.
The Profiset 40 sits below the Profiset 60 and larger Superset / Topset industrial moulder platforms. It is the compact, practical 4-spindle machine for shops that need reliable four-sided planing with light profile capability.
Good: Profiset 40
Best for shops needing a compact 4-spindle four-sided planer/moulder for smaller shops, basic automatic planing, and light profiling.
Better: Profiset 60
Best when the shop needs more spindle flexibility, larger working capacity, faster feed speed, and a stronger growth platform.
Best: Superset / Topset
Best when the customer needs full industrial moulder platforms, heavier production, advanced profile work, and higher configuration depth.
Profiset 40 specifications without table formatting.
Final published specifications should follow the quoted Titan/Canadian configuration. Confirm exact Profiset 40 versus Profiset 40EP package, READY electronic control, motor package, tooling package, infeed table, dust extraction, voltage, delivery, installation, training, and service package before SKU-level publishing.
For shops that need repeatable four-sided planing without overcomplicating the floor.
The Profiset 40 should be sold as a compact production improvement, not just a machine. The right package needs to include tooling, dust extraction, infeed/outfeed support, electrical confirmation, operator training, and a clear understanding of the customer’s part sizes and profile requirements.
Strong fit for
Small-to-mid-size shops that need repeatable stock preparation and light profile work without stepping into larger Profiset 60 or Superset-class platforms.
Confirm during quoting
The Profiset 40 is configuration dependent. Final customer-facing publishing should match the quoted Titan/Canadian configuration.
Request an SCM Profiset 40 machine quote.
Send Titan your part sizes, profile needs, material types, current surfacing workflow, tooling requirements, dust collection, shop power, and layout. We will help confirm whether the Profiset 40 or Profiset 40EP is the right compact throughfeed planer/moulder package for your shop.
