A compact professional vertical panel saw for accurate horizontal and vertical sheet cutting, with paired scoring blades for improved edge quality on cabinet, closet, furniture, and millwork panels.
Compact vertical panel sizing with paired scoring support for cleaner horizontal and vertical cuts.

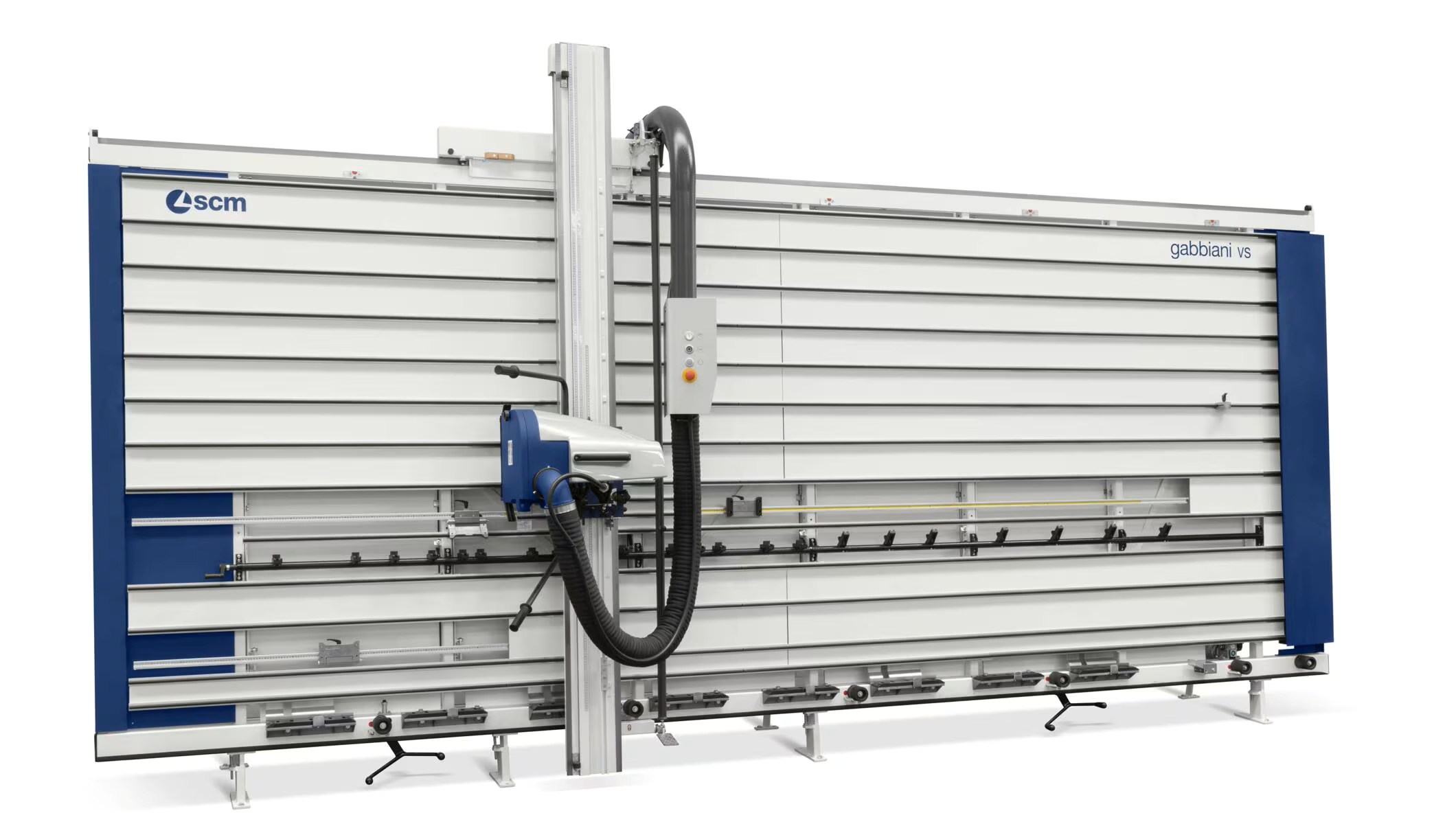

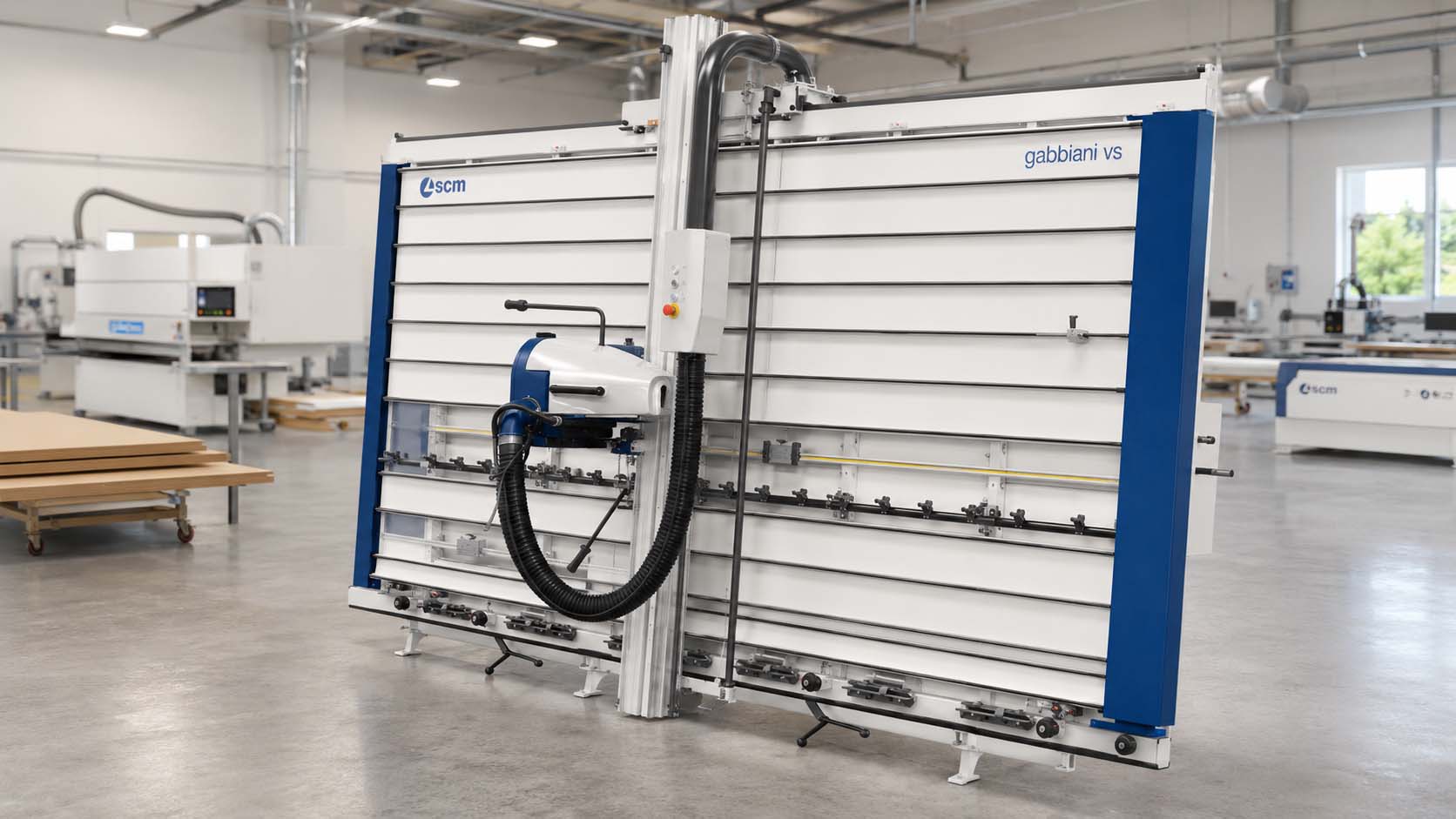

The SCM Gabbiani VS is a professional vertical panel saw for cabinet, closet, furniture, casework, school, fixture, and architectural millwork operations that need accurate sheet sizing without the floor-space demand of a horizontal beam-saw cell.
VS32 and VS42 formats support 3200 mm or 4200 mm cut length, with maximum vertical cut height listed at 1900 mm or 2200 mm by model. The family also lists 60 mm maximum cutting thickness, a 250 mm main blade, 5300 rpm blade speed, and 3.7 kW motor power.
A paired scoring system with two blades improves cut quality on coated and surface-sensitive materials. Manual, electric, or pneumatic worktable movement may be selected by configuration, so the final package should be matched to panel size, handling preferences, and production flow.
3200 / 4200 mmCut Length
1900 / 2200 mmVertical Cut Height
60 mmMaximum Thickness
3.7 kW · 5300 rpmMotor and Speed
Capability Matrix
One compact vertical panel saw. Five focused cutting-room capabilities.
The Gabbiani VS combines upright panel support, horizontal and vertical cutting, paired scoring, selectable worktable movement, and a compact production footprint.
Mode 01
Vertical Panel Cutting
Processes full-size sheets and panel components vertically while the material remains supported against the machine frame.
Mode 02
Horizontal Panel Cutting
Supports horizontal sizing for cabinet parts, shelves, partitions, backs, furniture panels, and other sheet-good components.
Mode 03
Paired Scoring Blades
A two-blade scoring system improves edge quality on melamine, laminate, veneered panels, and other surface-sensitive sheet materials.
Mode 04
Selectable Worktable Movement
Manual, electric, or pneumatic worktable movement may be selected by configuration to match handling preference and production flow.
Mode 05
Compact Upright Handling
The vertical architecture keeps panels upright and concentrates sheet sizing into a smaller floor area than many horizontal workflows.
Production Advantages
Built for cleaner panel edges, compact floor use, and practical upright handling.
The VS adds paired scoring support and configurable panel handling to the daily cutting workflow for coated, laminated, and general wood-based panels.
Improved Surface-Sensitive Cutting
Paired scoring blades help reduce edge damage when processing melamine, laminate, veneered panels, and other finished sheet materials.
Compact Production Footprint
The upright layout supports professional panel sizing without the large loading and outfeed footprint associated with many horizontal saw systems.
Configurable Panel Handling
Manual, electric, or pneumatic worktable movement can be selected by package to suit operator preference and production requirements.
Equipment Range
Lineup Positioning
Manual Sheet Breakdown
Track Saw or Sliding-Table Saw
Suitable for lower-volume work where the operator manually stages, measures, supports, and repositions the sheet for each cut.
Conventional Vertical Cutting
Basic Vertical Panel Saw
Adds upright sheet support and a dedicated vertical cutting station for compact panel breakdown and repeat sizing.
Scored Professional Vertical Saw
SCM Gabbiani VS32 / VS42
Adds paired scoring blades, 3200 mm or 4200 mm cut-length formats, selectable worktable movement, and professional upright panel handling.
Technical Specifications
Gabbiani VS32 / VS42
Machine Profile
ManufacturerSCM
SeriesGabbiani
ModelsVS32 / VS42
Machine TypeScoring vertical panel saw
Cutting Capacity
Cut Length3200 / 4200 mm by model
Maximum Vertical Cut Height1900 / 2200 mm by model
Maximum Cutting Thickness60 mm
Cutting OrientationHorizontal and vertical
Saw and Scoring System
Scoring SystemPaired scoring blades
Main Blade Diameter250 mm
Motor Power3.7 kW
Blade Speed5300 rpm
Handling Configuration
Worktable MovementManual, electric, or pneumatic by package
Stops and PositioningConfiguration-dependent
Measuring SupportDigital display available by package
Small-Panel SupportReview with selected configuration
Materials and Applications
Panel MaterialsMDF, plywood, particleboard and melamine
Surface-Sensitive WorkLaminate, coated and veneered panels
Production UsesCabinet, closet, casework and furniture
Downstream WorkEdgebanding, boring, CNC and assembly
Project Configuration
Format SelectionVS32 or VS42
Worktable PackageManual / electric / pneumatic review
Blade PackageMain blade and scoring-blade review
Site and UtilitiesFootprint, electrical, extraction and installation
Production Environments
Where the Gabbiani VS Fits
A practical fit for shops that need compact vertical sheet handling, scoring support, and reliable horizontal and vertical panel sizing.
Cabinet and Closet Manufacturing
Cuts sides, shelves, partitions, backs, fillers, drawer parts, and system panels before edgebanding, boring, CNC work, or assembly.
Furniture and Casework Production
Supports repeat sizing of MDF, plywood, particleboard, melamine, laminate, and veneered components for furniture and casework.
Architectural Millwork and Training Shops
Fits decorative-panel, wall-panel, fixture, custom millwork, school, and mixed sheet-goods environments with limited floor space.
Compact Panel Cutting · Paired Scoring Support
A vertical panel saw that brings cleaner sheet sizing into an organized, space-conscious cutting station.
The Gabbiani VS keeps large panels supported upright while the saw carriage manages horizontal and vertical cutting across the machine frame.
Its paired scoring-blade system gives coated, laminated, and veneered materials a more suitable cutting approach than a basic single-blade vertical saw.
For cabinet, closet, furniture, casework, school, and architectural millwork operations, the result is a dedicated panel-sizing workflow that fits naturally ahead of edgebanding, boring, CNC machining, finishing, and assembly.
