Stock is positioned on the selected support system, held by the upper presser and cut through an ergonomic two-hand cycle without optimizer programming.

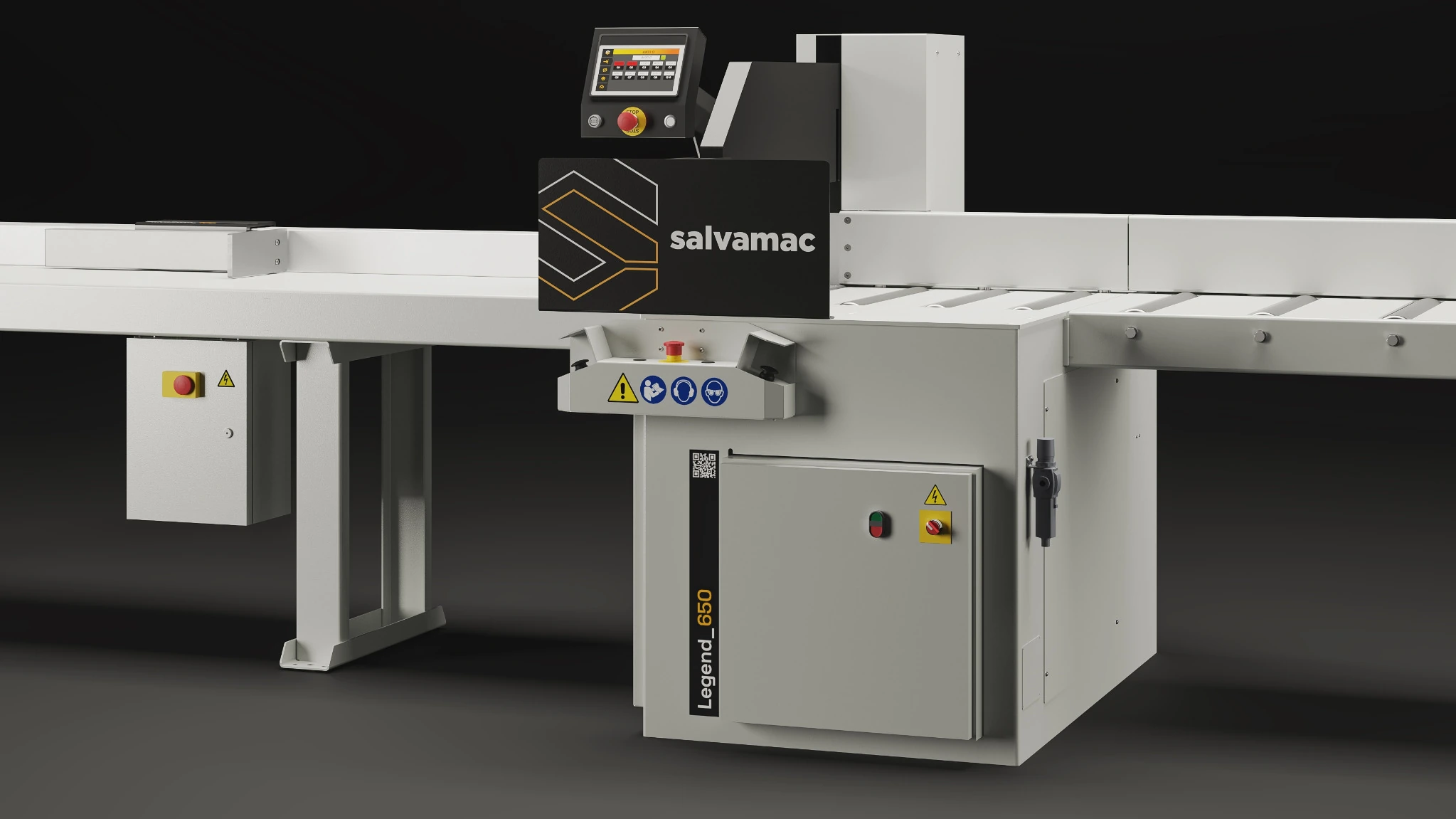

Salvamac Legend 650
Heavy-section cross-cutting
Salvamac Legend lineLegend 650
The highest-capacity Legend crosscut saw, combining a 650 mm tilting-blade system, 11 kW motor and guarded pneumatic workholding for solid-wood sections up to 200 mm thick.
Executive overview
The Legend platform at maximum section capacity.
Legend 650 is the largest semi-automatic saw in Salvamac’s Legend family. Its 650 mm blade, 11 kW motor and tilting cutting movement support documented section combinations of 300 × 200 mm, 435 × 150 mm, 490 × 120 mm and 610 × 30 mm.
Tilting-blade movement
Heavy-section platform
Two-hand safety control
Electro-pneumatic presser
Thick painted hard steel, reinforced construction and flanged floor anchoring create a stable base for wide and heavy solid-wood sections.
The guarded blade system, fixed protection, emergency controls, electro-pneumatic presser and two-hand start separate the operator from the cutting stroke.

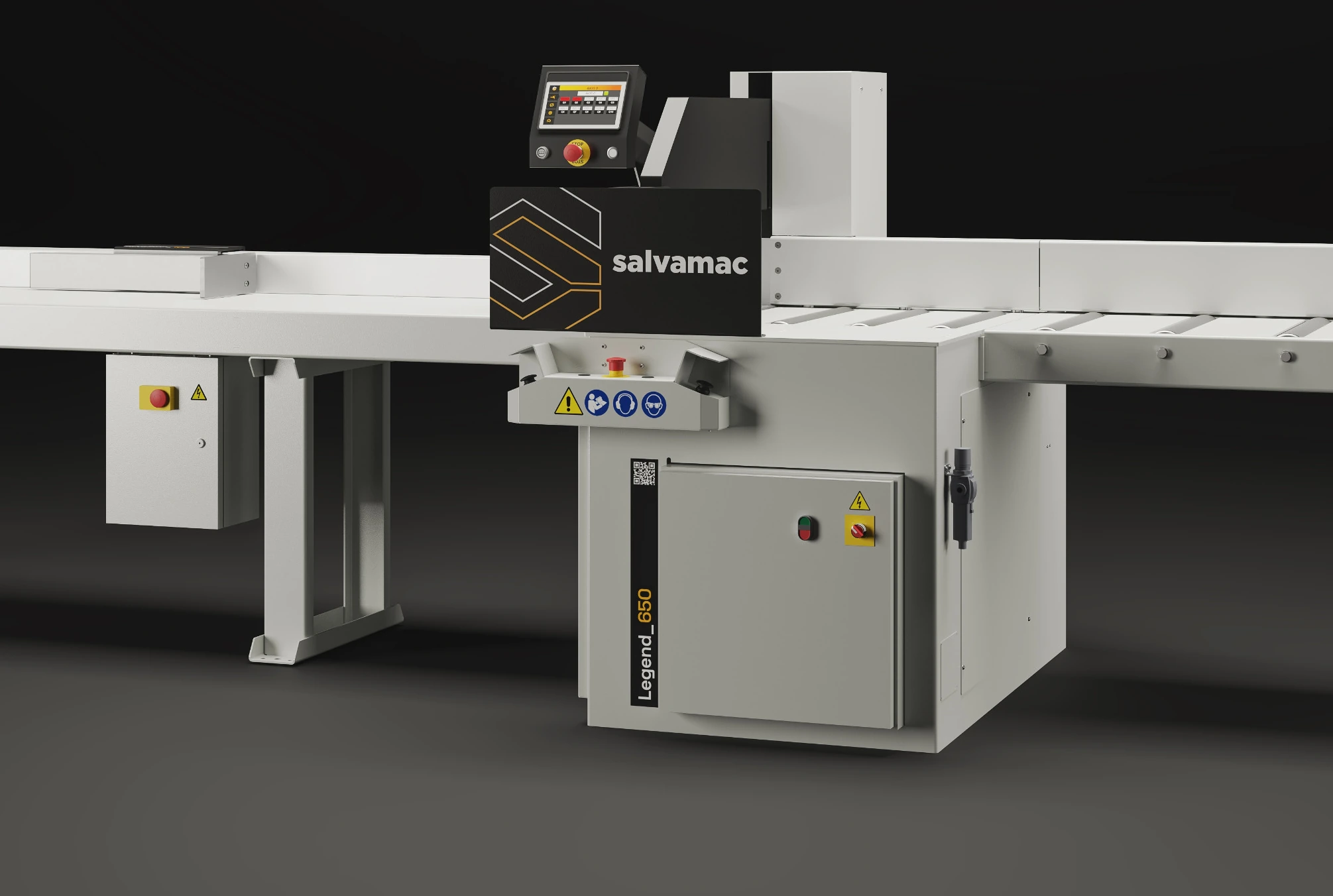

LEGEND 650 / MACHINE UNIT
Machine architecture
Maximum Legend capacity. One controlled station.
The Legend 650 uses a 650 mm carbide blade driven by an 11 kW motor at 2750 rpm. The tilting cutting movement is adjustable through a pneumatic regulator, while the electro-pneumatic upper presser runs on protected ball-bearing guides with automatic lubrication.
Machine typeSemi-automatic tilting-blade crosscut saw
Published cutting section300 × 200 / 435 × 150 / 490 × 120 / 610 × 30 mm
Blade system650 mm · 11 kW · 2750 rpm
Workholding and startElectro-pneumatic presser · two-hand control
Machine and options
Machine and accessory gallery.
The Legend 650 station can be equipped with flat or roller tables, mechanical or pneumatic stops, and programmable SalvaStop positioning. Support lengths and stop type should be configured around incoming stock, finished lengths and floor space.

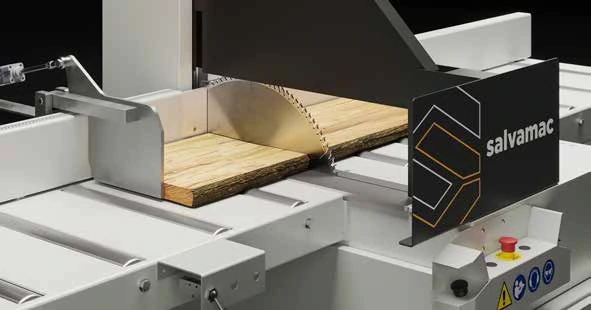

Official Legend 650/650 catalogue detail showing the tilting-blade cutting system working through a large solid-wood section.
Ergonomic two-hand safety controls and operator-side emergency stop.
Optional pneumatic stop for repeat-length production; stop width is selected to suit the work.
Verified specification set
Technical data with source discipline.
Machine typeSemi-automatic tilting-blade crosscut saw for large solid-wood sectionsOfficial
Cutting movementTilting blade movement with pneumatic cutting-speed adjustmentOfficial
Blade diameter650 mmOfficial
Blade motor power11 kWOfficial
Blade rotation speed2750 rpmOfficial
Published cutting section300 × 200 / 435 × 150 / 490 × 120 / 610 × 30 mmOfficial
Stacked-board limitationRear stop height 100 mm in documented configurationsVerified
Air consumption per cycle14 NlOfficial
Documented pneumatic supply8 barVerified
Sawdust extraction2 × 140 mm extraction connectionsOfficial
Working height900 mm ± 20 mmVerified
Documented electrical package400 V / 50 Hz / 3-phase; final Canadian supply must be confirmedVerified
Structure and anchoringReinforced thick painted steel body with flanged floor-anchoring feetOfficial
Presser guidanceBall-bearing movement with double dust protection and automatic lubricationOfficial
Safety and workholdingErgonomic two-hand start, fixed guarding, CE-compliant electrical system and electro-pneumatic upper presserOfficial
Minimum CE support arrangementAt least one metre of infeed and outfeed table or roller conveyorVerified
Stop optionsMechanical, pneumatic or programmable SalvaStop positioningVerified
Documented stop clearancesMinimum 100 mm from stop to blade and 80 mm between two stopsVerified
The cutting capacities are section combinations, not simultaneous independent maximums. Final installed footprint depends on selected infeed/outfeed lengths, stop system, operator access and service clearance.
Core features
Maximum Legend capacity without optimizer complexity.
Legend 650 combines heavy-section capability with the same direct semi-automatic workflow used throughout the Legend family.
650 mm tilting-blade system
The large blade follows a tilting cutting movement through heavy sections, while pneumatic regulation lets the cutting speed be adjusted to the work.
Reinforced heavy-section structure
Thick painted steel, reinforced construction and flanged anchoring feet create the stability required for wide and high solid-wood workpieces.
Guarded pneumatic workholding
The upper presser secures the section before the cut, while the two-hand start and fixed protection maintain a disciplined operator workflow.
Commercial advantages
200 mm thickness class
610 mm published width
Controlled production cycle
Configurable length handling
A practical step beyond manual heavy-section cutting.
The documented 300 × 200 mm section gives the Legend family its greatest cutting height for heavy solid-wood components.
The alternate 610 × 30 mm section supports wide boards and frame components while retaining a guarded semi-automatic station.
Pneumatic workholding, adjustable tilting-blade movement and two-hand initiation replace the loose workflow of a conventional manual station.
Flat or roller tables, mechanical or pneumatic stops and optional SalvaStop positioning let the cutting cell match repeat-length requirements.
Best-fit applications
Built for repeatable heavy-section cross-cutting.
Legend 650 is strongest where the work fits its documented section chart and the operation needs a guarded semi-automatic cut-off station rather than full defect optimization or automatic push-feed production.
Heavy architectural millwork
Cross-cut substantial rails, beams and custom solid-wood components before profiling, tenoning, drilling or assembly.
Timber and carpentry components
Prepare thick structural and joinery stock where the 200 mm cutting class and stable support system are required.
Large furniture components
Cut heavy legs, frame members, slab components and large solid-wood parts within the published section combinations.
Pallet and packaging production
Batch-cut compatible heavy blocks, bearers and packaging components using configured tables and repeat stops.
Window and door production
Prepare wide or thick frame blanks before downstream moulding, CNC machining or assembly.
Secondary sawmill processing
Cross-cut dried or dimensioned heavy stock for manufacturing where automatic defect optimization is not required.
Official brochure
Download the Salvamac Legend catalogue.
This official Legend catalogue includes the Legend 650/650 cutting system, section diagrams, accessory system and family positioning. The supplied edition is Spanish and Portuguese.
Download brochure

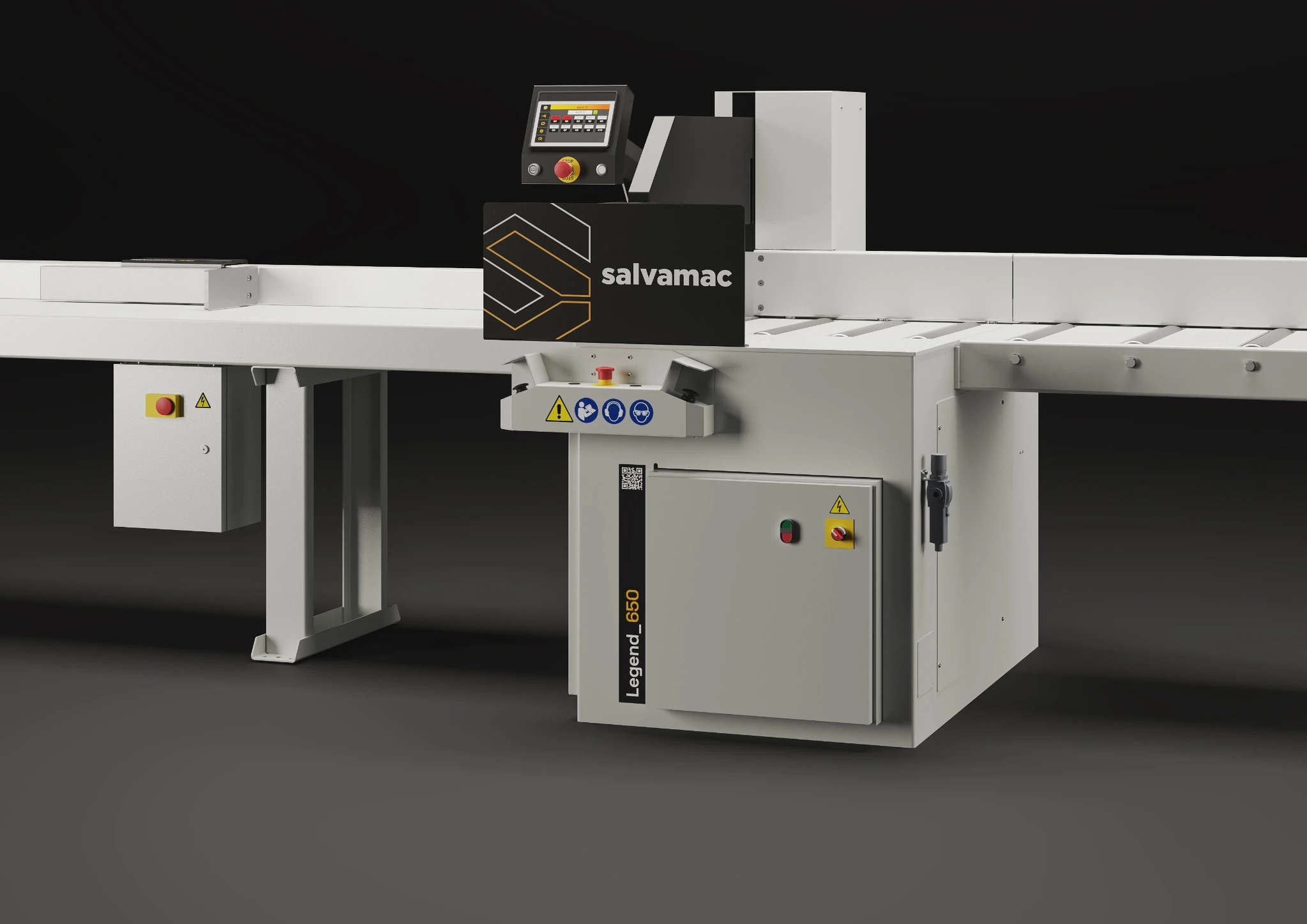

Complete cutting station
Quote Request
Maximum thickness. Configured around the work.
The complete Legend 650 configuration combines the heavy saw body, support tables, guarding and operator controls into a dedicated large-section cutting cell. Final table lengths, stop type and electrical package are selected around the customer’s material flow.
01650 mm tilting-blade system with 11 kW drive
02Published section up to 300 × 200 mm
03Published width up to 610 mm at 30 mm height
04Guarded two-hand cycle with electro-pneumatic workholding
Titan machine qualification
Request a Legend 650 quote.
Send Titan the stock section, incoming length, finished lengths, daily cutting volume and preferred support-table or positioning arrangement. We will confirm machine fit, floor-space requirements and the correct Canadian electrical package.
