A modular CNC nesting platform for routing, drilling, grooving, panel processing,
batch-one production, and scalable automation in cabinet, furniture, millwork,
closet, and fixture manufacturing.
Scalable CNC nesting for shops ready to move beyond basic routing.

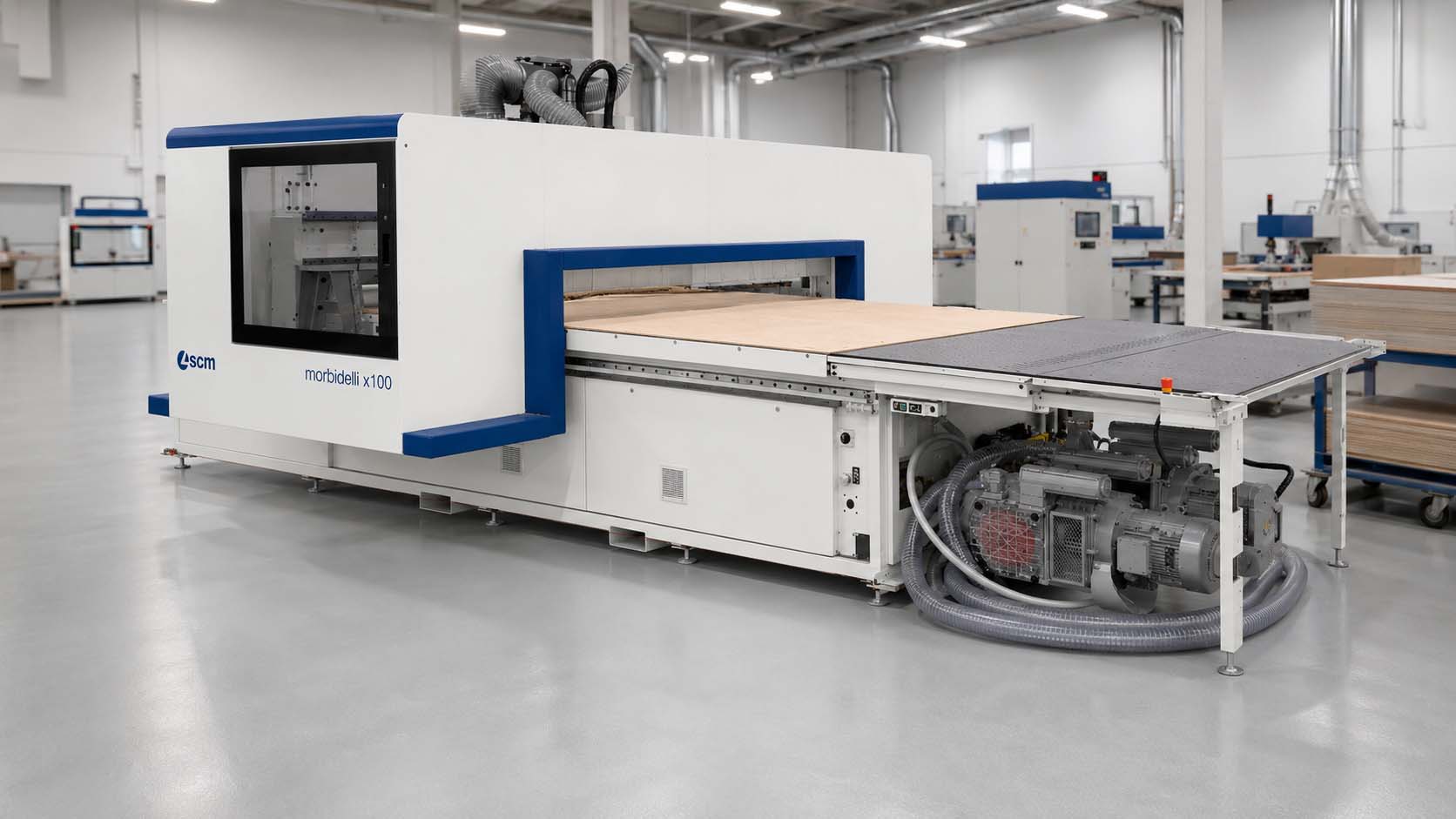

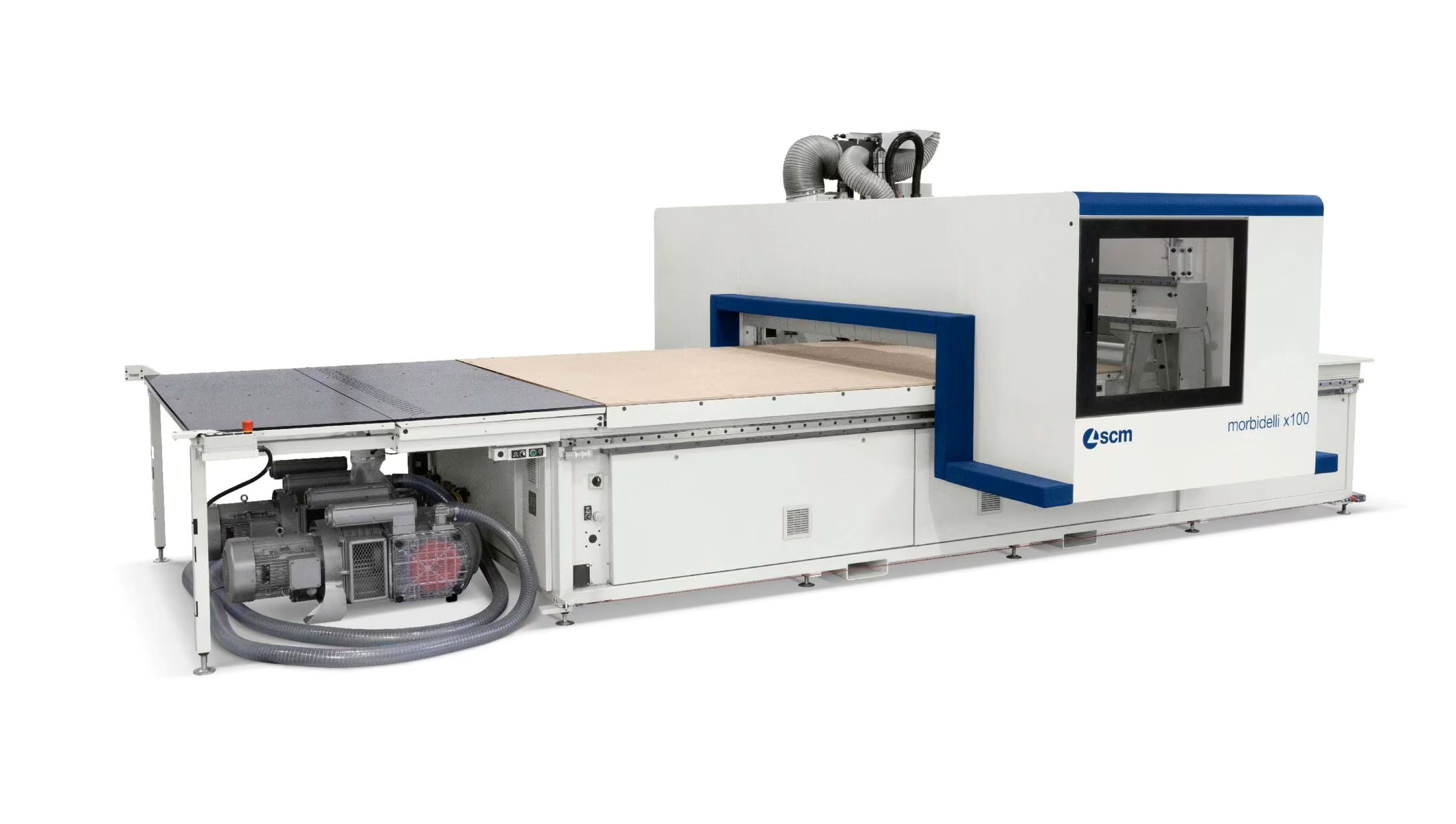

The SCM Morbidelli X100 is a modular CNC nesting machining centre built for
manufacturers that need a stronger platform for routing, drilling, grooving,
nested-sheet processing, and batch-one production.
Configurable working areas, smart vacuum management, X-POD referencing,
Smart Cut nesting strategy, and the Maestro software ecosystem support a
controlled workflow across changing panel sizes, materials, and job mixes.
Stand-alone, MAT, PUSH, FLEX, and CELL production versions create a practical
path from manually loaded CNC production to structured loading, unloading,
labeling, and automated material flow.
150 mmZ-Axis Panel Passage
24,000 rpmMaximum Spindle Speed
16 + 8Vertical + Horizontal Spindles
5 VersionsStand-Alone Through CELL
TITAN / VECTOR WORKSPACE
Explore every line.
Orbit the X100 reference plan. Zoom into the detail. Select a line or curve to see its dimensions.
MORBIDELLI X100 1536 · 5×12
Drag cube to orbitTap a face to align
Loading vector geometry…
Plan viewed edge-on. Choose Top or a corner to see the drawing.
100%PERSPECTIVE · 2D PLAN
The interactive view could not start. The reference dimensions remain available below.
Click to measure · Drag to orbit · Shift-drag to pan · Scroll to zoom
DXF UNITS: INCHES
PLAN REFERENCE
X100 1536 · maximum depth with R12
A Installation reference length
7,190 mm283.071 in
B Maximum reference depth
4,960 mm195.276 in
C Working area length
3,756 mm147.874 in
D Working area depth
1,596 mm62.835 in
Reference drawing, measured as drawn. The 7,190 × 4,960 mm dashed outline is the published installation/reference envelope, not a solid machine body. Machine details are schematic; this supplied plan is not OEM engineering CAD. Confirm the configured machine and final installation clearances with SCM/Titan.
Keyboard: arrow keys orbit; Shift plus arrow keys pan; plus and minus zoom; T top view; F fit; R reset to perspective; Escape clear selection; square brackets step through visible entities. Use the entity selector for direct keyboard access. Cube: drag directly to orbit, or choose a face, edge or corner to align. Touch: choose Explore with touch, drag with one finger in Orbit or Pan mode, and use two fingers to pan and pinch to zoom. Choose Finish exploring or press Escape to scroll the page normally.
Capability Matrix
One CNC platform. Five connected production roles.
The X100 combines nesting, high-speed routing, drilling, grooving,
blade work, and configurable automation within one scalable production system.
Mode 01
CNC Nesting
Processes nested cabinet, closet, furniture, fixture, and custom panel components across configurable working areas.
Mode 02
High-Speed Routing
Routing power up to 15 kW / 20.5 hp and spindle speed up to 24,000 rpm support varied panel-machining work.
Mode 03
Integrated Drilling
Up to 16 independent vertical and 8 independent horizontal drilling spindles support flexible machining patterns.
Mode 04
Grooving and Blade Work
Integrated blade capability expands the platform for grooves and additional panel-processing operations where configured.
Mode 05
Automation Flow
Stand-alone, MAT, PUSH, FLEX, and CELL versions support different loading, unloading, and material-flow strategies.
Production Advantages
Built around hold-down control, flexible workflow, and future growth.
Core X100 systems support changing production mixes while preserving a clear path
from stand-alone nesting to more structured automated manufacturing.
Smart Vacuum Management
Vacuum zones can be managed with the machining program to concentrate hold-down where nested layouts and smaller parts require it.
Maestro Workflow
Maestro Lab and the wider SCM software ecosystem support programming, nesting, job preparation, and structured production flow.
Modular Automation Path
Multiple production versions let the X100 match current material handling while preserving options for future loading and unloading automation.
Equipment Range
Lineup Positioning
Entry CNC
Basic CNC Routing
Suitable for smaller shops taking a first step into routing and occasional nested-sheet production with limited automation requirements.
Scalable Nesting
Morbidelli X100
Adds configurable working areas, smart vacuum control, routing, drilling, tooling capacity, batch-one workflow, and modular production versions.
Integrated Production
Automated CNC Cell
Extends CNC nesting into integrated loading, unloading, labeling, material flow, and cell-based production for higher automation requirements.
Technical Specifications
Morbidelli X100
Machine Profile
ManufacturerSCM
SeriesMorbidelli
ModelX100
Machine TypeCNC Nesting Machining Centre
Working Area and Capacity
Working Area Options2556 × 1296 mm 3756 × 1596 mm 3756 × 1896 mm 3156 × 2216 mm 4356 × 2216 mm
Z-Axis Panel Passage150 mm
X-Y Vectorial SpeedUp to 70 m/min
Configuration NotePRO-SPACE where configured
Routing Performance
Routing Motor PowerUp to 15 kW / 20.5 hp
Spindle SpeedUp to 24,000 rpm
Primary ProcessNesting, routing and panel machining
Production RoleShort-run and batch-one production
Drilling and Tooling
Tool Changer CapacityUp to 31 positions
Vertical DrillingUp to 16 independent spindles
Horizontal DrillingUp to 8 independent spindles
Blade CapabilityIntegrated capability where configured
Table, Vacuum and Software
Table SystemPHE phenolic high-efficiency table
Vacuum ManagementSmart vacuum control
ReferencingX-POD referencing
SoftwareMaestro Lab / Maestro ecosystem
Workflow and Configuration
Production VersionsStand-alone, MAT, PUSH, FLEX, CELL
Supports variable job mixes, short runs, repeat furniture components, routing, drilling, grooving, and batch-one panel production.
Millwork and Commercial Fixtures
Handles architectural panels, custom millwork, retail fixtures, commercial components, grooves, and mixed production parts.
CNC Production Platform
A nesting centre designed to grow with the production floor around it.
The Morbidelli X100 brings routing, drilling, nesting, vacuum control,
tooling capacity, and software-driven workflow into one clean production platform.
For cabinet, furniture, millwork, closet, and fixture manufacturers, the machine
creates a more structured path from sheet handling to finished nested parts while
accommodating changing job mixes and short production runs.
Its modular production versions make the X100 equally relevant as a stand-alone
CNC investment or as the machining centre at the core of a future automated cell.
