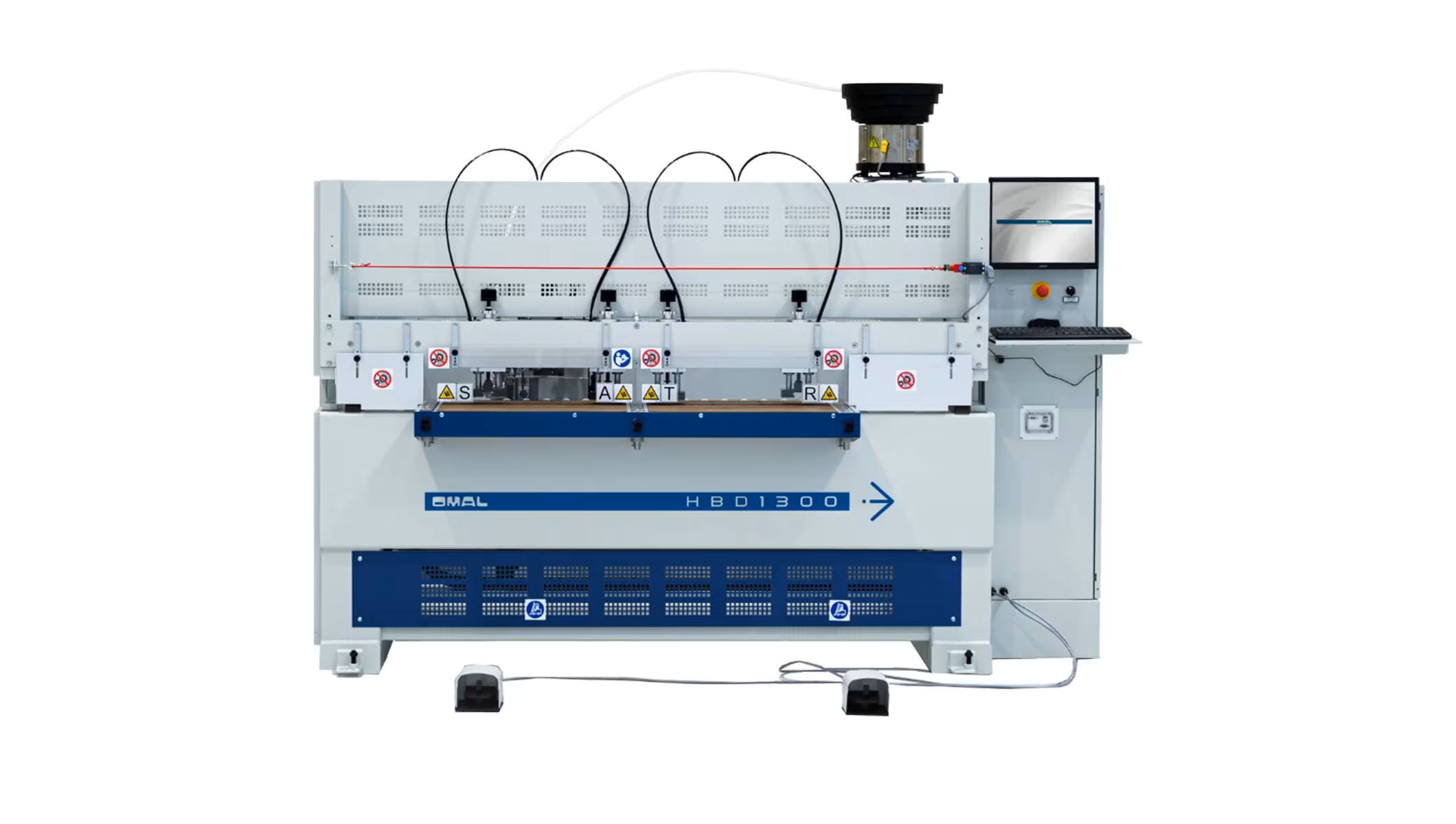

SCM Omal HBD 1300 1H
SCM OMAL 1300 Cube CNC Bore Glue Dowel Machine
Open-frame CNC bore-glue-dowel machine for cabinet and furniture production, with three NC axes, independent horizontal and vertical drilling, Sure Shot dowel verification, and pendulum-style processing.
The flexible open-frame CNC dowel-construction platform for shops moving beyond manual drilling and glue-bottle assembly.
The SCM OMAL 1300 Cube is an open-frame CNC machining centre for drilling, gluing, and dowel insertion in cabinet, furniture, casework, closet, and panel-processing production.
For Titan, the 1300 Cube should be positioned as the higher-flexibility dowel-construction machine when the customer needs horizontal drilling, vertical drilling, CNC axis control, open-frame panel referencing, pendulum processing, and more configuration flexibility than a simpler bore-glue-dowel inserter.
Best-fit shop profile
The 1300 Cube is the right machine conversation when the customer is fighting manual drilling, inconsistent dowel placement, glue variation, slow assembly prep, too many panel setups, or a casework workflow that relies heavily on screws and manual labour.
Three NC axes, three horizontal drilling units, three vertical drilling units, piggyback glue and dowel insertion, Sure Shot verification, and open-frame panel processing.
The 1300 Cube combines drilling, glue injection, and dowel insertion into one controlled CNC workflow. Its 1300 mm working field is divided into four zones for pendulum processing, while the open-frame layout supports larger panels by referencing the workpiece in multiple cycles.
Horizontal and vertical drilling
Three independent horizontal and three independent vertical drilling units support edge drilling and face drilling in one dowel-construction workflow.
Drill, glue, and dowel
The piggyback glue injector and hopper-fed dowel inserter combine key dowel-construction steps into a single controlled process.
Sure Shot verification
The Sure Shot revolver system uses fiber-optic dowel-presence verification to help prevent dowel misfeeds before insertion.
Open-frame flexibility
Four retractable reference fences allow larger panels to be positioned, referenced, and processed in staged cycles.
Built for cabinet boxes, commercial casework, furniture panels, closet systems, dowel-joined assemblies, and production-cell workflows.
The 1300 Cube is a dedicated bore-glue-dowel production machine. It is not a nested CNC router; it is purpose-built for repeatable cabinet, furniture, casework, and panel joinery.
Cabinet Manufacturing
Dowel construction for cabinet sides, bottoms, tops, fixed shelves, partitions, stretchers, gables, and casework components.
Commercial Casework
Office, healthcare, institutional, retail, hospitality, and architectural casework where repeat dowel joinery and assembly accuracy matter.
Furniture & Casegoods
Panel furniture, shelving systems, dowel-joined components, knock-down furniture, and repeat furniture parts.
Closet & Storage Systems
Closet panels, wardrobe parts, garage storage, shelving systems, and dowel-joined panel components.
Assembly-Cell Support
Pairs well with case clamps, drawer-box workflows, Omal glue systems, and dowel-construction production cells.
Open-Frame Panel Processing
Strong fit where shops need to reference larger panels, handle multiple part families, and reduce separate drilling and assembly-prep steps.
SCM OMAL 1300 Cube
A dedicated CNC bore-glue-dowel machine for improving dowel-construction workflows in cabinet, furniture, casework, closet, and panel-processing shops.
The SCM OMAL 1300 Cube is a dedicated CNC bore-glue-dowel machine designed to improve dowel-construction workflows in cabinet, furniture, casework, closet, and panel-processing shops. It combines drilling, glue injection, and dowel insertion into one controlled production process instead of relying on separate drilling, manual glue application, and manual dowel insertion.
The machine is listed with three numerical-control axes, three vertical drilling units, three horizontal drilling units, one glue injector, and a hopper-fed dowel inserter. This makes it a more flexible production platform than simpler horizontal-only dowel machines.
The 1300 Cube is also built for flexible panel handling. Its 1300 mm working field is divided into four zones for pendulum processing. The open-frame layout includes four retractable reference fences, allowing longer panels to be processed in staged cycles by referencing the panel more than once.
For dowel reliability, SCM highlights the OMAL Sure Shot revolver system. The system uses fiber-optic dowel-presence verification to confirm that a dowel is available before insertion, helping prevent misfeeds and supporting repeatable dowel placement in production.
From a Titan Equipment standpoint, the 1300 Cube should be sold as a production-cell machine, not just a standalone quote. Discovery should cover construction method, dowel diameter and length, panel thickness range, case clamp workflow, vertical drilling needs, horizontal drilling needs, part families, panel size, dust extraction, air supply, electrical service, programming workflow, operator training, and integration with the customer’s assembly process.
Titan sales position
Position the 1300 Cube around controlled dowel-construction production: CNC drilling, glue injection, dowel insertion, horizontal and vertical drilling, Sure Shot verification, open-frame panel handling, and cleaner assembly-cell workflow.
Use the 1300 Cube as the best flexible dowel-construction platform when the shop needs more than a simple horizontal bore-glue-dowel machine.
The 1300 Cube should sit above simpler Omal HBD / Velox-style machines when the customer needs vertical drilling, multiple drilling units, open-frame referencing, pendulum processing, automatic area selection, and CNC axis control.
Good: Manual Dowel Workflow
Best only for very low-volume shops using manual drilling, glue bottles, separate dowel insertion, and clamp assembly.

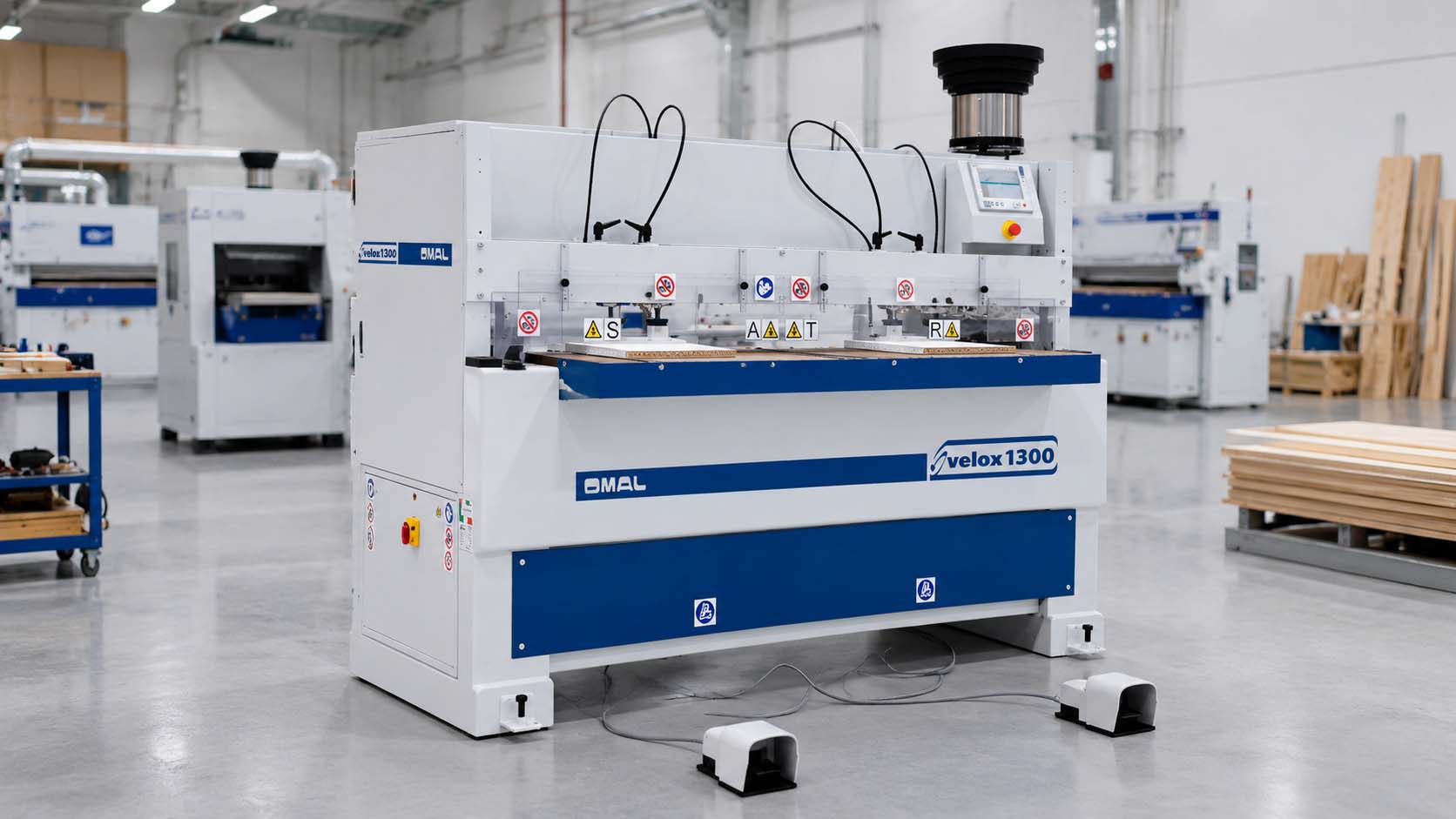

Better: HBD / Velox
Best for faster dedicated bore-glue-dowel insertion when the application is more straightforward and primarily horizontal.
Best Flexible: 1300 Cube
Best when the customer needs CNC axes, horizontal and vertical drilling, glue and dowel insertion, open-frame referencing, and pendulum processing.
Related: Jolly Colla
Jolly Colla is only a precision glue-dosing system. Keep the pages separate but cross-link them in Titan’s dowel construction category.
1300 Cube specifications without table formatting.
Final published specifications should follow the quoted Titan/Canadian configuration. Confirm exact drilling units, glue injector, dowel inserter, hopper, parametric laser, software, reference stops, tooling package, electrical, dust extraction, air volume, installation, startup, training, warranty, and service path.
For shops that want a flexible CNC bore-glue-dowel platform with horizontal drilling, vertical drilling, Sure Shot dowel verification, and open-frame panel processing.
The 1300 Cube should be sold as a dowel-construction production-cell machine. The correct package depends on cabinet construction method, dowel size, panel thickness, drilling requirements, case-clamp workflow, dust extraction, compressed air, electrical service, software, operator training, and integration with the customer’s assembly process.
Strong fit for
Shops moving away from manual drilling, separate glue application, manual dowel insertion, screw-heavy assembly, and inconsistent dowel placement.
Confirm during quoting
The 1300 Cube is configuration dependent. Final customer-facing publishing should match Titan’s quoted Canadian configuration.
Request an SCM OMAL 1300 Cube machine quote.
Send Titan your cabinet construction method, dowel diameter and length, panel thickness range, horizontal and vertical drilling needs, part families, panel sizes, assembly workflow, case clamp process, dust extraction, compressed air, electrical service, software workflow, and startup/training requirements.
