An entry electro-mechanical clamp for low-volume cabinet and casework assembly, combining simple button operation, controlled vertical and side pressure, and comb-style full-surface pressing.
A practical first step beyond manual cabinet-box clamping.

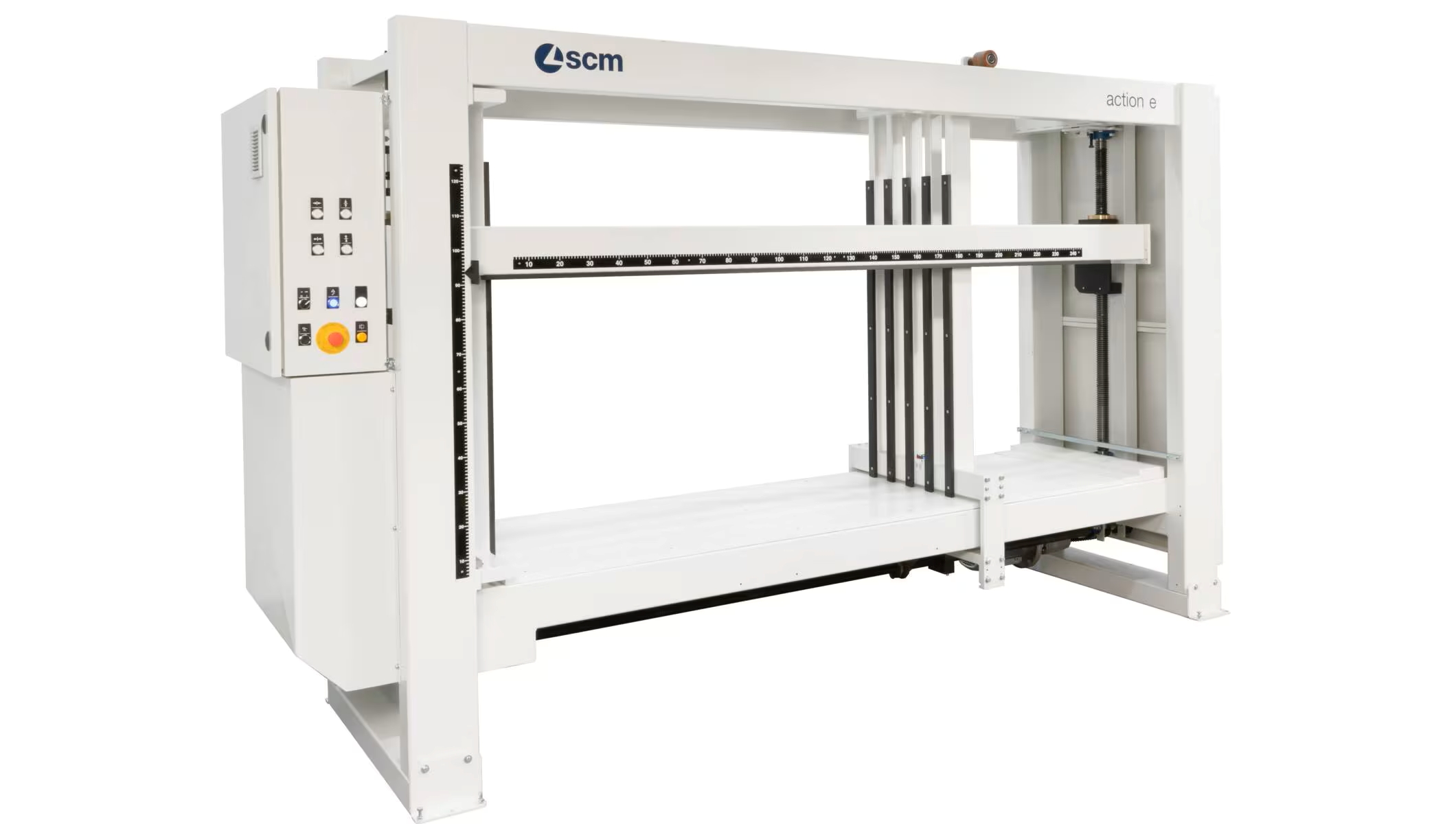

SCM Action E is an electro-mechanical clamp for assembling, pressing, and squaring cabinet boxes, casework, carcasses, storage units, and other panel-based furniture products.
The machine keeps operation straightforward with push-button controls while applying up to 15 kN of vertical pressure and 10 kN of side pressure. A comb-style pressing system distributes force across the cabinet surface to support straight-sided, square assembly.
Final configuration should confirm cabinet dimensions, materials, construction method, production volume, loading and unloading, electrical requirements, floor layout, installation, training, warranty, and service.
Up to 30Cabinets per Shift
15 kNVertical Pressure
10 kNSide Pressure
250–2400 mmCabinet Length Range
Capability Matrix
Cabinet Assembly & Pressing Modes
Match Action E to the cabinet-size range, material, box construction, pressure requirement, daily volume, and surrounding assembly workflow.
Mode 01
Simple Button Operation
Direct controls keep daily cabinet pressing straightforward for lower-volume production teams.
Mode 02
Comb-Style Surface Pressure
The comb system distributes pressing force across the cabinet surface during assembly.
Mode 03
Vertical Cabinet Pressure
Up to 15 kN of listed vertical pressure supports controlled cabinet-box clamping.
Mode 04
Side Squaring Pressure
Up to 10 kN of side pressure helps bring cabinet sides into controlled alignment.
Mode 05
Manual Loading & Unloading
A focused stand-alone workflow supports smaller shops without through-feed line complexity.
Action E brings cabinet clamping into a dedicated electro-mechanical station while preserving a simple operating process.
Improved Cabinet Squareness
Controlled vertical and side pressure supports straighter cabinet sides and more repeatable box geometry.
Full-Surface Pressing
The comb-style system helps spread pressure across cabinet surfaces rather than concentrating it at isolated clamp points.
Straightforward Operator Workflow
Push-button operation makes the machine practical for shops taking their first step into professional cabinet clamping.
Equipment Range
Lineup Positioning
Manual Assembly
Pipe Clamps, Jigs & Bench Assembly
Suitable for very low-volume work where manual squaring, distributed clamps, and operator-dependent pressure remain acceptable.
Basic Cabinet Pressing
Conventional Stand-Alone Cabinet Clamp
Adds a dedicated pressing station but may not provide the same full-surface comb pressure and SCM Action-family architecture.
SCM Action E
Entry Electro-Mechanical Cabinet Clamp
Combines simple button control, vertical and side pressure, full-surface pressing, and an output position up to 30 cabinets per shift.
Technical Specifications
SCM Action E
Machine Profile
Manufacturer
SCM
Series / Model
Action / Action E
Machine Type
Entry electro-mechanical cabinet clamp
Primary Use
Cabinet-box, casework, carcass and panel-furniture assembly
Cabinet Working Range
Cabinet Length
250–2400 mm
Cabinet Depth
250–700 mm
Cabinet Height
270–1100 mm
Output Positioning
Up to 30 cabinets / shift
Pressing System
Vertical Pressure
15 kN
Side Pressure
10 kN
Pressure Distribution
Comb-style full-surface pressing
Assembly Role
Straight-sided, square cabinet-box pressing
Operation & Handling
Operator Interface
Simple button operation
Loading
Manual
Unloading
Manual
Production Concept
Dedicated stand-alone cabinet assembly station
Production Applications
Cabinet Manufacturing
Base, wall, tall and specialty cabinet boxes
Commercial Casework
Light commercial, institutional, retail and architectural casework
Closet & Storage
Wardrobes, towers, garage storage and carcass products
Furniture & Casegoods
Panel-based furniture, box assemblies and storage units
Configuration & Support
Cabinet Requirements
Confirm size range, material, thickness, construction and pressure needs
Utilities
Confirm regional electrical service and machine package
Shop Layout
Confirm floor space, loading, unloading, guarding and operator access
Support
Installation, startup, operator training, warranty and service
Production Environments
Where the Action E Fits
For lower-volume cabinet and casework departments that need a dedicated professional clamp without automatic setup or through-feed automation.
Small Cabinet Shops
Final cabinet-box assembly and squaring for operations moving beyond pipe clamps and bench jigs.
Light Commercial Casework
Square box assembly for office, retail, institutional, hospitality, and architectural casework.
Closet, Storage & Casegoods
Wardrobes, towers, storage boxes, carcass furniture, and lower-volume panel-based products.
Professional Entry-Level Assembly
Replace scattered manual clamps with one dedicated cabinet-pressing station.

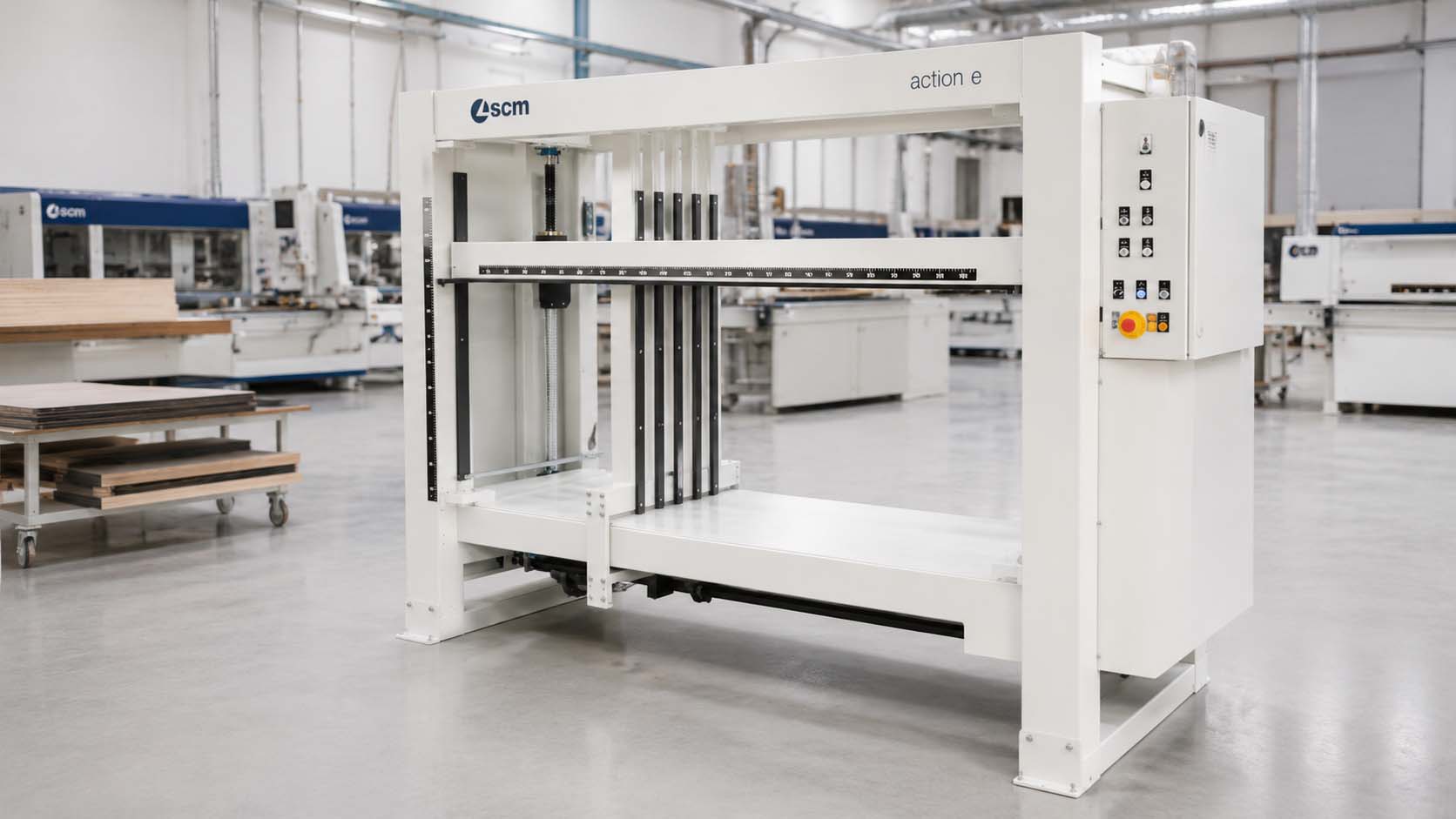

Action E organizes cabinet-box assembly around a stable machine frame, controlled vertical and side pressure, full-surface comb pressing, and direct push-button operation.
The machine is designed for shops that need better cabinet squareness and pressure consistency while retaining manual loading, manual unloading, and a straightforward stand-alone workflow.
Final configuration should confirm cabinet dimensions, panel materials, box construction, pressure requirements, expected daily volume, electrical service, floor space, installation, startup, training, warranty, and support.
