SCM Windor Flex CP

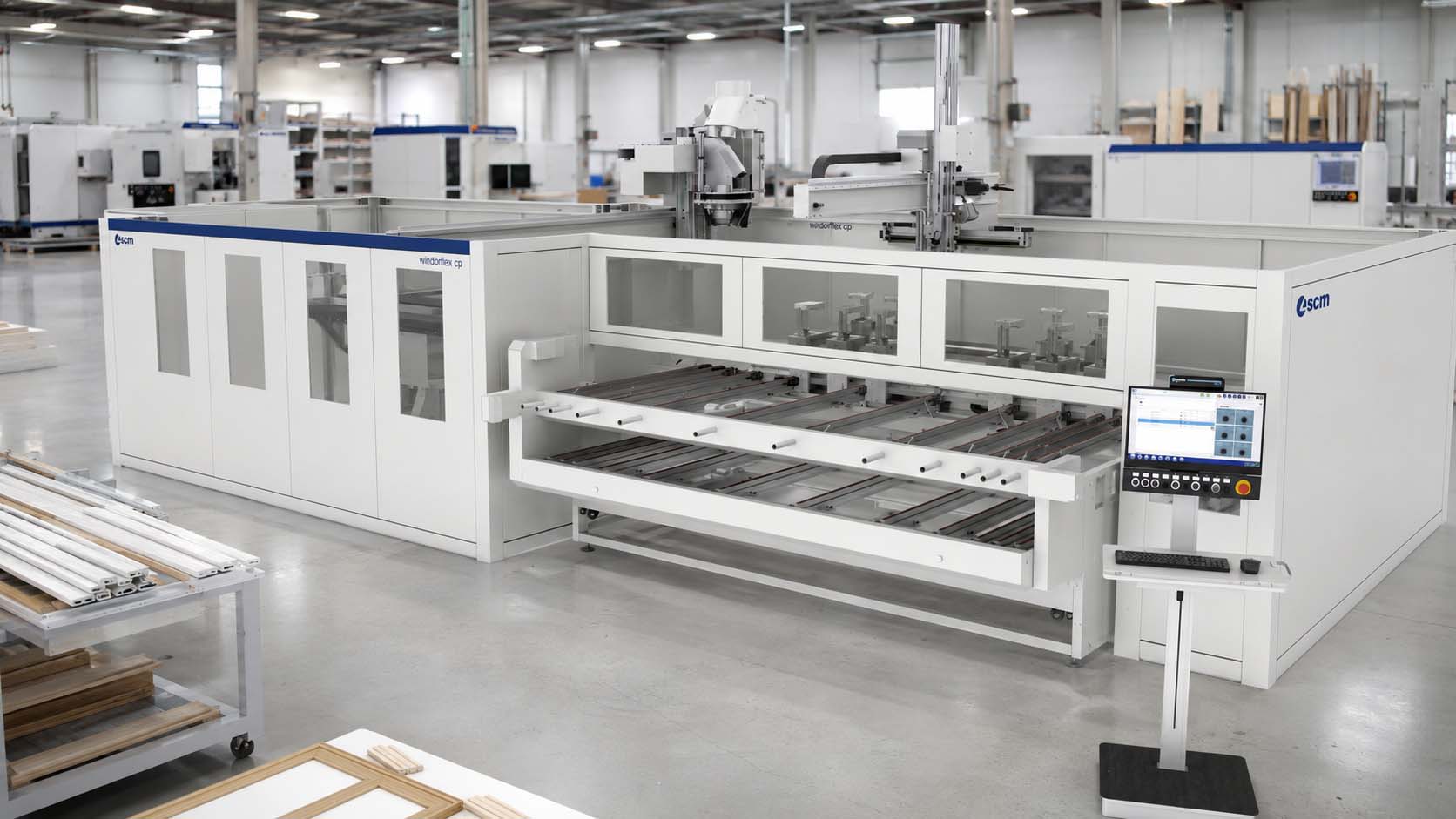

SCM WindorFlex CP CNC Machining Cell
Compact CNC machining cell for window and door manufacturers that need automated loading/unloading, 4- or 5-axis machining capability, and complete window-frame processing in the smallest WindorFlex footprint.
The compact WindorFlex production cell for automated wood window and door machining.
The SCM WindorFlex CP is the compact model in SCM’s WindorFlex CNC machining-cell range for window and door manufacturing. It is designed to perform the machining operations required for producing window frames while keeping the system footprint more controlled than larger WindorFlex platforms.
For Titan, the WindorFlex CP should be positioned around compact automation, window-frame accuracy, reduced manual handling, complete-process machining, front-bench loading/unloading, dedicated clamping, 4-/5-axis spindle flexibility, and Maestro Active Windoor software.
Best-fit shop profile
The WindorFlex CP is the right machine conversation when a window or door manufacturer is using multiple standalone machines, repositioning parts manually, tying up operators in loading and unloading, or trying to scale production without adding more manual handling.
Compact automation, front-bench loading/unloading, 1 to 4 workpiece processing, 4-/5-axis machining, 20 kW spindle power, and 48-position tooling.
The WindorFlex CP gives window and door manufacturers a compact CNC cell for processing window-frame components with fewer manual handling steps. It is the best WindorFlex discussion when footprint, controlled investment, and complete window-frame processing all matter.
Compact WindorFlex footprint
SCM positions the WindorFlex CP as the most compact machine in its category, making it the right fit where floor space must be managed carefully.
Automatic front bench
The automatic loading/unloading system with front bench helps reduce continuous operator intervention and manual handling.
1 to 4 workpieces
The automatic worktable uses dedicated clamps and can process one to four workpieces in sequence.
4-/5-axis machining
Configurable 4- and 5-axis electrospindles support the machining flexibility required for modern window and door production.
Built for wood windows, door frames, architectural joinery, frame profiles, sash components, and high-performance building products.
The WindorFlex CP is not a general cabinet-shop CNC router. It is a specialized machining cell for manufacturers building wood windows, doors, frames, profile-based components, and related joinery.
Window Manufacturing
Wood window frames, sash components, frame profiles, internal and external machining operations, and complete window-production workflows.
Door & Frame Production
Door-frame components, profile machining, joinery operations, drilling, routing, and machining sequences where 4-/5-axis flexibility is useful.
Architectural Joinery
Specialized wood openings, custom window and door work, heritage-style components, and higher-value profile machining.
High-Performance Components
Energy-efficient window and door components where larger section profiles, repeatability, and machining consistency matter.
Cell-Based Production
Strong fit for manufacturers moving from separate tenoners, routers, shapers, drills, and manual handling into a more integrated process.
Compact Automation Upgrade
Best for shops that need serious automation and CNC flexibility without stepping immediately into the larger WindorFlex 1 or WindorFlex 2 layouts.
SCM WindorFlex CP
A compact CNC machining cell for manufacturers that want to automate window-frame machining while keeping the system footprint controlled.
The SCM WindorFlex CP is the compact model in SCM’s WindorFlex range of CNC machining cells for windows and doors. It is designed for manufacturers that want to automate window-frame machining while keeping the system footprint more controlled than the larger WindorFlex 1 and WindorFlex 2 configurations.
The CP uses an automatic loading/unloading system with a front bench, allowing the machine to operate with reduced continuous operator input. The automatic worktable has dedicated clamps to hold the workpieces during processing, and SCM states the machine can process from one to four workpieces in sequence.
The machining platform is configured around 4- and 5-axis electrospindles, giving the machine the flexibility needed for window-frame production. Official data lists 20 kW standard electrospindle motor power, 100 / 80 / 50 m/min X-Y-Z axis speeds, and a 1 x 48-position standard tool store.
The machine’s official working range is focused on frame and profile components: 1 x 3300 mm or 2 x 1350 mm maximum workpiece length, 220 mm minimum length or 160 mm with a specific cycle, 40–260 mm workpiece width, and 35–160 mm workpiece thickness.
From a Titan Equipment standpoint, the WindorFlex CP should be sold as a production-system conversation, not just a machine quote. Discovery should cover window types, profile geometry, tooling, section sizes, current manual handling, production volume, software workflow, floor space, dust extraction, operator skill level, service access, and future expansion into WindorFlex 1 or WindorFlex 2 if production volume grows.
Titan sales position
Position the WindorFlex CP around automated window-production flow: fewer separate-machine operations, less repositioning, front-bench loading/unloading, compact automation, 4-/5-axis machining flexibility, and Maestro Active Windoor process control.
Use the WindorFlex CP as the compact automated CNC cell before stepping customers into larger WindorFlex 1 or WindorFlex 2 layouts.
The WindorFlex CP is the right fit when the customer needs a serious automated window/door machining solution but has less available floor space, lower throughput requirements, or a more controlled investment target than larger WindorFlex systems.
Good: Standalone Machines
Best for lower-volume or traditional window shops using separate tenoners, shapers, routers, drills, and manual handling.
Better: WindorFlex CP
Best for compact automated CNC window/door production with front-bench loading/unloading and 4-/5-axis machining capability.
Best: WindorFlex 1
Best when the customer needs longer workpieces, larger layouts, broader throughput, and a more expansive WindorFlex configuration.
Highest Throughput: WindorFlex 2
Best when the customer needs more simultaneous workpiece handling, higher throughput, and larger automated production architecture.
WindorFlex CP specifications without table formatting.
Final published specifications should follow the quoted Titan/Canadian configuration. Confirm final machine composition, 4-axis spindle, 5-axis spindle, tool-store package, HSK package, loading/unloading layout, layout dimensions, electrical, dust extraction, software, tooling, installation, startup, training, warranty, and service path.
For window and door manufacturers that need compact automation, 4-/5-axis machining flexibility, front-bench loading/unloading, and complete frame processing.
The WindorFlex CP should be sold as a production-system solution. The correct package depends on window type, door-frame type, profile geometry, tool package, spindle configuration, loading/unloading layout, shop footprint, dust extraction, software workflow, operator training, and future expansion path.
Strong fit for
Manufacturers that want to reduce separate-machine operations, manual part repositioning, operator handling, and process variation in wood window and door production.
Confirm during quoting
The WindorFlex CP is configuration dependent. Final customer-facing publishing should match Titan’s quoted Canadian configuration.
Request an SCM WindorFlex CP machine quote.
Send Titan your window and door product mix, profile geometry, section sizes, current production process, tooling requirements, spindle needs, loading/unloading expectations, floor space, dust extraction, electrical service, software workflow, and training requirements.
