Position the stock against the selected stop, secure it with the upper presser and initiate the guarded cut through the ergonomic two-hand control.
Salvamac Legend 550
Semi-automatic cross-cutting
Salvamac Legend lineLegend 550

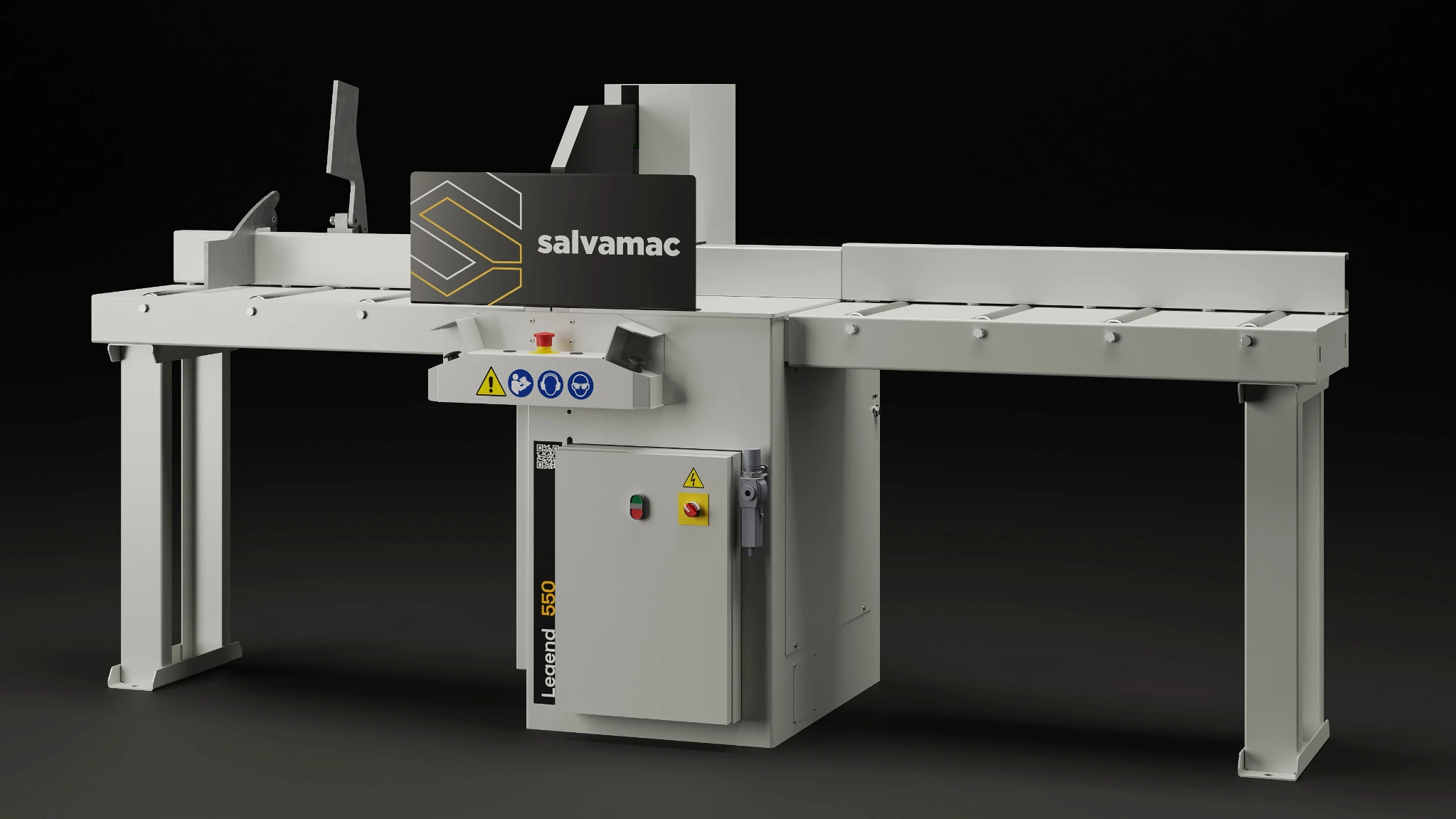

A heavy-duty semi-automatic upstroke crosscut saw for medium-large solid-wood sections, combining a 550 mm blade, 7.5 kW drive and guarded pneumatic workholding.
Executive overview
The Legend platform for medium-large sections.
Legend 550 expands the semi-automatic Legend format around a 550 mm blade and 7.5 kW motor. Its published cutting section reaches 220 × 150 mm or 330 × 50 mm, making it the direct choice for thicker solid-wood work that remains within a compact upstroke crosscut station.
Semi-automatic upstroke saw
550 mm blade
Two-hand safety start
Electro-pneumatic presser
Thick painted steel, reinforced construction and flanged anchoring feet create a stable cutting station for demanding medium-large sections.
The under-table blade, fixed protection, emergency stop, automatic pressure device and two-hand start keep the operator separated from the cutting stroke.

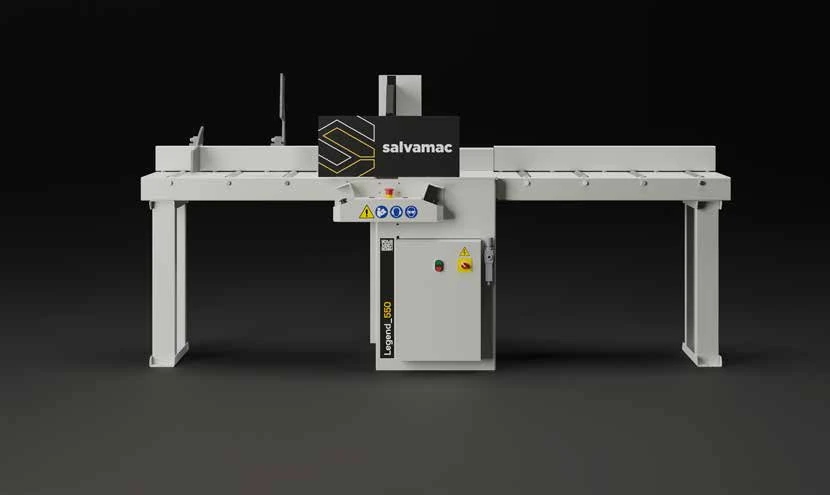

LEGEND 550 / MACHINE UNIT
Machine architecture
More thickness capacity. Same direct workflow.
The Legend 550 is built around a 550 mm under-table carbide blade driven at 2800 rpm by a 7.5 kW motor. The electro-pneumatic upper presser secures the workpiece, while the blade rise speed can be adjusted through a pneumatic regulator to suit the section being processed.
Machine typeSemi-automatic upstroke crosscut saw
Published cutting section220 × 150 mm / 330 × 50 mm
Blade system550 mm · 7.5 kW · 2800 rpm
Workholding and startElectro-pneumatic presser · two-hand control
Machine and options
Machine and accessory gallery.
The Legend 550 cutting station can be configured around roller or flat support tables, mechanical or pneumatic stops, and programmable SalvaStop positioning when repeat lengths require a more automated workflow.

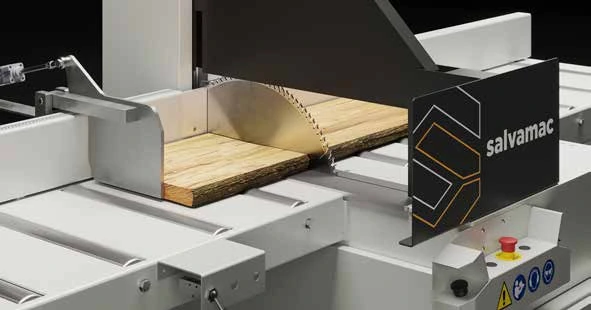

Official Legend 550 cutting-zone detail showing the 550 mm upstroke blade and medium-large solid-wood section.

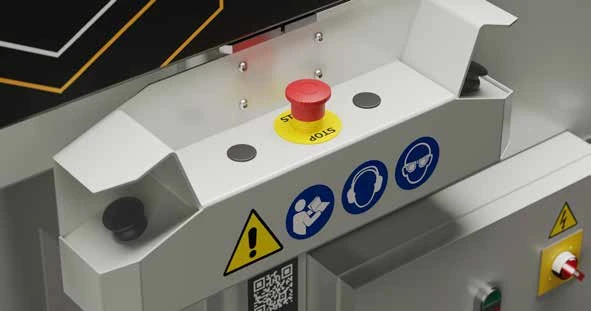

Ergonomic two-hand safety control, emergency stop and operator-side machine controls.

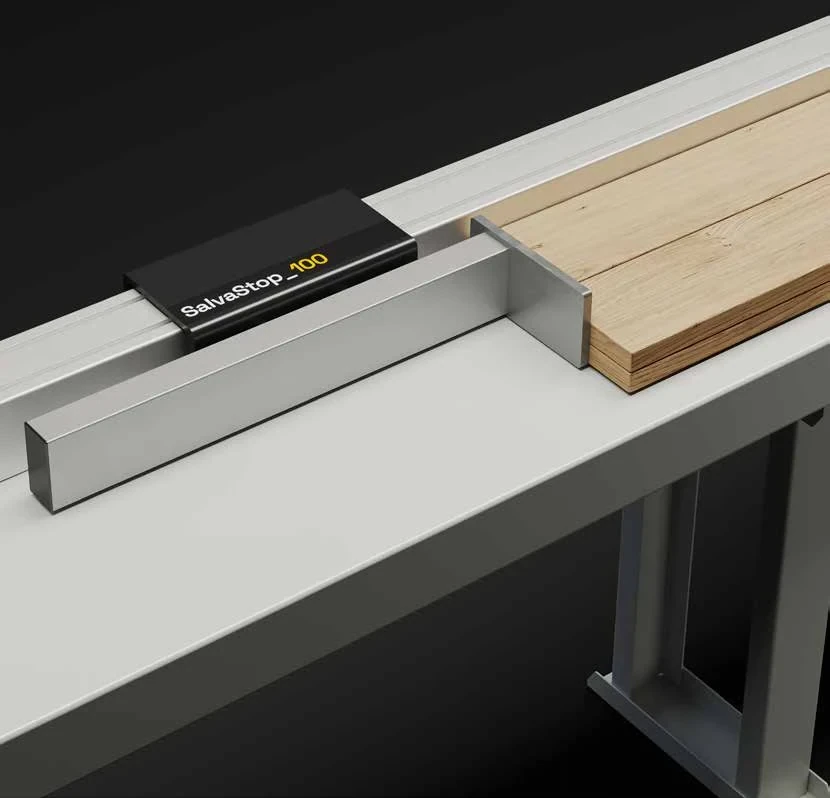

Optional SalvaStop programmable positioning for repeat-length production and Combo configurations.
Verified specification set
Technical data with source discipline.
Machine typeSemi-automatic upstroke crosscut saw for medium-large solid-wood sectionsOfficial
Blade diameter550 mmOfficial
Blade bore and documented blade35 mm bore; HM carbide blade, Z = 96 in documented packagesVerified
Blade motor power7.5 kWOfficial
Saw spindle speed2800 rpmOfficial
Published cutting section220 × 150 mm / 330 × 50 mmOfficial
Pack cutting heightMaximum 100 mm for stacked boards in documented configurationsVerified
Air consumption per cycle7 NlOfficial
Compressed-air supply6–8 barVerified
Sawdust extraction1 × 120 mm and 1 × 100 mm extraction connectionsOfficial
Working height900 mm ± 20 mmVerified
Machine body dimensionsApproximately 530 × 869 × 1217 mm, excluding support tablesVerified
Documented electrical package400 V / 50 Hz / 3-phase; final Canadian supply must be confirmedVerified
Structure and anchoringThick reinforced painted steel body with flanged floor-anchoring feetOfficial
Cutting movement controlBlade rise speed adjustable through a pneumatic regulatorOfficial
Safety and workholdingErgonomic two-hand start, fixed guarding and electro-pneumatic upper presserOfficial
Minimum support configurationAt least 1 m of support table or roller conveyor on each side for documented CE installationsVerified
The published cutting capacities are section combinations, not simultaneous independent maximums. Machine-body dimensions exclude the configurable infeed and outfeed support system. Final electrical supply and installed footprint must be confirmed for the selected Canadian configuration.
Core features
Heavy-section capability without full automation complexity.
Legend 550 adds thickness capacity and motor authority while preserving the direct operating sequence that defines Salvamac’s semi-automatic Legend family.
Guarded two-hand cycle
The operator initiates the cutting stroke from the ergonomic two-hand station while the upper pressure device holds the material and the blade remains enclosed below the table outside the cycle.
Reinforced steel structure
Thick painted steel, reinforced construction and flanged anchoring feet provide the stability required for repetitive cutting of medium-large solid-wood sections.
Pneumatic cutting control
The blade movement can be adjusted through a pneumatic regulator, while the presser runs on protected bearing guides with automatic lubrication.
Commercial advantages
150 mm thickness class
330 mm width at 50 mm
Controlled daily workflow
Configurable length handling
A practical step beyond manual heavy cross-cutting.
The 550 mm blade platform reaches the published 220 × 150 mm section for thicker solid-wood parts and structural components.
The alternate published section provides useful width for boards, rails and frame components while retaining the compact Legend architecture.
Pneumatic workholding, guarded blade movement and two-hand initiation replace the loose sequence of conventional manual cut-off stations.
Roller or flat tables, mechanical or pneumatic stops and optional SalvaStop positioning let the cutting cell match the repetition level of the work.
Best-fit applications
Built for repeatable medium-large section cutting.
Legend 550 is strongest where the stock fits its 220 × 150 mm or 330 × 50 mm cutting section and the operation needs a guarded semi-automatic station rather than full defect optimization.
Window and door components
Cross-cut thicker solid-wood blanks, rails and frame members before profiling, drilling, tenoning or assembly.
Heavy joinery and millwork
Prepare substantial architectural parts and custom components where secure workholding and consistent square cuts matter.
Furniture frames and legs
Cut larger rails, legs and structural furniture members before downstream moulding, CNC or mortise-and-tenon operations.
Pallet and packaging components
Batch-cut compatible blocks, boards and heavy packaging components with configurable stops and support tables.
Carpentry production
Replace repetitive manual chop-saw work when material sections and throughput justify a dedicated guarded industrial station.
Secondary sawmill processing
Prepare dried or dimensioned solid wood for downstream manufacturing where automatic optimization is not required.
Official brochure
Download the Salvamac Legend catalogue.
This official Legend catalogue includes the Legend 550 machine, cutting-section diagram, family positioning and accessory context. The supplied edition is Spanish and Portuguese.
Download brochure

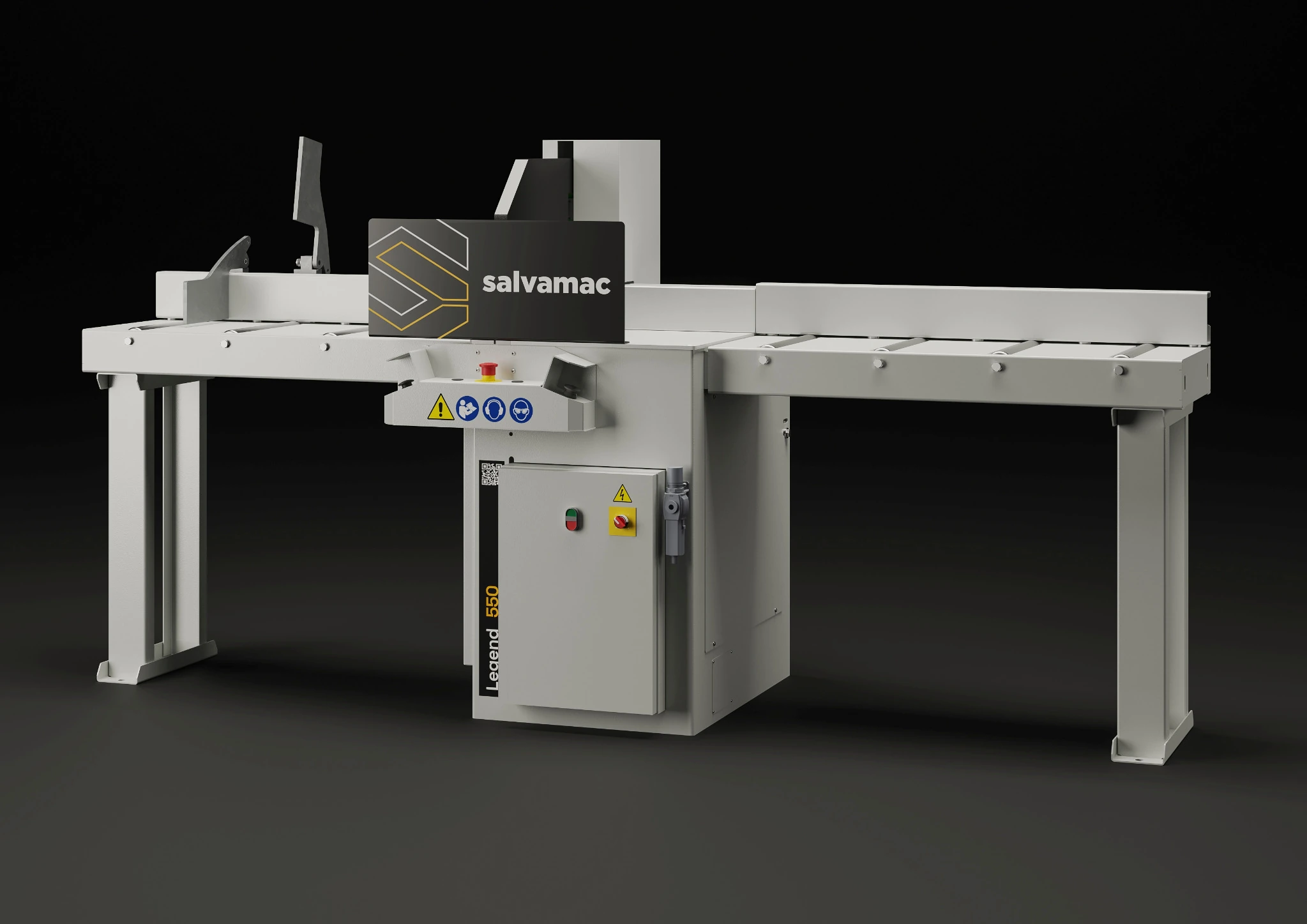

Complete cutting station
Quote Request
More thickness. Still direct and controlled.
The complete Legend 550 configuration combines the guarded saw body, material support and operator controls into a dedicated heavy-section crosscut station that can be equipped around stock length and repeat-positioning requirements.
01550 mm blade driven by a 7.5 kW motor
02Published section up to 220 × 150 mm
03Published width up to 330 mm at 50 mm thickness
04Guarded two-hand cycle with pneumatic workholding
Titan machine qualification
Request a Legend 550 quote.
Send Titan the stock section, incoming lengths, finished lengths, daily cutting volume and preferred table or positioning arrangement. We will confirm machine fit and the correct Canadian electrical package.
