SCM Formula Unilev 150

SCM Formula • Unilev 150

SCM Formula Unilev 150 Universal Belt Sander

A professional oscillating vertical belt sanding centre for edge sanding, profile sanding, shaped workpieces, angled parts, panels, cabinet components, and joinery production.

Oscillating Belt 12 / 24 m/sec 0°–45° Tilting Large Panel Support

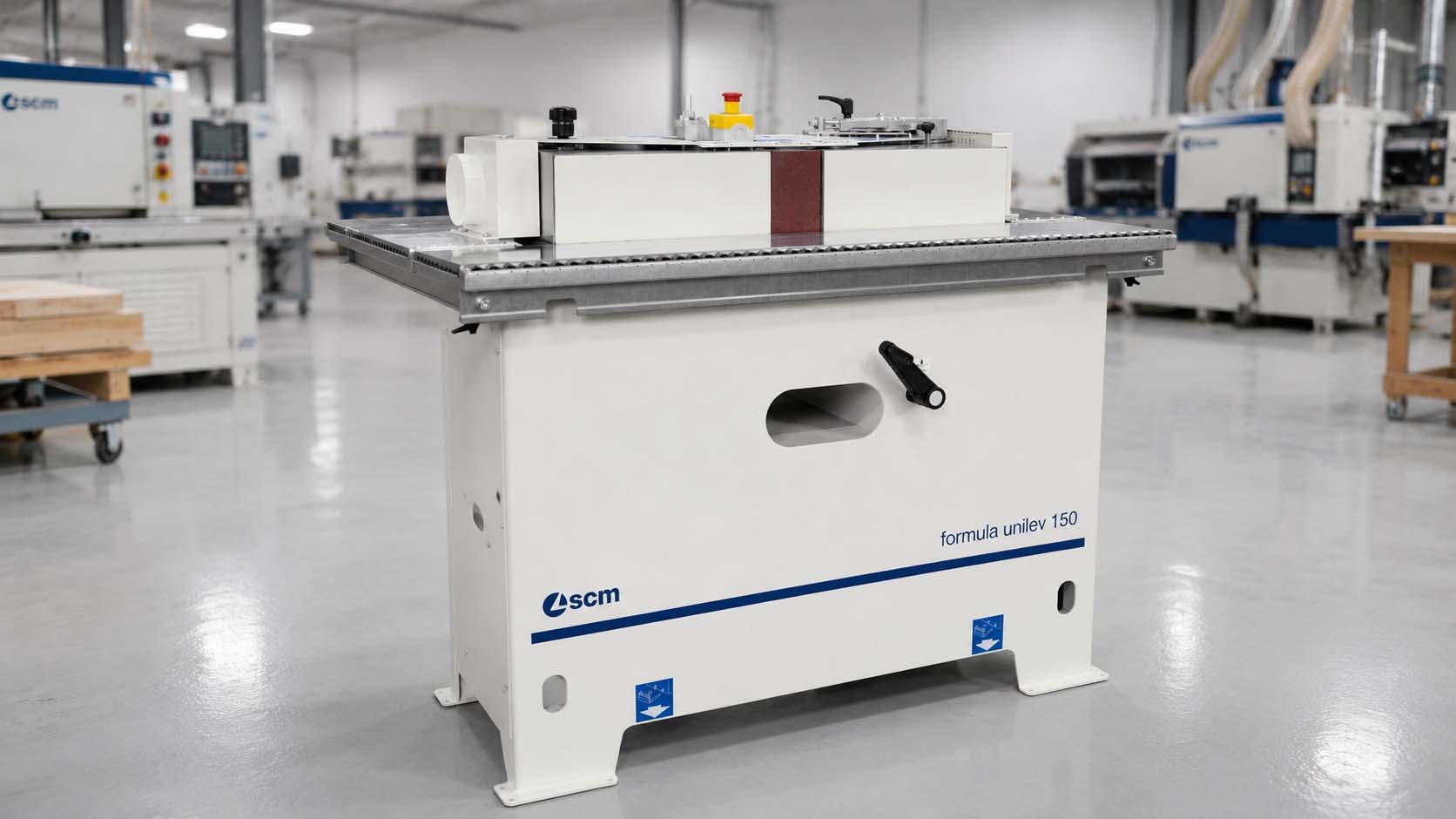

SCM Formula Unilev 150 universal belt sanding centre
SCM Formula Unilev 150 Universal Belt Sander

Professional Edge, Profile & Shaped-Part Sanding

The SCM Formula Unilev 150 gives shops a compact, professional sanding station for straight edges, shaped workpieces, angled parts, cabinet components, furniture parts, joinery pieces, and panel-edge preparation. Its oscillating vertical belt, dual belt speeds, tilting table and fence, large worktable, mobile front extension, and supplementary roller table make it a practical upgrade from inconsistent hand sanding or basic edge-sanding setups.

Key Advantages

The Unilev 150 supports everyday production sanding with controlled belt movement, adjustable geometry, large workpiece support, and better repeatability than hand sanding.

Oscillating Vertical Belt

Improves sanding consistency and helps distribute abrasive wear across the belt surface.

Dual Belt Speeds

12 and 24 m/sec belt speeds allow operators to match sanding action to the material and finish target.

Tilting Table & Fence

0–45 degree adjustment supports bevelled, angled, mitred, and non-standard workpiece geometry.

Large Workpiece Support

A large worktable and mobile front extension help support larger panels and longer components.

Applications

Edge Sanding

Refines straight edges on solid wood, veneered panels, shelves, cabinet parts, frames, and furniture components.

Profile Sanding

Supports profile refinement and detail sanding for shaped woodworking components.

Angled Workpieces

Handles bevelled, tilted, and angled parts using the 0–45 degree table and fence adjustment.

Large Panel Support

Mobile front extension improves control and support during panel-edge preparation.

Machine Information

The SCM Formula Unilev 150 is a universal sanding centre designed for professional woodworking shops that need a dedicated station for edge sanding, profile sanding, shaped workpieces, angled parts, cabinet components, furniture parts, and panel-edge preparation. It is a strong fit for cabinet shops, millwork departments, joinery shops, furniture producers, finishing departments, door shops, and solid wood production areas.

The machine uses an oscillating vertical abrasive belt to improve consistency and help distribute belt wear across the sanding surface. With 12 and 24 m/sec belt speeds, operators can adjust sanding performance to suit different materials, surface requirements, and finishing targets.

The Unilev 150 includes a 1440 × 710 mm worktable, 0°–45° table and fence tilting, height-adjustable belt positioning, rear-side support for tilted workpieces, and a mobile front extension for larger panels or longer components. A supplementary roller table with dust extraction supports shaped-piece sanding and helps keep the work area more controlled during production use.

For shops that need repeatable sanding control without stepping into a larger automated sanding system, the Formula Unilev 150 provides a compact and practical solution for daily sanding support, edge preparation, shaped-part cleanup, bevel work, and joinery finishing.

Technical Features

The Formula Unilev 150 is built as a flexible sanding centre for everyday production environments that need stable support, adjustable sanding geometry, and repeatable finish preparation.

Machine Image Placeholder
Worktable / Panel Support Placeholder
Belt / Profile Sanding Placeholder
Machine Profile
Manufacturer
SCM
Series
Formula
Model
Unilev 150
Machine Type
Universal Sanding Centre
Sanding System
Primary Use
Edge, Profile, Shaped & Angled Sanding
Abrasive Belt Length
2170 mm
Abrasive Belt Height
150 mm
Vertical Oscillation Movement
130 mm
Worktable & Adjustment
Worktable Dimensions
1440 × 710 mm
Table & Fence Tilting
0–45°
Belt Adjustment
Height Adjustable
Rear-Side Support
Adjustable Stop for Tilted Workpieces
Performance
Belt Speeds
12 / 24 m/sec
Motor Power
2.2 / 3 kW S1 2-Speed Belt Motor
Workpiece Support
Mobile Front Extension
Shaped-Piece Support
Supplementary Roller Table with Dust Extraction
Titan Listing Details
Titan Category
Sanders – Other
Titan SKU
SCM-FU150
Confirm Before Final Quote
Voltage
Phase / Amperage
Dust Extraction
Footprint
Weight

Where the Unilev 150 Fits

The Unilev 150 fits shops that need a controlled sanding station for edge preparation, profiles, angled workpieces, shaped components, and everyday production cleanup.

Cabinet Shops

Supports edge sanding, touch-up sanding, panel-edge preparation, and cabinet-component finishing.

Millwork & Joinery

Useful for profiles, custom components, angled parts, frames, stair parts, and irregular workpieces.

Furniture Production

Improves sanding control on solid wood, veneered panels, shaped pieces, and furniture components.
