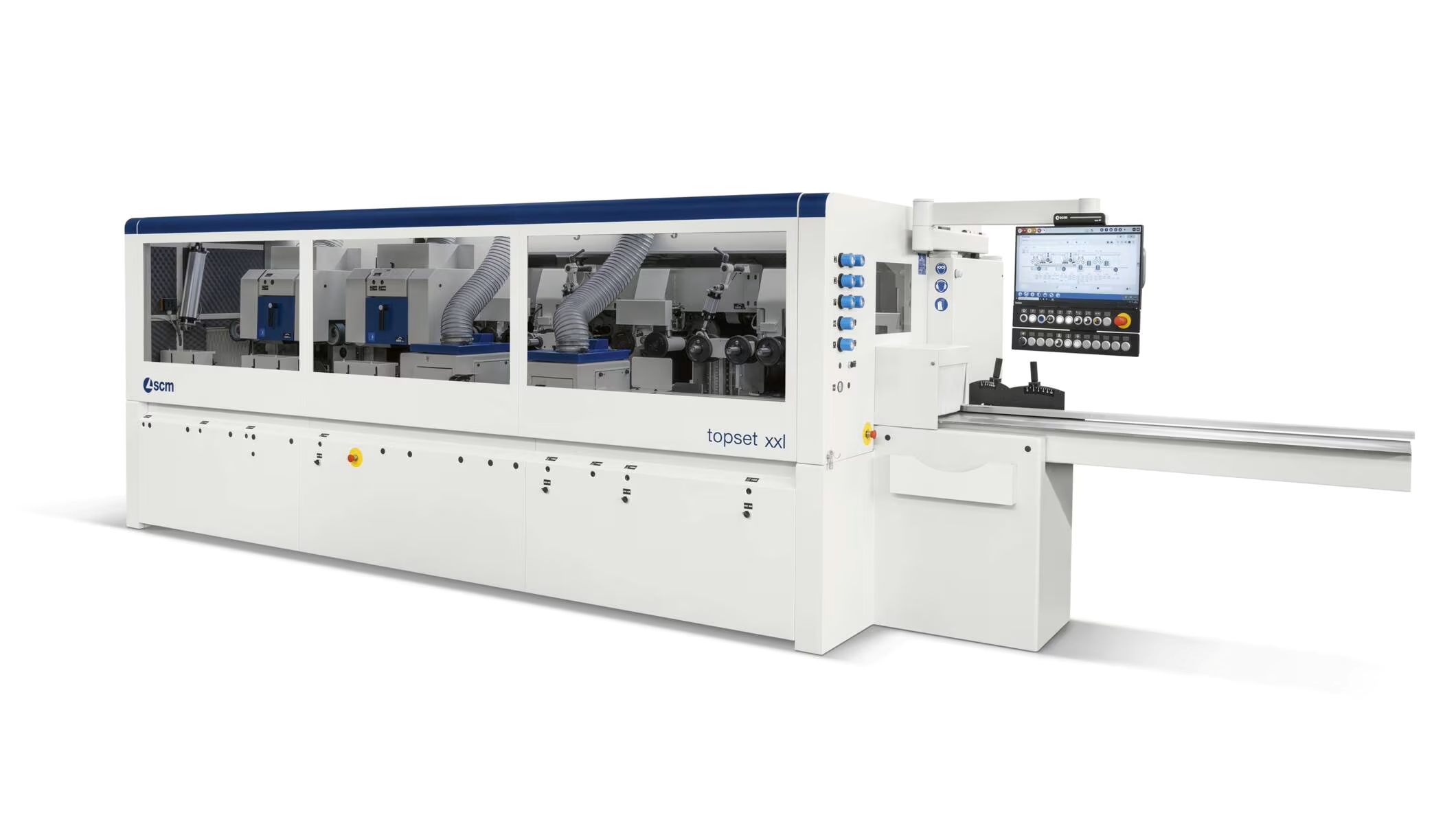

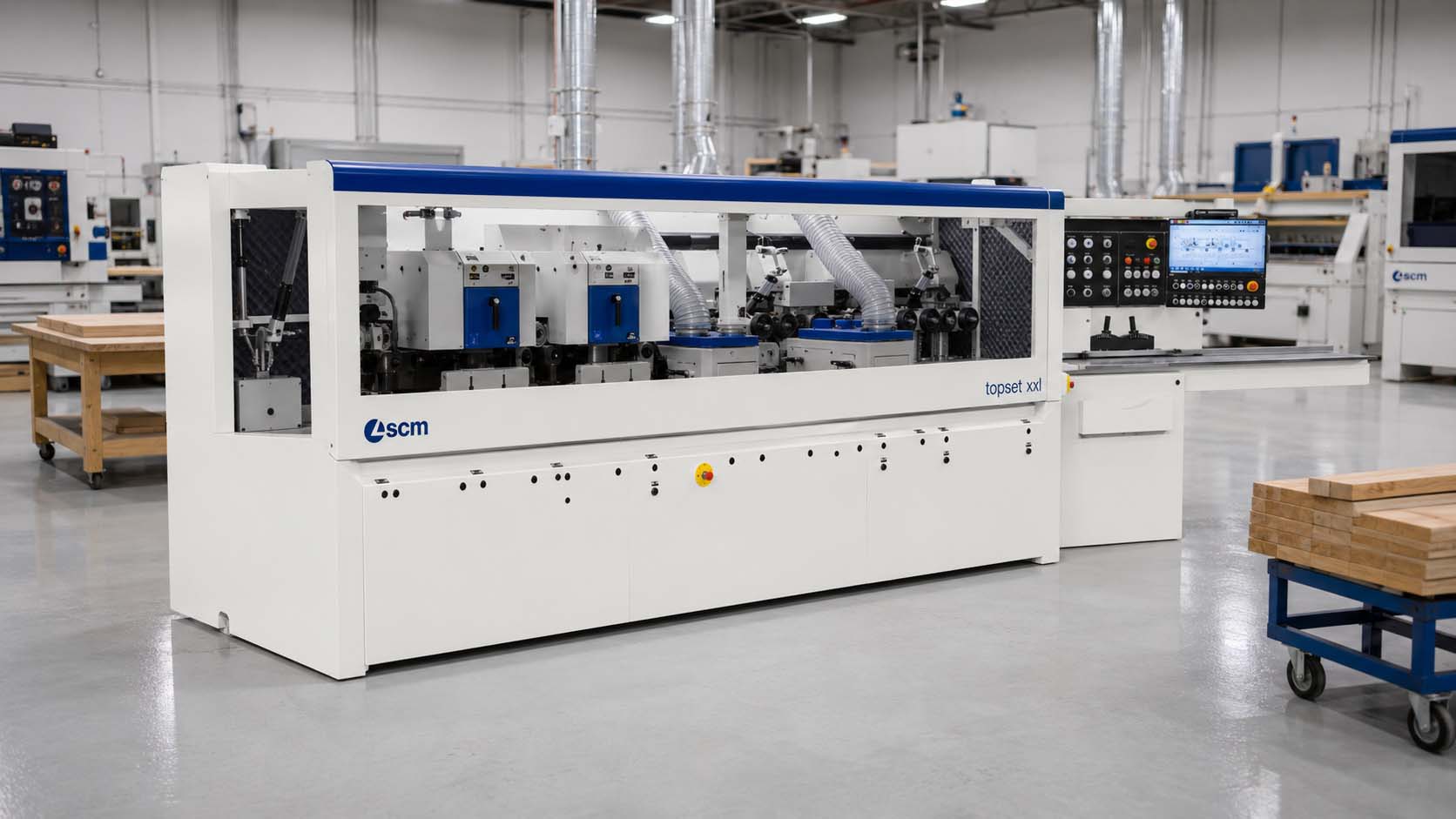

SCM Topset XXL
SCM Topset XXL Throughfeed Moulder
A large-section automatic throughfeed moulder for industrial solid wood manufacturers producing beams, prismatic profiles, frames, linear components, window and door profiles, furniture parts, garden furniture, boat furnishings, and high-value timber profiles.
The large-section SCM moulder conversation above Superset NT.
The SCM Topset XXL is a large-section automatic throughfeed moulder designed to extend SCM’s planer-moulder range for customers needing larger working sections, heavier profiles, demanding production capability, and advanced digital setup control.
For Titan, the Topset XXL should be treated as a large-profile industrial solid wood moulder, not a cabinet-shop shaper, not a panel saw, and not a basic four-sided planer. It belongs in conversations with timber component manufacturers, architectural millwork plants, door and window producers, beam processors, solid wood manufacturers, and companies producing long, large, repeatable profile sections.
Best-fit shop profile
The Topset XXL is the right machine conversation when the customer has outgrown standard throughfeed moulding capacity and needs larger section size, stronger feed support, scalable spindle compositions, and high-speed finish quality.
Large working sections, HSK high-speed tooling, and scalable spindle architecture.
The Topset XXL gives industrial solid wood manufacturers a large-section throughfeed platform with 20–320 mm finished width, 10–200 mm finished thickness, 4–40 m/min feed speed, 50 mm tool-holder spindles, optional 40 mm spindles, standard 6000 rpm spindle speed, optional 8500 rpm, and HSK spindle speeds up to 12000 rpm.
Large-section capacity
The 320 mm finished width and 200 mm finished thickness envelope makes the Topset XXL a strong fit for beams, frames, prismatic profiles, heavy sections, and large solid wood components.
HSK up to 12000 rpm
HSK tool-chuck spindle configurations with inverter control can support excellent finish quality at higher spindle speeds on demanding profiles.
Seven compositions
The Topset XXL can be configured in multiple machine compositions, with the ability to double spindle groups depending on customer production needs.
Advanced control package
Mobile PC, Maestro active 4-side, eye-M evo 24-inch touchscreen, and Maestro connect availability support modern production setup, monitoring, and workflow visibility.
Built for beams, prismatic profiles, frames, windows, doors, furniture, and large timber sections.
The Topset XXL is designed for industrial solid wood shops that need to machine larger finished sections, heavy moulded parts, long linear profiles, structural-looking components, window and door profiles, furniture sections, garden furniture parts, and boat furnishing components.
Beams & Large Timber Sections
Strong fit for larger workpieces, prismatic profiles, beams, frame stock, heavy components, and large-profile timber processing.
Window & Door Components
Built for window and door profiles, rails, stiles, frame components, linear parts, heavy moulded sections, and repeat joinery production.
Furniture & Millwork Profiles
Useful for furniture components, large mouldings, trim stock, frame stock, shaped blanks, architectural millwork, and visible solid wood details.
Garden & Boat Furnishings
Applicable for outdoor wood components, garden furniture parts, marine furnishings, and large decorative profiles that require repeatability.
Large-Section S4S & Profiling
Supports four-sided machining, re-planing, grooving, partial machining, complete machining, and profile work across larger stock sections.
High-Value Production Profiles
A strong fit where setup repeatability, finish quality, machine reporting, profile data, and configurable spindle architecture directly affect profitability.
SCM Topset XXL
A large-section SCM automatic throughfeed moulder positioned above Superset NT for industrial solid wood and timber manufacturers needing higher section capacity and advanced control.
The SCM Topset XXL is SCM’s large automatic throughfeed moulder developed to expand the planer-moulder range for customers needing larger working sections and higher performance. It is built for beams, prismatic profiles, frames, linear parts, and profiles for windows, doors, furniture, garden, and boat furnishings.
The official technical envelope includes 20 mm minimum finished working width, 320 mm maximum finished working width, 10 mm minimum finished thickness, 200 mm maximum finished thickness, 4–40 m/min feed speed, 7.5–40 kW motor power, 6000 rpm standard spindle speed, 8500 rpm optional spindle speed, 6000–12000 rpm HSK spindle speed, 50 mm tool-holder spindles, and 140 mm feeding rollers.
The Topset XXL is available in seven compositions, with the ability to double spindle groups depending on the customer’s needs. This can include doubled right and left vertical units and doubled top and bottom horizontal units for demanding profile mixes.
The advanced control package is a major part of the sales story. Mobile PC electronic control, Maestro active 4-side software, eye-M evo 24-inch Full HD touchscreen, and Maestro connect IoT availability support profile-image import, machine layouts, electronic axes, feed system management, spindle motor control, reporting, monitoring, and service visibility.
Titan sales position
Position the Topset XXL as the large-section SCM automatic throughfeed moulder for industrial solid wood and timber manufacturers that need high-output profiling, beam and frame capability, large working sections, scalable spindle compositions, HSK high-speed tooling, advanced setup control, and production-quality finish on demanding profiles.
Use the Topset XXL when Superset-class moulders are no longer enough.
The Topset XXL is the strongest SCM conversation when the customer needs larger working sections, higher performance, HSK speed, configurable spindle groups, and a new large-section throughfeed moulder platform.
Superset NT
Best when the customer needs a current SCM throughfeed moulder for flexible profile production but does not require the XXL section capacity.
Superset TM
Useful as a heavy-duty large-part moulder reference, but current availability and replacement-model positioning should be confirmed before quoting.
Topset XL
Useful as a historical or used-market reference, but the Topset XXL is the newer large-section active machine story.
Topset XXL
Best when the customer needs the largest and most configurable SCM throughfeed-moulder conversation for beams, profiles, frames, and timber.
Topset XXL specifications without table formatting.
Final published specifications should follow the quoted Titan/Canadian configuration. Confirm exact composition, spindle doubling, HSK package, spindle inverters, worktable package, control package, dust extraction, compressed air, Canadian voltage, installation footprint, material handling, commissioning, and training before SKU-level publishing.
For industrial solid wood shops that need large-profile production capability.
The Topset XXL should be positioned when the customer needs larger widths, larger thicknesses, stronger feed support, configurable spindle architecture, HSK finish quality, and modern control for demanding solid wood profiles.
Strong fit for
Industrial and high-value solid wood manufacturers processing beams, frames, windows, doors, furniture parts, garden/boat furnishings, timber components, and large profiles.
Confirm during quoting
The Topset XXL is highly configurable. Final customer-facing publishing should match the quoted Titan/Canadian configuration.
Request an SCM Topset XXL machine quote.
Send Titan your large-section production requirements, target profiles, finished section sizes, feedstock species, stock removal expectations, tooling needs, spindle composition needs, dust collection, shop power, and material-handling constraints. We will help confirm whether Topset XXL, Superset NT, or another SCM moulder platform is the right fit.
