A rear-loading automatic beam saw with 115 mm blade projection,
panel-stack handling, selectable air tables, PC/PLC control,
and Maestro Active Cut software for organized production cutting.
Rear-loaded panel cutting for shops ready to organize the entire cutting department.

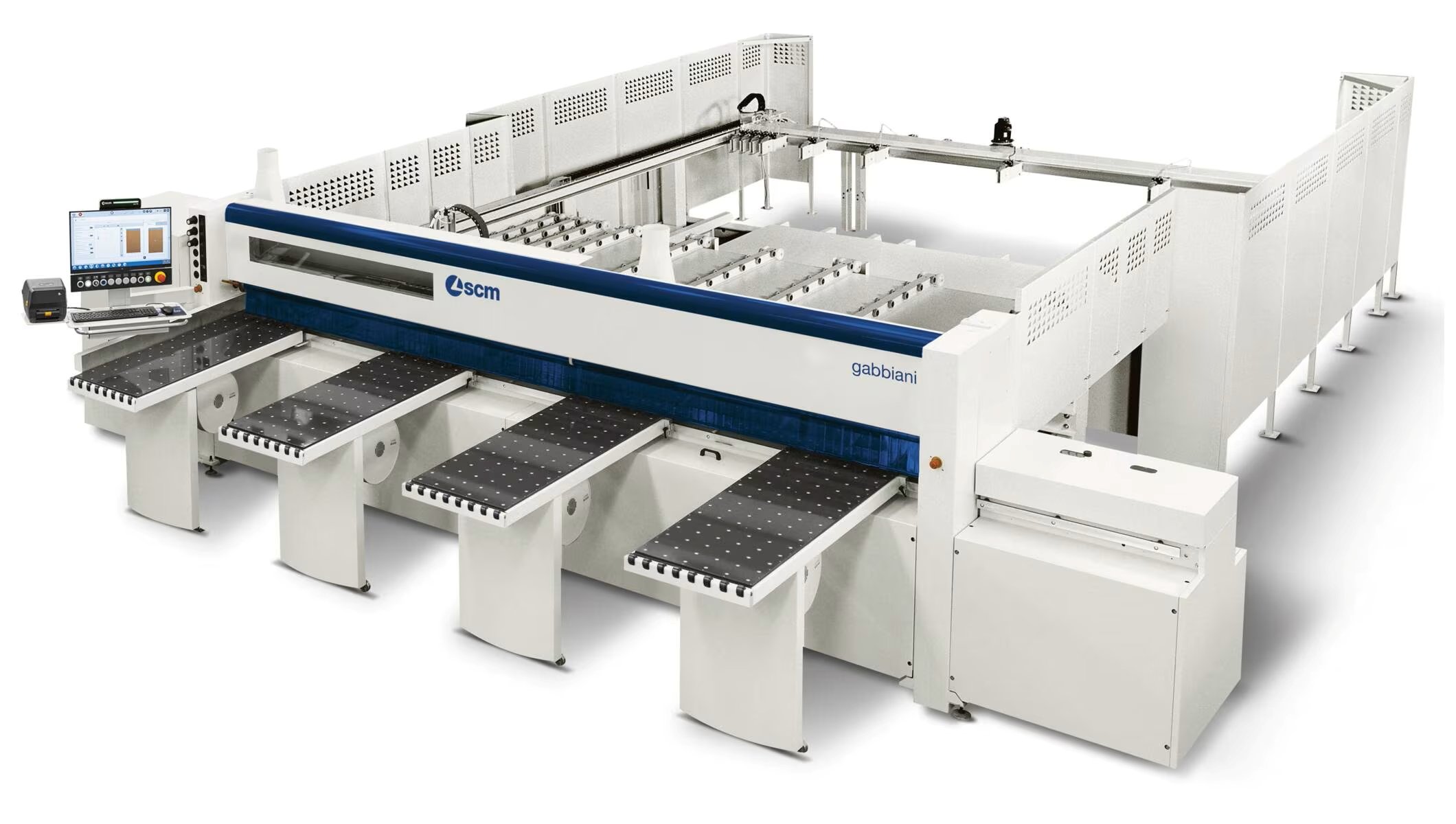

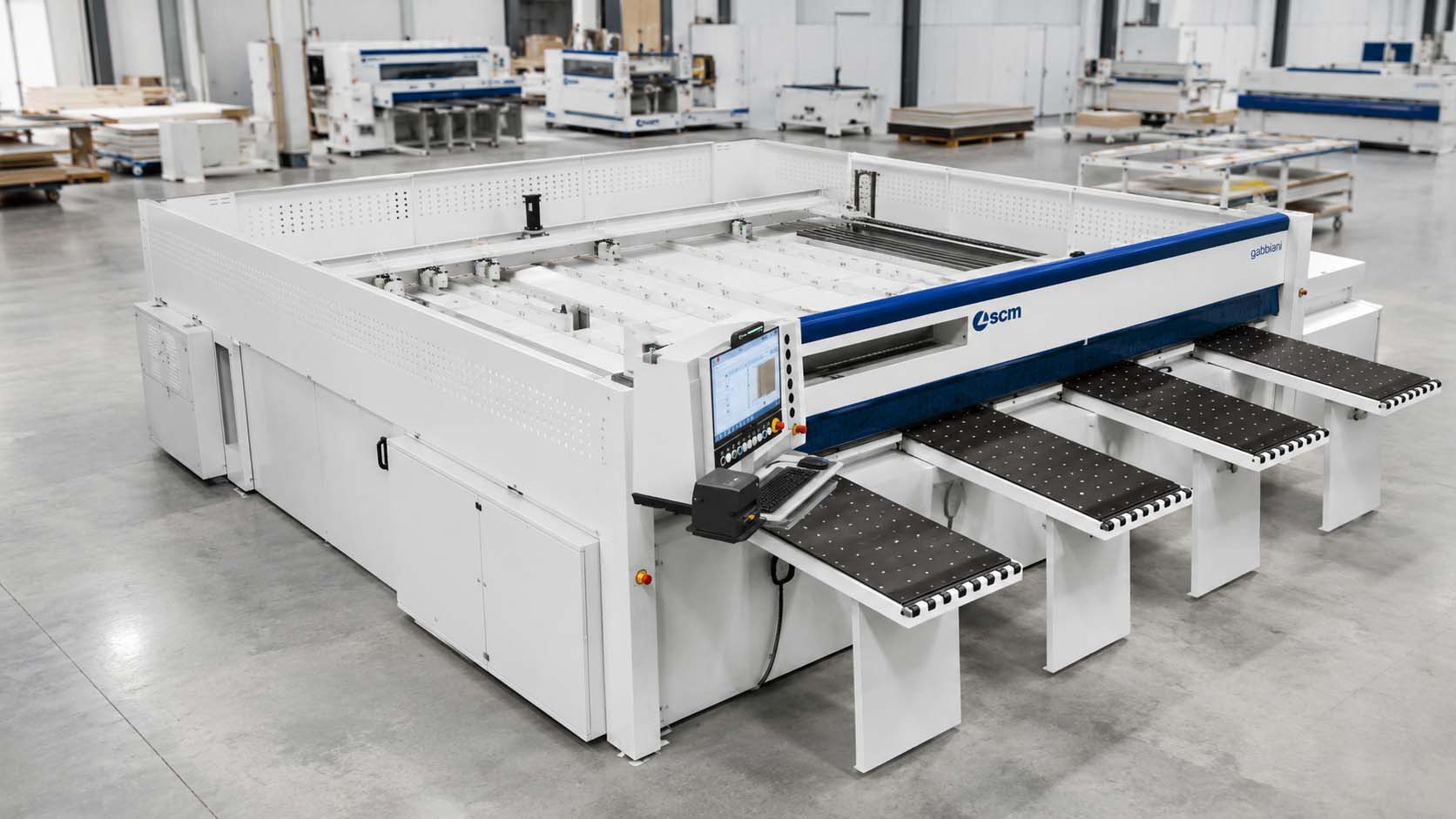

The SCM Gabbiani ST 115 is an automatic single-blade beam saw
for manufacturers that need repeatable panel sizing, rear-loaded
stack handling, and a controlled path from sheet storage to finished parts.
Cutting lengths of 3200, 3800, or 4500 mm combine with 1850 or
2200 mm cutting depth, 115 mm blade projection, and saw-carriage
speeds up to 135 m/min in the listed standard range.
Selectable air-table sections, PC/PLC control, Maestro Active Cut,
and available systems such as SAW-SET and Flexstore ELR integration
support a more structured, software-driven cutting workflow.
115 mmBlade Projection
600 mmLoading Platform Stack Height
0–135 m/minSaw Carriage Speed
3200 / 3800 / 4500Cutting Length · mm
Capability Matrix
One automatic beam saw. Five cutting-room disciplines.
The Gabbiani ST 115 combines stack cutting, sizing, controlled panel movement, rear loading, and software-driven production.
Mode 01
Panel-Stack Cutting
Processes individual panels and panel stacks across cabinet, furniture, closet, fixture, and general sheet-goods production.
Mode 02
Repeat Panel Sizing
Supports controlled cutting lengths, repeat dimensions, production part lists, and consistent panel-sizing programs.
Mode 03
Rear-Loaded Material Flow
Stages and lifts panel stacks into the cutting cycle for a more organized relationship between storage and production.
Mode 04
Controlled Panel Handling
Selectable air-table sections support panel movement where required while helping maintain control of completed cut parts.
Mode 05
Software-Driven Cutting
Maestro Active Cut supports cutting programs, stock control, offcut management, and organized part handling.
Production Advantages
Designed for stronger material flow, faster setup, and controlled panel movement.
The rear-loading platform, selectable air tables, and software environment support a more deliberate cutting workflow.
Rear Loading Platform
Supports organized panel-stack staging, lifting, and movement into the cutting cycle for production environments.
Selectable Air Tables
Individual table sections can be activated where needed to support panel sliding and controlled part movement.
Available SAW-SET Adjustment
Electronic tool adjustment is available to support precise setup, productive changeovers, and consistent saw configuration.
Equipment Range
Lineup Positioning
Manual Cutting
Sliding-Table or Vertical Saw
Suitable for lower-volume cutting, but dependent on manual handling, operator positioning, and repeated setup.
Automatic Beam Saw
SCM Gabbiani ST 115
Adds rear loading, panel-stack cutting, selectable air tables, software control, and production-class saw motion.
Storage-Integrated Cell
Flexstore-Connected Cutting
Extends the cutting department with automatic storage, organized material supply, and integrated panel flow.
Technical Specifications
Gabbiani ST 115
Machine Profile
ManufacturerSCM
SeriesGabbiani
ModelST 115
Machine TypeAutomatic single-blade beam saw
Cutting Capacity
Cutting Length3200 / 3800 / 4500 mm
Cutting Depth on Platform1850 / 2200 mm
Blade Projection115 mm
Loading Stack Height600 mm with support beams
Saw Unit and Motion
Saw Carriage Speed0–135 m/min
Optional Saw Speed0–150 m/min
Pusher Speed0–70 m/min
Optional Pusher Speed0–90 m/min
Controls and Drive
Main Blade Motor9–18 kW options
Control SystemPC / PLC
SoftwareMaestro Active Cut
Air TablesSelectable sections
Material Handling
Loading MethodRear loading platform
Stack HandlingUp to 600 mm listed height
Front SupportSelectable air-blowing tables
Part FlowStock and offcut management support
Available Production Systems
Tool AdjustmentSAW-SET available
Pressure BeamControlled-axis system available
Storage IntegrationFlexstore ELR integration available
Support SystemsSav€nergy and Telesolve available
Production Environments
Where the Gabbiani ST 115 Fits
A production beam saw for facilities that need rear-loaded panel flow, stack cutting, and a path toward storage integration.
Production Cutting Departments
Replaces manual cutting bottlenecks with automatic beam-saw production, programmed sizing, and stronger stack handling.
Cabinet, Closet and Furniture Shops
Fits melamine, MDF, plywood, particleboard, fibreboard, laminated panels, and repeated production components.
A beam saw that turns the cutting area into a structured production department.
The Gabbiani ST 115 combines rear-loaded stack handling, a fast saw
carriage, selectable air tables, and software-managed cutting in a
platform designed around repeatable panel flow.
Operators gain a clearer relationship between incoming material,
programmed cuts, front-table handling, completed parts, and reusable offcuts.
For growing cabinet, closet, furniture, fixture, and panel-processing
operations, the machine creates a professional foundation for a more
capable cutting room and future storage integration.
