A platform-loading automatic horizontal beam saw available as the PT80 or PT95, with guided operation, panel-stack handling, LED bar assistance, and optional FLEXCUT and SAW-SET productivity systems.
Platform-loading beam-saw production for shops ready to move beyond manual panel cutting.

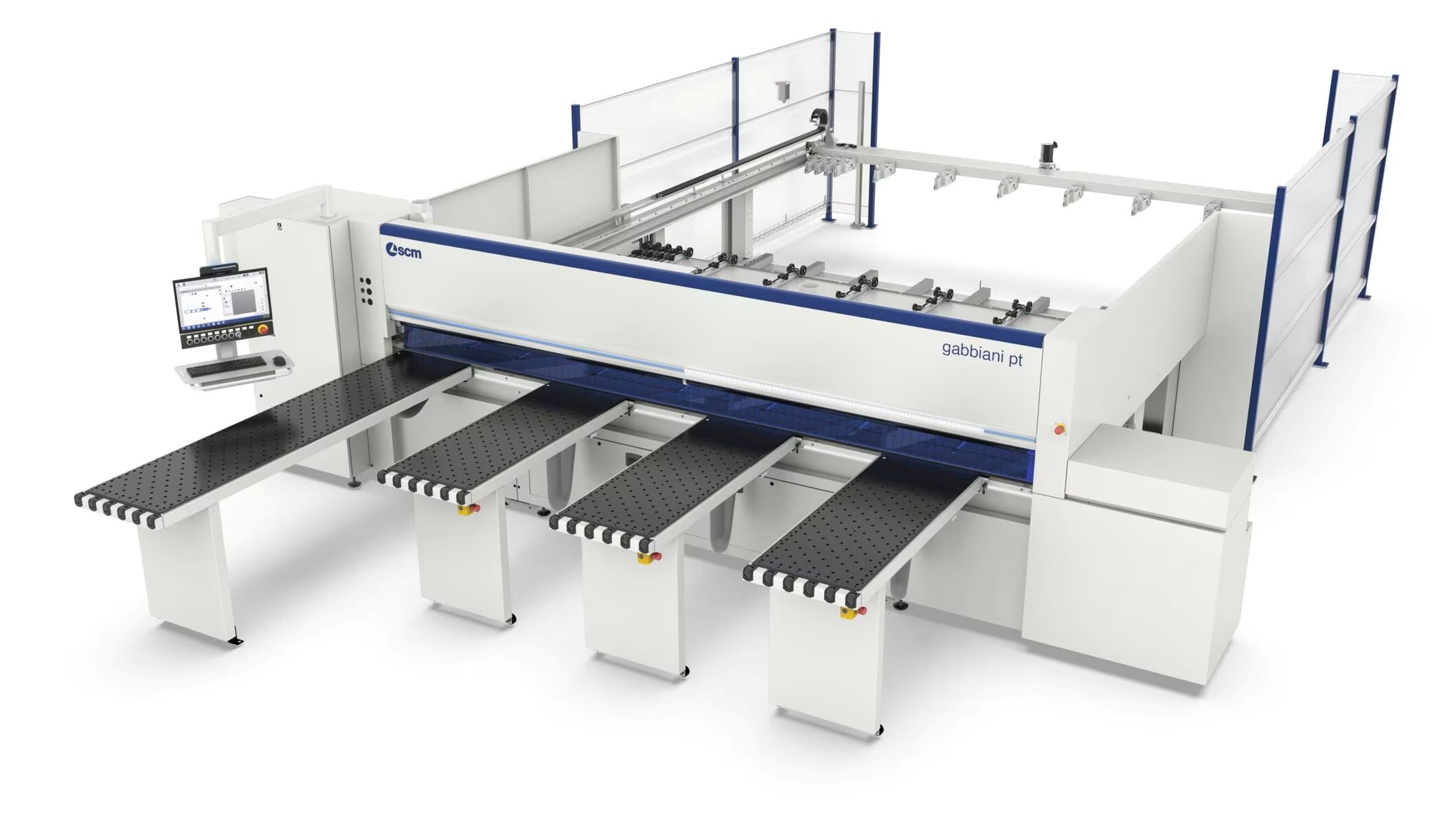

The SCM Gabbiani PT is an automatic single-blade beam saw
for manufacturers that need repeatable panel sizing, platform-loading
stack handling, and a controlled path from sheet storage to finished parts.
Cutting lengths of 3300, 3800, or 4300 mm combine with platform depths of 1850 or 2200 mm, stack capacity up to 600 mm with support beams, and PT80 or PT95 blade-projection choices.
LED bar guidance supports operator awareness during processing and loading, while optional FLEXCUT and SAW-SET systems provide additional productivity and setup capability.
80 / 95 mmBlade Projection
600 mmMaximum Stack Height
Up to 120 m/minOptional Saw Speed
3300 / 3800 / 4300Cutting Length · mm
Capability Matrix
One platform-loading beam saw. Five cutting-room disciplines.
The Gabbiani PT combines stack cutting, sizing, controlled panel movement, platform loading, and software-driven production.
Mode 01
Panel-Stack Cutting
Processes individual panels and panel stacks across cabinet, furniture, closet, fixture, and general sheet-goods production.
Mode 02
Repeat Panel Sizing
Supports controlled cutting lengths, repeat dimensions, production part lists, and consistent panel-sizing programs.
Mode 03
Platform-Loading Material Flow
Supports organized panel-stack staging and loading into the cutting cycle for a practical step beyond manual sheet handling.
Mode 04
Controlled Panel Handling
LED bar guidance assists the operator through processing and loading steps, including rear guidance for forklift stack positioning.
Mode 05
Guided Production Cutting
Operator guidance and machine control support repeat cutting programs, stack handling, and a clearer daily production workflow.
Production Advantages
Designed for guided operation, practical stack handling, and flexible productivity upgrades.
Platform loading, LED guidance, and available FLEXCUT and SAW-SET systems support a more deliberate cutting workflow.
Loading Platform Workflow
Supports organized panel-stack handling and a smoother path from material staging into the automatic cutting cycle.
LED Bar Guidance
Front and rear LED guidance supports processing awareness, forklift positioning, and stack-change communication.
FLEXCUT and SAW-SET Options
Available FLEXCUT supports simultaneous rip and cross cuts, while SAW-SET provides electronic tool adjustment for faster setup.
Equipment Range
Lineup Positioning
Manual Cutting
Manual Panel Cutting
Suitable for lower-volume production, but dependent on manual sheet handling, positioning, and repeated operator setup.
Automatic Beam Saw
SCM Gabbiani PT
Adds platform loading, 80 or 95 mm blade projection, guided operation, automatic cutting, and optional productivity systems.
Higher-Capacity Beam Saw Cell
Expanded Automated Cutting
Represents the next step when production volume, storage integration, and automated material flow exceed the PT platform.
Technical Specifications
Gabbiani PT
Machine Profile
ManufacturerSCM
SeriesGabbiani
ModelPT80 / PT95
Machine TypeAutomatic horizontal beam saw
Cutting Capacity
Cutting Length3300 / 3800 / 4300 mm
Cutting Depth on Platform1850 / 2200 mm
Blade ProjectionPT80: 80 mm · PT95: 95 mm
Loading Stack Height600 mm with support beams
Saw Unit and Performance
Saw Carriage SpeedUp to 120 m/min optional
Main Blade DiameterPT80: 340 mm · PT95: 370 mm
Pusher Speed80 m/min
Standard Clamps5
Blade Data and Controls
Scoring Blade Motor1.5 kW
Control SystemPC / PLC
Main Blade Speed4650 rpm
Scorer Speed5850 rpm
Loading and Guidance
Loading MethodLoading platform
Maximum Stack Height600 mm with support beams
Platform Depth1850 / 2200 mm
Operator GuidanceFront and rear LED bar system
Available Productivity Systems
Tool AdjustmentSAW-SET available
Productivity UnitFLEXCUT available
Rear Loading GuidanceLED forklift-positioning support
Model ChoicePT80 / PT95
Production Environments
Where the Gabbiani PT Fits
A platform-loading beam saw for shops that need guided automatic cutting, practical stack handling, and a controlled step beyond manual panel breakdown.
Growing Cutting Departments
Replaces manual cutting bottlenecks with automatic beam-saw production, guided operation, and practical stack handling.
Cabinet, Closet and Furniture Shops
Fits melamine, MDF, plywood, particleboard, fibreboard, laminated panels, and repeated production components.
Platform-Loading Production
Supports small and medium-sized manufacturers that need automatic cutting without moving directly into a larger rear-loading cell.

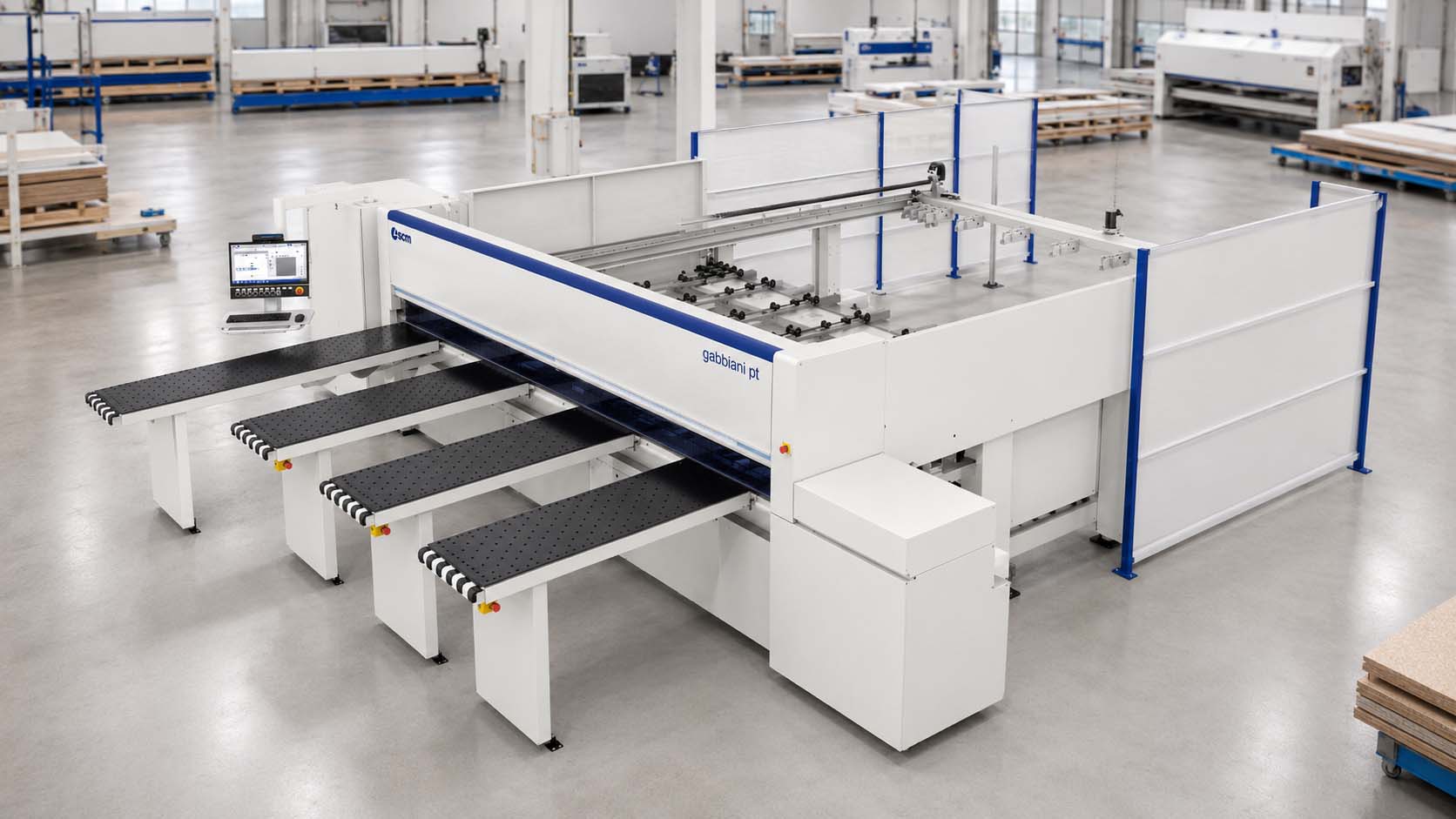

Platform Loading · Guided Beam-Saw Production
A practical automatic beam saw that brings order and guidance to daily panel cutting.
The Gabbiani PT combines platform-loading stack handling, a fast saw
carriage, selectable air tables, and software-managed cutting in a
platform designed around repeatable panel flow.
Operators gain a clearer relationship between staged material, cutting programs, stack position, processing steps, and completed parts.
For cabinet, closet, furniture, fixture, and panel-processing operations, the machine creates a professional bridge between manual cutting and larger automated beam-saw cells.
