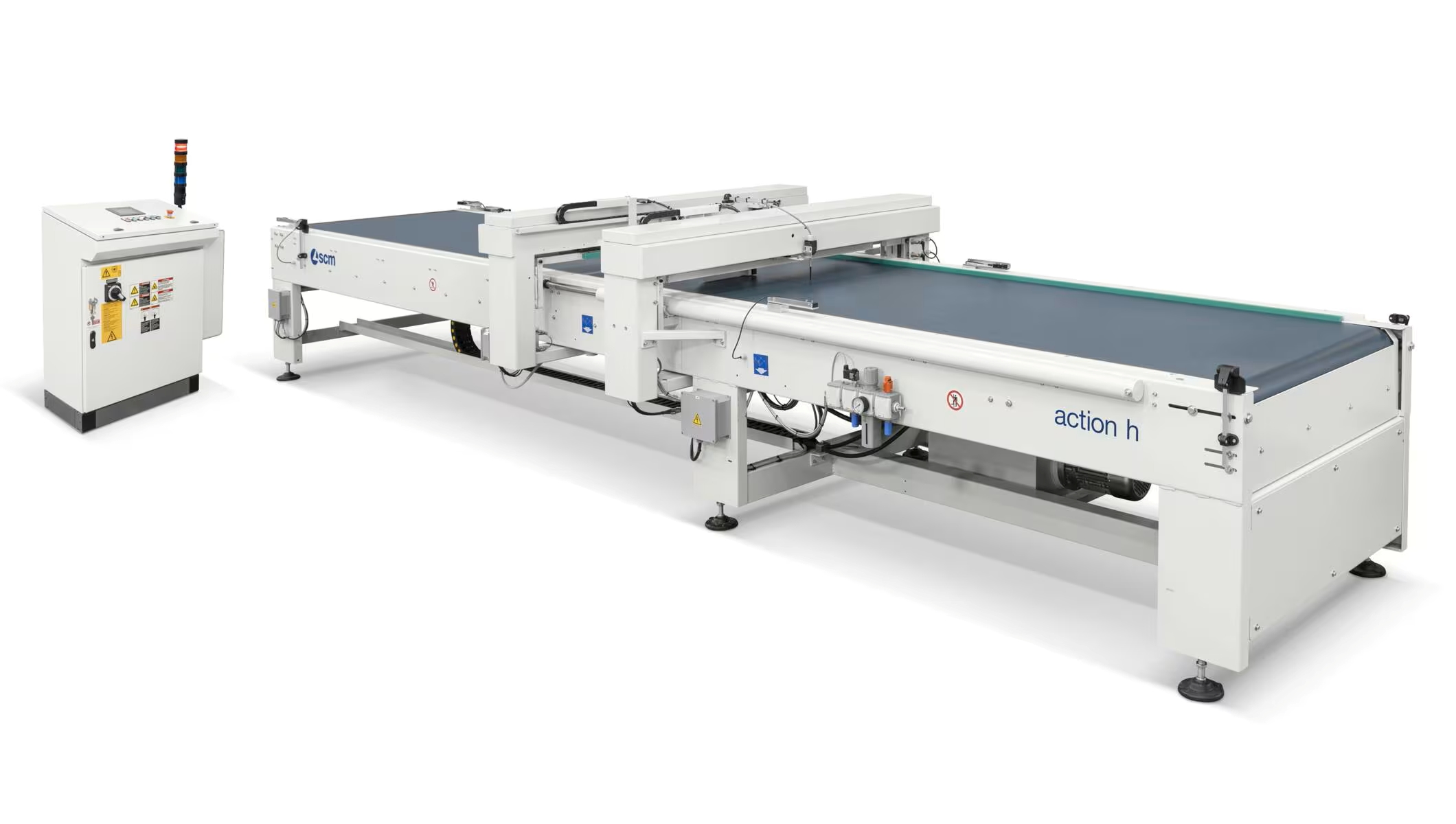

SCM Action H Automatic Hydraulic Door & Frame Clamp
A fully automatic hydraulic clamp for furniture doors, cabinet doors, framed fronts, and frame-style products where mixed sizes, fast cycles, 45° / 90° joints, and repeatable pressing control are central to production.
Self-learning hydraulic clamping for high-variation framed-door production.
SCM Action H is a fully automatic hydraulic clamp for furniture doors, cabinet doors, framed fronts, and related frame-style products that move through frequent size and joint changes.
Automatic size self-learning detects the workpiece dimensions and positions the clamping system without a previous manual setting. The machine supports both 45° mitered joints and 90° square joints while allowing pressing force to be adjusted for the profile, material, and glue-up process.
Final configuration should confirm door and frame dimensions, joint construction, pressing requirements, utilities, guarding, loading flow, installation, training, warranty, and service.
2500 × 750 × 40 mmMaximum Working Size
20–25 secWorking Cycle
21 m/minTranslation Speed
45° / 90°Frame-Joint Formats
Capability Matrix
Automatic Door & Frame Clamping Modes
Match Action H to the door-size range, joint geometry, frame profile, glue system, pressure requirement, and production sequence.
Mode 01
Automatic Size Self-Learning
Detects the door or frame dimensions and positions the clamp automatically for changing sizes.
Mode 02
45° Mitered Frames
Supports miter-joint door and framed-front assembly without a previous manual format setting.
Mode 03
90° Square-Joint Frames
Clamps square-joint frames and five-piece door assemblies within the same production workflow.
Mode 04
Adjustable Hydraulic Pressure
Pressing power can be tuned for the frame style, profile, material, and glue-up requirement.
Mode 05
Mixed-Size Repeat Production
Handles custom, short-run, batch-one, and repeat door programs with frequent size changes.
Action H concentrates format detection, hydraulic pressure, frame alignment, and repeat cycle control into a dedicated framed-door assembly station.
Reduced Manual Setup
Automatic dimension detection minimizes repeated clamp-position adjustment between changing door and frame sizes.
One Platform for 45° and 90° Joints
Mitered and square-joint programs can move through the same dedicated hydraulic clamping workflow.
Process-Matched Pressing Power
Adjustable pressure supports different profiles, materials, joint styles, and glue-up requirements.
Equipment Range
Lineup Positioning
Manual Clamping
Bench Clamps & Manual Door Presses
Appropriate for low-volume work where manual alignment, clamp positioning, and longer format changes remain acceptable.
Dedicated Hydraulic Clamping
Conventional Door & Frame Clamp
Adds controlled pressure but may still require manual setup between changing dimensions and joint formats.
SCM Action H
Automatic Hydraulic Door & Frame Clamp
Adds size self-learning, 45° / 90° flexibility, adjustable pressure, and fast mixed-size production capability.
Technical Specifications
SCM Action H
Machine Profile
Manufacturer
SCM
Series / Model
Action / Action H
Machine Type
Automatic hydraulic door / frame clamp
Primary Use
Furniture doors, cabinet doors, framed fronts and frame-style products
Working Range
Maximum Working Size
2500 × 750 × 40 mm
Minimum Working Size
300 × 135 × 15 mm
Working-Cycle Reference
20–25 seconds
Translation Speed
21 m/min
Assembly Capability
Joint Types
45° and 90°
Setup Concept
Automatic size self-learning
Pressing Power
Adjustable to frame style, profile, material and process
Production Mix
Standard, custom, short-run and mixed-size programs
Utilities & Motion
Power Reference
2 kW
Air Reference
6 bar
Translation System
Automatic movement at the listed 21 m/min reference
Pressure Control
Hydraulic pressing force adjustable by application
Production Applications
Furniture Doors
Framed fronts, cabinet doors and five-piece door products
Mitered Products
45° frame and door assembly
Square-Joint Products
90° frame and door assembly
High-Variation Work
Frequent size changes, short runs and batch-one sequences
Configuration & Support
Confirm Before Quote
Door and frame size range, joint style, profile, material and glue system
Utilities
Regional electrical, compressed air, controls and safety package
Shop Layout
Confirm loading, unloading, guarding, operator access and production flow
Support
Installation, startup, operator training, warranty and service
Production Environments

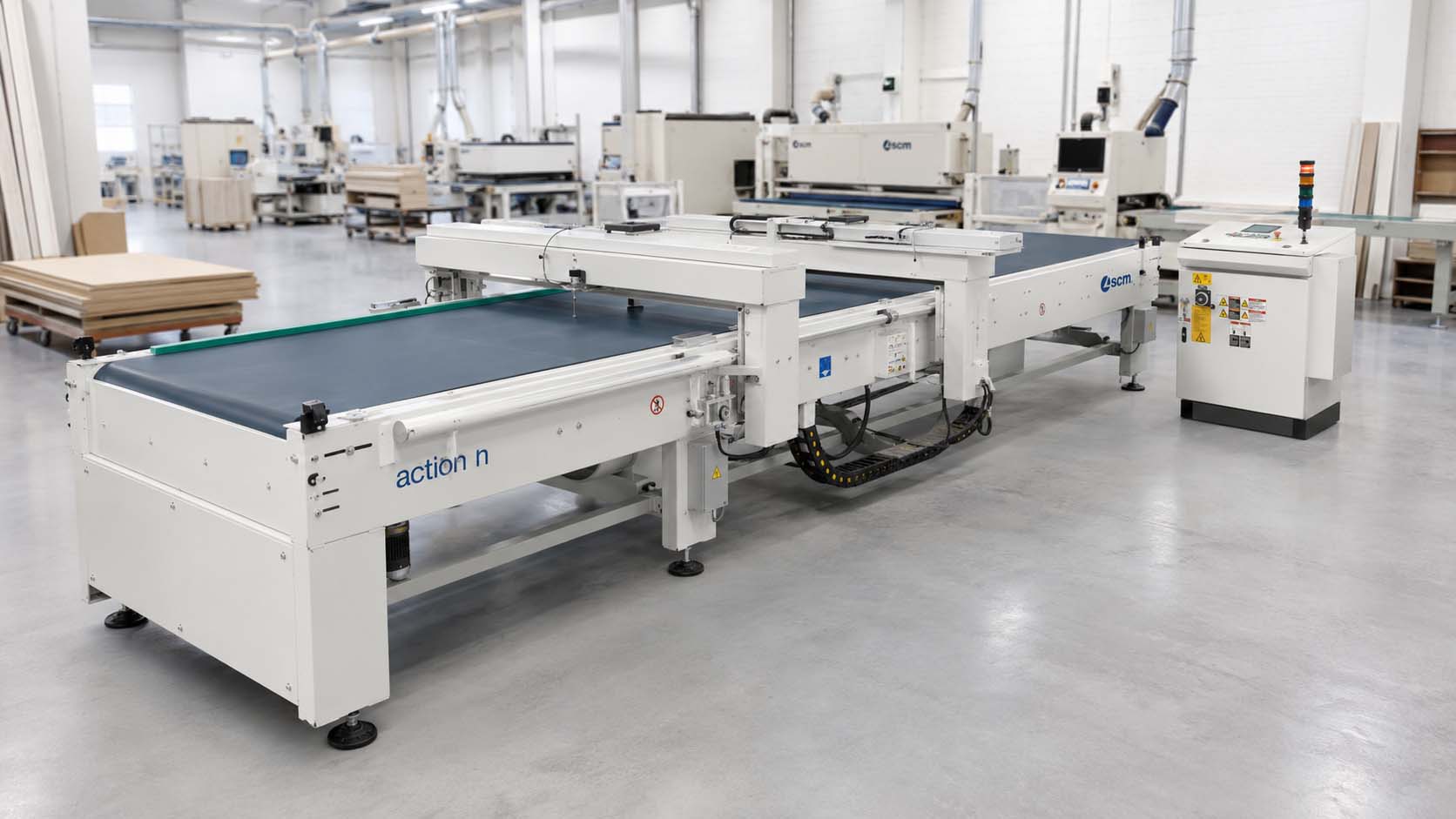

Where the Action H Fits
For framed-door production departments that need rapid format response, automatic sizing, controlled hydraulic pressure, and both mitered and square-joint capability.
Furniture-Door Manufacturing
High-volume or mixed-size framed fronts, cabinet doors, furniture doors, and repeat frame-style products.
Custom sizes, short runs, mixed order sequences, and assembly departments with frequent format changes.
Automatic Framed-Door Assembly
Move mixed-size door clamping into a self-learning hydraulic workflow.
Action H detects the incoming workpiece dimensions, positions the clamping system automatically, and applies process-matched hydraulic pressure without repeated manual format setup.
The ability to handle 45° and 90° joints makes the machine suitable for mitered doors, square-joint frames, five-piece products, custom sizes, and repeat production on the same platform.
Final configuration should confirm size range, profiles, joint style, glue system, pressure requirements, utilities, guarding, loading flow, installation, startup, training, warranty, and service.
