A closed-composition 4200 mm vertical panel saw with pneumatic worktable movement for compact horizontal and vertical sizing of wood-based sheet materials.
A dedicated 4200 mm upright cutting station with pneumatic panel support and straightforward single-blade operation.

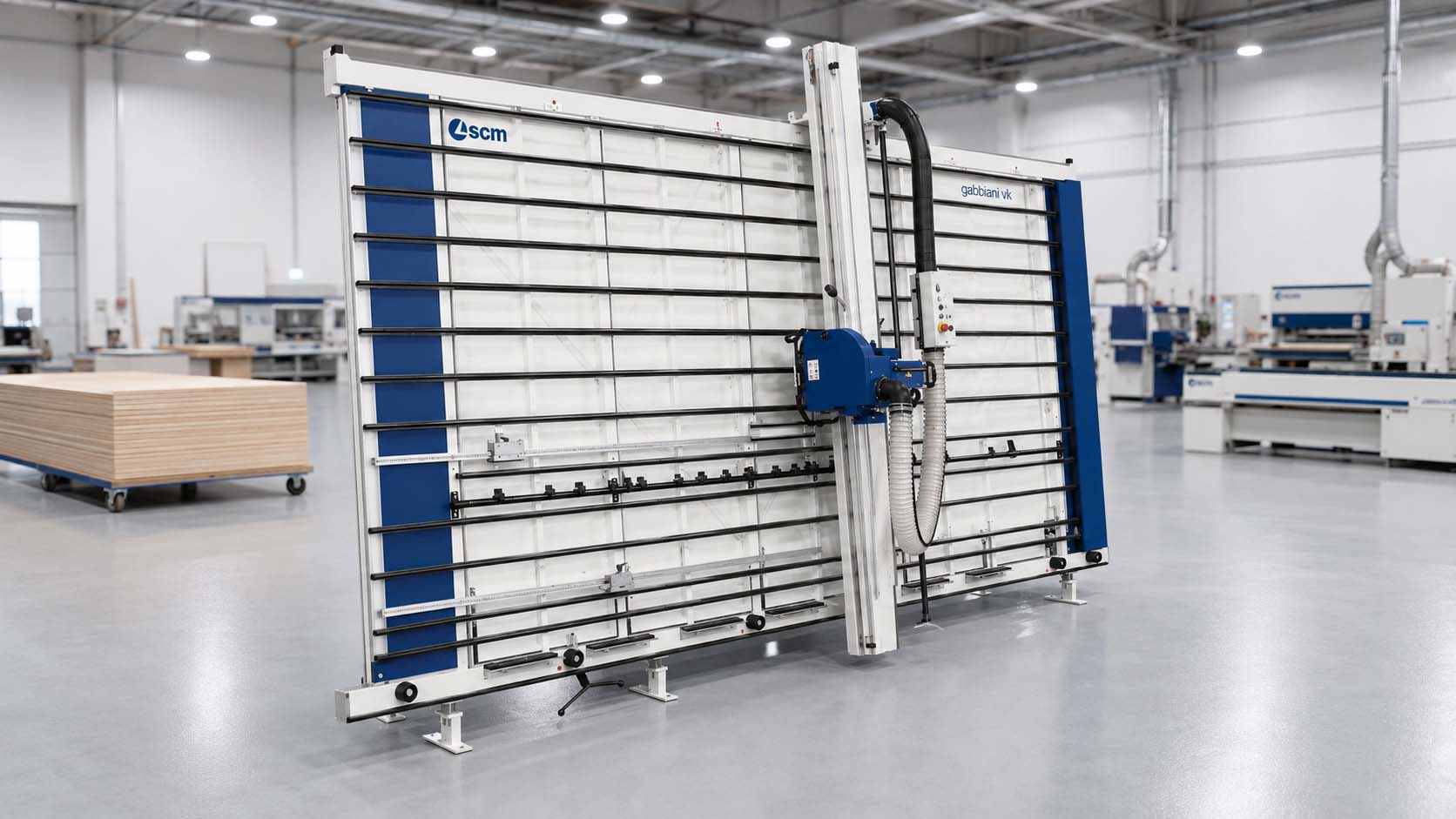

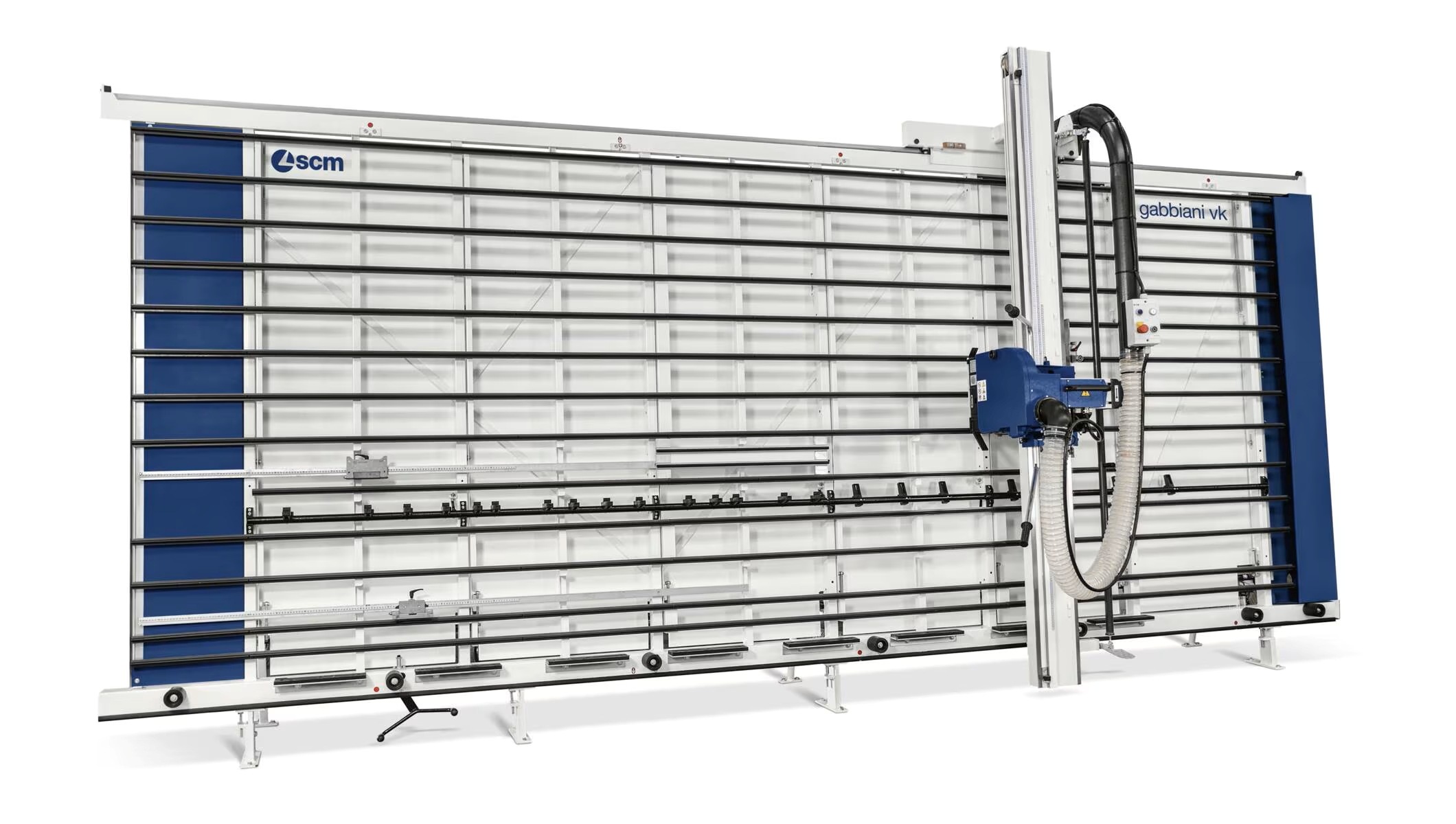

The SCM Gabbiani VK is a closed-composition vertical panel saw designed for horizontal and vertical cutting while the panel remains upright against the machine frame. Its fixed 4200 mm format gives cabinet, closet, furniture, millwork, training, and panel-processing shops a defined sheet-sizing station without the loading footprint of a horizontal beam saw cell.
Published VK data includes 4200 mm horizontal and vertical cut lengths, 2200 mm vertical cut height, 2080 mm horizontal cut height, 60 mm maximum cutting thickness, pneumatic worktable movement, a 3.7 kW / 5 HP motor, 250 mm blade diameter, 5300 rpm blade speed, and two stops for vertical cuts.
The single-main-blade system is intended for practical panel breakdown and repeat sizing where a scoring unit is not required. Blade package, optional Widia tooling, extraction, electrical requirements, site clearances, delivery, installation, training, and service scope should be confirmed for the final configuration.
4200 mmHorizontal Cut
4200 mmVertical Cut
60 mmCut Thickness
3.7 kW / 5 HPMotor Power
Capability Matrix
One closed-composition vertical saw. Five focused panel-sizing capabilities.
The Gabbiani VK combines upright panel support, horizontal and vertical cutting, pneumatic table movement, repeat stops, and single-blade simplicity in a fixed 4200 mm format.
Mode 01
Vertical Panel Cutting
Supports vertical sizing while the sheet remains upright and supported against the machine frame.
Mode 02
Horizontal Panel Cutting
Handles horizontal cuts for cabinet parts, shelves, partitions, backs, furniture panels, and other sheet-good components.
Mode 03
Pneumatic Worktable Movement
Pneumatic table movement supports panel handling and positioning through the upright cutting workflow.
Mode 04
Repeat Vertical Sizing
Two vertical stops support repeat cut positioning for recurring panel dimensions and production batches.
Mode 05
Single-Blade Operation
A straightforward 250 mm main-blade system supports practical cutting where a scoring unit is not required.
Production Advantages
Built around compact floor use, supported panel handling, and a clear fixed-format cutting workflow.
The VK gives smaller and mid-sized shops a dedicated SCM vertical cutting station without adding scoring-system complexity.
Dedicated 4200 mm Format
The closed-composition VK layout provides a defined 4200 mm horizontal and vertical cutting station for full-sheet work.
Pneumatic Handling Support
Pneumatic worktable movement helps support the panel as it is positioned through horizontal and vertical cuts.
Straightforward Saw Architecture
Single-blade operation keeps the machine practical for general sheet sizing and repeat production work.
Equipment Range
Lineup Positioning
Manual Sheet Breakdown
Track Saw or Sliding-Table Saw
Suitable for lower-volume work where the operator stages, measures, supports, and repositions each sheet manually.
Flexible Upright Cutting
SCM Gabbiani V Family
Adds supported vertical handling and multiple available format sizes for shops that want a conventional single-blade vertical saw platform.
Dedicated Fixed-Format Station
SCM Gabbiani VK
Adds a closed-composition 4200 mm format, pneumatic worktable movement, two vertical stops, and straightforward single-blade production.
Technical Specifications
Gabbiani VK
Machine Profile
ManufacturerSCM
SeriesGabbiani
ModelVK
Machine TypeClosed-composition vertical panel saw
Cutting Capacity
Horizontal Cut Length4200 mm
Vertical Cut Length4200 mm
Vertical Cut Height2200 mm
Horizontal Cut Height2080 mm
Saw Unit
Cutting Thickness60 mm
Blade Diameter250 mm
Blade Speed5300 rpm
Motor Power3.7 kW / 5 HP
Handling and Positioning
Worktable MovementPneumatic
Vertical Stops2
Panel OrientationUpright support
Cutting OrientationHorizontal and vertical
Materials and Applications
Panel MaterialsMDF, plywood, particleboard and laminated panels
Production UsesCabinet, closet, furniture and casework
Project WorkMillwork, fixtures and training shops
Downstream WorkEdgebanding, boring, CNC machining and assembly
Project Configuration
Blade PackageMaterial-specific review
Optional Widia ToolingConfiguration-dependent
Site ReviewFootprint, clearance and loading path
Utilities and SupportElectrical, extraction, installation and training
Production Environments
Where the Gabbiani VK Fits
A strong match for production environments that need a compact fixed-format vertical saw with pneumatic panel support.
Cabinet and Closet Manufacturing
Cuts sides, shelves, backs, fillers, finished ends, partitions, and system panels before edgebanding, boring, CNC work, or assembly.
Furniture and Casework Production
Supports repeat sizing of MDF, plywood, particleboard, laminated panels, shelving parts, and production blanks.
Millwork and Training Environments
Fits decorative-panel, fixture, custom millwork, school, and mixed sheet-goods environments that need a dedicated 4200 mm station.
Compact Upright Panel Sizing
A dedicated 4200 mm cutting station that keeps full sheets supported, organized, and ready for downstream production.
The Gabbiani VK gives cabinet, closet, furniture, millwork, and training shops a defined vertical cutting station for full sheets and repeat panel dimensions.
Its closed-composition format, pneumatic worktable movement, and two vertical stops support a cleaner panel-handling workflow while keeping horizontal and vertical sizing inside a compact footprint.
The result is a practical sheet-breakdown station that can feed edgebanding, boring, CNC machining, assembly, and other downstream operations with properly sized components.
