Operator-friendly cutting cycle with ergonomic two-hand start and low setup complexity for day-to-day production.

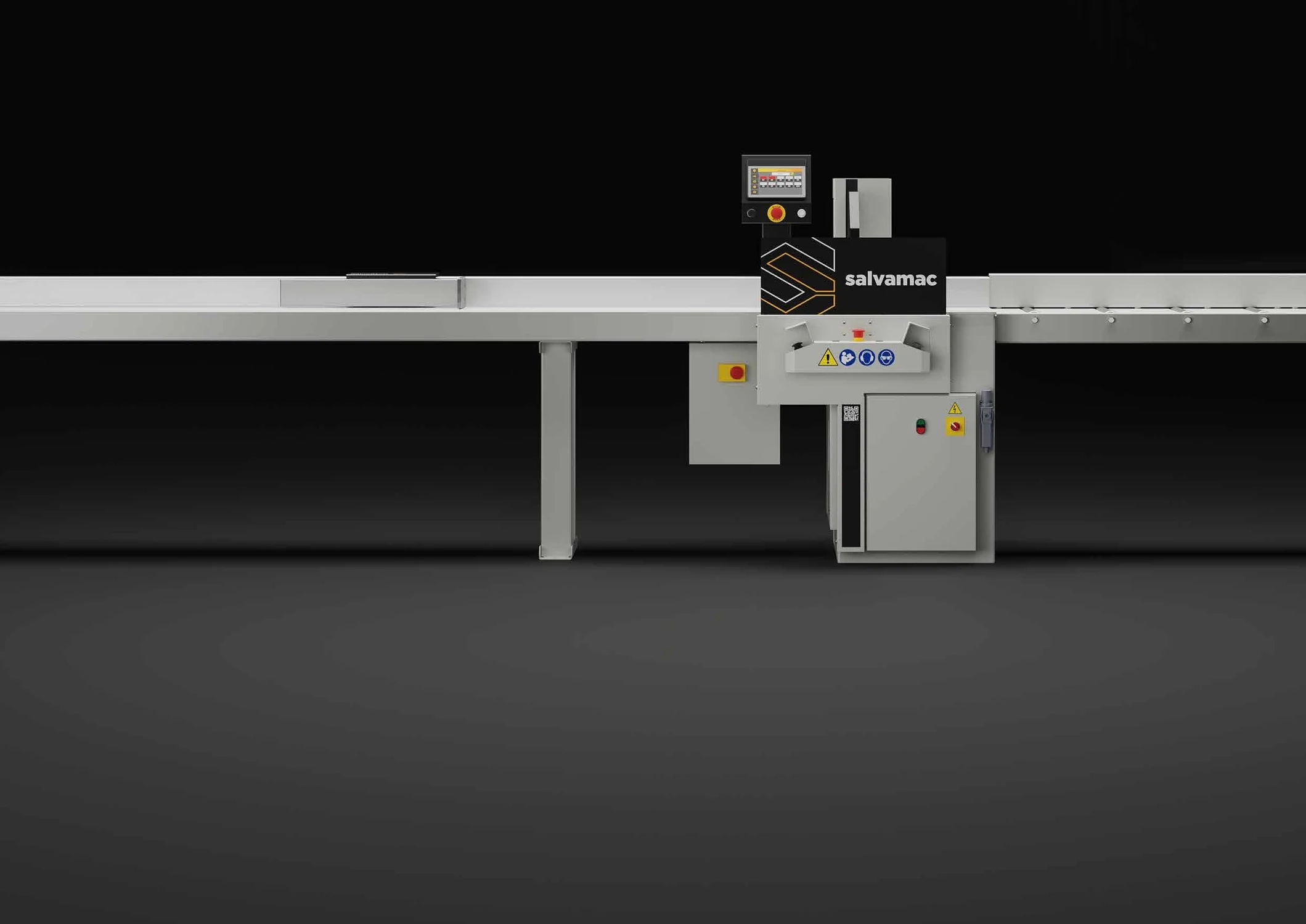

Salvamac Legend 400
Semi-automatic cross-cutting
Salvamac Legend lineLegend 400
Compact, reinforced and built for fast daily crosscutting, the Legend 400 gives smaller-section production a safer, more repeatable alternative to conventional manual chop-saw work.
Executive overview
Legend 400 for compact daily production.
The Legend 400 is the smallest model in Salvamac’s Legend family. It uses a 400 mm blade, a 3.0 kW motor and a 2800 rpm spindle speed, and is best presented around the official cutting envelopes of 220 × 80 mm and 250 × 50 mm. It is a strong fit where shops want safer semi-automatic crosscutting without jumping immediately to a full optimizer.
Semi-automatic upstroke saw
Reinforced steel frame
Two-hand safety control
Pneumatic upper presser
Painted, thick, reinforced steel construction with flanged floor anchoring for stable cutting under regular industrial use.
Guarded cutting zone, pneumatic workholding and CE-oriented configuration path with minimum infeed and outfeed tables.

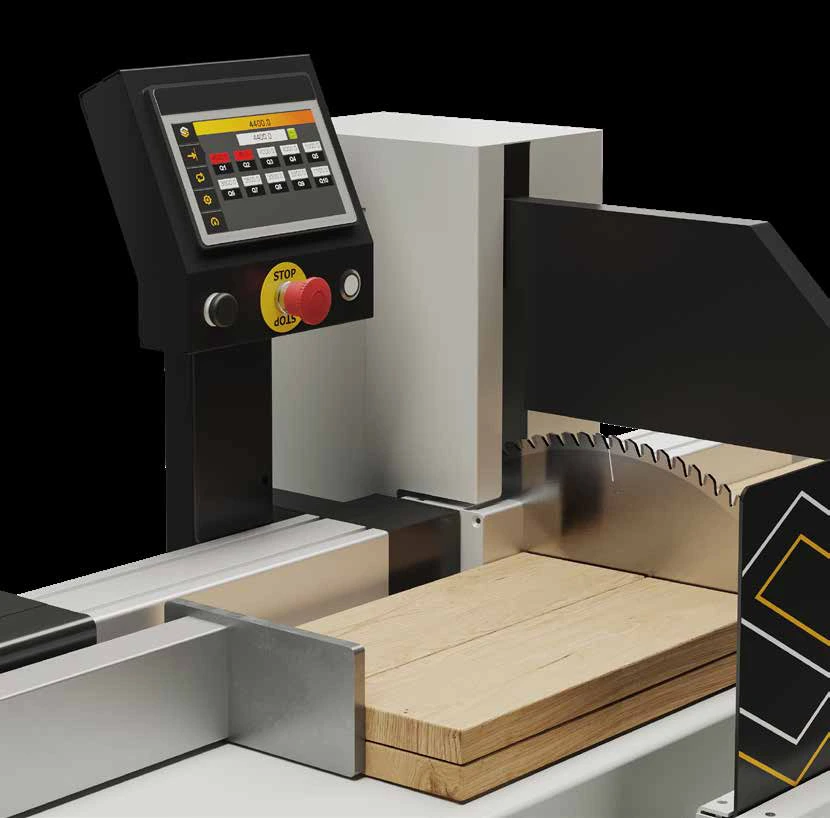

LEGEND 400 / MACHINE UNIT
Machine architecture
Performing, resistant, ergonomic.
Legend 400 is built around a reinforced steel body, flanged floor feet, ergonomic two-hand control and electro-pneumatic clamping. Salvamac also highlights independent pneumatic regulation to adapt the machine to different work conditions.
Machine typeSemi-automatic upstroke crosscut saw
Cutting section220 × 80 mm / 250 × 50 mm
Blade system400 mm · 3.0 kW · 2800 rpm
WorkholdingElectro-pneumatic upper presser
Machine and options
Machine and accessory gallery.
The Legend platform can be configured around the stock flow with guarded cutting, roller or flat tables, manual or pneumatic stops and an optional rising front guard.

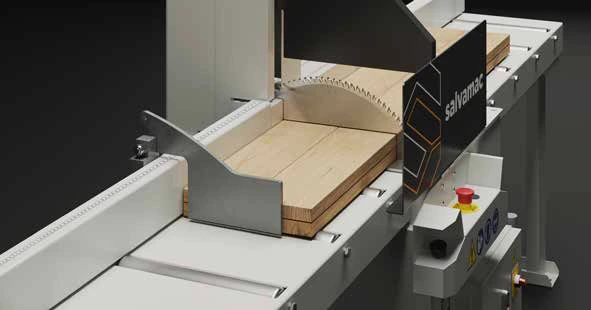

Guarded cutting zone and compact semi-automatic work area.

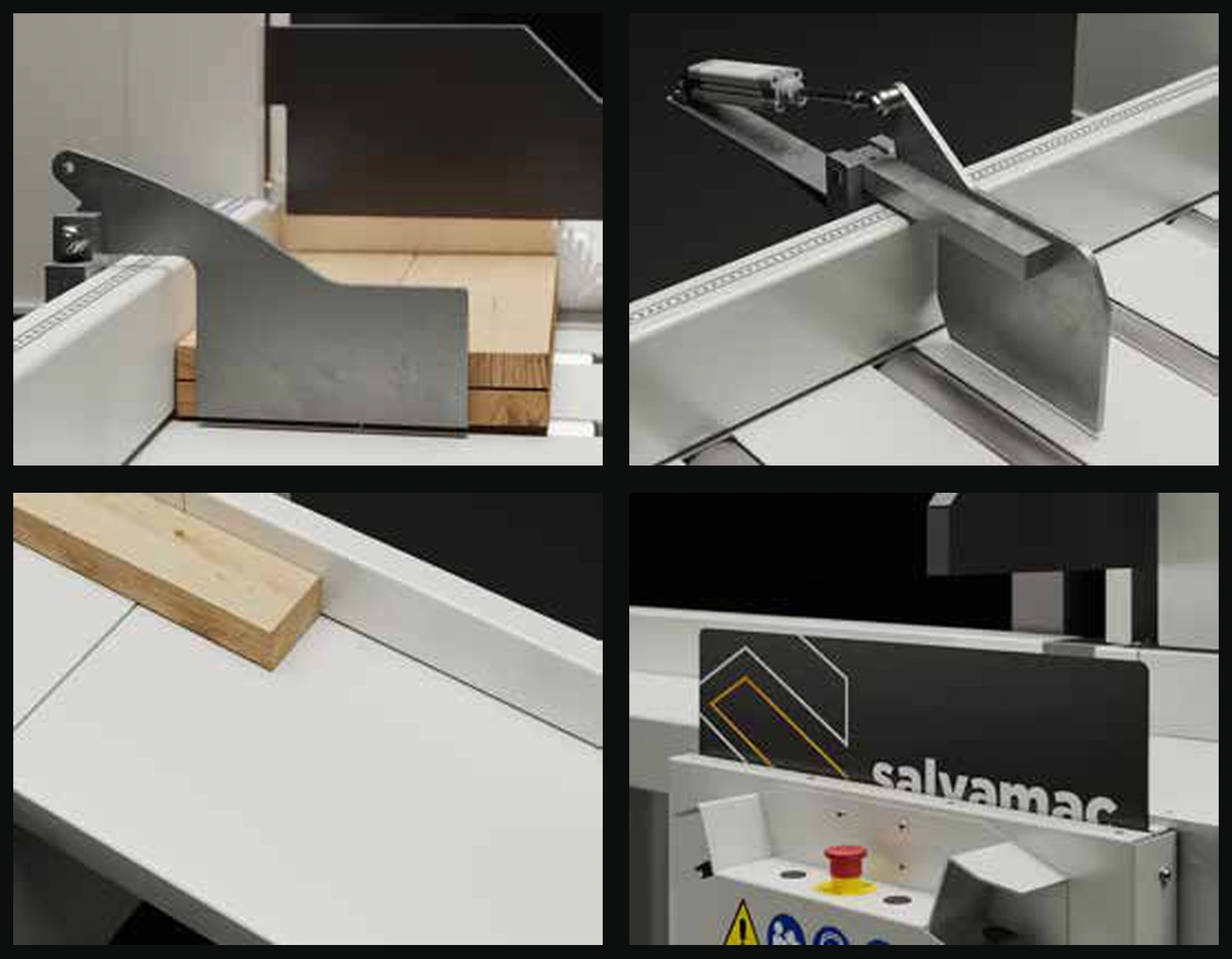

Mechanical and pneumatic stop configurations for repeat work.

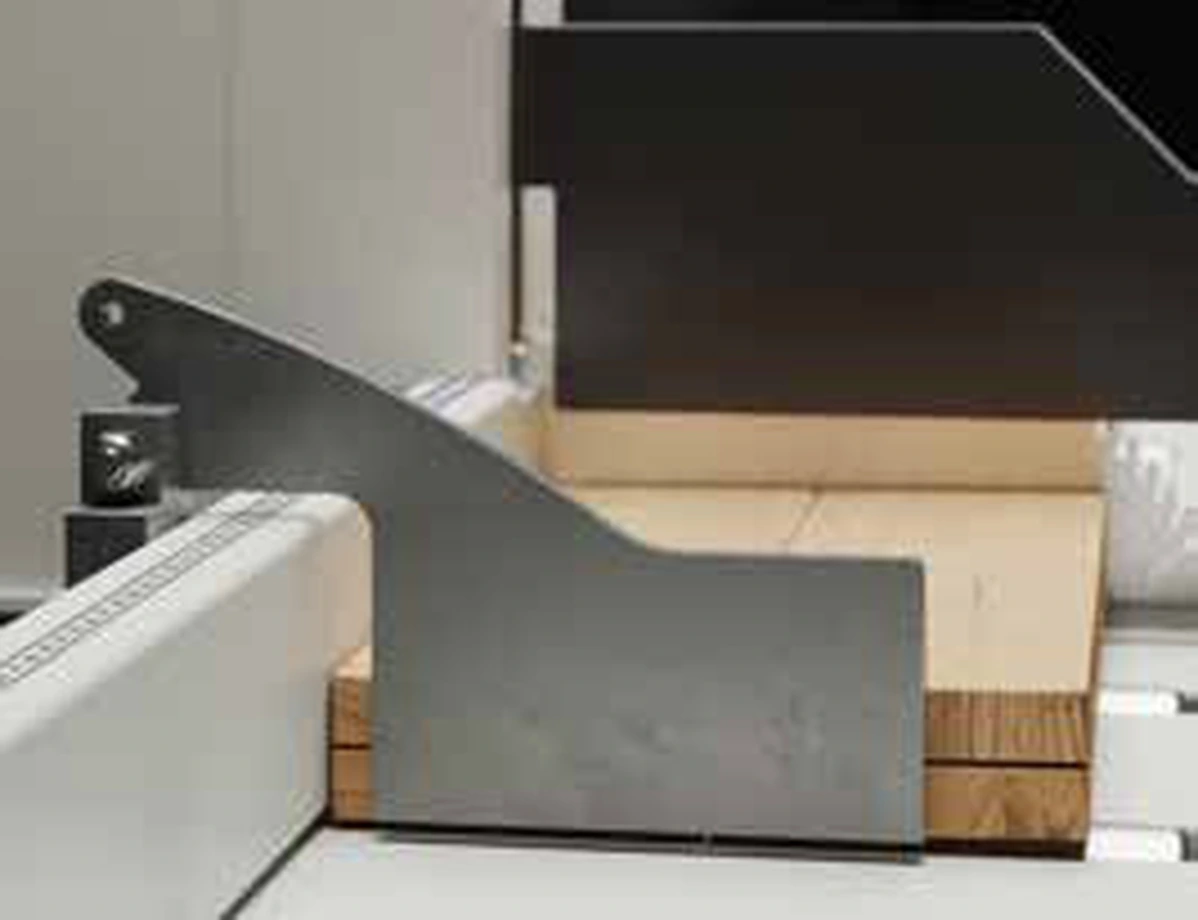

Optional up-and-down front guard for loading and unloading workflow.
Verified specification set
Technical data with source discipline.
Machine type
Semi-automatic upstroke crosscut saw for medium-small sections
Official
Blade diameter
400 mm
Official
Blade motor power
3.0 kW
Official
Saw spindle speed
2800 rpm
Official
Air consumption per cycle
5 Nl
Official
Sawdust extraction
1 × 120 mm and 1 × 100 mm extraction connections
Official
Maximum cutting height
80 mm at the illustrated 220 mm section width
Official
Maximum cutting width
250 mm at the illustrated 50 mm section height
Official
Structure
Painted, thick and reinforced steel construction
Official
Safety controls
Ergonomic two-hand safety start control
Official
Workholding
Pneumatic upper presser with electro-pneumatic management
Official
Cutting speed control
Adjustable by pneumatic regulator with independent pneumatic regulation
Official
Ground anchoring
Solid anchoring system with flanged steel feet
Official
Presser movement
Ball bearings, double dust protection and automatic lubrication
Official
Compliance
Machine and electrical system compliant with CE standards
Official
CE table configuration
Infeed and outfeed tables of at least 1 metre are required for CE configurations
Official
Cutting capacity is shown as two illustrated section combinations; maximum height and maximum width are not simultaneous.
Core features
What the machine is really selling.
The strongest commercial case for Legend 400 is not only the blade and motor. It is the complete semi-automatic package around safety, stability, controllability and configurable material handling.
Two-hand safety cycle
Ergonomic bimanual controls start the cutting cycle while helping keep the operator’s hands clear of the guarded blade area.
Reinforced steel body
Thick painted steel construction and flanged floor anchoring create a stable industrial cutting station for repetitive daily work.
Pneumatic workholding
The upper presser secures the material during the cycle, with protected bearing movement and automatic lubrication supporting reliability.
Commercial advantages
Compact industrial entry point
Clear cutting envelope
Configurable material handling
Upgrade path
A practical step beyond the manual chop saw.
The smallest Legend model brings reinforced construction and semi-automatic operation to shops cutting medium-small sections.
The 220 × 80 mm and 250 × 50 mm illustrated sections make it straightforward to qualify the machine against real stock sizes.
Roller or flat tables, fences, scale bars and manual or pneumatic stops let the station match the production flow.
Where programmable length positioning becomes necessary, Titan can move the conversation toward Combo and SalvaStop configurations.
Best-fit applications
Built for smaller-section production cutting.
The Legend 400 is strongest where the stock fits its published section chart and the shop needs a stable, safer and repeatable cut-off station rather than full length optimization.
Joinery blanks
Crosscutting smaller solid-wood components where repeatability and safer handling matter more than automatic optimization.
Window and door parts
Component cut-off within the machine’s section envelope for manufacturers processing smaller profiles and blanks.
Furniture components
Rails, stiles, frame parts and secondary solid-wood preparation before shaping, drilling, profiling or assembly.
Carpentry production
A more industrial daily cut-off station for professional carpentry and architectural woodwork operations.
Pallet and packaging parts
Repeat cut-off of compatible smaller-section boards, blocks and packaging components.
General secondary processing
Daily material preparation in sawmill support lines and wood-processing shops where semi-automatic cutting is the right next step.
Brochure and visuals
Download the official Legend brochure.
Use the current brochure for machine-family context, accessory options and the step-up path from Legend 400 to larger Legend models.
Download brochure

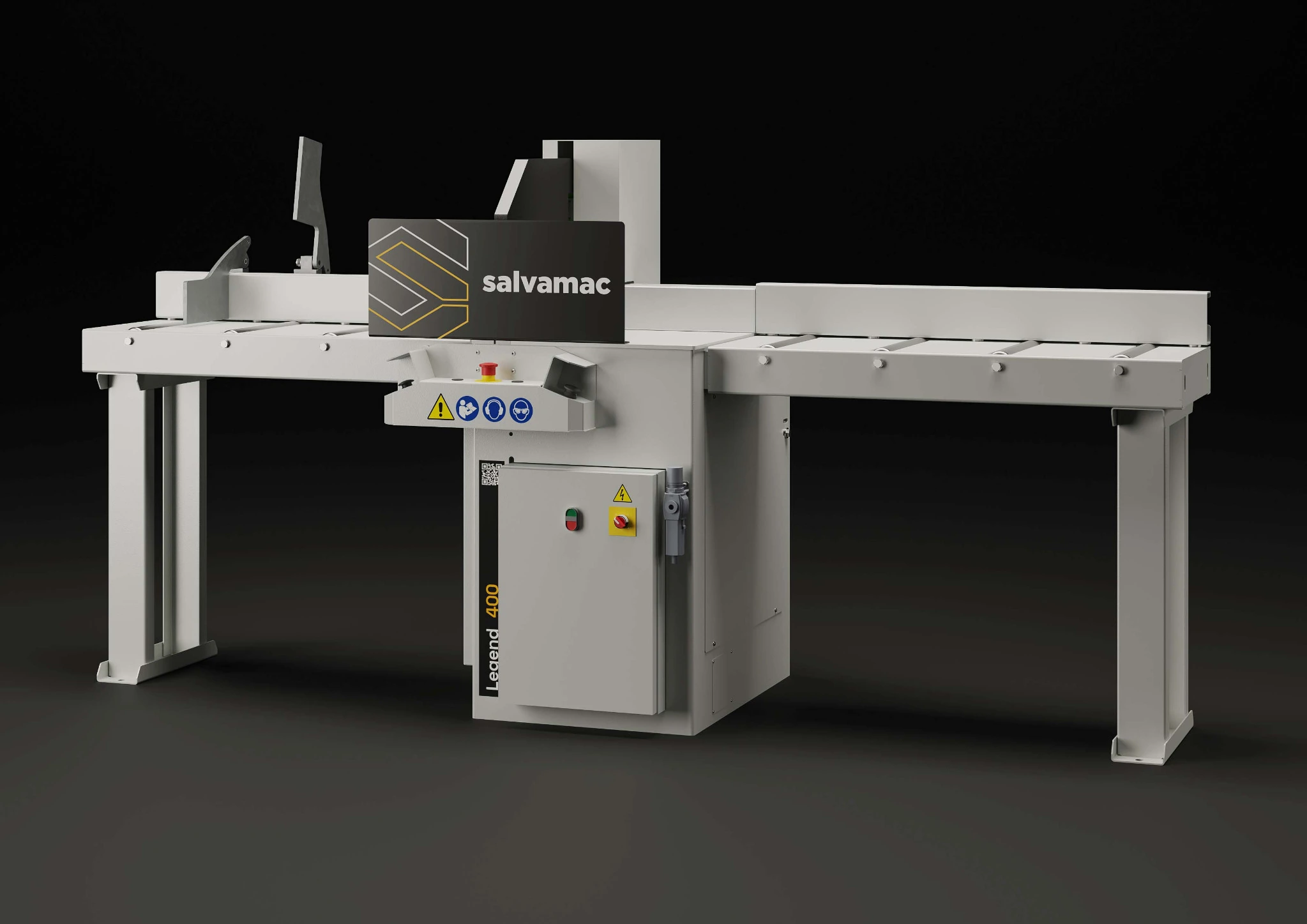

Complete cutting station
Quote Request
Compact footprint. Industrial presence.
The complete Legend 400 configuration brings the guarded upstroke saw, supported material flow and operator controls together in a clean, purpose-built cross-cutting station.
01400 mm blade system with 3.0 kW motor
02Published cutting section up to 220 × 80 mm
03Guarded two-hand semi-automatic operation
04Configurable infeed and outfeed support
Titan machine qualification
Request a Legend 400 application review.
Send Titan the stock profile, target cut lengths and daily production requirement. We will confirm whether Legend 400 is the right fit or whether the Legend 500 or Combo path makes more sense.
