SCM Connexus MD CNC Miter Door Tenoning-Mortising Machine
A dedicated CNC tenoning-mortising platform for cabinet-door manufacturers producing Miter Door joints with double-bench pendulum machining, centralized tool setup, and Maestro Active Joint control.
Dedicated CNC machining for repeatable miter-door joinery.

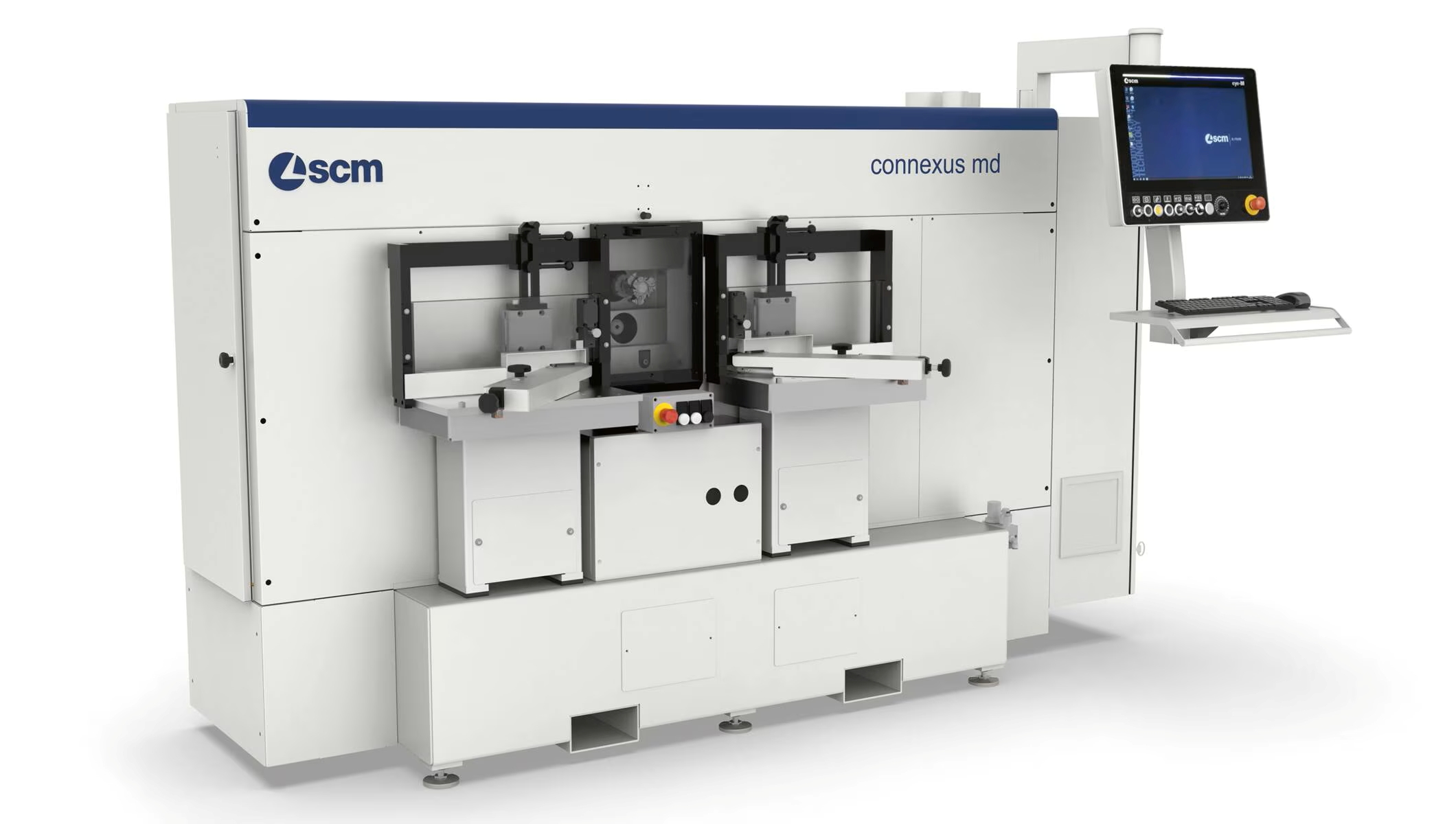

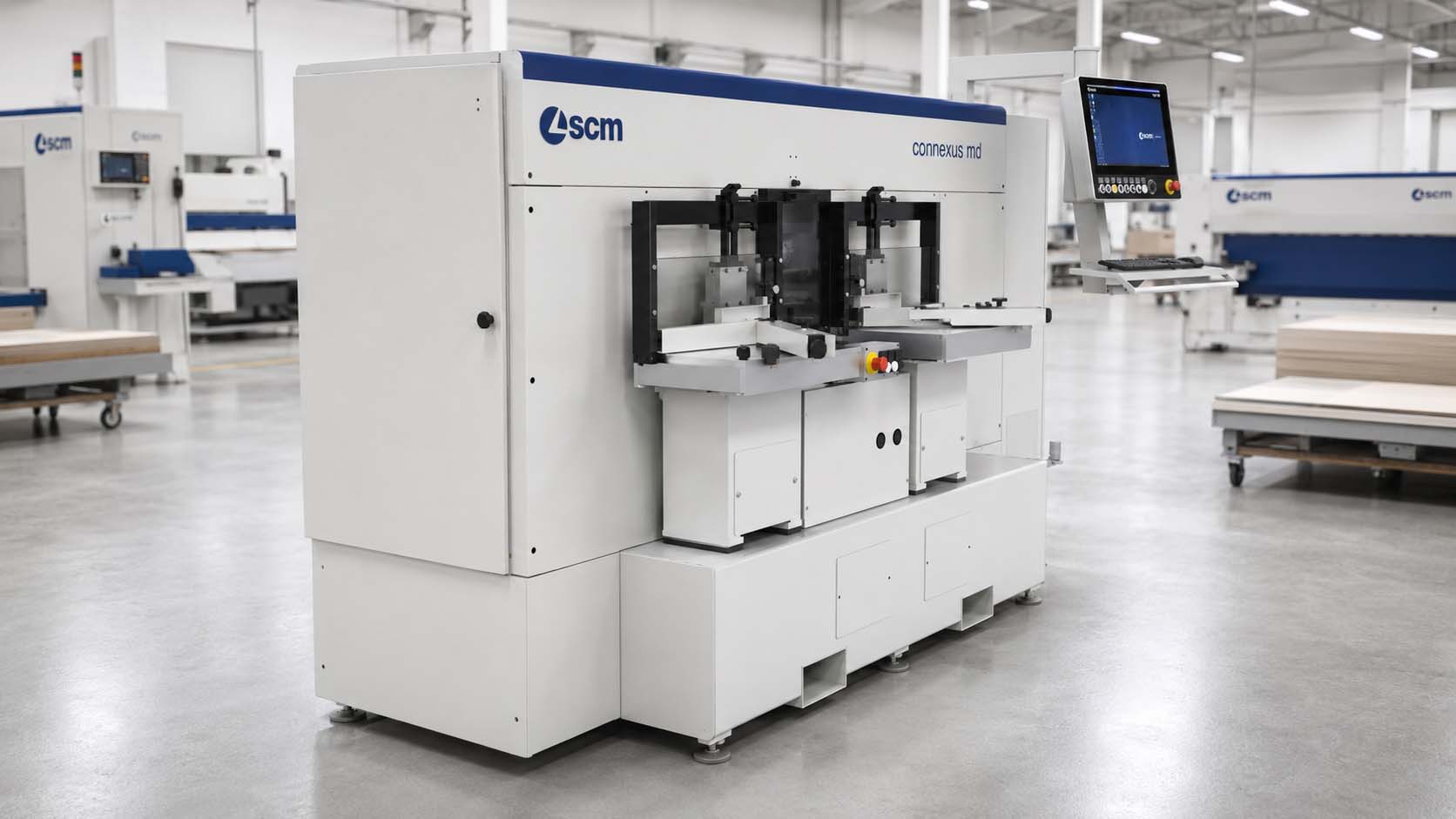

SCM Connexus MD is a CNC tenoning-mortising machine with a double-bench worktable, developed specifically for Miter Door joints used in cabinet-door, framed-front, and decorative component production.
The two front benches support pendulum-mode head machining so one side can be loaded or unloaded while the opposite side is machining. A central parking station between the benches supports tool changes and tenoning-height adjustment.
The 21.5-inch eye-M touchscreen and Maestro Active Joint software organize CNC joint programming and operator control. Final configuration should confirm component dimensions, miter profiles, ER40 tooling, fixtures, collets, software package, utilities, extraction, installation, training, warranty, and service.
1100 mmX-Axis Stroke
280 mmY-Axis Stroke
30 m/minX-Y Axis Speed
4.5 kWTenoning Electrospindle
Capability Matrix
Dedicated Miter-Door CNC Joinery Modes
Configure Connexus MD around miter-door profiles, component dimensions, tooling, fixtures, pendulum workflow, and the surrounding door-production process.
Mode 01
Miter Door Joints
Focused CNC machining for mitered rails, stiles, framed fronts, and decorative cabinet-door components.
Mode 02
Double-Bench Worktable
Two front benches create a practical alternating workflow for loading, unloading, and head machining.
Mode 03
Pendulum Head Machining
One bench can be prepared while the machine completes the programmed operation on the opposite bench.
Mode 04
Central Parking Station
The central station supports tool change and tenoning-height adjustment between the two work benches.
Mode 05
Maestro Active Joint
The eye-M touchscreen and Maestro Active Joint software support CNC setup and repeat joint-program control.
Production Advantages
Dedicated Joinery, Alternating Workflow & Faster Setup Control
Connexus MD concentrates miter-door tenoning and mortising into one controlled CNC station instead of spreading the process across manual machines and fixtures.
Focused Miter-Door Production
The machine architecture is dedicated to repeat Miter Door joinery rather than a broad multi-process routing workflow.
Alternating Bench Utilization
Pendulum operation supports loading and unloading activity on one side while the opposite side is machining.
Centralized Tool Setup
The parking station provides a defined location for tool change and tenoning-height adjustment between production cycles.
Equipment Range
Lineup Positioning
Manual Joinery
Shaper, Tenoner, Router & Fixture Setups
Suitable for low-volume work where multiple setups, manual transfer, and operator-dependent adjustment remain acceptable.
Dedicated Conventional Cell
Single-Purpose Miter-Door Stations
Creates a defined production area but may still rely on separate machines, manual fixtures, and repeated setup transfer.
SCM Connexus MD
Dedicated CNC Miter-Door Joinery
Adds double-bench pendulum machining, a central setup station, programmed joint control, and Maestro Active Joint software.
Technical Specifications
SCM Connexus MD
Machine Profile
Manufacturer
SCM
Series / Model
Connexus / MD
Machine Type
CNC Miter Door tenoning-mortising machine
Titan SKU Reference
SCM-CONMD
Axes & Travel
X-Axis Stroke
1100 mm
Y-Axis Stroke
280 mm
X-Y Axis Speed
30 m/min
Primary Joint Type
Miter Door
Tenoning Electrospindle
Motor Power
4.5 kW
Speed Range
9000–12000 rpm
Collet System
ER40
Tooling Review
Confirm miter-door tooling, cutters, fixtures and collets
Worktables & Setup
Front Worktable
Double-bench worktable
Machining Mode
Pendulum-mode head machining
Central Parking Station
Tool change and tenoning-height adjustment
Rear Worktable
1400 × 150 mm
Control & Joint Programming
Control Interface
21.5-inch eye-M touchscreen
Software
Maestro Active Joint
Application Focus
Dedicated Miter Door joint production
Production Workflow
Alternating load / machine pendulum operation
Configuration & Support
Confirm Before Quote
Miter profiles, tooling, fixtures, collets and software package
Utilities
Electrical, compressed air and dust extraction
Project Requirements
Footprint, material flow, installation and startup
Support
Operator training, warranty and service
Production Environments
Where the Connexus MD Fits
For door and framed-front operations that need CNC-controlled Miter Door joinery in a compact, dedicated component-production platform.
Bring repeat miter-door joinery into one focused, controlled production station.
Connexus MD combines a double-bench worktable, pendulum-mode head machining, and a central setup station in a compact cabinet-door joinery platform.
The alternating bench workflow supports continuous operator activity, while the eye-M interface and Maestro Active Joint software provide a focused CNC process for repeat Miter Door programs.
Final configuration should confirm component dimensions, miter profiles, tooling, fixtures, collets, software package, utilities, extraction, material flow, installation, startup, training, warranty, and service.
