A compact automatic horizontal beam-saw platform for small and medium-sized
manufacturers cutting MDF, chipboard, plywood, multilayer panels, fibre panels,
melamine, laminated panels, and related wood-based sheet goods.

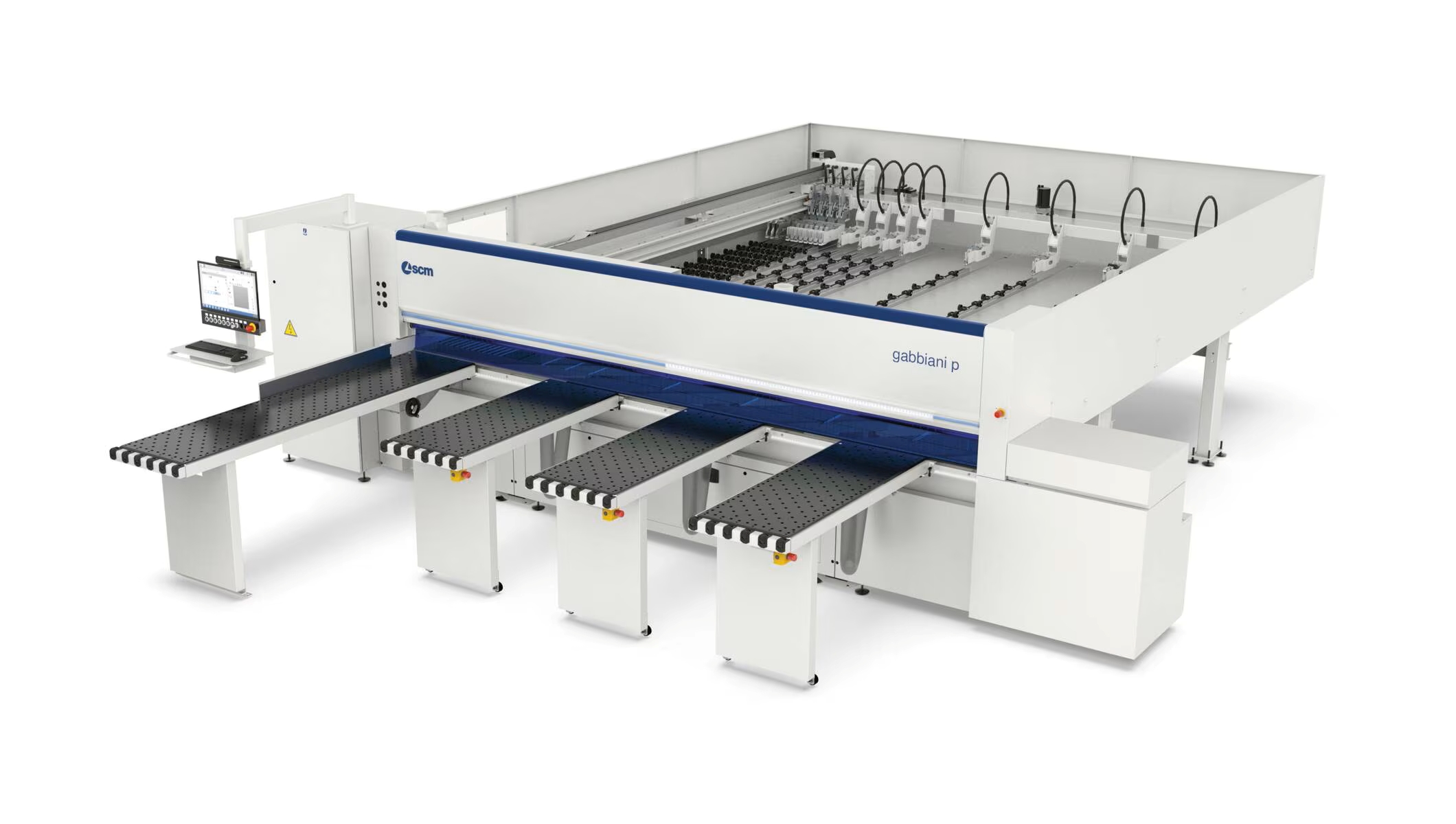

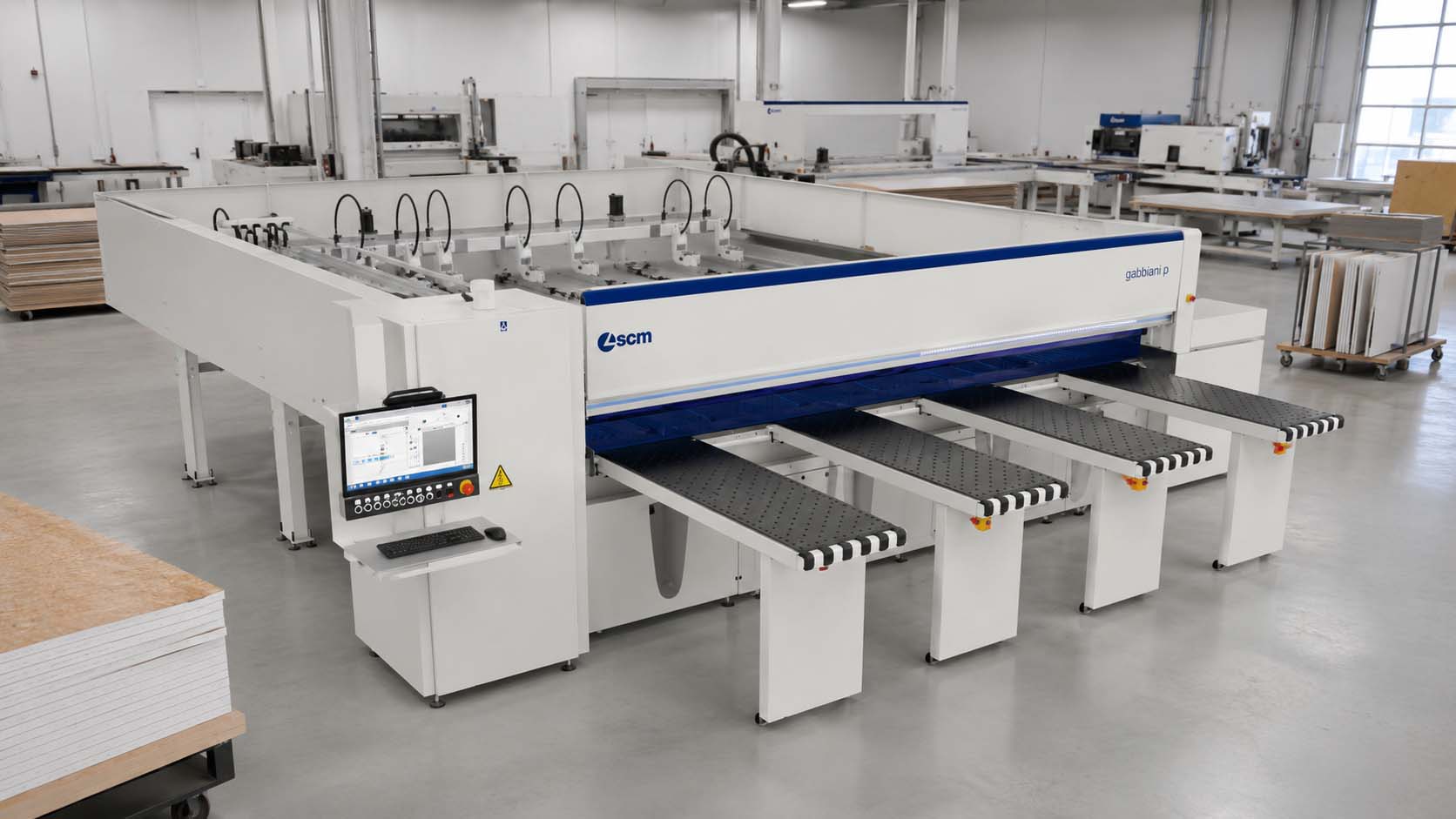

The SCM Gabbiani P is designed for craftsmen and small to medium-sized
manufacturers that need a practical first step into automatic horizontal
beam-saw production.
P60, P80, and P95 configurations provide 60, 80, or 95 mm blade projection,
with listed cutting lengths of 3300, 3800, or 4300 mm and five standard clamps.
LED bar guidance supports operator awareness during loading and processing.
FLEXCUT and SAW-SET are available options for shops that need simultaneous
rip-and-cross-cut capability or electronic tool adjustment.
60 / 80 / 95 mmBlade Projection
3300 / 3800 / 4300Cutting Length · mm
6–60 m/minStandard Saw Speed
60 m/minPusher Speed
Capability Matrix
One compact automatic beam saw. Five cutting-room functions.
The Gabbiani P combines programmed panel sizing, scoring support, guided operation, and optional productivity upgrades.
Mode 01
Automatic Panel Cutting
Processes individual panels and practical panel stacks for cabinet, furniture, closet, fixture, and millwork production.
Mode 02
Repeat Panel Sizing
Supports programmed dimensions, repeated cut lists, consistent part sizing, and structured sheet-good production.
Mode 03
Front-Table Handling
Provides a dedicated operator-side support layout for positioning material and managing completed panel parts.
Mode 04
LED-Guided Operation
Operator guidance supports loading and processing awareness throughout the daily automatic cutting workflow.
Mode 05
Available Productivity Systems
Optional FLEXCUT supports simultaneous rip and cross cuts, while SAW-SET provides electronic tool adjustment.
Production Advantages
Built for guided operation, scalable capacity, and a practical move into automatic cutting.
The Gabbiani P gives smaller production environments a controlled beam-saw workflow without forcing an immediate jump to a larger material-handling cell.
Compact Automatic Workflow
Automatic horizontal cutting is packaged for small and medium-sized shops upgrading from manual sheet-processing methods.
Operator Guidance
LED guidance helps make loading and processing steps easier to follow during daily panel-cutting production.
Three Capacity Levels
P60, P80, and P95 configurations let shops select blade projection around their material mix and production requirements.
Equipment Range
Lineup Positioning
Manual Cutting
Sliding-Table or Vertical Saw
Suitable for lower-volume cutting, with material movement, positioning, and repeat setup managed manually.
Adds three blade-projection levels, LED guidance, five standard clamps, and optional FLEXCUT and SAW-SET systems.
Technical Specifications
Gabbiani P60 / P80 / P95
Machine Profile
ManufacturerSCM
SeriesGabbiani
ModelsP60 / P80 / P95
Machine TypeAutomatic horizontal beam saw
Cutting Capacity
Cutting Length3300 / 3800 / 4300 mm
Blade Projection60 / 80 / 95 mm
Standard Clamps5
MaterialsMDF, chipboard, plywood, fibre and laminated panels
Saw Unit and Motion
Saw Carriage Speed6–60 m/min
Optional Saw SpeedUp to 120 m/min
Pusher Speed60 m/min
Main Blade Speed4650 rpm
Blade and Scoring Data
Main Blade Diameter370 mm
Scoring Blade Diameter200 mm
Scoring Motor1.5 kW
Scorer Speed5850 rpm
Guidance and Available Options
Operator GuidanceLED bar guidance
Productivity UnitFLEXCUT available
Tool AdjustmentSAW-SET available
FLEXCUT FunctionSimultaneous rip and cross cuts
Production Applications
Cabinet WorkGables, shelves, decks, backs and partitions
Closet WorkShelving, verticals, drawer parts and system panels
Furniture WorkRepeat MDF, plywood and chipboard components
Production ScaleSmall to medium-sized manufacturers
Production Environments
Where the Gabbiani P Fits
A compact automatic beam saw for shops that need cleaner panel flow, guided operation, and repeatable production cutting.
First Automatic Beam Saw
A practical entry point for manufacturers moving from sliding-table saws, vertical panel saws, or manual cutting processes.
Cabinet, Closet and Furniture Shops
Fits MDF, melamine, plywood, chipboard, fibre panels, laminated panels, shelving, and repeated production components.
Compact Production Environments
Provides automatic cutting capability without immediately requiring a larger platform-loading or rear-loading beam-saw system.
Compact Beam Saw · Structured Panel Cutting
A clean professional step from manual sheet processing into automatic production.
The Gabbiani P combines compact beam-saw architecture, guided operation,
scoring support, and three blade-projection choices in a platform designed
for practical daily panel production.
It gives operators a dedicated cutting station with programmed saw movement,
pusher control, front-table support, and a clearer relationship between sheet
staging, cutting sequences, and completed parts.
For growing cabinet, closet, furniture, fixture, and millwork operations,
the machine creates a capable foundation for stronger repeatability and a
more organized cutting department.
