SCM Formula Ten 400 - Ten 400E

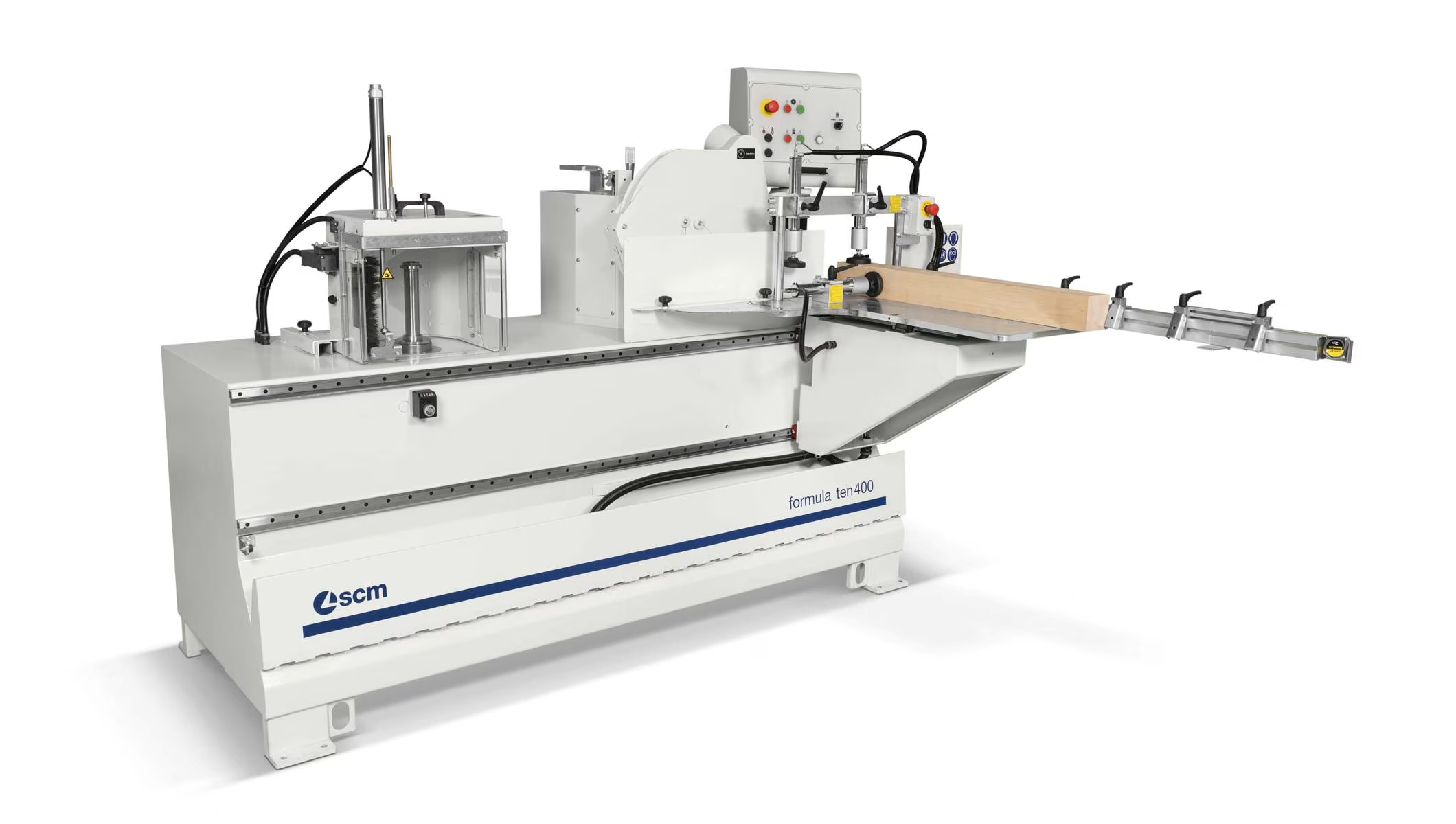

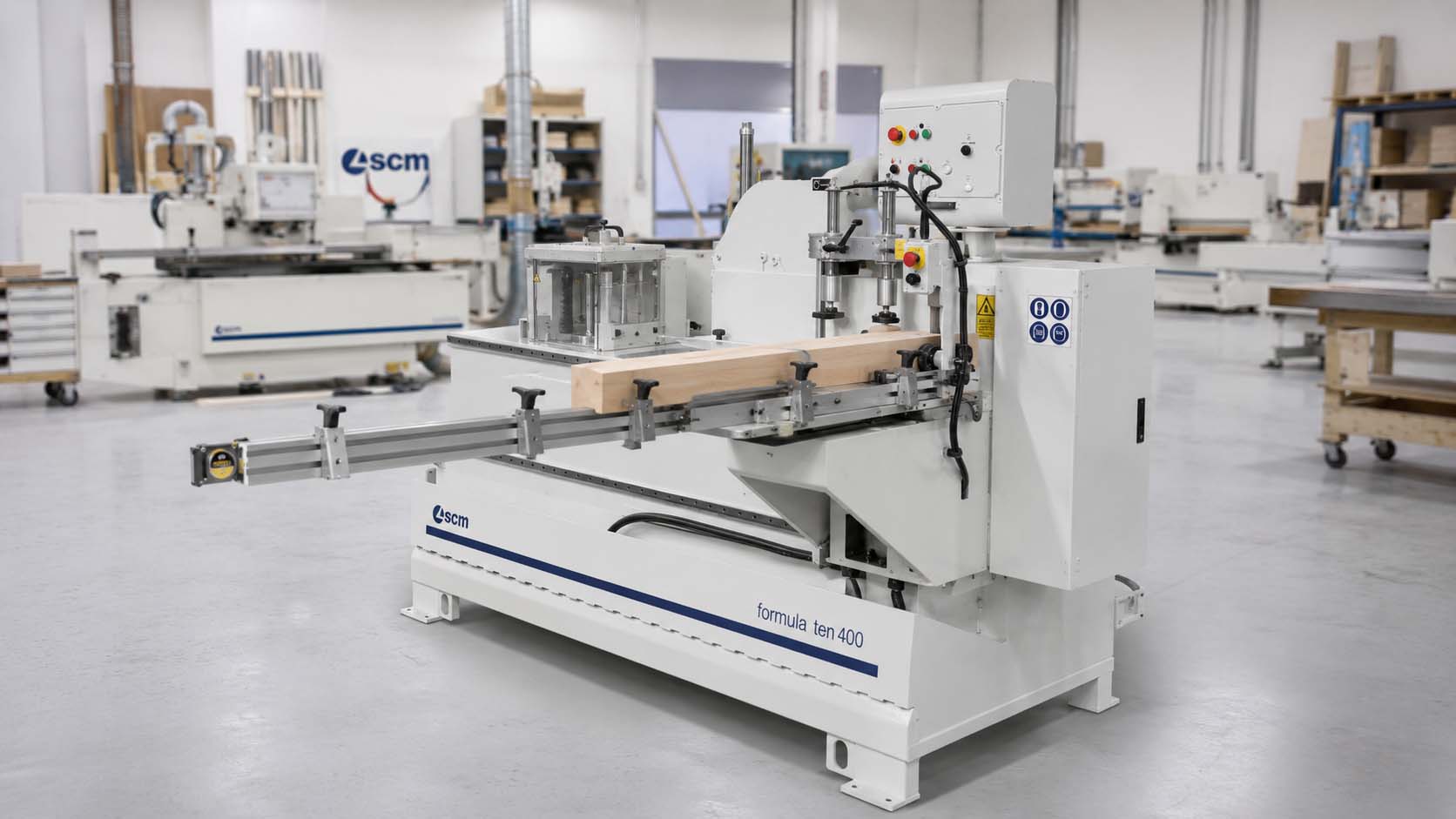

SCM Formula Ten 400 / Ten 400E Automatic Tenoner
Automatic single-end tenoning machine for high-speed, accurate solid-wood joinery, large workpiece clamping, ±45° fence positioning, and optional HSK 63B rapid tool-change performance.
The dedicated automatic tenoner for repeatable solid-wood joinery and window/door component production.
The SCM Formula Ten 400 / Ten 400E is an automatic tenoning machine for joinery, window and door production, furniture shops, architectural millwork, and solid-wood component manufacturing.
For Titan, this machine should be positioned as a focused production tenoner, not a full window/door machining centre. It gives shops strong clamping, accurate mechanical positioning, angled tenon capability, proper spindle tooling capacity, and a clear upgrade path to HSK 63B rapid tool change on the Ten 400E.
Best-fit shop profile
The Formula Ten 400 / 400E is the right machine conversation when the customer is fighting slow manual tenoning, inconsistent angled setups, awkward large-part clamping, too much trial-and-error on offcuts, or long setup time between tenon profiles.
Strong pneumatic clamping, ±45° fence positioning, 360 mm spindle tooling capacity, 400 mm saw capacity, revolver stops, and Ten 400E HSK rapid tool change.
The Formula Ten 400 / 400E is built for shops that need repeatable tenoning accuracy without turning every joint into a slow manual setup.
Secure workpiece clamping
Two vertical pressure cylinders and one horizontal pressure cylinder help lock the workpiece securely during tenoning operations.
±45° angled tenons
The worktable fence tilts up to ±45°, supporting angled joinery setups where square-only positioning is not enough.
Large tool capacity
The spindle moulder unit supports up to 360 mm tool diameter with 40 mm or 50 mm spindle diameter.
Ten 400E HSK upgrade
The Ten 400E adds HSK 63B rapid tool change for shops running frequent setups or multiple tenon profiles.
Built for door and window joinery, architectural millwork, furniture frames, stair parts, entry systems, and solid-wood end machining.
Formula Ten 400 / 400E is a dedicated automatic tenoner. It is not a WindorFlex CNC machining cell and not a Windor NT1 angular window/door centre. It is the focused machine for repeat tenoning accuracy.
Door & Window Production
Rails, stiles, frame members, sash components, angled joinery, end cuts, and tenoned window or door parts.
Architectural Joinery
Custom frames, solid-wood assemblies, entry systems, stair components, heavy profiles, and repeat joinery.
Furniture Manufacturing
Table rails, frame components, chair parts, cabinet frames, solid-wood joints, and repeat production tenons.
Millwork Shops
Commercial and residential solid-wood frame work, custom openings, specialty profile joinery, and shop-built assemblies.
Traditional Shop Upgrades
Useful for shops moving from shapers, sliding table saw setups, or manual tenoning jigs into a dedicated production tenoner.
Frequent Setup Shops
Strong Ten 400E fit when the customer runs multiple tenon profiles and needs faster tool changes through HSK 63B.
SCM Formula Ten 400 / Ten 400E
A dedicated automatic tenoning machine for solid-wood joinery, door and window production, furniture manufacturing, and architectural millwork.
The SCM Formula Ten 400 / Ten 400E is a dedicated automatic tenoning machine for solid-wood joinery, door and window production, furniture manufacturing, and architectural millwork. SCM positions the machine around high working speed and accuracy, with a tenoning unit designed to lock workpieces securely using two vertical pressure cylinders and one horizontal pressure cylinder.
The machine is designed around repeatable mechanical setup. The worktable fence tilts up to ±45°, the carriage moves on ball-bushing linear guides, and the workpiece support table uses a 5-position revolver positioning system.
The spindle moulder unit provides 360 mm maximum tool diameter, 40 or 50 mm spindle diameter, 3600 rpm tool speed, and 7.5 kW motor power. The circular saw unit provides 400 mm maximum blade diameter, 120 mm maximum cutting height, 2800 rpm blade speed, and a 3 kW self-braking motor.
The key model split is tool change. The standard Ten 400 uses manual-ring tool change, while the Ten 400E includes an electrospindle with HSK 63B rapid tool change. For shops running multiple tenon profiles, frequent setups, or higher-value repeat joinery, the Ten 400E is the stronger sales recommendation.
From a Titan Equipment standpoint, Formula Ten 400 / 400E should be sold as a dedicated production tenoner, not a full window/door machining centre. Discovery should cover tenon types, workpiece size, profile tooling, angled work, production volume, tool-change frequency, dust extraction, compressed air, electrical package, operator skill level, and whether the customer is better matched to Formula Ten, Windor NT1, or WindorFlex.
Titan sales position
Position Formula Ten 400 / 400E around repeatable tenoning accuracy and efficient solid-wood joinery: strong pneumatic clamping, ±45° fence positioning, 360 mm spindle tooling capacity, 400 mm saw capacity, and an HSK 63B rapid tool-change upgrade path on the Ten 400E.
Use Formula Ten 400 / 400E as the focused automatic tenoner before moving customers into Windor NT1 or WindorFlex production systems.
Formula Ten is the right fit when the customer needs a dedicated tenoner. Step into Windor NT1 or WindorFlex when the customer needs drilling-routing, profiling, glazing bead cut-off, storm-proofing, automated loading/unloading, or CNC cell architecture.
Good: Manual Tenoning
Best only for lower-volume shops using shapers, sliding saws, jigs, and standalone manual setups.
Better: Formula Ten 400
Best for dedicated automatic tenoning with strong clamping, ±45° fence positioning, 400 mm saw capacity, and 360 mm tool capacity.
Best Focused Tenoner: Ten 400E
Best when the customer needs faster tool changes and higher setup repeatability from the HSK 63B rapid tool-change electrospindle.
Full Window/Door Path
Use Windor NT1 or WindorFlex when the customer needs broader machining, profiling, storm-proofing, CNC cell logic, or automation.
Formula Ten 400 / Ten 400E specifications without table formatting.
Final published specifications should follow the quoted Titan/Canadian configuration. Confirm whether the package is Ten 400 manual-ring or Ten 400E HSK 63B, plus spindle diameter, blade package, electrical package, dust extraction, compressed air, tooling, installation, startup, warranty, and service path.
For shops that need a dedicated automatic tenoner with strong clamping, angled fence positioning, proper spindle tooling capacity, and a clear HSK 63B upgrade path.
Formula Ten 400 / 400E should be sold as a focused solid-wood joinery machine. The right package depends on tenon types, workpiece size, profile tooling, angled work, production volume, tool-change frequency, dust extraction, compressed air, electrical package, operator skill level, and future automation path.
Strong fit for
Shops moving away from manual tenoning setups and needing a safer, faster, more repeatable production tenoner.
Confirm during quoting
Formula Ten 400 / 400E is configuration dependent. Final customer-facing publishing should match Titan’s quoted Canadian configuration.
Request an SCM Formula Ten 400 / Ten 400E machine quote.
Send Titan your tenon types, workpiece dimensions, profile tooling, angled joinery needs, production volume, tool-change frequency, dust extraction, compressed air, electrical service, and whether you are comparing Formula Ten against Windor NT1 or WindorFlex.
