Stock is positioned on the support system, secured by the pneumatic presser and cut through an ergonomic two-hand cycle without complex programming.

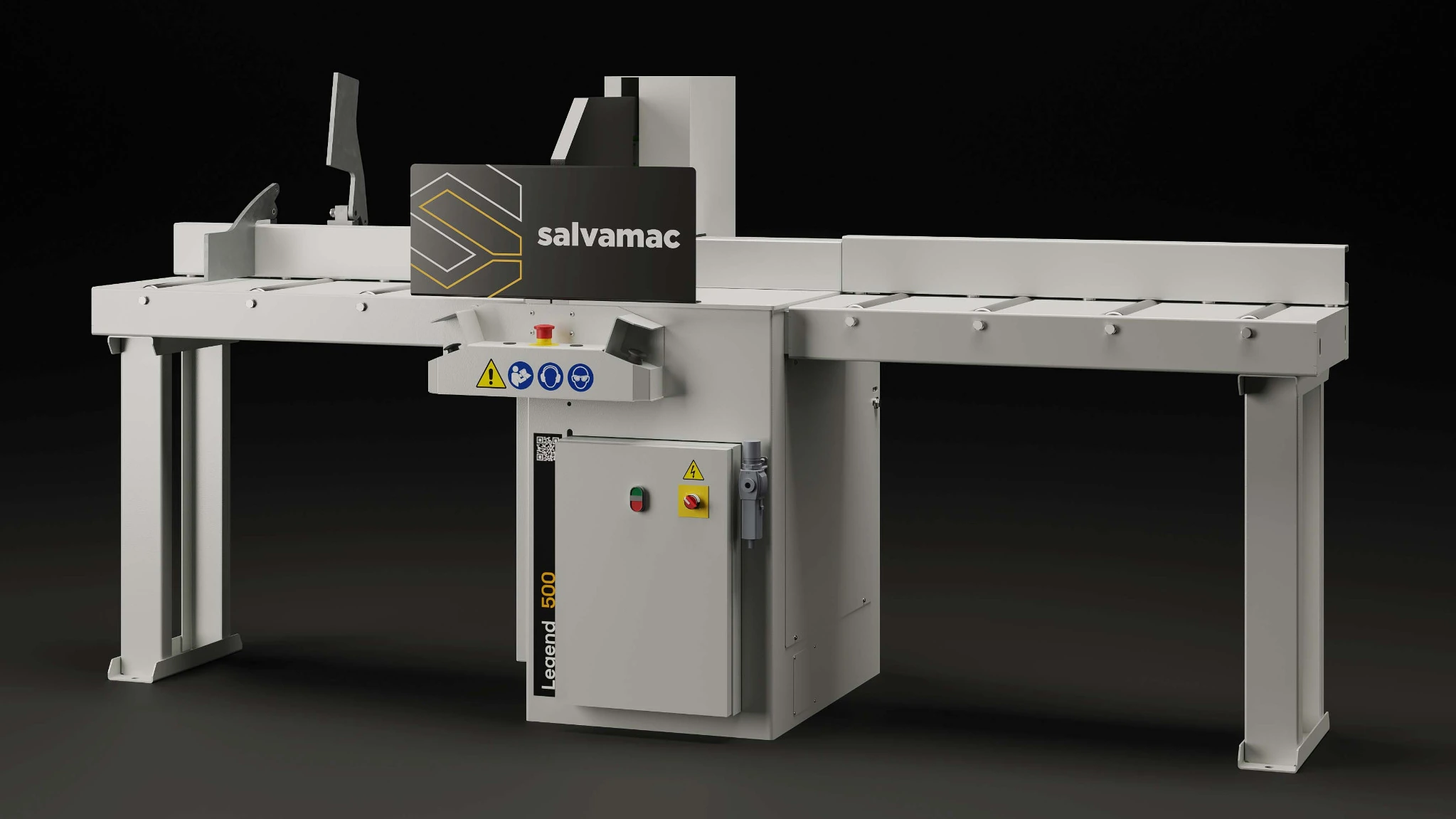

Salvamac Legend 500
Semi-automatic cross-cutting
Salvamac Legend lineLegend 500
The versatile centre of the Legend range, combining a 500 mm blade, 5.5 kW drive and pneumatic workholding for fast, guarded cross-cutting of medium solid-wood sections.
Executive overview
The most versatile Legend for medium sections.
Legend 500 is Salvamac’s semi-automatic upstroke crosscut saw for medium sections. Its standard published cutting envelope reaches 220 × 125 mm and 310 × 50 mm, while an optional wide-cut configuration reaches 350 × 80 mm and 375 × 50 mm. It is a practical fit where Legend 500 capacity is too limited but the larger Legend 550 platform is unnecessary.
Semi-automatic upstroke saw
Reinforced steel construction
Two-hand safety control
Pneumatic upper presser
Thick, painted and reinforced steel construction with flanged floor anchoring creates a stable industrial station for repetitive medium-section cutting.
The guarded under-table blade, automatic pressure device, fixed shield and two-hand start separate the operator from the cutting zone during the cycle.

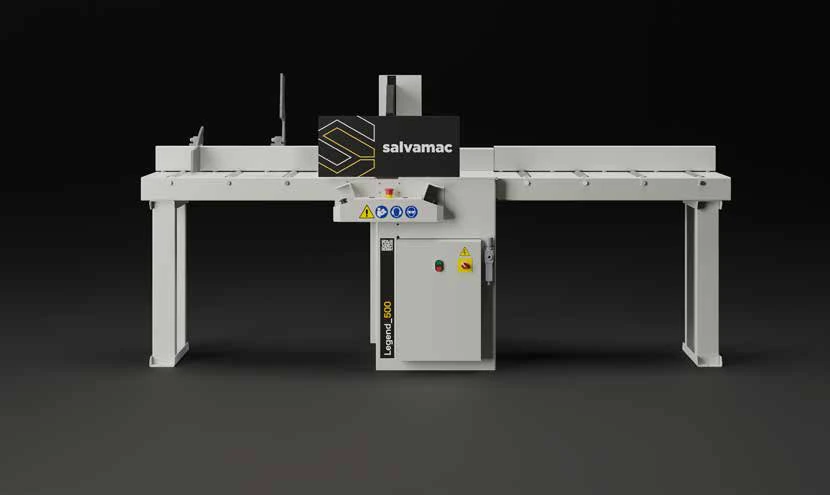

LEGEND 500 / MACHINE UNIT
Machine architecture
More section capacity. Same clear workflow.
The Legend 500 uses a 500 mm under-table blade driven by a 5.5 kW motor at 2800 rpm. Material is supported on the selected table configuration, held by an electro-pneumatic upper presser and cut through a guarded two-hand cycle. Pneumatic regulation lets the cutting movement be adjusted to the work being processed.
Machine typeSemi-automatic upstroke crosscut saw
Standard cutting envelope220 × 125 mm / 310 × 50 mm
Blade system500 mm · 5.5 kW · 2800 rpm
Workholding and startPneumatic upper presser · two-hand control
Machine and options
Machine and accessory gallery.
The Legend 500 station can be configured with roller or flat support tables, mechanical or pneumatic stops and an optional rising front guard. Final table lengths and stop positions should be matched to incoming stock and finished-length flow.

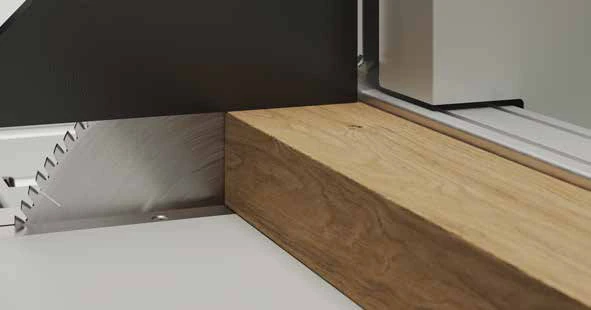

Official Legend 500 cutting-zone detail with guarded upstroke blade movement.

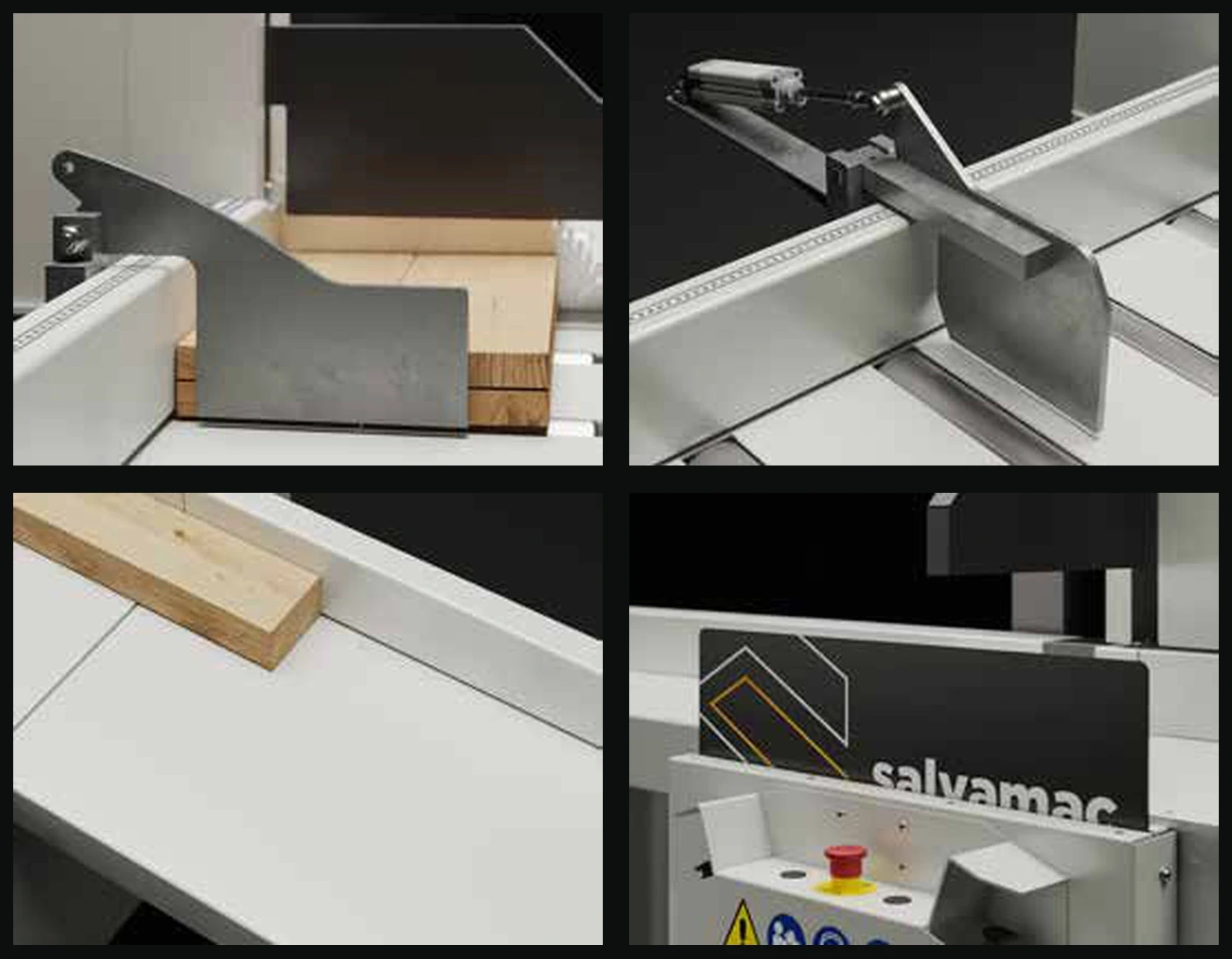

Optional mechanical and pneumatic stop configurations for repeat lengths.

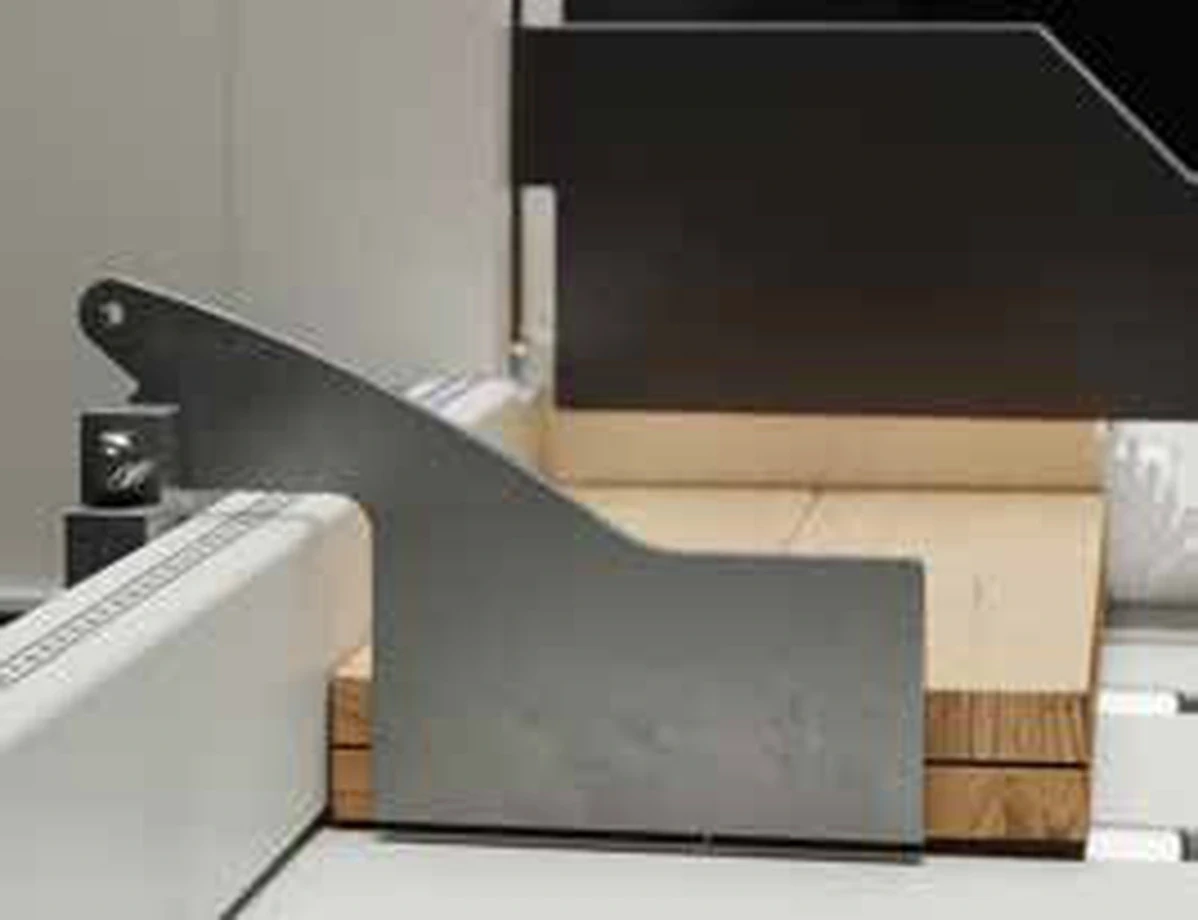

Optional UP & DOWN front guard for loading, cutting and unloading workflow.
Verified specification set
Technical data with source discipline.
Machine typeSemi-automatic upstroke crosscut saw for medium solid-wood sectionsOfficial
Blade diameter500 mmOfficial
Blade bore and supplied blade35 mm bore; 500 mm HM blade, Z = 108 in documented packagesVerified
Blade motor power5.5 kWOfficial
Saw spindle speed2800 rpmOfficial
Standard cutting section220 × 125 / 260 × 100 / 285 × 80 / 310 × 50 mmVerified
Optional wide-cut section350 × 80 / 375 × 50 mmOfficial
Pack cutting heightMaximum 100 mm for stacked boards in documented configurationsVerified
Air consumption per cycle7 NlOfficial
Compressed-air supply6–8 barVerified
Sawdust extraction1 × 120 mm and 1 × 100 mm extraction connectionsOfficial
Working height900 mm ± 20 mmVerified
Machine body dimensionsApproximately 530 × 869 × 1217 mm, excluding support tablesVerified
Documented electrical package400 V / 50 Hz / 3-phase; final Canadian supply to be confirmedVerified
Structure and anchoringPainted, thick reinforced steel body with flanged steel floor feetOfficial
Safety and workholdingErgonomic two-hand start, fixed guarding and electro-pneumatic upper presserOfficial
Minimum support configurationAt least 1 m of support table or roller conveyor on each side in documented CE installationsVerified
Cutting capacities are section combinations, not simultaneous independent maximums. The 375 mm width requires the optional wide-cut configuration. Electrical supply and final installed footprint must be confirmed for the selected Canadian package and table lengths.
Core features
Why Legend 500 became the centre of the range.
Its commercial strength is the combination of useful medium-section capacity, straightforward semi-automatic operation and a configurable support-and-stop system that can grow with production requirements.
Guarded two-hand cycle
The ergonomic two-hand control initiates the cut while the automatic pressure device secures the workpiece and the under-table blade remains enclosed outside the cutting stroke.
Reinforced machine body
Thick painted steel construction, flanged anchoring feet and a balanced cutting system create a stable platform for repetitive industrial use.
Pneumatic control and presser
Cutting movement is adjustable through a pneumatic regulator, while the upper presser uses protected bearing movement and automatic lubrication.
Commercial advantages
Useful medium-section envelope
Optional wider cutting path
Controlled repeat workflow
Configurable production cell
A practical step beyond manual medium-section cutting.
The standard capacity covers common production sections up to 220 × 125 mm and 310 × 50 mm without moving to the larger Legend 550.
The optional 500 mm blade configuration extends the published width to 350 × 80 mm and 375 × 50 mm.
Pneumatic workholding, guarded blade movement and two-hand initiation replace the loose workflow of conventional manual cut-off stations.
Roller or flat tables, mechanical or pneumatic stops and the Combo/SalvaStop path let the station develop with repeat-length requirements.
Best-fit applications
Built for repeatable medium-section cross-cutting.
Legend 500 is strongest where the stock fits the published section chart and the operation needs a guarded semi-automatic cut-off station rather than full defect optimization or automatic length positioning.
Window and door components
Cross-cutting solid-wood profiles and blanks within the machine’s section envelope before profiling, drilling or assembly.
Joinery and millwork
Repeat preparation of rails, stiles, frames and architectural components where secure workholding and clean daily workflow matter.
Furniture components
Cut-off work for larger solid-wood rails, legs, frame members and secondary components before downstream machining.
Pallet and packaging production
Batch cross-cutting of compatible boards, blocks and packaging components with configurable stops and support tables.
Carpentry production
A more industrial alternative to manual chop-saw work for shops processing varied medium-section solid wood.
Secondary sawmill processing
Preparation of dried or dimensioned stock where repeatable cut-off is required but automatic optimization is not yet justified.
Official brochure
Download the Salvamac Legend catalogue.
This official Legend catalogue includes the Legend 500 standard and optional cutting-section diagrams, family positioning and accessory context. The supplied edition is Spanish and Portuguese.
Download brochure

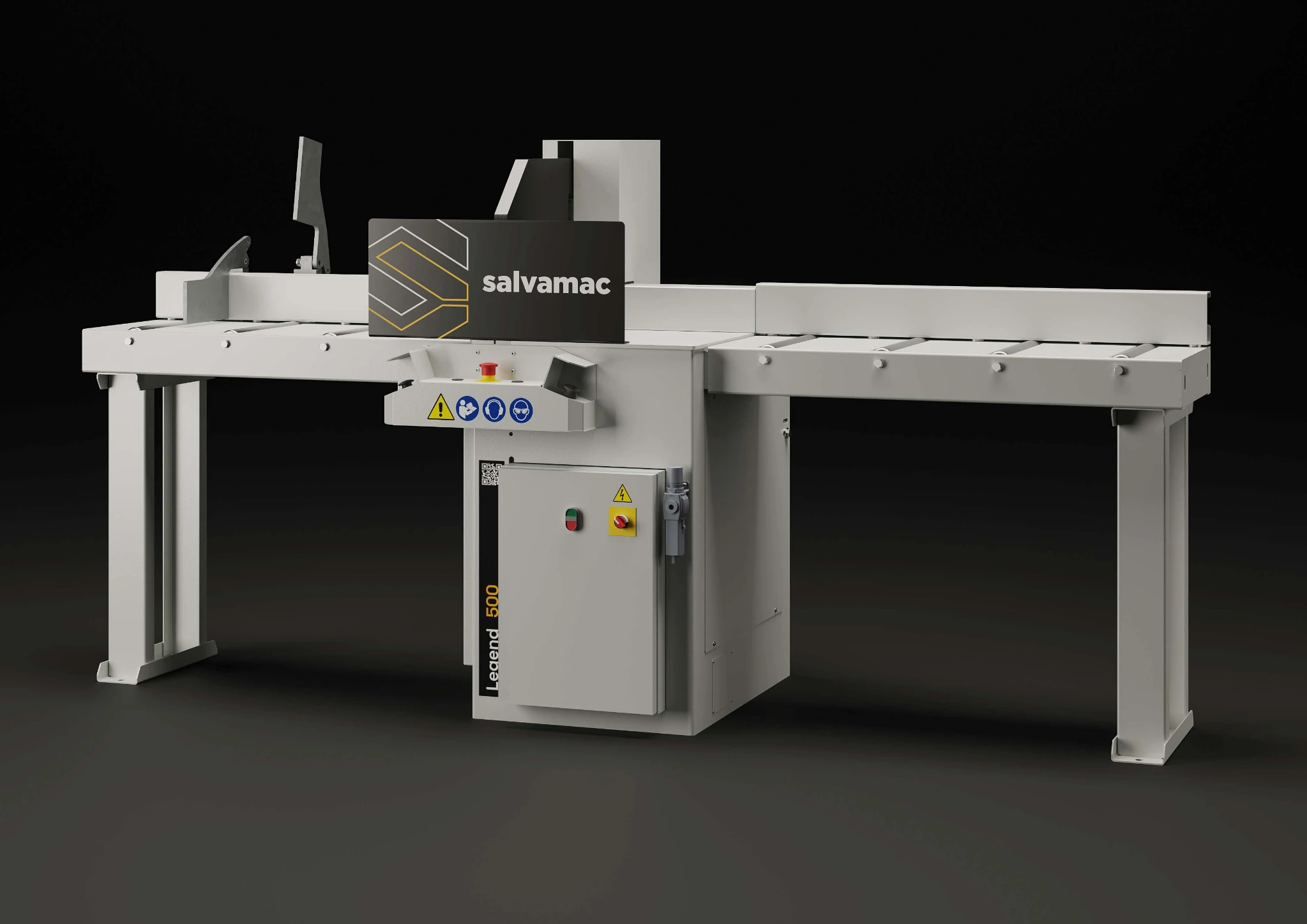

Complete cutting station
Quote Request
More capacity. Still compact and direct.
The complete Legend 500 configuration combines the guarded saw body, material support and operator controls into a straightforward medium-section cutting cell that can be equipped around the lengths and repetition level of the work.
01500 mm blade driven by a 5.5 kW motor
02Standard published section up to 220 × 125 mm
03310 mm standard width; 375 mm optional width
04Guarded two-hand cycle with pneumatic workholding
Titan machine qualification
Request a Legend 500 quote.
Send Titan the stock dimensions, target lengths, daily volume and preferred table or stop arrangement. We will qualify the standard or optional cutting configuration and confirm the correct electrical package.
