The numerical control and integrated computer organize optimization, cutting results, quality classes, diagnostics and production information through one touchscreen environment.
Salvamac UltraCut 7000
Heavy-duty optimizing cross-cutting
Salvamac top-range optimizerUltraCut 7000
A heavy-duty optimizing crosscut saw developed for sawmills, hard wood species, packaging operations and production environments requiring large cutting sections and substantial cutting power.
Executive overview
The SalvaCut platform for really large sections.
UltraCut 7000 extends Salvamac’s optimizing-saw range into heavy-duty production. It combines wood optimization and defect elimination with a 700 mm blade, 11 kW cutting motor and a documented cutting section of 450 × 120 mm.
Hard-wood processing
Sawmill production
Packaging components
SALVA-OPTIM management
The machine is built for particularly demanding jobs, with a large enclosed cutting unit and material-handling architecture suited to substantial solid-wood sections.
The blade and cutting process remain enclosed within the machine body while the operator works from the protected control position and managed feed system.
ULTRACUT 7000 / HEAVY-DUTY OPTIMIZER
Machine architecture
Maximum section capacity. Managed optimization.
UltraCut 7000 uses a 700 mm blade driven by an 11 kW motor and a pneumatic cutting system. The SalvaCut platform uses controlled material traction and SALVA-OPTIM software to manage defect removal, cutting requirements and production results.
Machine typeHeavy-duty optimizing crosscut saw
Published cutting section450 × 120 mm
Cutting system700 mm blade · 11 kW · pneumatic
Control platformSALVA-OPTIM · touchscreen · quality management
Machine and cutting details
Machine and accessory gallery.
The official UltraCut imagery shows the substantial enclosed cutting body, controlled infeed and outfeed path, large-diameter blade system and traction components used to move heavy solid-wood sections through the optimizer.

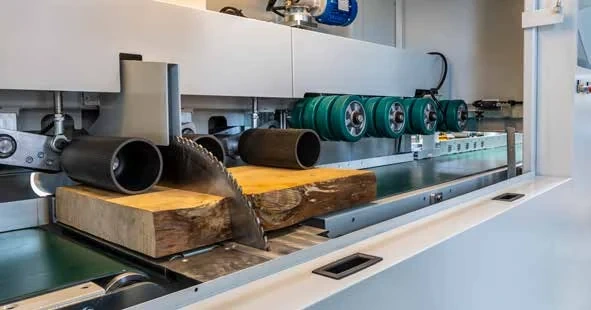

Official cutting-zone image showing large solid-wood sections supported through the enclosed UltraCut cutting system.

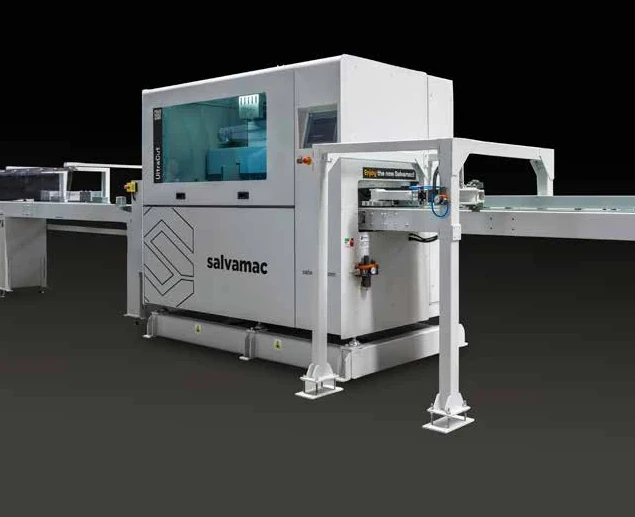

Heavy machine body, guarded material path and integrated handling structure for large-section production.

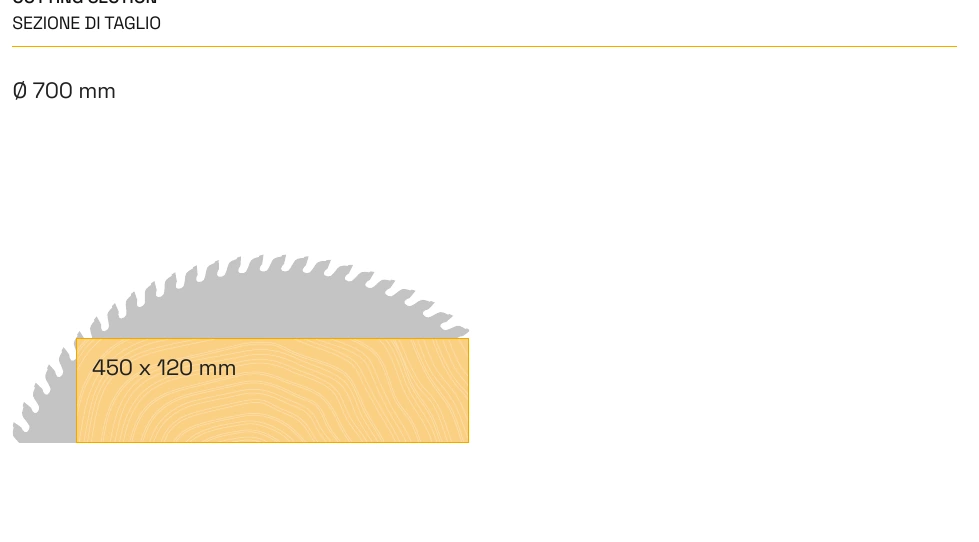

Official 700 mm-blade cutting-section diagram: 450 × 120 mm.
Verified specification set
Technical data with source discipline.
Machine typeHeavy-duty high-speed optimizing crosscut sawOfficial
Primary processWood optimization and defect elimination for large cutting sectionsOfficial
Published cutting section450 × 120 mmOfficial
Saw blade diameter700 mmOfficial
Cutting motor power11 kWOfficial
Maximum feed speed100 m/minOfficial
Cutting systemPneumaticOfficial
Compressed-air pressure6 atmOfficial
Compressed-air consumption500 nlOfficial
Dust-extraction air speed40 m/secOfficial
Material handlingControlled through-feed traction for large solid-wood sectionsOfficial
Management systemNumerical control and integrated computerOfficial
Optimization softwareSALVA-OPTIMOfficial
Cutting-quality managementComplete management of up to 5 cutting qualitiesOfficial
Production informationReal-time statistics, cutting results, diagnostics and video messagesOfficial
Connectivity and serviceUSB connection and internet-ready tele-service softwareOfficial
The published 450 × 120 mm capacity is the documented cutting-section combination for the 700 mm blade. Final installed footprint depends on infeed, outfeed, guarding, operator access and downstream handling.
Core features
Large-section optimization with industrial cutting power.
UltraCut 7000 is positioned for operations where conventional optimizing saws do not provide the required cross-section or cutting power.
700 mm cutting package
The large blade and 11 kW cutting motor provide the documented 450 × 120 mm cutting section required for substantial solid-wood elements.
Heavy material traction
The guarded through-feed architecture supports large pieces through the cutting zone while maintaining a controlled optimization sequence.
SALVA-OPTIM control
The integrated numerical control manages cutting requirements, quality classes, production statistics, diagnostics and remote-service communication.
Commercial advantages
450 × 120 mm cutting section
Hard-wood production focus
Defect elimination at scale
Purpose-built heavy-duty platform
A practical step beyond standard-section optimization.
The UltraCut platform brings optimizer control to large pieces that exceed the section range of the smaller SalvaCut configurations.
The machine is specifically positioned for demanding species and applications where substantial cutting power is required.
Optimization and quality management apply the same disciplined production logic to heavy stock and large cross-sections.
Sawmills, packaging plants and secondary processors gain a dedicated enclosed system rather than adapting lighter equipment to oversized work.
Best-fit applications
Built for heavy stock where optimization still matters.
UltraCut 7000 is strongest in operations processing large solid-wood sections within the documented 450 × 120 mm envelope and requiring controlled defect removal or length optimization.
Sawmill secondary processing
Optimize dried or dimensioned stock into saleable and downstream-ready lengths while removing marked defects.
Hard-wood component production
Process dense species where the 11 kW cutting motor and 700 mm blade are appropriate for the required section.
Packaging and heavy crating
Produce substantial packaging members and crating components from large-section material with software-managed cut requirements.
Structural and industrial timber parts
Cut compatible heavy rails, blocking and large components before drilling, machining or assembly.
Large furniture and architectural parts
Prepare thick legs, rails, frame members and other substantial solid-wood components within the published cutting section.
Heavy rough-mill optimization
Move defect elimination and quality separation upstream before moulding, finger jointing or further component processing.
Official Salvamac literature
Download the official UltraCut catalogue.
The official English/Italian SalvaCut catalogue includes the UltraCut 7000 machine, technical data, 450 × 120 mm cutting-section diagram and SALVA-OPTIM control-system overview.
Download brochure
Official full-machine showcase
Quote Request
Extreme robustness. Maximum cutting power.

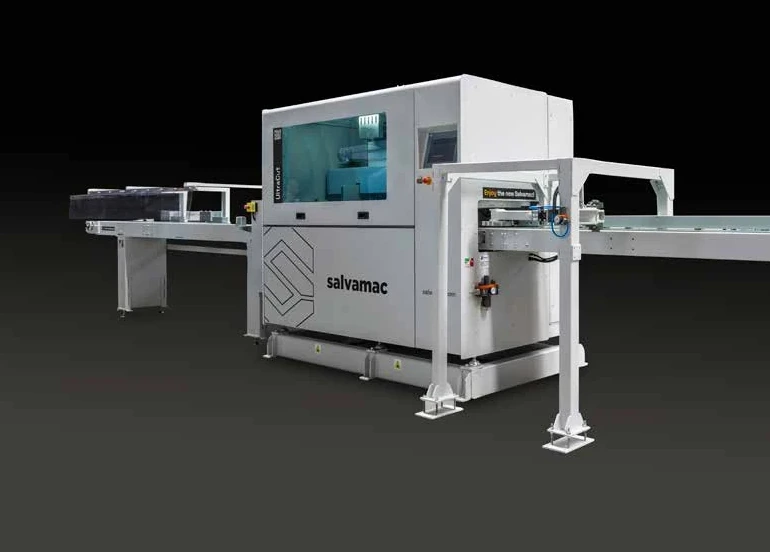

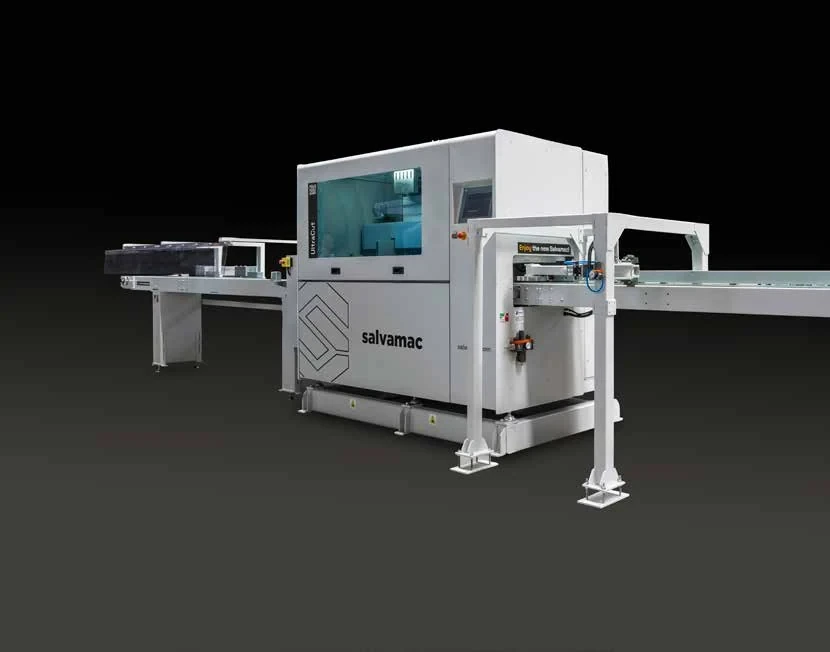

This official Salvamac image presents the complete UltraCut 7000 platform with its enclosed cutting body, infeed and outfeed support, large-section handling and operator control position.
01700 mm saw blade
0211 kW cutting motor
03450 × 120 mm published cutting section
04Heavy-duty optimization and defect elimination
Titan machine qualification
Request an UltraCut 7000 quote.
Send Titan the stock dimensions, wood species, incoming lengths, finished lengths, defect strategy, expected volume and line-space constraints. We will qualify the cutting envelope, material handling and Canadian electrical package.
