The interface is designed around a numerical control, touchscreen and integrated computer so operators can manage lengths, qualities, diagnostics and production information from one station.

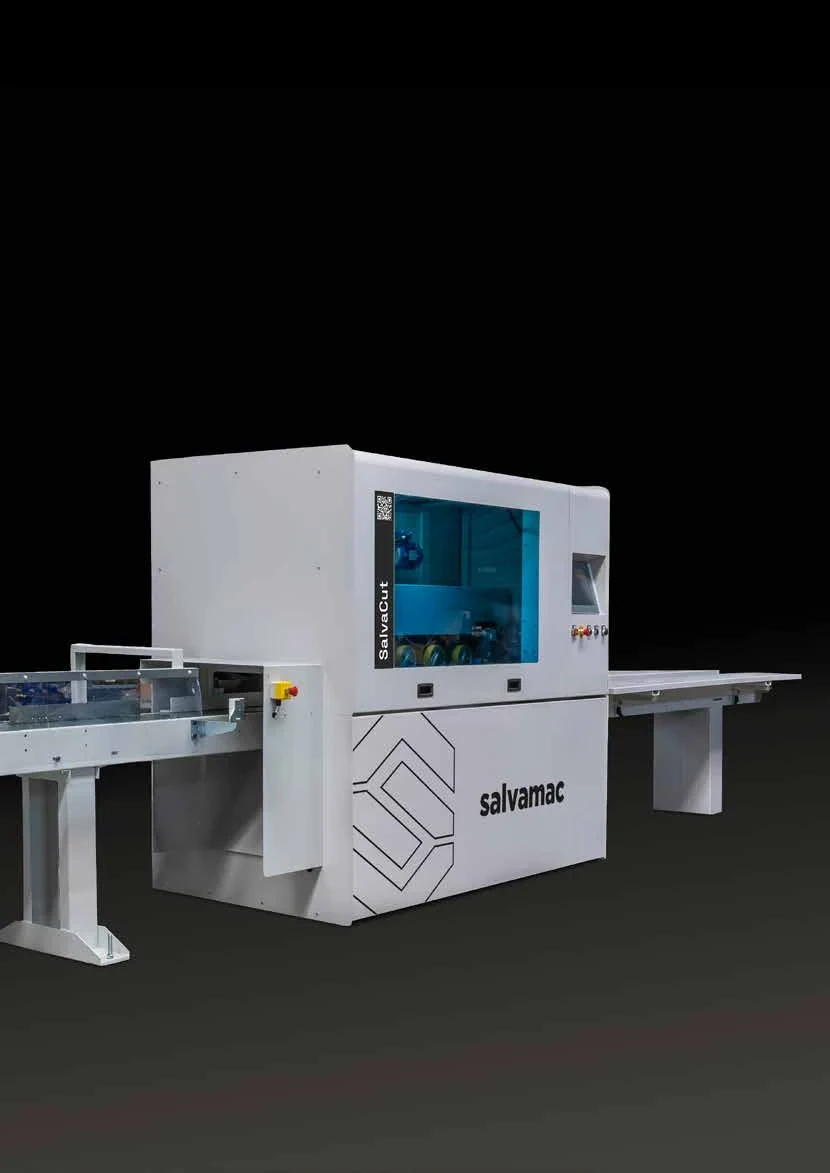

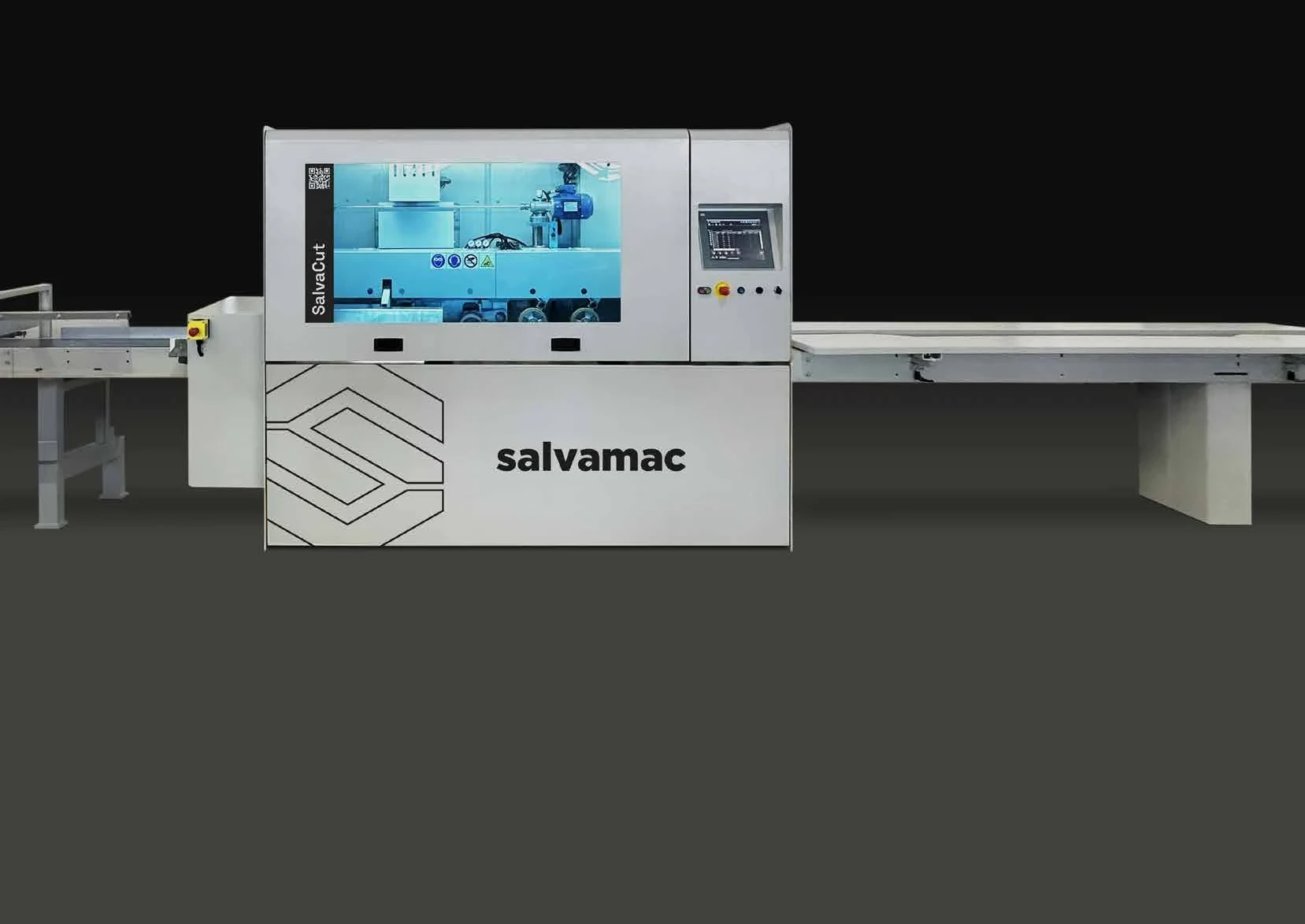

Salvamac SalvaCut 3000
High-speed optimizing cross-cutting
Salvamac optimizer platformSalvaCut 3000
A high-speed optimizing saw built to eliminate wood defects, feed material with double traction, and convert marked stock into finished lengths with controlled repeatability.
Executive overview
Fast optimization with double traction.
SalvaCut 3000 is Salvamac’s high-speed optimizing crosscut saw with pneumatic cutting. It is designed for optimization and elimination of wood defects, using upper rollers and a lower feed belt with independent management.
Double traction feed
Pneumatic cutting
SALVA-OPTIM software
High-speed optimization
Upper traction rollers, lower feed belt and independent feed management create a stable, controlled transfer system aimed at fast acceleration and production continuity.
The fully enclosed cutting zone and high-resistance touchscreen place the operator outside the cut chamber while maintaining direct control over the optimization process.
SALVACUT 3000 / HIGH-SPEED OPTIMIZING SAW
Machine architecture
Optimization, traction and cutting in one enclosed machine.
SalvaCut 3000 is built around a double-traction system with upper rollers and a lower feed belt, both with independent management. Two interconnected brushless feeding motors are engineered for faster accelerations and higher positioning precision through the saw body.
Machine typeHigh-speed optimizing crosscut saw
Maximum feed speed150 m/min
Cutting packagePneumatic cutting · 500/550 mm blade
Control systemSALVA-OPTIM · touchscreen · integrated computer
Machine and feed details
Machine and production gallery.
The SalvaCut 3000 platform is sold on speed, traction control and practical optimizer usability. The gallery below highlights the machine body, control station, traction architecture and feed detail that define the line.

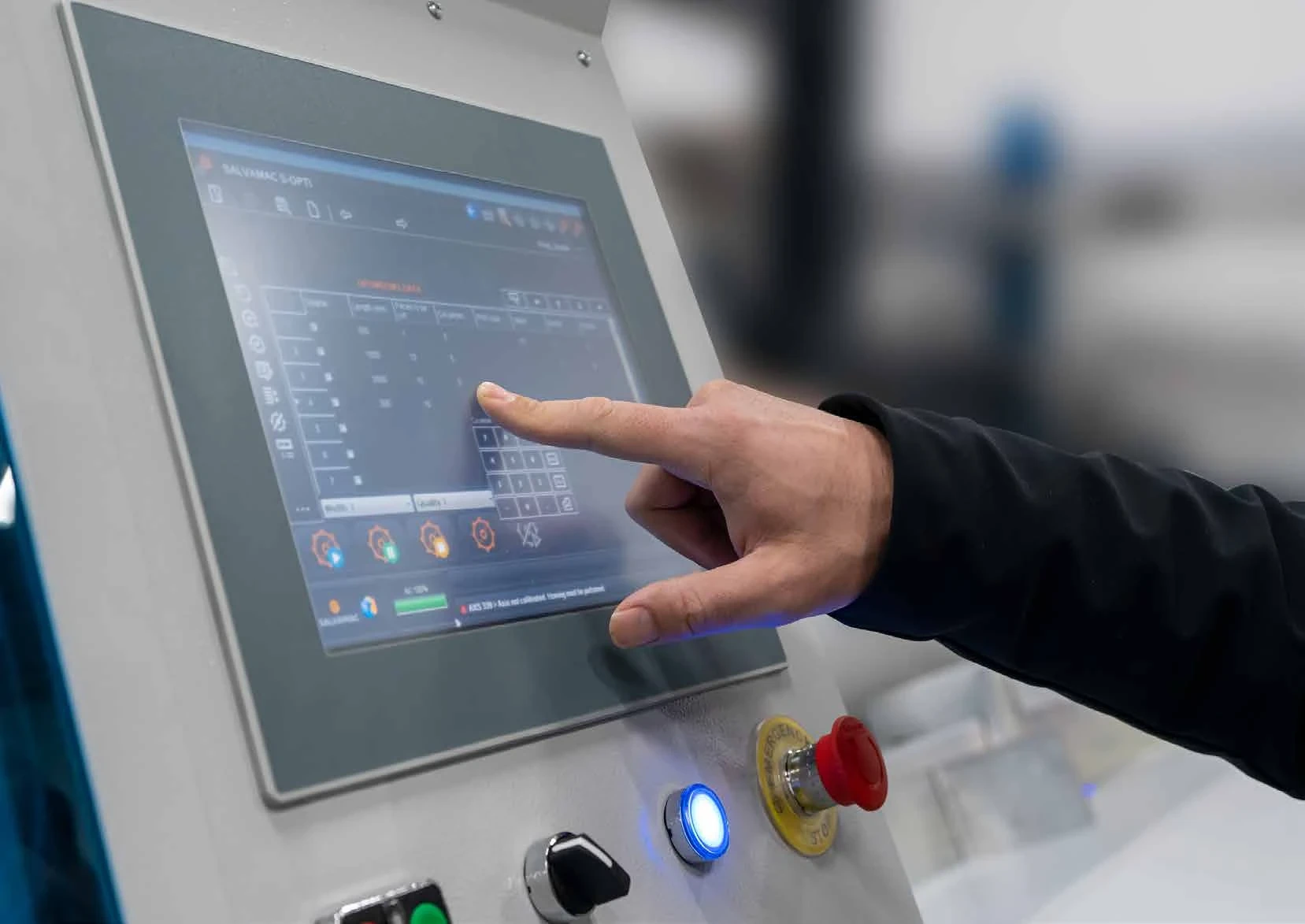

Enclosed machine body with touchscreen control, integrated computer and direct view into the protected cutting chamber.

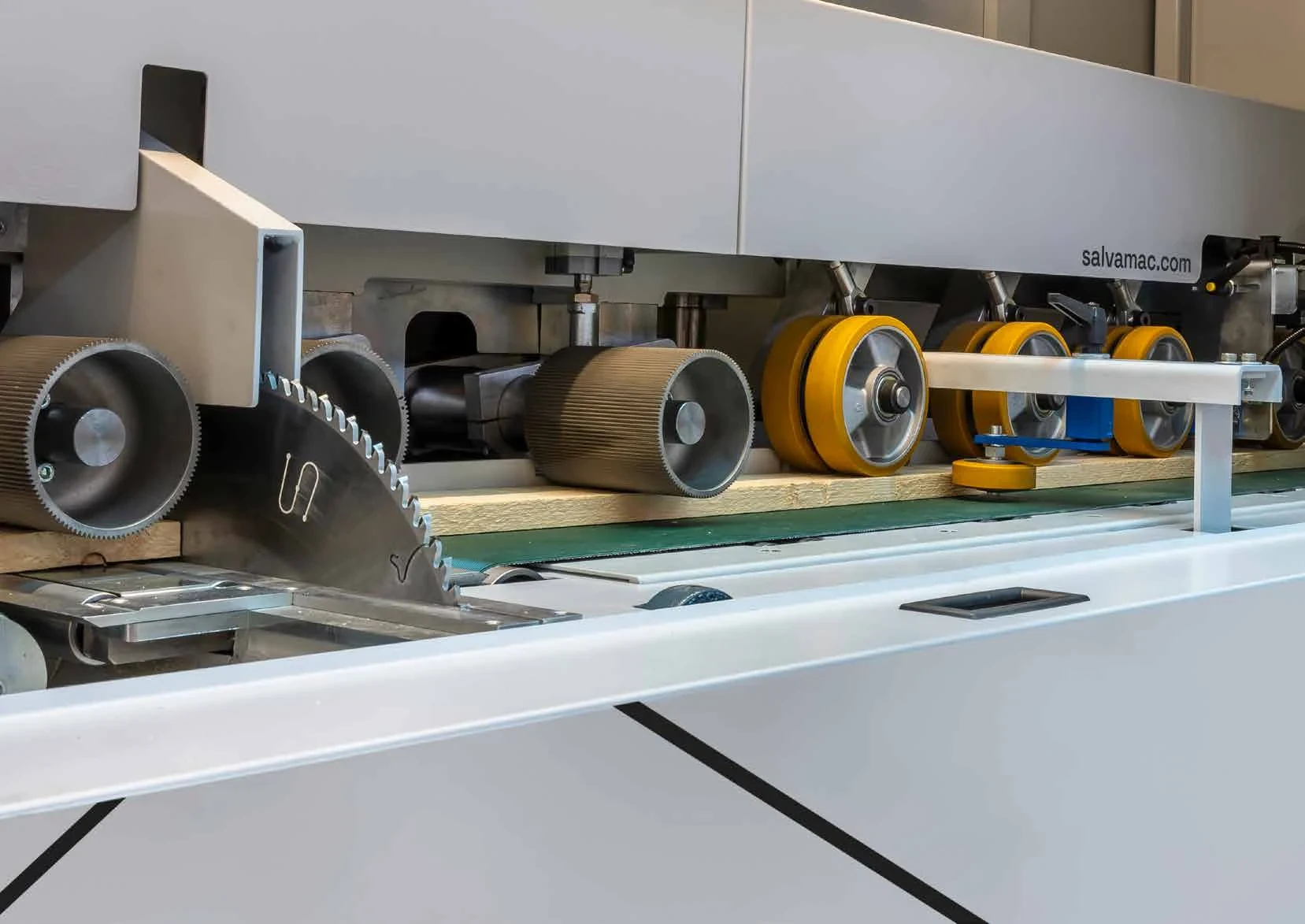

Double traction with upper rollers and lower feed belt, engineered for fast acceleration and controlled material transfer.

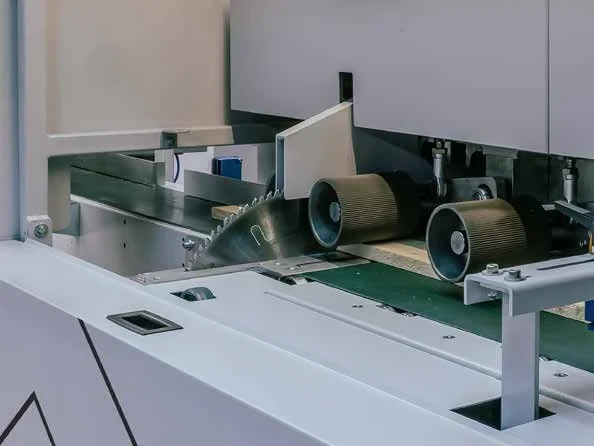

Support and feed components that stabilize the board through the optimizer and cutting sequence.
Verified specification set
Technical data with source discipline.
Machine typeHigh-speed optimizing crosscut sawOfficial
Maximum feeding speed150 m/minOfficial
Cutting systemPneumaticOfficial
Blade diameter500 / 550 mmOfficial
Cutting section with 500 mm blade240 × 70 mmOfficial
Cutting section with 550 mm blade240 × 60 mmOfficial
Compressed-air pressure6 atmOfficial
Compressed-air consumption500 nlOfficial
Dust-extraction speed40 m/secOfficial
Feeding architectureTwo interconnected brushless feeding motorsOfficial
Traction systemUpper rollers + lower feed belt with independent managementOfficial
Management systemNumerical control + integrated computerOfficial
Software platformSALVA-OPTIM with statistics, cutting results, diagnostics and video messagesOfficial
Cutting-quality managementComplete management up to 5 cutting qualitiesOfficial
Operator interfaceHigh-resistance touchscreen with USB and tele-service via internetOfficial
All specification rows shown above are documented in the current Salvamac SalvaCut catalogue. Installed footprint depends on infeed, outfeed, guarding clearances and the production layout selected for the line.
Core features
What the machine is really selling.
SalvaCut 3000 competes on the parts of production that directly change profitability: optimization speed, feed control, operator usability and defect elimination.
Double traction system
Upper rollers and the lower feed belt are independently managed, keeping material supported and controlled during high-speed optimization.
SALVA-OPTIM software
The management system combines a numerical control and integrated computer with real-time statistics, diagnostics, cutting results and up to five quality classes.
Brushless feed acceleration
Two independent and interconnected brushless feeding motors are engineered for faster accelerations and higher positioning precision.
Commercial advantages
Higher-speed feed motion
Defect removal plus optimization
Flexible cutting package
Operator-ready software
A practical step beyond basic optimizing cut-off systems.
The documented 150 m/min feed speed gives SalvaCut 3000 a practical edge over slower optimization platforms when throughput matters.
The machine is designed not just to cut stock to length, but to optimize yield while eliminating wood defects from the finished output.
Choose the documented 500 mm or 550 mm blade package depending on the section range needed by the job mix.
The touchscreen interface, USB connectivity and tele-service support reduce friction between production decisions and execution at the machine.
Best-fit applications
Built for defect elimination and repeatable optimized output.
SalvaCut 3000 fits production where solid-wood stock must be optimized rapidly, defects must be removed, and finished lengths need to be delivered with consistent, software-managed control.
Window and door stock
Optimize rails, stiles and other long components while removing defects before downstream profiling, moulding or machining.
Furniture component processing
Convert incoming blanks into finished component lengths with stronger feed control and repeatability.
Rough-mill optimization
Use defect elimination and quality management to improve raw-material yield ahead of further component processing.
Joinery and millwork
Handle varied cut lists and recurring material defects in custom or semi-standard production environments.
Pallet and packaging parts
Drive consistent part lengths and dependable output in high-volume secondary processing environments.
General secondary wood processing
Suitable where high-speed optimization offers a measurable improvement over basic stop-saw or manual-cut workflows.
Official Salvamac literature
Download the official SalvaCut brochure.
This brochure includes the SalvaCut 3000, SalvaCut 5000 and UltraCut 7000 platforms, plus the core technical data, software overview and company positioning used for the product family.
Download brochure
Exact machine showcase
Quote Request
Enclosed optimization with a clean production footprint.

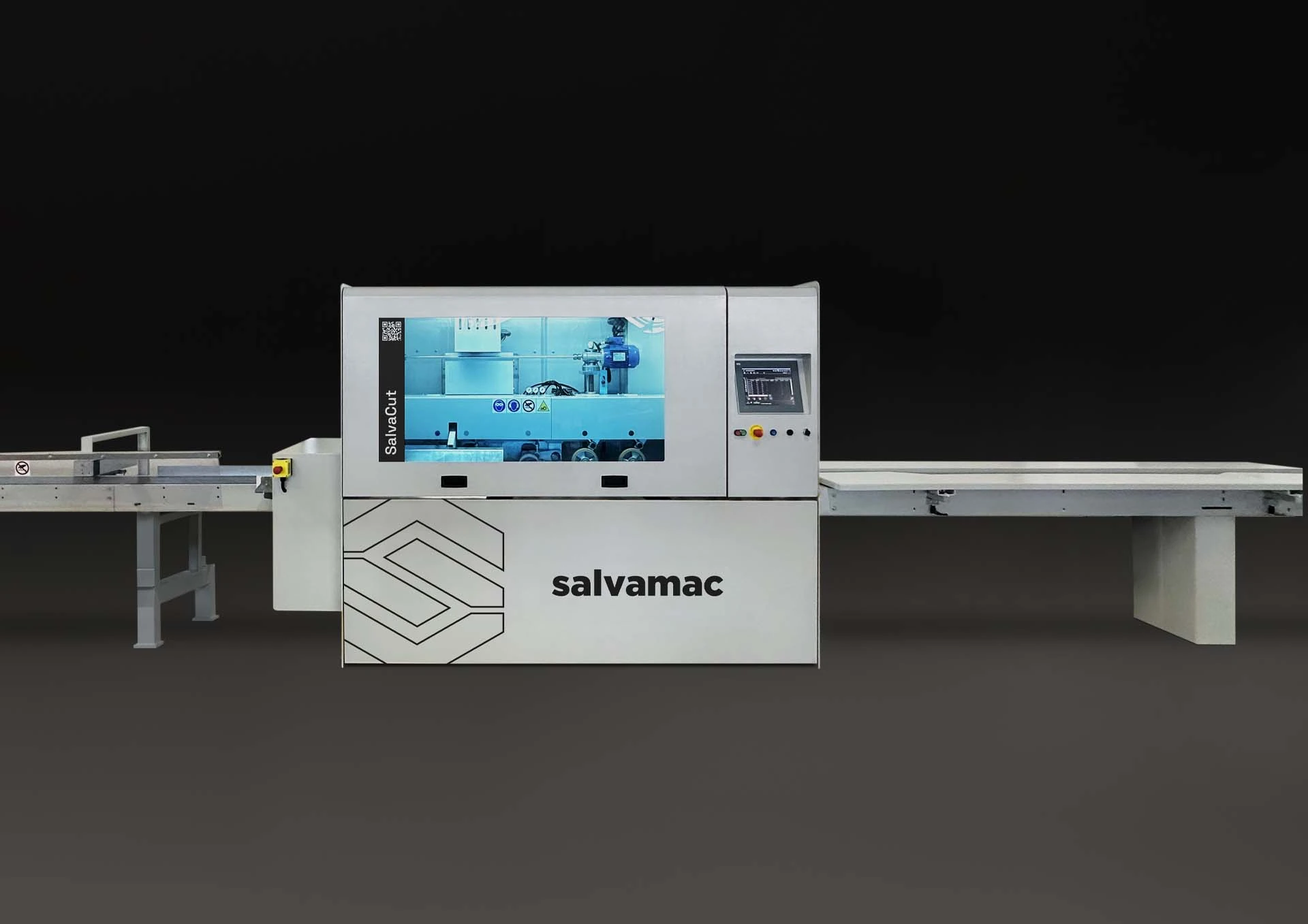

This premium machine card uses the exact SalvaCut 3000 render supplied for the project. It gives the page a direct, product-specific machine anchor while keeping the Salvamac catalogue visual language intact.
01High-speed optimizing saw platform
02Pneumatic cutting package
03500 / 550 mm blade options
04SALVA-OPTIM management up to 5 cutting qualities
Titan machine qualification
Request a SalvaCut 3000 quote.
Send Titan the stock profile, incoming lengths, finished lengths, defect strategy and expected volume. We will review whether SalvaCut 3000 is the correct fit, and confirm blade package, optimization workflow and line layout.
