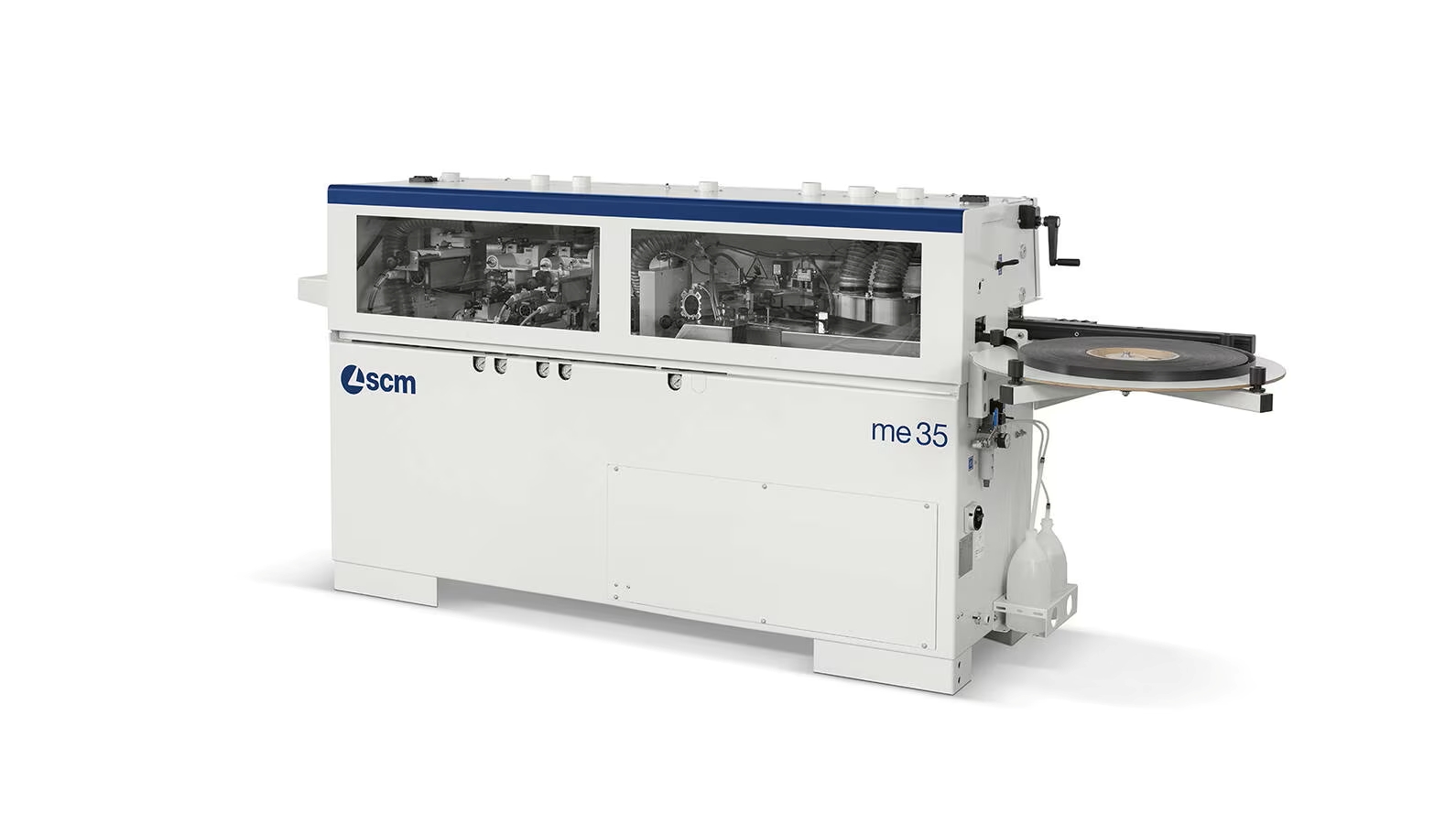

SCM ME 35 Automatic Edge Bander
Compact automatic edgebander for small woodworking, furniture, cabinet, and panel-processing shops that need professional edge quality, 5 mm strip capability, 7 m/min feed speed, and corner-rounding performance in a high-value SCM machine.
Compact professional edgebanding with corner-rounding capability and reduced manual finishing.
The SCM ME 35 is an automatic glue-pot edgebander built for small woodworking shops, furniture makers, cabinet shops, and panel-processing companies that need professional edgebanding without stepping into a larger Olimpic or Stefani platform.
For Titan, the ME 35 should be positioned as the mid-to-upper compact ME-series edgebander for shops that want more than basic edge application, but do not yet need the size, speed, or cost of the ME 40, K 100 Evo, or Olimpic 300.
Best-fit shop profile
The ME 35 is the right machine conversation when the customer is fighting visible manual cleanup, inconsistent edge finishing, square corners needing hand work, operator guesswork, or entry-level machines not producing a finished panel cleanly enough.
5 mm strip capability, 7 m/min speed, eye-S control, combined end-cutting/rounding, automatic setup support, and multi-radius tooling.
The SCM ME 35 gives smaller shops a 3000 x 525 mm work table, 0.4–3 mm rolled edge capacity, 5 mm strip edge capacity, 8–50 mm panel height, 190 / 110 mm minimum panel length and width, 120 / 110 mm minimum panel size with end cutting or rounding, and 7 m/min feed speed.
Compact professional production
The ME 35 gives smaller shops a serious automatic edgebander without jumping into a larger Olimpic or Stefani machine class.
Combined end-cutting and rounding
The combined unit brings corner-rounding capability into a compact machine, helping reduce hand finishing after edgebanding.
5 mm strip-edge capability
The ME 35 can process strip edges up to 5 mm, giving shops more flexibility than machines limited to thin coil edges only.
eye-S Compact control
The 10" touchscreen with Maestro active edge gives operators graphical machine-function control in an approachable small-shop interface.
Built for cabinet parts, closets, light commercial millwork, furniture, casegoods, and growing shops upgrading from basic edgebanders.
The ME 35 is designed to reduce hand finishing, improve consistency, and give operators a more controlled process for panel edging, trimming, scraping, and corner finishing.
Cabinet Shops
Strong fit for kitchen cabinet parts, gables, doors, drawer fronts, shelves, fillers, finished ends, vanity panels, and standard casework components.
Closet & Storage Shops
Useful for closet shelving, wardrobe panels, partitions, utility cabinets, garage storage panels, and repeat panel programs.
Small Commercial Millwork
Built for light commercial casework, retail fixtures, office cabinetry, reception millwork, and exposed panel components.
Furniture & Casegoods
Fits panel furniture, fronts, shelves, doors, side panels, small production batches, and decorative components.
Basic Edgebander Upgrades
Strong fit for shops tired of manual cleanup, inconsistent corners, glue-line issues, and slow touch-up after edgebanding.
Compact Value Production
Ideal for shops that want touchscreen control and better repeatability than basic edgebanders without overbuying machine capacity.
SCM ME 35
A compact automatic glue-pot edgebander for small shops that want professional edge quality, reduced manual finishing, and strong value in a smaller machine footprint.
The SCM ME 35 is a compact automatic edgebander designed for shops that want professional edge quality, reduced manual finishing, and strong value in a smaller machine footprint.
The machine’s core technical range is well suited to smaller cabinet and panel-production environments. Official SCM and Titan data list 0.4–3 mm rolled edge thickness, 5 mm maximum strip edge thickness, 8–50 mm panel height, 190 / 110 mm minimum panel length and width, 120 / 110 mm minimum panel length and width with end cutting or rounding, and 7 m/min feed speed.
The ME 35’s major production advantage is its corner-finishing capability. The combined end-cutting and rounding unit gives the machine quality processing in its market segment, helping reduce manual post-processing and bringing a higher-end finishing feature into a compact machine.
The operator interface is another strong feature. The eye-S Compact console uses a 10" touchscreen with Maestro active edge, where machine functions are displayed graphically. This matters for small shops because it reduces setup complexity and helps operators manage the machine more confidently.
For higher-spec versions, package examples may include pre-milling, glue pot, top/bottom trimming, profile scraping, buffing, and either radius end trim or combined end trim and corner rounding. These package details should be confirmed against Titan’s quoted Canadian configuration before being published as standard equipment.
Titan sales position
Position the ME 35 around professional finished-edge quality in a compact, high-value machine: 7 m/min production speed, 5 mm strip-edge capability, corner rounding, touchscreen control, and clean finished panels without jumping into a larger Olimpic or Stefani platform.
Use the ME 35 as the compact ME-range step for shops that need corner rounding, 5 mm strip capability, and professional finished-edge quality.
The ME 35 is the better fit when the customer needs a stronger compact machine with 5 mm strip capability, 7 m/min feed speed, improved finishing, and corner-rounding capability.
Good: ME 25 / ME 28T
Best for lighter or simpler edgebanding where compact size and budget-sensitive equipment selection matter most.
Better: ME 35
Best for compact automatic edgebanding with 5 mm strip capability, 7 m/min speed, eye-S control, multi-radius tools, and corner rounding.
Best Compact ME Option: ME 40
Best when the customer needs more speed, more package flexibility, and stronger finishing, grooving, or PUR capability.
Upgrade Path: K 100 Evo / Olimpic 300
Best when the customer needs a stronger automatic platform and a step toward Olimpic production architecture.
ME 35 specifications without table formatting.
Final published specifications should follow the quoted Titan/Canadian configuration. Confirm exact package, pre-milling, combined end-cutting/corner rounding, edge scraping, glue scraping, buffing, grooving, glue package, electrical, dust extraction, compressed air, footprint, installation, training, warranty, and service path.
For shops that need 7 m/min production speed, 5 mm strip-edge capability, corner rounding, touchscreen control, and clean finished panels.
The ME 35 should be sold as a compact professional edgebander for shops that want finished panels, less hand cleanup, and better edge quality without overbuying machine capacity.
Strong fit for
Shops that have outgrown basic edgebanding and need better edge quality, corner finishing, touchscreen control, and repeatable compact production.
Confirm during quoting
The ME 35 is configuration dependent. Final customer-facing publishing should match Titan’s quoted Canadian configuration.
Request an SCM ME 35 machine quote.
Send Titan your panel materials, edge types, corner-rounding requirements, current edge process, production speed, dust collection, compressed air, shop power, and future upgrade path. We will help confirm whether the ME 35 is the right compact edgebander for your shop.
