SCM DMC SD 30

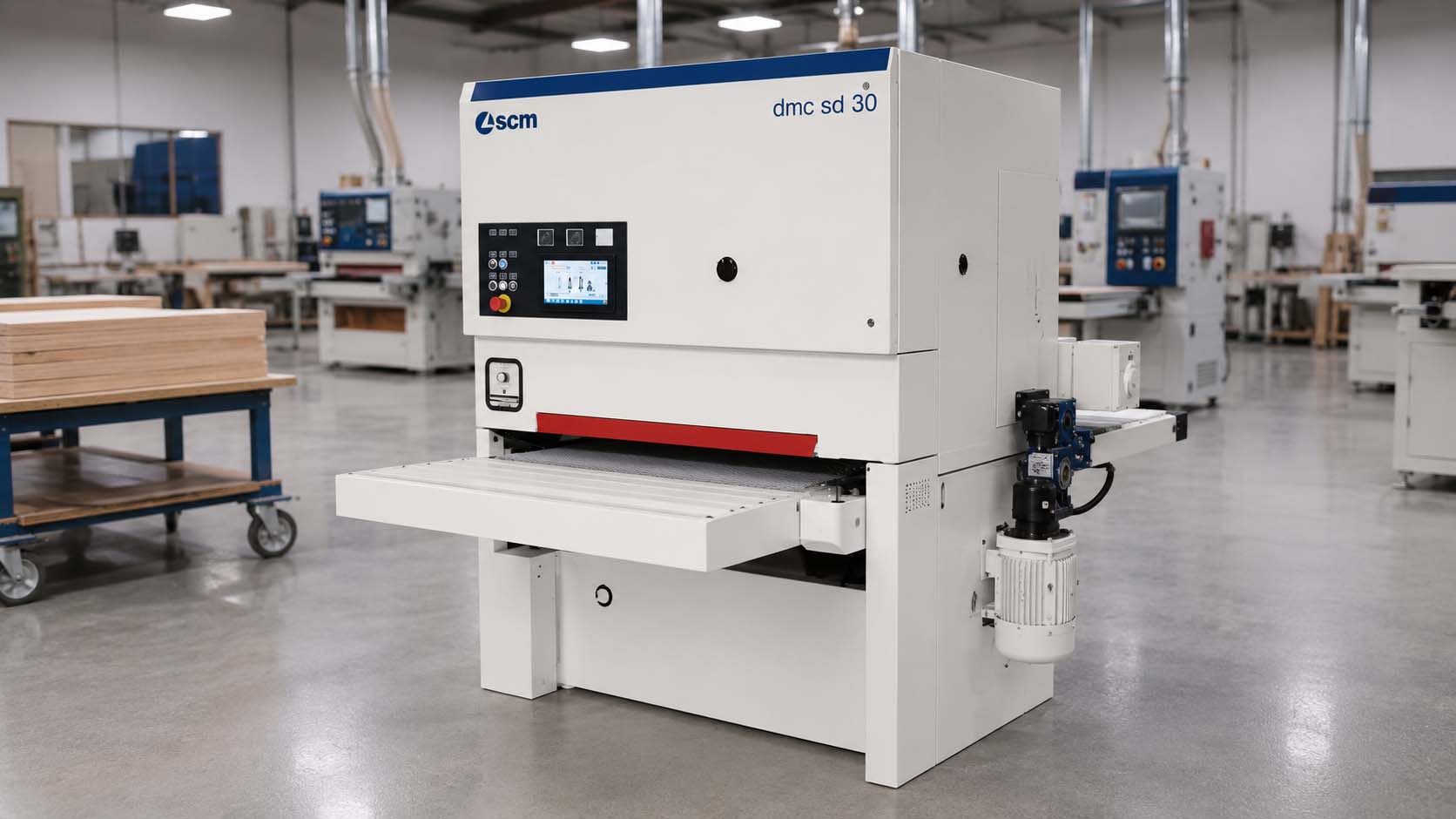

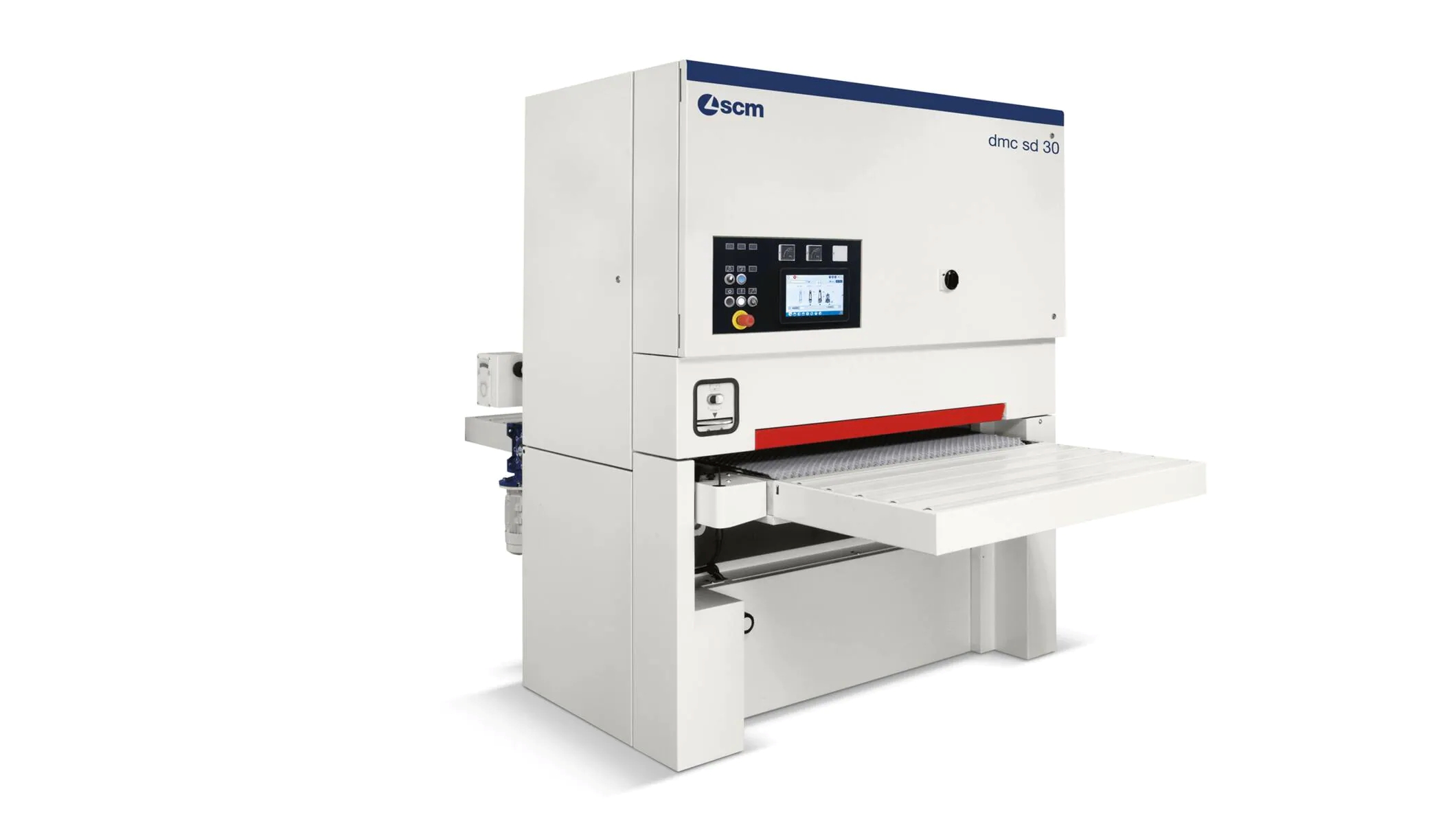

SCM DMC SD 30 Wide-Belt Sanding & Calibrating Machine
A compact automatic wide-belt sanding and calibrating machine for craftsmen, cabinet shops, furniture makers, veneer shops, and small woodworking companies that need professional sanding quality in a space-conscious footprint.
Professional Wide-Belt Sanding for Smaller Woodworking Shops
The SCM DMC SD 30 gives small woodworking shops, cabinet shops, furniture makers, and custom millwork producers a practical path from hand sanding or light-duty sanding equipment into a controlled automatic wide-belt sanding workflow. It is built for cleaner surfaces, repeatable calibration, veneer sanding, solid wood preparation, and consistent finish preparation before assembly, painting, staining, or final finishing.
Key Advantages
The SD 30 combines compact working widths, professional sanding capacity, MESAR sectional-pad capability, eye-S program storage, stable feed control, and LED-guided panel introduction in a machine sized for smaller production environments.
Compact Production Size
Available in 950 mm and 1100 mm working widths, making it a practical fit for smaller cabinet, furniture, veneer, and millwork shops.
Professional Calibration
Supports solid wood calibration, sanding, panel preparation, and surface consistency beyond hand sanding or light-duty equipment.
MESAR Pad Option
Sectional-pad capability allows sanding pressure to be adjusted from softer to more aggressive action depending on material and finish goals.
Repeatable Operator Setup
eye-S electronic programming and stored work programs support repeatable settings, cleaner operation, and reduced setup variation.
Applications
Solid Wood Calibration
Processes solid wood parts, furniture components, cabinet parts, frames, millwork pieces, panels, and production components.
Veneered Panel Sanding
Supports veneered panels where controlled sanding pressure and stable feed are important for surface protection.
Cabinet & Furniture Parts
Fits shelves, gables, drawer parts, doors, panels, custom furniture components, casework parts, and small production runs.
Honeycomb & Delicate Panels
The 1100 mm model can be reviewed with electronic sectional-pad capability for honeycomb-supported veneered panels and delicate materials.
Machine Information
The SCM DMC SD 30 is a compact automatic wide-belt sanding and calibrating machine for small woodworking companies that need controlled sanding, calibration, and finish preparation. It is positioned for solid wood calibrating and sanding, veneered panel sanding, honeycomb-supported veneered panels, and general sanding work in cabinet, furniture, millwork, and custom production environments.
The SD 30 is the practical first serious wide-belt sander in the SCM/DMC sanding range. It gives smaller shops real calibration, veneer sanding, solid wood sanding, MESAR sectional-pad capability, program storage, stable transport, and LED-guided panel introduction without moving into a larger industrial sanding platform.
Core technical data includes 950 mm or 1100 mm working width, 4–170 mm working thickness, 970 mm sanding belt width on the 950 mm version, 1115 mm sanding belt width on the 1100 mm version, 1900 mm sanding belt length, 11 kW / 15 hp standard main motor power, and 4.5 / 9 m/min feed speed with inverter.
The machine can be reviewed in CS and RCS head concepts. CS 110 is a compact single-head configuration with combined roller/pad sanding for general sanding and finishing work. RCS 95 and RCS 110 are twin-head layouts that combine roller calibration with a combined roller/pad head for broader sanding and calibration capability. Final configuration should be confirmed against the quoted Canadian package.
Configuration Guide
CS 110
Compact single-head configuration with combined roller/pad sanding for general sanding and finishing work.
RCS 95
950 mm twin-head configuration with roller calibration followed by combined roller/pad sanding.
RCS 110
1100 mm twin-head configuration with roller calibration, combined sanding, and broader panel capacity.
SD 30 vs SD 60 Positioning
DMC SD 30
Best for small shops moving into professional automatic wide-belt sanding with 950 / 1100 mm widths, 1900 mm belts, and strong solid wood or veneer sanding capability.
DMC SD 60
Best for shops needing more production width, more material range, 1100 / 1350 mm widths, 2150 mm belts, and broader MDF, chipboard, veneer, and painted-panel production capability.
Technical Features
The DMC SD 30 is a compact automatic wide-belt sanding and calibrating machine. Final specifications depend on the selected 950 mm or 1100 mm working width, CS or RCS configuration, sanding head package, pad package, control package, motor package, and Canadian electrical configuration.
1115 mm on 1100 mm Version
Sanding
Veneer Sanding
Solid Wood Sanding
Finish Preparation
B: Solid Wood and Veneered Material
C: Honeycomb Panels, Irregular Shapes, and Painted Materials
Configuration-Dependent
Configuration-Dependent
Confirm Automatic Table Adjustment and Digital Thickness Readout
Emergency Devices
Over-Thickness Safety Micro
Belt Break / Tension / Tracking Stops
Compressed-Air Fault Stop
Overload Protection
Elastic / Electronic Pad
eye-S Control
LED Panel Indicator
Powered Table Adjustment
Roller Material
Shore Hardness
Compressed Air
Electrical
Canadian Voltage / Phase
Transformer Requirements
Footprint
Machine Weight
Delivery
Rigging
Installation
Commissioning
Training
Warranty / Service
Where the DMC SD 30 Fits
The DMC SD 30 fits smaller shops that need professional sanding quality, repeatable setup, veneer handling, solid wood calibration, and better surface control without moving into a larger industrial sanding platform.
Small Cabinet Shops
Strong fit for cabinet parts, shelves, gables, drawer parts, doors, panels, fillers, and everyday sanding work.
Furniture, Veneer & Solid Wood Shops
Supports solid wood calibration, veneered panels, furniture components, frames, custom parts, and finish preparation.
Manual Sanding Upgrades
Built for shops moving away from hand sanding, light-duty equipment, inconsistent setup, and operator-dependent finish quality.
