Position the stock against the selected stop, secure it with the pneumatic presser and initiate the guarded cutting cycle through the ergonomic two-hand station.

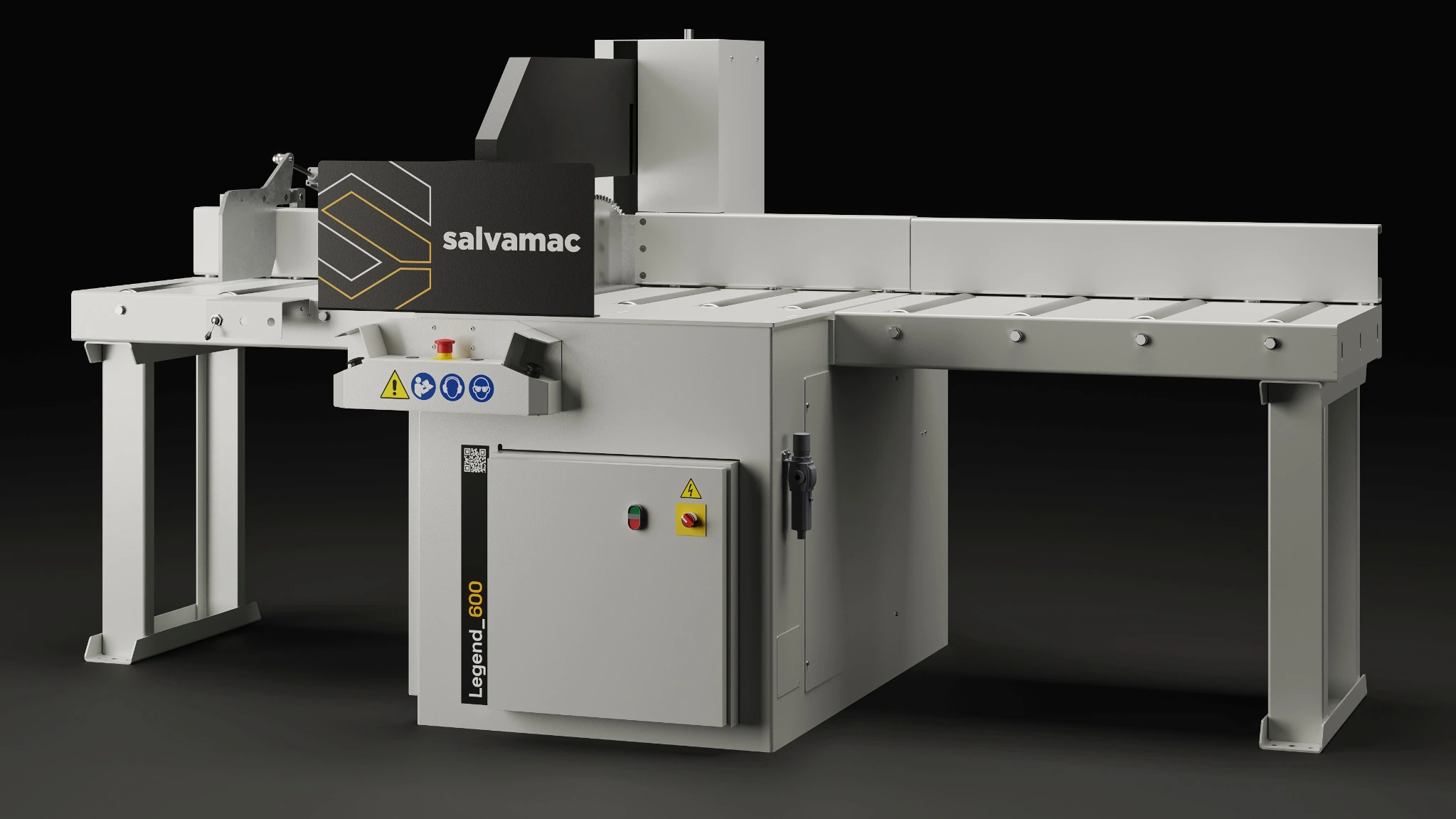

Salvamac Legend 600
Large-section cross-cutting
Salvamac Legend lineLegend 600
A semi-automatic tilting-blade crosscut saw for large solid-wood sections, combining a 600 mm blade, 9.2 kW motor and a published cutting width of up to 610 mm.
Executive overview
Wide-section cutting with industrial authority.
Legend 600 moves the Legend family into large-section work with a tilting-blade movement, 600 mm blade and 9.2 kW motor. Its documented cutting combinations reach 420 × 150 mm, 520 × 100 mm and 610 × 30 mm, giving production shops a guarded semi-automatic alternative to conventional wide manual cut-off stations.
Tilting-blade movement
Large-section platform
Two-hand safety control
Electro-pneumatic presser
Thick painted hard steel, reinforced construction and flanged floor feet create a stable base for wide and heavy solid-wood sections.
The guarded blade system, fixed protection, emergency stop, electro-pneumatic presser and two-hand control separate the operator from the cutting stroke.

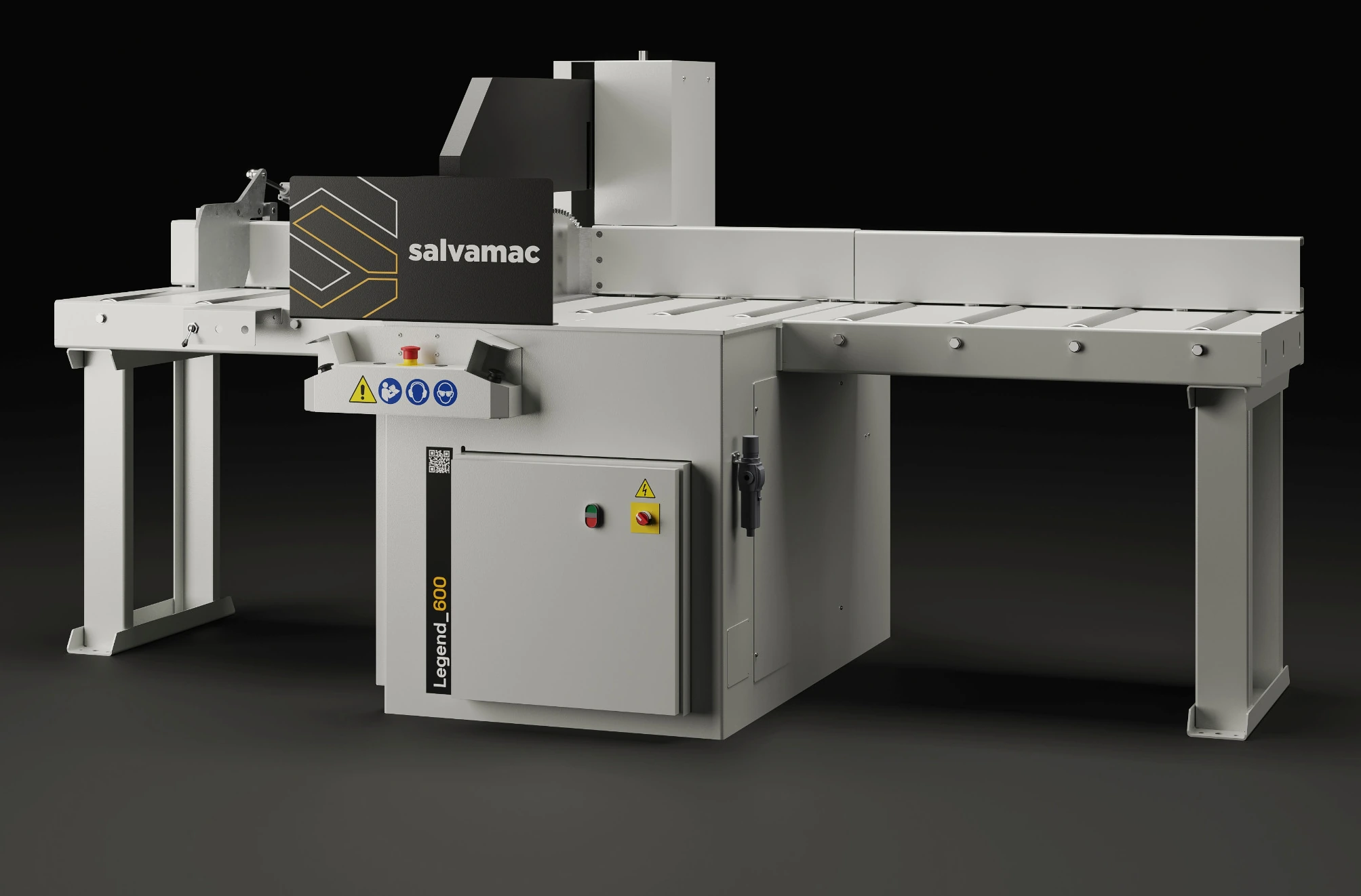

LEGEND 600 / MACHINE UNIT
Machine architecture
A wider cutting path. Controlled from one station.
The Legend 600 uses a 600 mm blade driven by a 9.2 kW motor at 2750 rpm. Its tilting blade movement is paired with an electro-pneumatic upper presser, adjustable pneumatic cutting speed and a two-hand safety control. The machine body is anchored through flanged steel feet, while support tables and stops are configured around stock length and finished-part flow.
Machine typeSemi-automatic tilting-blade crosscut saw
Published cutting section420 × 150 / 520 × 100 / 610 × 30 mm
Blade system600 mm · 9.2 kW · 2750 rpm
Workholding and startElectro-pneumatic presser · two-hand control
Machine and options
Machine and accessory gallery.
The Legend 600 can be configured with flat or roller support tables, mechanical or pneumatic stops, and programmable SalvaStop positioning. The final material-handling arrangement should be built around incoming length, finished lengths and operator workflow.

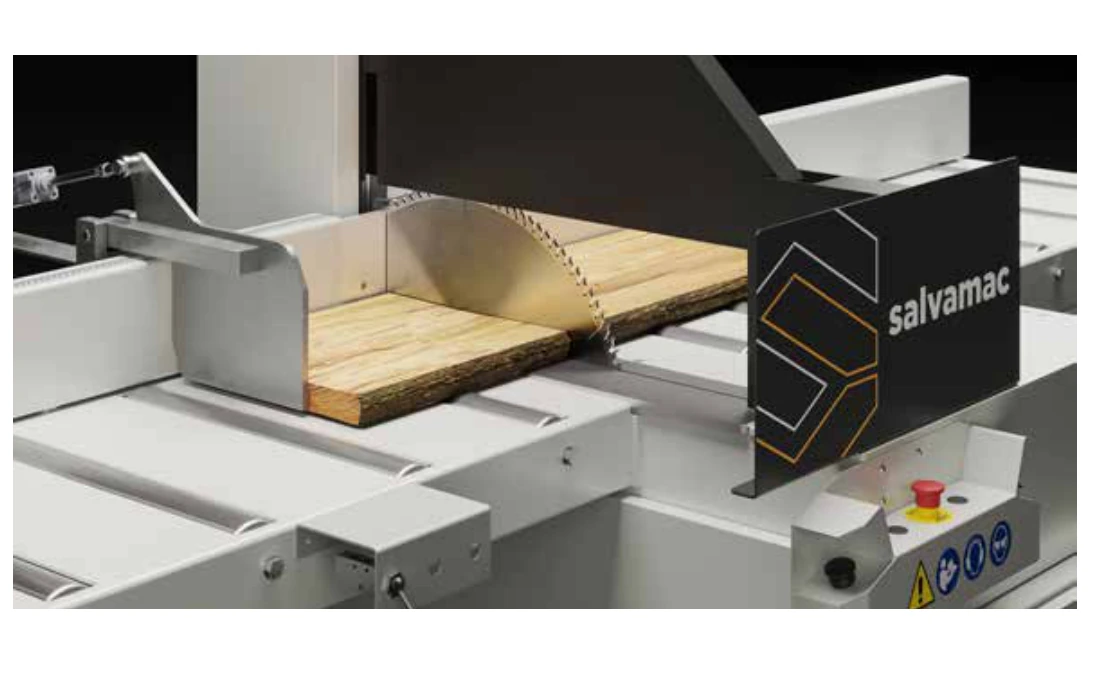

Official Legend 600 cutting-zone detail showing the wide-section tilting-blade cutting system.
Ergonomic two-hand safety control and operator-side emergency stop.
Optional pneumatic stop for repeat-length production; stop widths are selected to suit the work.
Verified specification set
Technical data with source discipline.
Machine typeSemi-automatic crosscut saw with tilting blade movement for large solid-wood sectionsOfficial
Cutting movementTilting blade movement with pneumatic cutting-speed adjustmentOfficial
Blade diameter600 mmOfficial
Blade motor power9.2 kWOfficial
Blade rotation speed2750 rpmOfficial
Published cutting section420 × 150 / 520 × 100 / 610 × 30 mmOfficial
Stacked-board limitationRear stop height 100 mm in documented configurationsVerified
Air consumption per cycle14 NlOfficial
Compressed-air supply6–8 barVerified
Sawdust extraction2 × 140 mm extraction connectionsOfficial
Working height900 mm ± 20 mmVerified
Machine body dimensionsApproximately 770 × 1385 × 1370 mm, excluding support tablesVerified
Documented electrical package400 V / 50 Hz / 3-phase; final Canadian supply must be confirmedVerified
Structure and anchoringReinforced thick painted steel body with flanged floor-anchoring feetOfficial
Presser guidanceBall-bearing movement with double dust protection and automatic lubricationOfficial
Safety and workholdingErgonomic two-hand start, fixed guarding and electro-pneumatic upper presserOfficial
Standard support arrangementOne-metre infeed and outfeed flat or roller tables in the documented standard configurationOfficial
Stop optionsMechanical or pneumatic stops in 100, 200 or 250 mm widthsOfficial
The cutting capacities are section combinations, not simultaneous independent maximums. Machine-body dimensions exclude configurable infeed and outfeed tables. Final installed footprint and electrical supply depend on the selected Canadian configuration.
Core features
Wide-capacity production without optimizer complexity.
Legend 600 combines a broad cutting envelope with a straightforward semi-automatic workflow for operations that need industrial capacity but do not require defect optimization or automatic push-feed positioning.
Tilting blade movement
The 600 mm blade follows a tilting cutting movement through large sections, while pneumatic regulation lets the cutting speed be adjusted to the work.
Reinforced steel structure
Thick painted steel, reinforced construction and flanged anchoring feet create the stability required for wide and heavy solid-wood workpieces.
Guarded pneumatic workholding
The upper presser secures the section before the cut, while the ergonomic two-hand control and fixed guarding keep the operating sequence disciplined.
Commercial advantages
610 mm published width
150 mm thickness at 420 mm
Controlled semi-automatic cycle
Scalable length handling
A practical step beyond manual wide-section cutting.
The broad cutting path reaches 610 mm at a 30 mm section height for wide boards, panels and frame components.
The machine maintains its full 150 mm published thickness across a substantial 420 mm section width.
Pneumatic workholding, adjustable cutting movement and two-hand initiation create a more disciplined production station.
Flat or roller tables, manual or pneumatic stops and optional SalvaStop positioning let the cell match current and future repetition needs.
Best-fit applications
Built for repeatable large-section cross-cutting.
Legend 600 is strongest where the work fits its documented 420 × 150, 520 × 100 or 610 × 30 mm section combinations and the process needs a guarded semi-automatic cut-off station rather than full optimization.
Wide window and door components
Cross-cut broad frame, panel and solid-wood components before profiling, tenoning, drilling or assembly.
Heavy architectural millwork
Prepare substantial rails, beams and custom architectural components where stable support and controlled workholding matter.
Furniture and table components
Cut wide tops, frame members and heavy solid-wood parts within the published section combinations.
Pallet and packaging production
Batch-cut compatible boards and heavy packaging components with configurable support tables and repeat stops.
Carpentry and timber preparation
Replace repetitive manual wide-section cut-off work with a dedicated industrial cutting station.
Secondary sawmill processing
Prepare dried or dimensioned wide stock for downstream manufacturing when automatic defect optimization is not required.
Official brochure
Download the Salvamac Legend catalogue.
This official Legend catalogue includes the Legend 600 machine, cutting-section diagram, accessory system and family positioning. The supplied edition is Spanish and Portuguese.
Download brochure

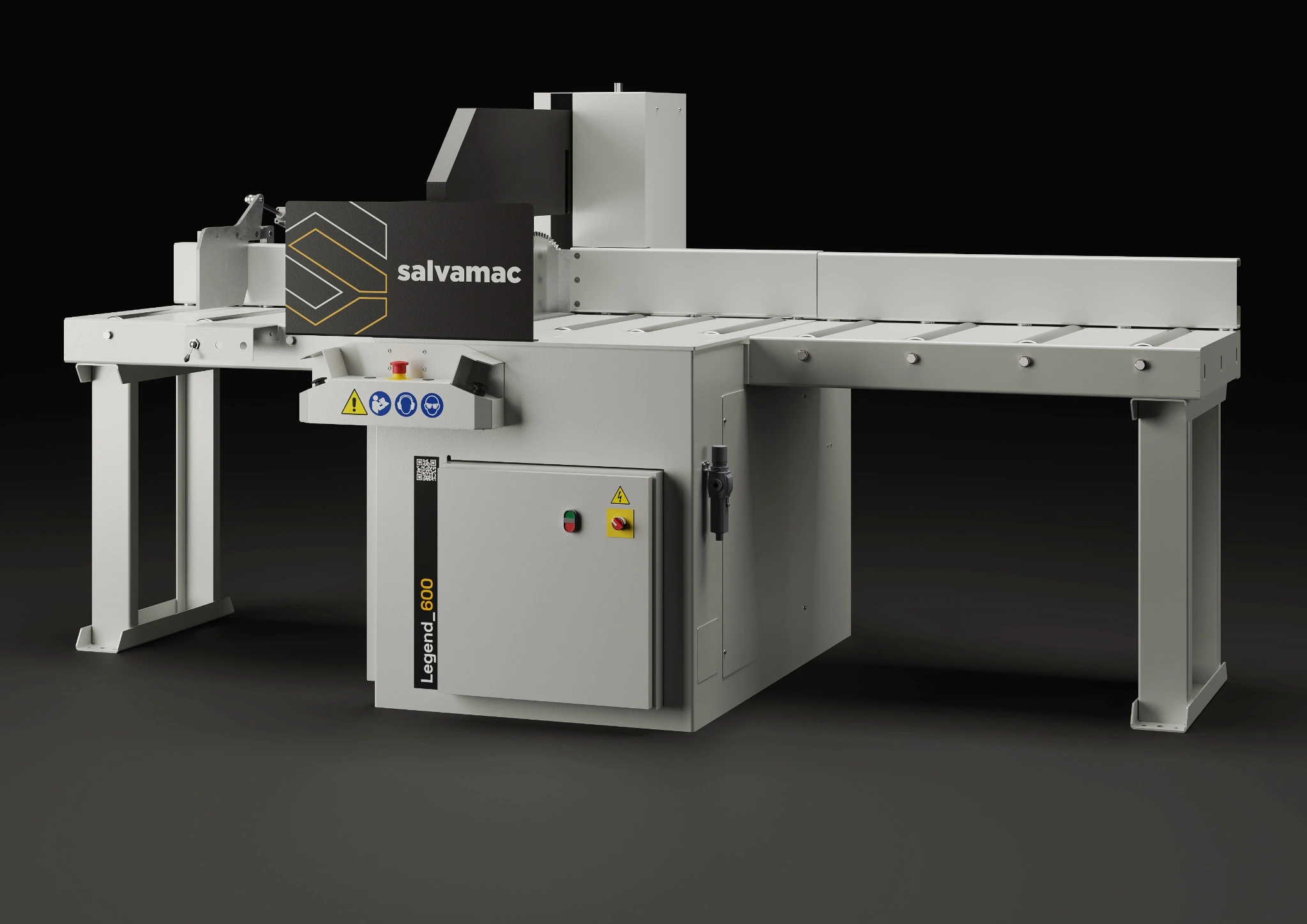

Complete cutting station
Quote Request
Wide capacity. Industrial control.
The complete Legend 600 configuration brings the saw body, support tables, guarding and operator controls together as a dedicated large-section cutting cell. Table lengths, stop type and electrical package are selected around the customer’s material flow.
01600 mm tilting-blade system with 9.2 kW drive
02Published section up to 420 × 150 mm
03Published width up to 610 mm at 30 mm height
04Guarded two-hand cycle with electro-pneumatic workholding
Titan machine qualification
Request a Legend 600 quote.
Send Titan the stock section, incoming length, finished lengths, daily cutting volume and preferred support-table or positioning arrangement. We will confirm machine fit, footprint and the correct Canadian electrical package.
