SCM Morbidelli X50
SCM Morbidelli X50 CNC Nesting Machine
An entry-level SCM CNC nesting platform for routing, drilling, panel machining, and in-house nested sheet production for cabinet, closet, furniture, millwork, and fixture shops.
First-Step CNC Nesting with SCM Production Capability
The Morbidelli X50 is built for shops ready to move from manual panel processing, basic routing, or outsourced CNC work into a controlled in-house nesting workflow. It brings together High Grip Vacuum hold-down, Smart Cut nesting strategy, spoilboard management, small-part referencing, high-speed routing, drilling technology, and SCM Maestro software in an accessible production platform.
Key Advantages
The X50 gives growing shops a practical path into CNC nesting with better hold-down, smarter cut sequencing, spoilboard management, drilling capability, and operator-friendly production control.
High Grip Vacuum
Deflector-based vacuum distribution helps improve workpiece locking across the table surface.
Smart Cut Strategy
Cut sequencing supports better part clamping while preserving nesting optimization results.
Small-Part Referencing
The removable XS Device helps reference small pieces directly on the spoilboard.
Production-Ready Drilling
RO.AX drilling technology supports high-speed drilling with reduced maintenance interruptions.
Applications
Cabinet Manufacturing
Produces gables, shelves, decks, tops, stretchers, backs, partitions, fillers, drawer parts, and custom cabinet components.
Closet & Storage
Handles high-mix panel orders with routing, drilling, and repeatable nested sheet processing.
Furniture Production
Supports routing, drilling, grooving, and cutting across mixed part sizes and job batches.
Millwork & Fixtures
Processes architectural panels, retail fixtures, custom components, templates, shaped parts, and job-specific panels.
Machine Information

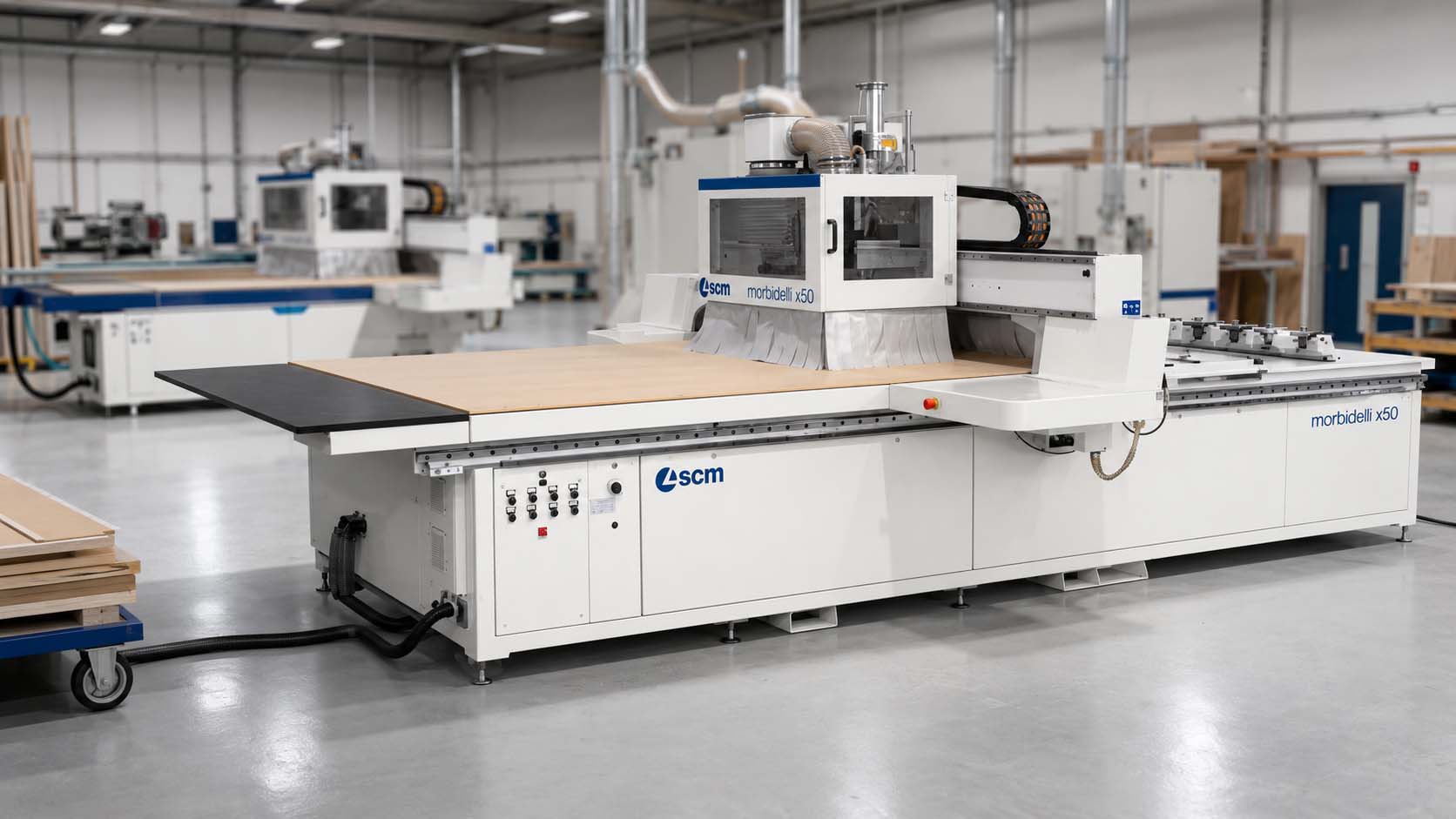

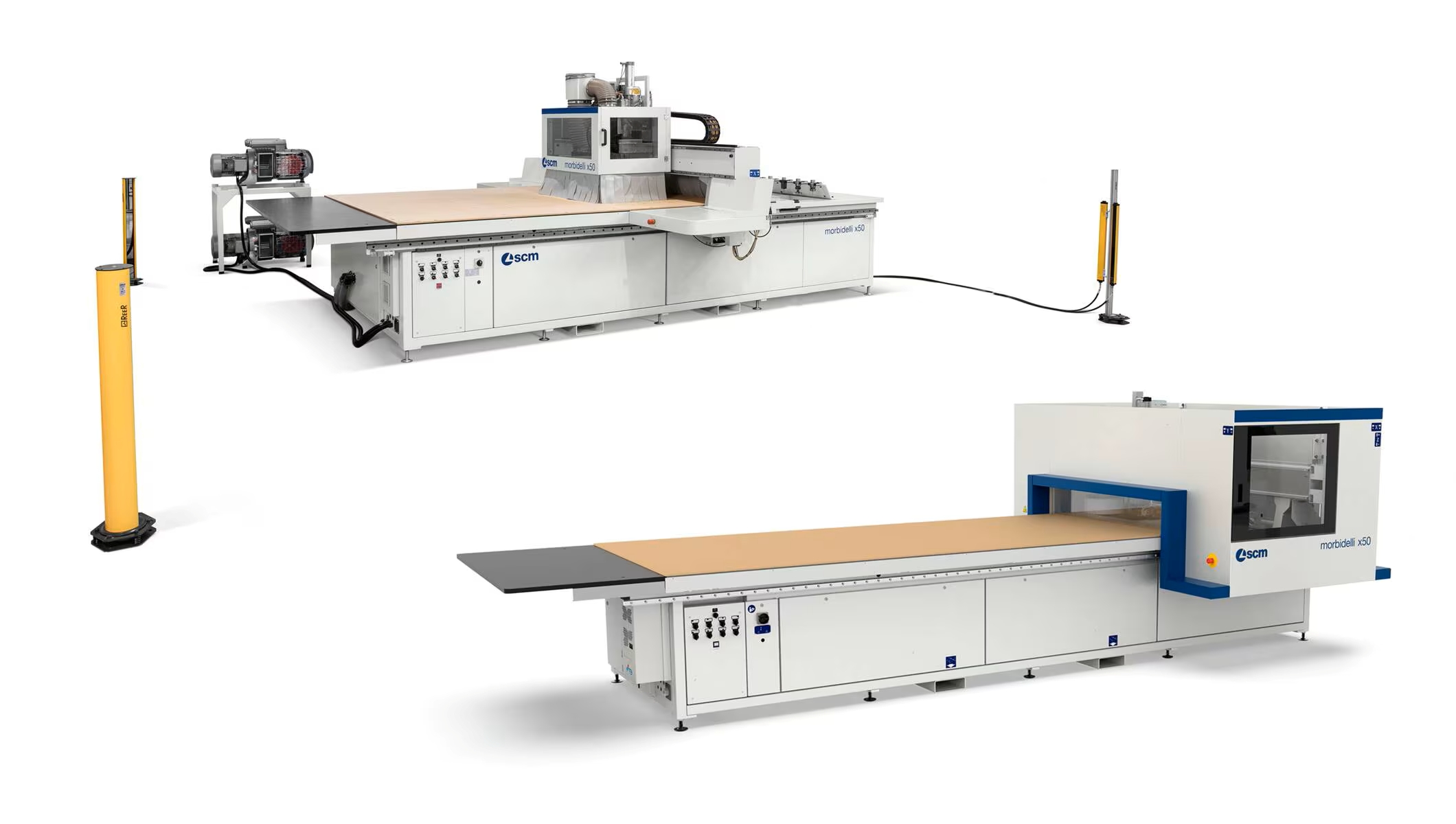

The SCM Morbidelli X50 is a CNC nesting machining centre built for companies that want to enter the world of nested panel production with a professional SCM platform. Designed for routing, drilling, grooving, and panel machining, the X50 is ideal for cabinet manufacturers, furniture producers, closet shops, millwork companies, and commercial fixture builders looking to improve production control and reduce reliance on manual or outsourced processes.
The machine’s High Grip Vacuum worktable helps maximize workpiece hold-down by distributing vacuum across the table surface, while Smart Cut applies cutting sequences that improve part clamping without compromising nesting optimization. The SMS Spoilboard Management System keeps operators informed about spoilboard condition, and the removable XS Device allows small pieces to be referenced directly on the spoilboard when they cannot reach the machine stops.
The X50 delivers practical production performance with working areas up to 4356 × 2216 mm, PRO-SPEED X-Y vectorial speed up to 57 m/min, PRO-SPACE X-Y vectorial speed up to 47 m/min, Z-axis panel passage of 140 mm, routing motor power up to 9.5 kW / 12.2 hp, spindle speed up to 24,000 rpm, up to 12 tool-changer positions, and drilling capability with up to 12 independent vertical spindles, 6 independent horizontal spindles, and drilling speeds up to 8,000 rpm.
Supported by SCM Maestro software and Maestro Connect digital services, the Morbidelli X50 gives shops a practical first step into professional CNC nesting. It is a strong choice for manufacturers that need reliable routing, drilling, labeling, nesting, spoilboard control, and operator-friendly machine management in a production-ready SCM platform.
Technical Features
The Morbidelli X50 is a practical nesting platform with configurable working areas, high-grip vacuum hold-down, Smart Cut nesting strategy, spoilboard management, integrated drilling, Maestro software, and a clear path into professional CNC panel production.
3756 × 1596 mm
3756 × 1896 mm
3156 × 2216 mm
4356 × 2216 mm
47 m/min PRO-SPACE
125 mm X-Axis Blade
Maestro Active
Maestro Nesting
Maestro Label
Where the X50 Fits
The X50 fits shops moving into CNC nesting for the first time, especially when the goal is better production control, cleaner sheet processing, reliable drilling, and reduced outsourcing.
First CNC Nesting Machine
Built for shops moving from manual panel processing, outsourcing, or basic routing into in-house CNC nesting.
Cabinet & Closet Shops
Ideal for nested cabinet parts, closet panels, high-mix orders, drilling, routing, and repeatable sheet processing.
Panel Production Control
Supports better material use, cleaner workflow, spoilboard monitoring, labeling, and operator-friendly production management.
Request a Machine Quote
Tell us what you produce, how your shop runs, and what the machine needs to accomplish.
Ready to Start?
Send Titan your machine requirements and we will help review the right Morbidelli X50 configuration for your production environment.
