SCM Minimax F 41ES

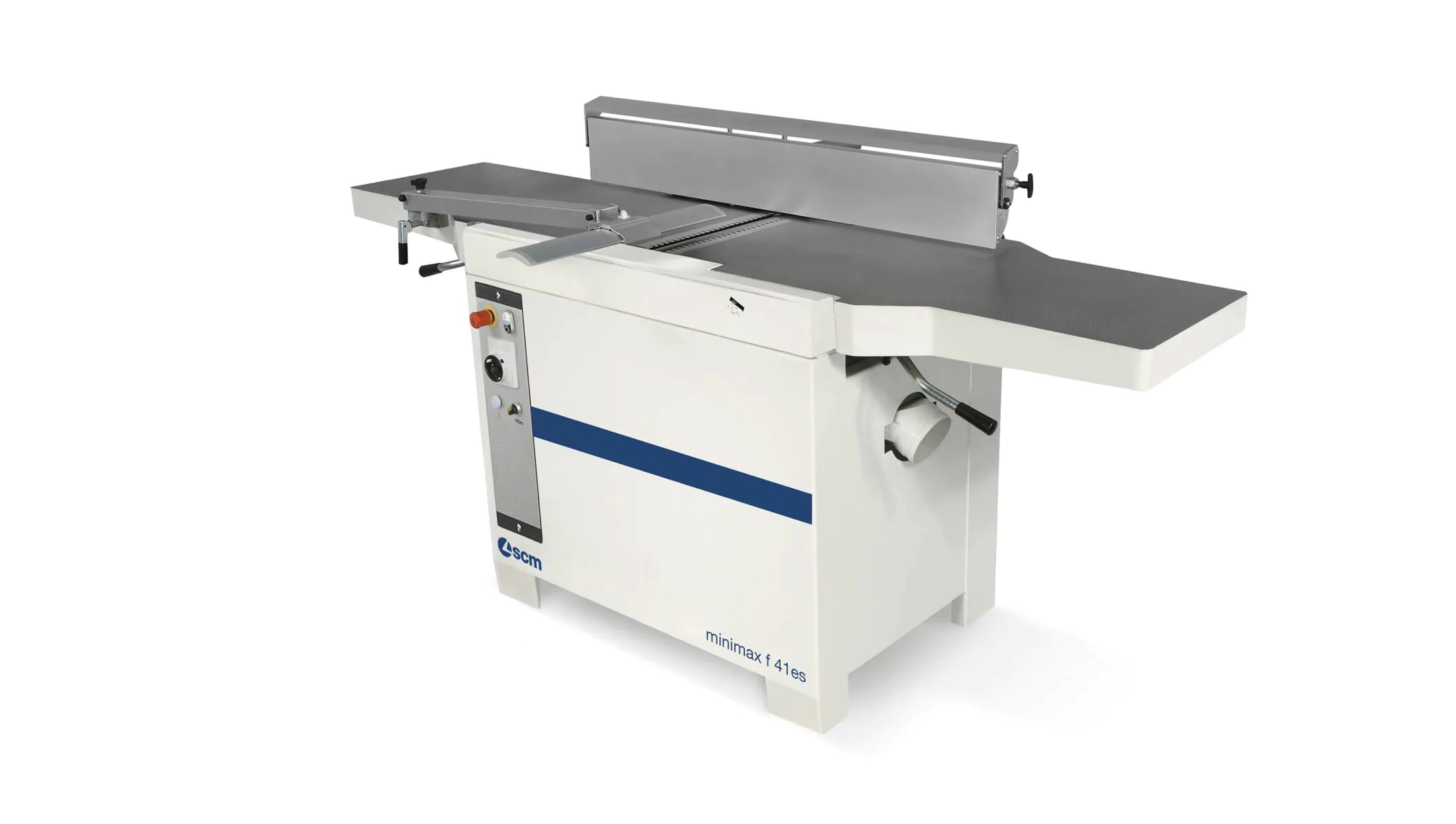

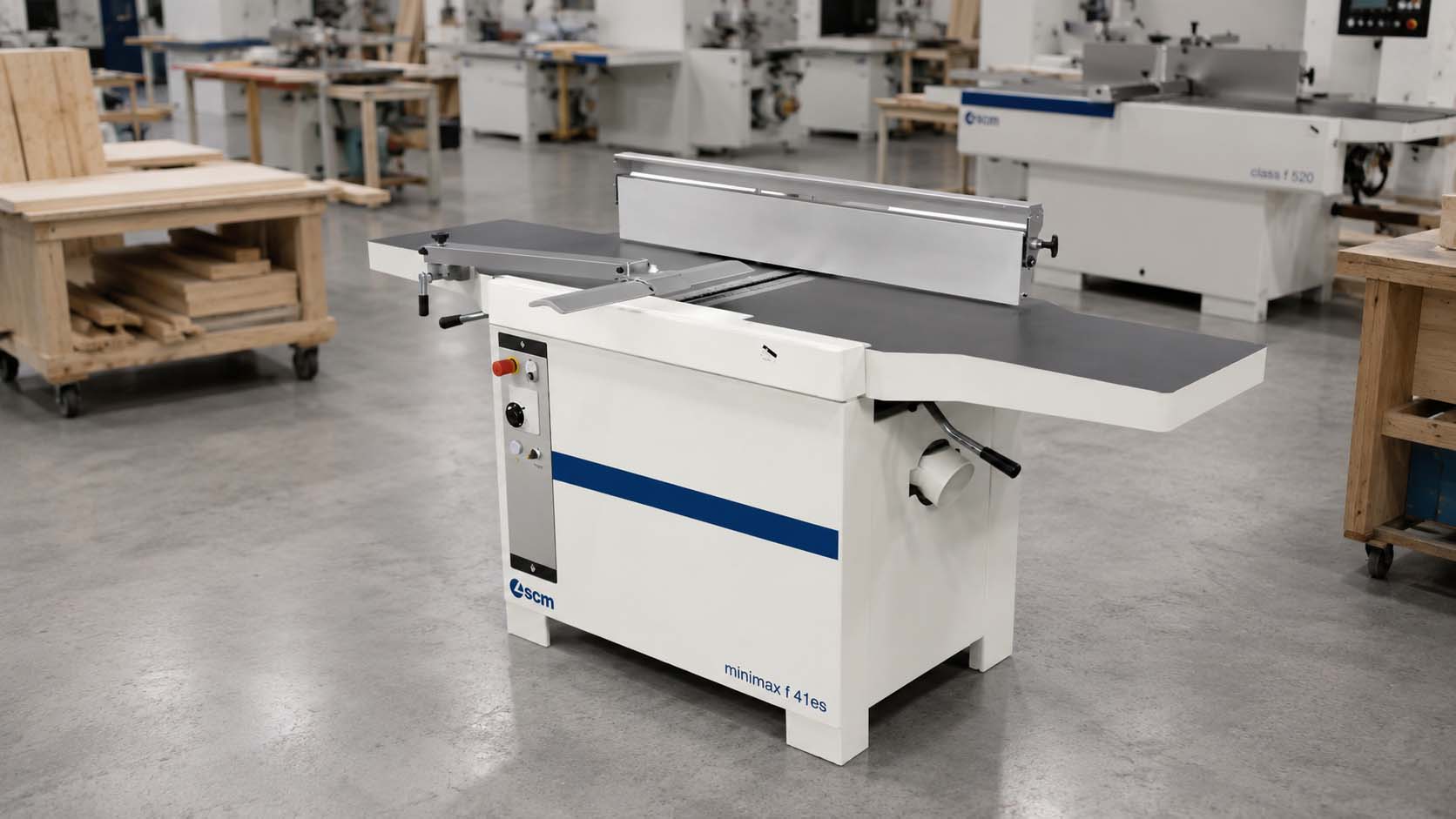

SCM Minimax F 41ES Surface Planer / Jointer
A compact 410 mm SCM surface planer / jointer for craftsmen, cabinet shops, furniture shops, carpentry shops, and smaller production environments needing accurate solid-wood preparation in a smaller footprint.
Compact professional surfacing for shops that need clean reference faces without jumping to 520 mm.
The SCM Minimax F 41ES is a dedicated surface planer / jointer for shops that need accurate solid-wood preparation in a compact professional machine. It is built for face jointing, edge jointing, flattening, glue-joint preparation, and reliable reference-face work before downstream production.
For Titan, the F 41ES should be positioned as the compact 410 mm Minimax surfacing machine for shops that are outgrowing lighter jointers but do not need the width, cost, or floor-space commitment of the Minimax F 52ES, Class F 520, or L’invincibile F 7.
Best-fit shop profile
The F 41ES is the right machine conversation when the customer needs dependable SCM surfacing quality, cast-iron support, cleaner glue joints, and better stock preparation in a compact professional footprint.
410 mm width, 2200 mm table support, 95 mm cutterblock, and HSS / TERSA / Xylent cutterhead options.
The Minimax F 41ES gives craftsmen and smaller production shops a 410 mm working width, 2200 mm total surfacing table length, 95 mm cutterblock, four standard knives, 410 x 30 x 3 mm knife dimensions, official 5 mm maximum stock removal, and available cutterhead paths including HSS, TERSA, and Xylent depending on package.
410 mm working width
The F 41ES gives smaller shops useful 16-inch-class surfacing capacity without moving into a wider 520 mm platform.
2200 mm table support
The total surfacing table length gives operators better support for longer boards, cleaner edge-jointing work, and more stable reference-face preparation.
Professional cutterhead path
Standard HSS, optional TERSA, and optional Xylent packages give Titan a clean upgrade conversation around budget, knife-change speed, finish quality, and noise reduction.
Compact SCM platform
The F 41ES is a practical professional upgrade for shops that want SCM reliability and better solid-wood preparation without overbuying machine width.
Built for cabinet stock, furniture parts, millwork components, door/window stock, and compact solid-wood workflows.
The F 41ES is a dedicated standalone surface planer / jointer. It should not be confused with the FS 41ES combination planer-thicknesser. This machine is for face jointing, edge jointing, flattening, reference-face creation, and glue-joint preparation.
Cabinet Shop Stock
Strong fit for face-frame stock, rails, stiles, hardwood parts, cabinet components, clean glue joints, and reliable square-stock preparation.
Furniture Production
Useful for table parts, legs, rails, aprons, solid-wood blanks, and reference-face preparation before thicknessing or machining.
Architectural Millwork
Practical for trim stock, smaller custom components, long solid-wood parts, and edge-jointing work.
Door & Window Shops
Supports smaller stile and rail preparation, frame stock, long edge jointing, and straight-edge preparation.
Custom Woodworking
A strong fit for general surfacing, flattening, edge jointing, cabinet accents, custom joinery, and solid-wood stock preparation.
Glue-Up Preparation
Helps shops create cleaner reference faces, straighter mating edges, better glue joints, and more consistent panels or component blanks.
SCM Minimax F 41ES
A dedicated standalone 410 mm surface planer / jointer for craftsmen and compact production shops that need accurate solid-wood preparation.
The SCM Minimax F 41ES is a compact professional surface planer / jointer designed for shops that need accurate solid-wood preparation without moving into a larger 520 mm surfacer. It is built for face jointing, edge jointing, flattening, glue-joint preparation, and creating reliable reference surfaces before material moves into thicknessing, ripping, moulding, sanding, CNC machining, or assembly.
Official SCM data lists the F 41ES with 410 mm working width, a 95 mm cutterblock, four standard knives, 410 x 30 x 3 mm knife dimensions, 5 mm maximum stock removal, and 2200 mm total surfacing table length. Those specifications make it a practical machine for cabinet shops, furniture shops, custom woodworking, carpentry, and smaller solid-wood production environments.
SCM highlights the machine’s finish quality, rigid fence, and optional Xylent cutterhead. The Xylent option uses a spiral-knife cutterblock with three series of knives, designed to improve finish quality, reduce noise, improve chip extraction, and extend insert life through four usable cutting tips per cutter.
Dealer configuration data supports a clean Titan upgrade path: standard HSS cutterblock, optional TERSA cutterblock for faster knife changes, and optional Xylent for the premium finish/noise-reduction package. The same dealer data lists the machine with cast-iron tables, a large tilting fence, 1 x 120 mm extraction outlet, and 5 kW / 6.6 HP three-phase motor package.
Titan sales position
Position the Minimax F 41ES around compact professional surfacing, clean reference faces, solid cast-iron support, cutterhead flexibility, and better glue-joint preparation for shops that need SCM quality without moving into a 520 mm machine.
Use the F 41ES as the compact professional Minimax surfacer before moving into wider or heavier SCM platforms.
The Minimax F 41ES is the accessible 410 mm Minimax surfacing machine for smaller professional shops. Move to the F 52ES when 520 mm width matters, and move to Nova, Class, or L’invincibile when the customer needs a heavier professional or premium production platform.
Good: Minimax F 41ES
Best for compact 410 mm surfacing, clean reference faces, reliable edge jointing, and professional shop use in a smaller footprint.
Better: F 52ES / Nova
Best when the shop needs more capacity, 520 mm working width, or a stronger professional platform above the compact 410 mm conversation.
Best: Class / L’invincibile
Best when the shop needs heavier production, longer-table support, premium features, and the strongest SCM surfacing packages.
Minimax F 41ES specifications without table formatting.
Final published specifications should follow the quoted Titan/Canadian configuration. Confirm final model name, standalone F 41ES identity, cutterhead package, max stock removal, electrical package, motor package, fence package, dust extraction, installation, startup, training, warranty, and service details before SKU-level publishing.
For shops outgrowing lighter jointers but not needing a 520 mm machine.
The Minimax F 41ES should be sold as a compact professional stock-preparation machine. The correct fit depends on stock width, board length, species, cutterhead preference, glue-up workflow, dust collection, electrical requirements, and whether the customer needs the F 41ES, F 52ES, or a heavier SCM surfacing platform.
Strong fit for
Shops that need accurate 410 mm solid-wood surfacing, reliable edge jointing, cleaner glue joints, and SCM build quality in a compact professional platform.
Confirm during quoting
The F 41ES is package dependent. Final customer-facing publishing should match Titan’s quoted Canadian configuration.
Request an SCM Minimax F 41ES machine quote.
Send Titan your stock widths, board lengths, species, current jointer limitations, cutterhead preference, glue-up workflow, dust collection, shop power, and installation requirements. We will help confirm whether the Minimax F 41ES, Minimax F 52ES, Nova, Class, or L’invincibile platform is the right fit.
