A through-feed electro-mechanical cabinet clamp for production assembly lines requiring automatic cabinet flow, controlled squaring, programmable pressing, and integration with upstream and downstream manufacturing.
High-volume cabinet assembly with continuous through-feed production flow.

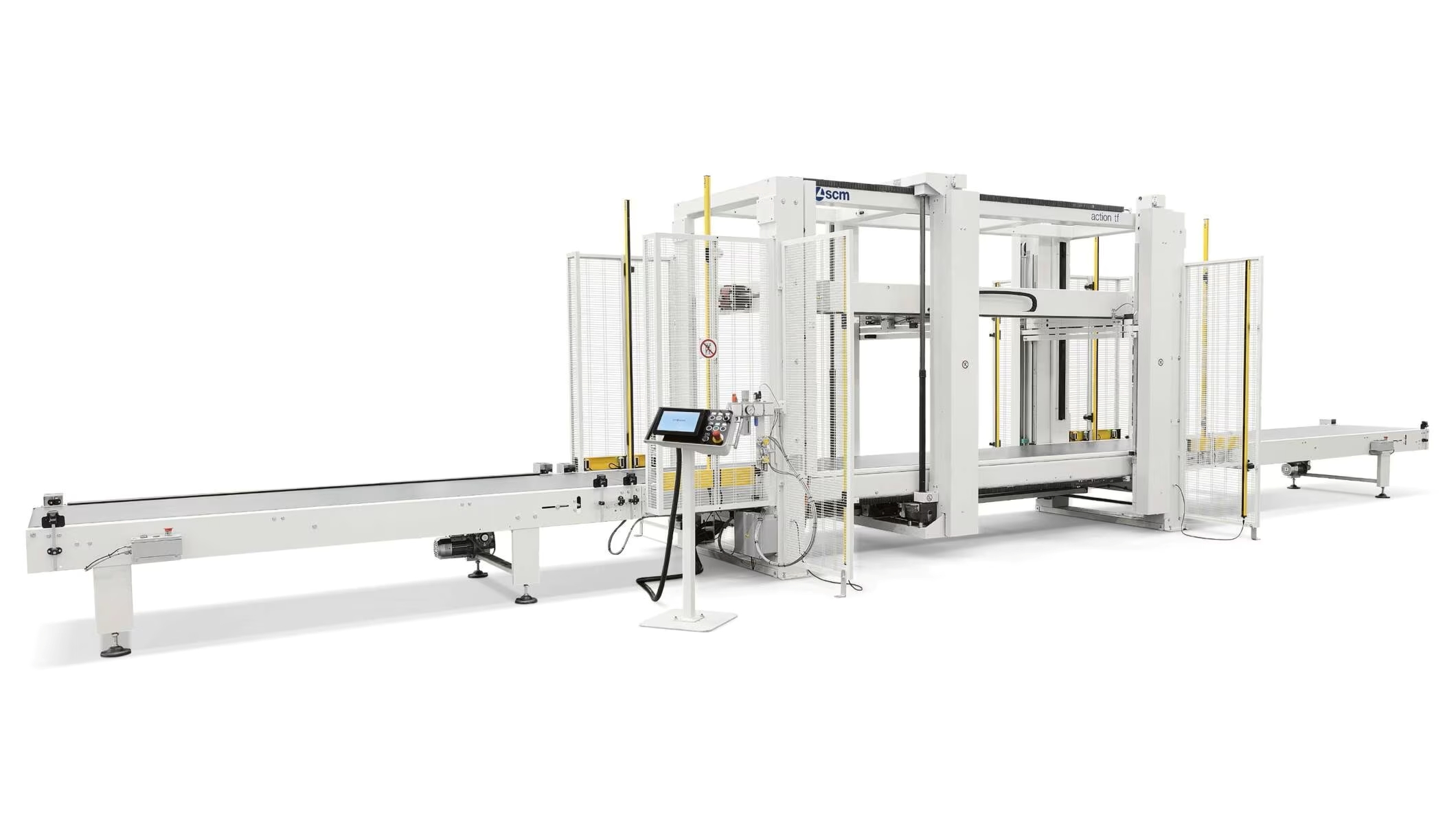

SCM Action TF is a through-feed electro-mechanical cabinet clamp for final cabinet and casework assembly. It is designed for manufacturers that need cabinet flow, squaring, pressing, and transfer organized as part of a production line rather than a stand-alone manual station.
Automatic loading and unloading with size recognition support changing cabinet dimensions, while the rack-and-pinion squaring system helps produce accurate cabinet boxes, including work with 45° joints. Brushless motors support fast cycle execution.
A 10-inch touchscreen manages automatic pressing programs. Final configuration should confirm the TF 2500 or TF 3050 model, cabinet range, infeed and outfeed conveyors, line controls, electrical package, installation, training, warranty, and service.
Up to 300Cabinets / Day Reference
1200 kgSide Thrust
2500 / 3050 mmMaximum Cabinet Height
10-inchTouchscreen Control
Capability Matrix
Through-Feed Cabinet Assembly Modes
Configure Action TF around cabinet dimensions, daily output, pressing requirements, conveyors, line controls, fastening, inspection, and packaging workflow.
Mode 01
Through-Feed Cabinet Flow
Cabinets move through the clamp as part of a continuous final-assembly process rather than returning to a manual bench.
Mode 02
Automatic Loading & Unloading
Automatic cabinet transfer and size recognition support changing cabinet dimensions within the configured production range.
Mode 03
Rack-and-Pinion Squaring
The integrated squaring system controls cabinet geometry and supports efficient squaring of 45° joint applications.
Mode 04
Brushless-Motor Cycles
Brushless drive technology supports fast pressing-cycle execution in high-production cabinet assembly environments.
Mode 05
Automatic Pressing Programs
The 10-inch touchscreen gives operators access to automatic pressing programs and repeat production settings.
Action TF organizes final cabinet assembly as a repeatable through-feed process that can be integrated with machining, drilling, edgebanding, fastening, inspection, and packaging.
Reduced Cabinet Handling
Through-feed transfer limits repeated movement between separate benches and supports a more direct assembly-line path.
Repeat Cabinet Squaring
Rack-and-pinion control supports consistent cabinet geometry across repeat box sizes and 45° joint applications.
Programmed Assembly Control
Touchscreen-managed automatic pressing programs reduce reliance on repeated manual pressure and cycle setup.
Equipment Range
Lineup Positioning
Manual Assembly
Benches, Bar Clamps & Manual Squaring
Suitable for low-volume cabinet work where manual loading, adjustment, squaring, and unloading remain acceptable.
Automatic Cabinet Clamp
Stand-Alone Programmable Pressing
Adds controlled cabinet pressure, programmed dimensions, and repeat squaring for medium-volume assembly departments.
SCM Action TF
Through-Feed Production Assembly
Adds automatic loading and unloading, size recognition, rack-and-pinion squaring, fast cycles, and production-line integration.
Technical Specifications
SCM Action TF
Machine Profile
Manufacturer
SCM
Series / Model
Action / TF
Machine Type
Through-feed electro-mechanical cabinet clamp
Production Role
Final cabinet and casework assembly
TF 2500 Working Range
Maximum Cabinet Size
2500 × 1250 × 800 mm
Minimum Cabinet Size
250 × 250 × 250 mm
Output Positioning
Up to 300 cabinets / day reference
Flow
Automatic loading and unloading
TF 3050 Working Range
Maximum Cabinet Size
3050 × 1250 × 800 mm
Minimum Cabinet Size
250 × 250 × 250 mm
Size Handling
Automatic size recognition
Model Selection
Confirm TF 2500 or TF 3050
Pressing & Squaring
Side Thrust
1200 kg
Squaring System
Rack-and-pinion cabinet squaring
Joint Application
Supports efficient squaring for 45° joints
Drive Technology
Brushless motors
Control & Power
Operator Interface
10-inch touchscreen
Programs
Automatic pressing programs
Power Reference
13 / 16.5 kW
Integration
Through-feed production-line configuration
Configuration & Support
Confirm Before Quote
Cabinet range, daily output target and assembly bottleneck
Material Flow
Infeed, outfeed, conveyors, fastening, inspection and packaging
Utilities
Electrical package and line-control requirements
Support
Installation, startup, training, warranty and service
Production Environments
Where the Action TF Fits
For production operations that need final cabinet assembly to move at line speed with controlled squaring, automatic transfer, and repeat pressing programs.
High-Volume Cabinet Production
Kitchen, bath, residential, commercial, and institutional cabinet boxes produced in repeat daily volumes.
Commercial Casework Lines
Healthcare, education, office, retail, hospitality, laboratory, and architectural casework assembly.
Integrated Assembly Systems
Plants connecting cabinet pressing with conveyors, fastening, inspection, labelling, packaging, and finished-goods flow.
Production-Line Cabinet Assembly
Move cabinet pressing from a stand-alone operation into a controlled through-feed process.
Action TF is designed for plants where final cabinet assembly must keep pace with CNC machining, drilling, edgebanding, fastening, inspection, and packaging.
Automatic transfer, size recognition, rack-and-pinion squaring, brushless-motor cycles, and programmed pressing create a defined assembly stage for changing cabinet sizes.
Final configuration should confirm TF 2500 or TF 3050 capacity, cabinet dimensions, output target, conveyor layout, line interfaces, fastening sequence, utilities, installation, startup, training, warranty, and service.
