SCM Me 40

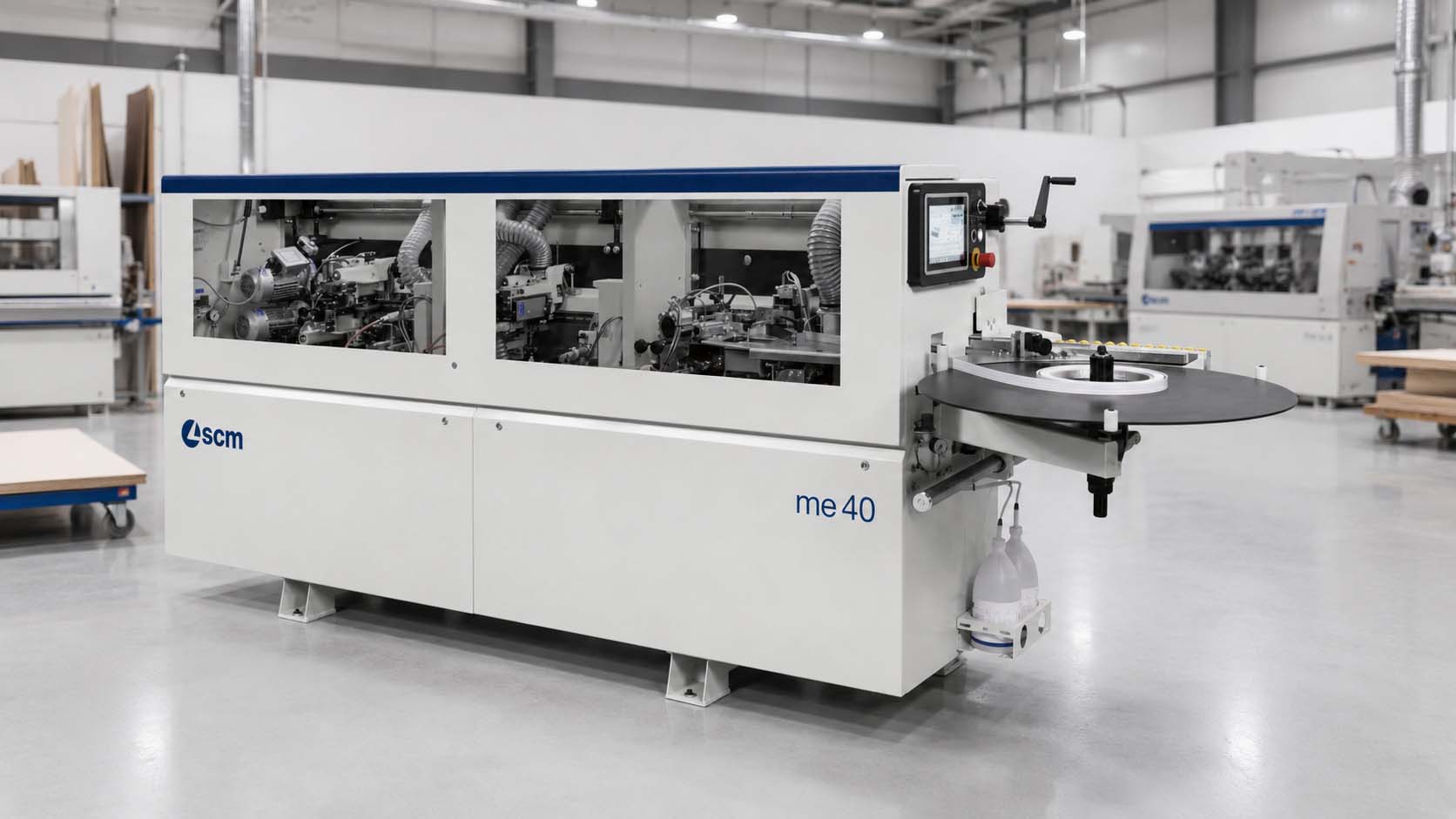

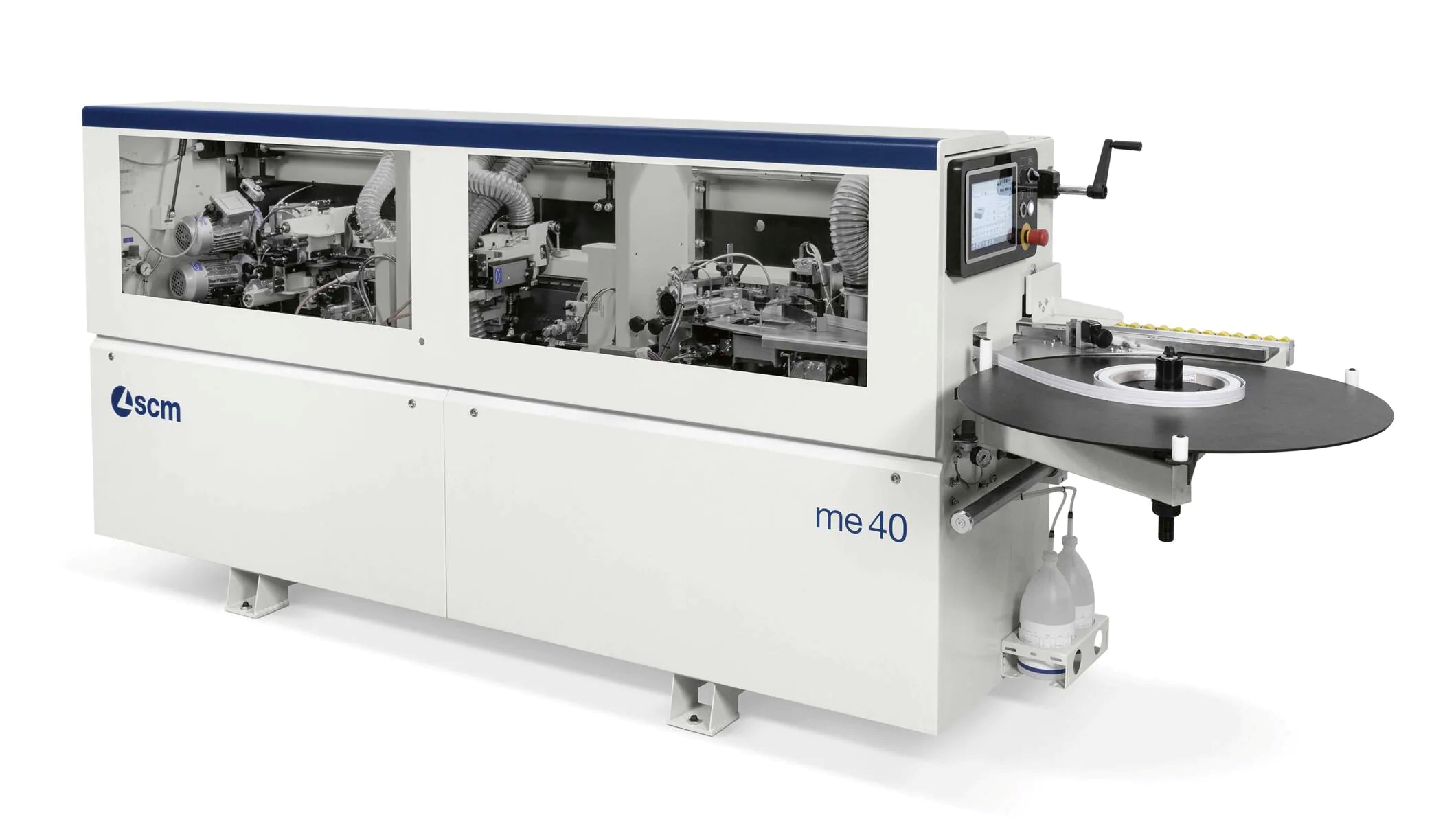

SCM ME 40 Automatic Edge Bander
High-productivity compact edgebander for shops that need ready-to-use panel edges, 9 m/min feed speed, rounding capability, PUR flexibility, grooving options, and strong value in the ME range.
Compact production edgebanding with stronger finishing capability than a basic entry machine.
The SCM ME 40 is an automatic glue-pot edgebander in SCM’s ME range, designed for shops that need a compact but highly equipped machine with strong finished-edge quality.
For Titan, the ME 40 should be positioned as the top compact ME-series edgebander for customers that need more productivity, rounding, PUR flexibility, grooving options, and better finishing control without stepping into K 100 Evo, Olimpic 300, or larger Olimpic and Stefani platforms.
Best-fit shop profile
The ME 40 is the right machine conversation when the customer is fighting slow manual edgebanding, visible cleanup work, inconsistent corners, basic machines leaving too much hand finishing, or the need for a better edgebander without overbuying into a larger industrial platform.
9 m/min speed, 5 mm strip edging, rounding up to 3 mm, eye-S control, PUR flexibility, and grooving options.
The SCM ME 40 gives compact shops a 3465 x 710 mm worktable, 0.4–3 mm rolled edge capacity, 5 mm strip edge capacity, 8–50 mm panel height, 190 / 110 mm minimum panel length and width, 9 m/min feed speed, eye-S Compact control, and package-dependent finishing options.
9 m/min compact speed
The ME 40 gives stronger throughput than smaller compact edgebanders while staying in a manageable footprint for small-to-medium shops.
Ready-to-use panel quality
Strong finishing capability helps reduce manual touch-up after edgebanding, making panels cleaner coming off the machine.
Rounding capability
The rounding unit handles thin and thick edges up to 3 mm, helping shops improve corner finishing and reduce hand cleanup.
PUR and grooving flexibility
PUR glue capability and grooving options are strong sales points, but should be confirmed against the quoted Canadian configuration.
Built for cabinet panels, closets, light commercial millwork, furniture, casegoods, and growing compact production shops.
The ME 40 covers the core edge materials used in cabinet, closet, furniture, and millwork production, including melamine, PVC, ABS up to 3 mm, and wooden strips up to 5 mm.
Cabinet Shops
Strong fit for kitchen cabinet panels, gables, shelves, doors, drawer fronts, finished ends, filler strips, utility cabinets, and standard casework panels.
Closet & Storage Shops
Useful for closet shelving, partitions, wardrobe components, garage storage, utility panels, and repeat narrow-to-medium panel programs.
Small Commercial Millwork
Built for office, retail, reception, institutional, and light commercial casework where finished-edge quality matters.
Furniture & Casegoods
Fits panel furniture, shelving, fronts, doors, exposed sides, and small-to-medium production batches.
Growing Production Shops
Strong fit for shops that have outgrown basic edgebanding and need rounding, scraping, buffing, and stronger finishing control.
Value-Focused Upgrades
Ideal for shops where value, footprint, ease of use, and finished-edge quality all matter.
SCM ME 40
A compact automatic glue-pot edgebander built for shops that want better finished panels, less hand cleanup, and stronger production value than smaller basic machines can provide.
The SCM ME 40 is a compact automatic glue-pot edgebander built for shops that want better finished panels, less hand cleanup, and stronger production value than smaller basic machines can provide.
The machine’s working range is well suited to small and medium cabinet, closet, furniture, and millwork production. Official SCM and Titan data list 0.4–3 mm rolled edge thickness, 5 mm maximum edge thickness in strips, 8–50 mm panel height, 190 / 110 mm minimum panel length and width, and 9 m/min feed speed.
The operator interface is a major practical feature. The eye-S Compact console uses a 10" touch screen with Maestro active edge, allowing machine functions to be displayed graphically. For a smaller shop, this helps reduce the learning curve and gives operators clearer control over the edgebanding process.
The ME 40 also includes important finishing capabilities. Automatic pneumatic on/off systems controlled by the machine NC support trimming, edge scraping, and glue scraping units where equipped. Multi-radius tools allow different edge thicknesses to be machined with automatic setup support.
The rounding unit can process thin and thick edges up to 3 mm for stronger finished-panel quality. Higher-spec packages may include pre-milling, glue pot, end cutting, top/bottom trimming, rounding, profile scraping, buffing, and grooving depending on configuration.
Titan sales position
Position the ME 40 around finished-edge quality, compact productivity, and strong value: 9 m/min speed, clean finished panels, rounding capability, PUR/grooving flexibility, and 5 mm strip-edge capacity in a high-value SCM machine.
Use the ME 40 as the strongest compact ME-range option before K 100 Evo, Olimpic 300, and larger SCM platforms.
The ME 40 is the stronger ME-range option when the customer needs more finishing capability, higher productivity, and access to features like rounding, PUR flexibility, grooving, and advanced finishing options.
Good: ME 25 / ME 28T / ME 35
Best for lighter or simpler edgebanding requirements where compact size and lower investment are the main priorities.
Better: ME 40
Best for higher compact productivity, 9 m/min speed, rounding, 5 mm strip capability, PUR/grooving flexibility, and stronger finishing options.
Best-Fit Upgrade: K 100 Evo / Olimpic 300
Best when the customer needs a stronger automatic platform, more modern setup architecture, or a step into the Olimpic family.
Industrial Upgrade
Best when the customer needs higher throughput, larger edge capacity, advanced glue technology, hot air, AirFusion+, automated cells, or industrial production architecture.
ME 40 specifications without table formatting.
Final published specifications should follow the quoted Titan/Canadian configuration. Confirm exact package, pre-milling, rounding, edge scraping, glue scraping, buffing, grooving, glue package, electrical, dust extraction, compressed air, footprint, installation, training, warranty, and service path.
For shops that need 9 m/min production speed, clean finished panels, rounding capability, PUR/grooving flexibility, and 5 mm strip-edge capacity.
The ME 40 should be sold as a smart compact production upgrade. The correct package depends on rolled edge type, strip edge need, rounding, pre-milling, PUR glue workflow, grooving, finishing units, dust extraction, compressed air, electrical package, operator workflow, and future upgrade path.
Strong fit for
Shops that are wasting labour on manual cleanup after edgebanding, fighting inconsistent corner finishing, or pushing a smaller edgebander beyond its comfort zone.
Confirm during quoting
The ME 40 is configuration dependent. Final customer-facing publishing should match Titan’s quoted Canadian configuration.
Request an SCM ME 40 machine quote.
Send Titan your panel materials, edge types, rounding requirements, PUR/grooving needs, current edge process, production speed, dust collection, compressed air, shop power, and future upgrade path. We will help confirm whether the ME 40 is the right compact edgebander for your shop.
