SCM Action M Hydraulic Vertical Frame Press
Hydraulic vertical frame press for windows, shutters, slatted shutters, and solid wood doors, with high-rigidity squaring, synchronized pressure-beam movement, and strong bonding performance.
The practical hydraulic frame press for square, repeatable window, shutter, and solid wood door assembly.

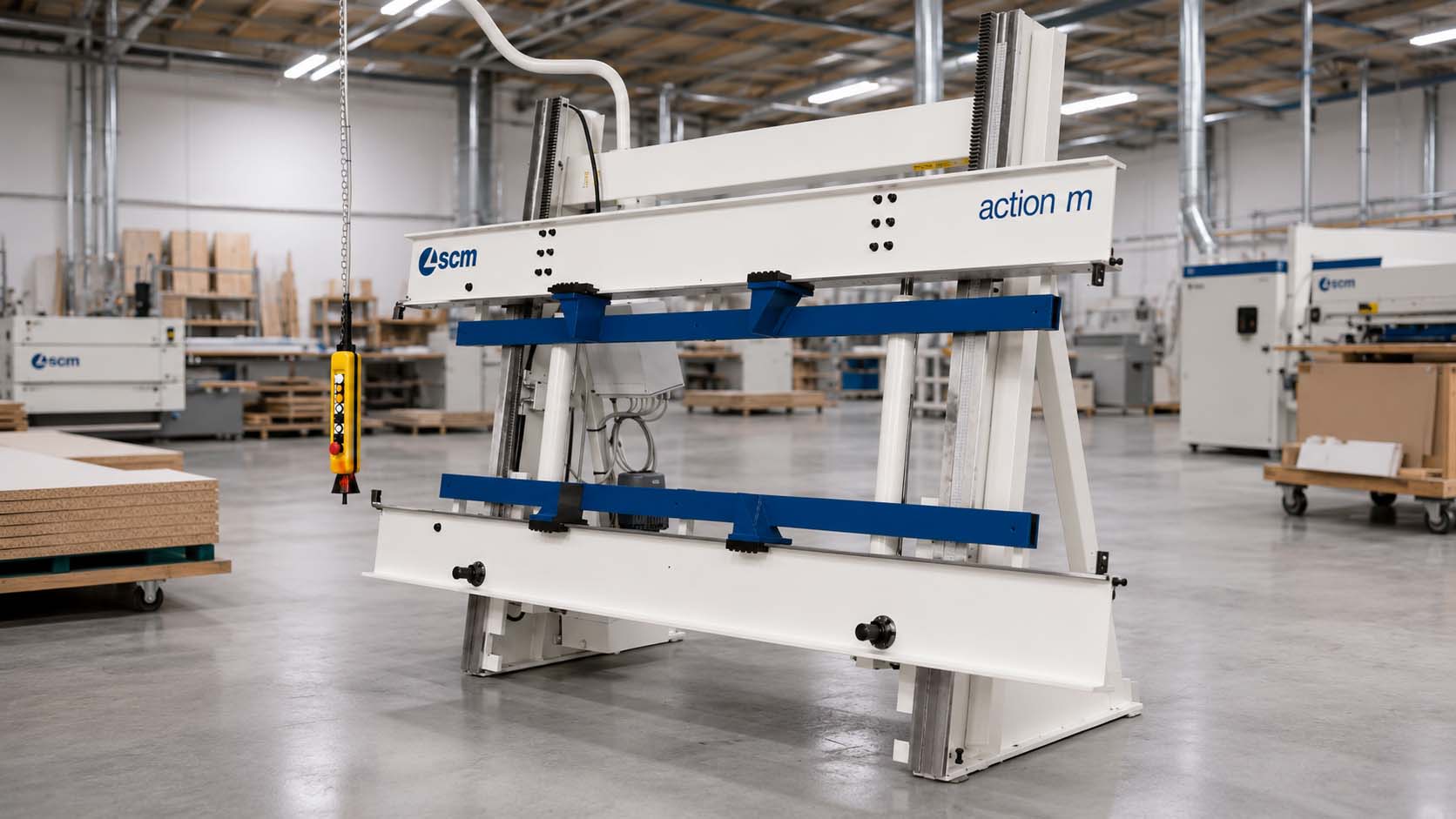

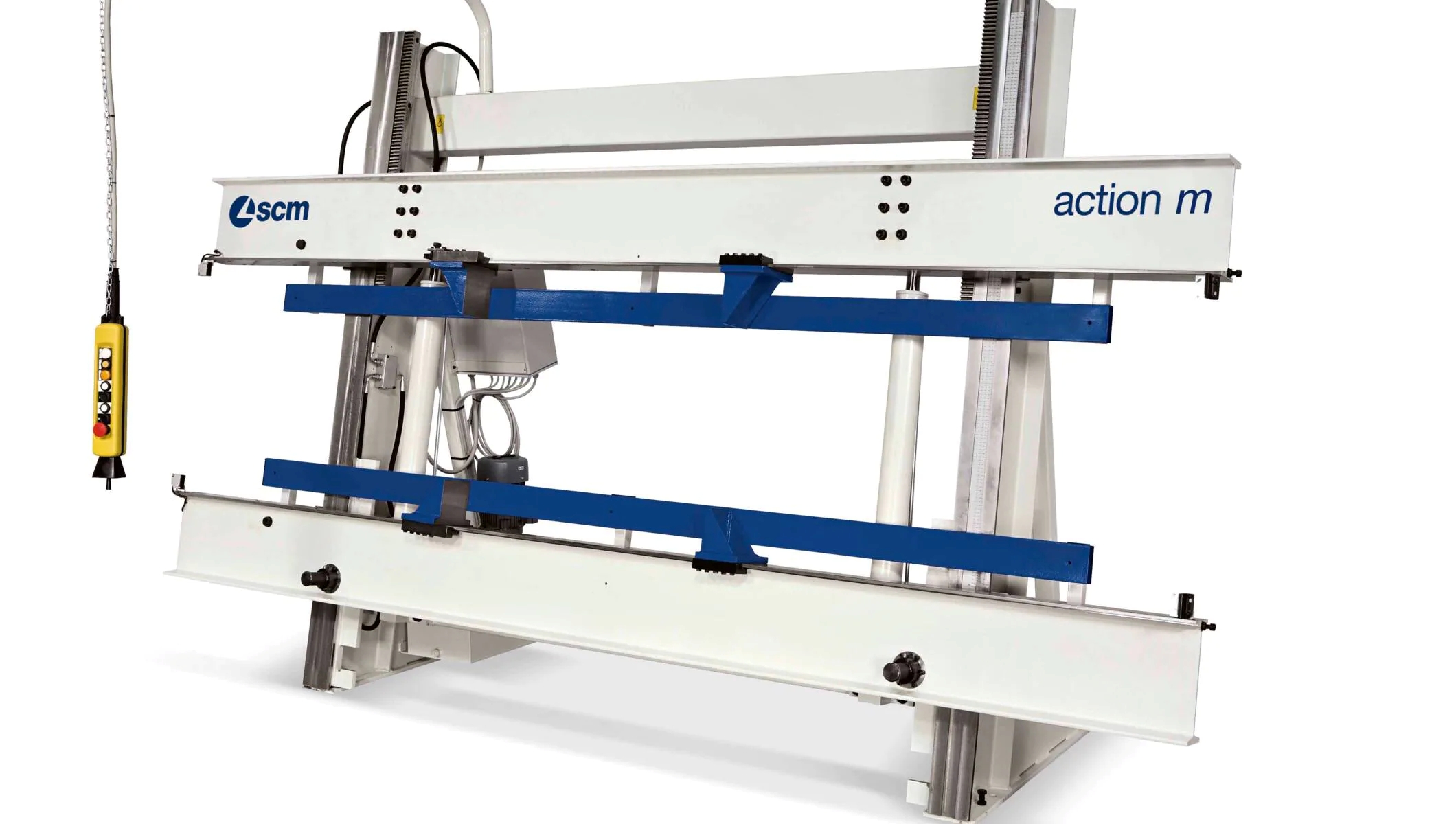

The SCM Action M is a hydraulic vertical frame press for pressing and gluing window systems, shutters, slatted shutters, and solid wood doors. It is built for shops that need strong pressing force, accurate squareness, and reliable bonding performance without stepping into CNC-controlled frame-press automation.
For Titan, Action M should be positioned as the lower-complexity hydraulic frame press below Action M CNC. It is the right fit when the customer needs real clamping force and reliable squareness, but does not need CNC self-positioning crossbars, touch-screen setup, or the higher thrust package of the CNC model.
Best-fit shop profile
Action M is the right machine conversation when the customer is fighting out-of-square frames, inconsistent clamp pressure, slow manual glue-up, operator struggle with larger frames, or unreliable parallel movement on lower-quality clamp systems.
High-rigidity frame structure, synchronized rack-and-pinion pressure-beam movement, 7.4-ton vertical thrust, 2-ton horizontal thrust, and two working-size options.
The Action M helps shops move beyond manual clamps and shop-built pressing methods with a dedicated hydraulic frame press designed for squareness, bonding quality, and repeat frame assembly.
Accurate squareness
The high-rigidity pressing structure supports accurate window and door-frame squareness during glue-up.
Synchronized beam movement
Rack-and-pinion synchronization with a torsion bar helps keep the pressure beam moving in parallel.
Hydraulic pressing force
7.4 tons vertical thrust and 2 tons horizontal thrust provide serious pressure capability for frame glue-up.
Simpler than CNC
A strong fit when the customer wants hydraulic frame pressing without the automation package of Action M CNC.
Built for window-frame assembly, solid wood door assembly, shutters, slatted shutters, architectural joinery, and production support after machining.
Action M presses and glues frames. Windor NT1, WindorFlex, Formula Ten, shapers, routers, and profiling equipment produce or machine the components before assembly.
Window-Frame Assembly
Pressing and gluing wood window frames after profiling, tenoning, routing, or other machining operations.
Solid Wood Door Assembly
Pressing door frames, stile-and-rail assemblies, and solid wood door components with consistent hydraulic pressure.
Shutters & Slatted Shutters
Frame pressing for shutter and slatted-shutter manufacturers working with repeated frame assemblies.
Architectural Joinery
Custom wood frames, specialty openings, higher-value solid wood assemblies, and accurate glue-up work.
Production Support
Natural fit downstream from Windor NT1, WindorFlex, Formula Ten tenoners, shapers, routers, and traditional joinery machinery.
Manual Clamp Replacement
Best for shops that need better squareness, more reliable pressure, and easier frame assembly than manual clamps provide.
SCM Action M
A hydraulic vertical frame press designed for window, shutter, slatted-shutter, and solid wood door manufacturers.
The SCM Action M is a hydraulic vertical frame press designed for window, shutter, slatted-shutter, and solid wood door manufacturers. It is built for shops that need strong pressing force, accurate frame squareness, and reliable bonding performance without the CNC self-positioning package of the Action M CNC.
The machine’s main structural advantage is its rigid pressing frame. SCM highlights the Action M’s high-rigidity structure as the reason it can support accurate window squareness during pressing.
The synchronized rack-and-pinion pressure-beam system with torsion bar helps maintain parallel pressure-beam movement, which matters when pressing larger frames, repeated production sizes, or assemblies where consistent pressure across the frame is critical.
The official working range covers two primary model sizes. Action M 30-20 supports maximum working dimensions of 3000 x 2000 mm, while Action M 35-25 supports 3500 x 2500 mm. Minimum working dimensions are 250 x 350 mm and 250 x 375 mm respectively. Both versions list 7.4 / 2 ton vertical/horizontal thrust, 480 / 1050 mm working height, and 2.1 kW hydraulic pump power.
From a Titan Equipment standpoint, Action M should be sold as a practical production press for shops that already machine door and window components and now need a better way to square, press, glue, and unload finished frames.
Titan sales position
Position Action M around accurate squareness, reliable hydraulic pressure, synchronized pressure-beam movement, and clean frame glue-up for door, window, shutter, and solid wood frame manufacturers.
Use Action M as the practical hydraulic vertical frame press below Action M CNC.
Action M is for window, shutter, slatted-shutter, and solid wood door frames. Action M CNC is the faster automated frame-press upgrade. Action P belongs in cabinet/carcass pressing, not door and window-frame pressing.
Good: Manual Frame Clamps
Best only for very low-volume frame assembly where manual clamp changes and operator variation are still acceptable.
Better: Action M
Best for hydraulic vertical frame pressing, accurate squareness, synchronized pressure-beam movement, and strong bonding performance.
Best Frame Press Upgrade: Action M CNC
Best when the shop needs CNC self-positioning, faster setup, higher thrust, touch-screen operation, and production-level automation.
Full System Path
Use Windor NT1 or WindorFlex for machining, plus Action M or Action M CNC for frame assembly and pressing.
Action M specifications without table formatting.
Final published specifications should follow the quoted Titan/Canadian configuration. Confirm selected model, Action K separation, hydraulic and pneumatic requirements, electrical package, pressing pads, frame-specific accessories, footprint, rigging, startup, training, warranty, and service path.
For shops that need reliable hydraulic frame pressing, accurate squareness, and clean glue-up without CNC self-positioning automation.
Action M should be sold as a practical production press for frame assembly. The correct package depends on frame size, frame type, production volume, pressing requirements, hydraulic and pneumatic service, electrical service, pressing pads, frame-specific accessories, installation space, and future automation path.
Strong fit for
Shops that already machine door and window components and need a better way to square, press, glue, and unload finished frames.
Confirm during quoting
Action M is configuration dependent. Final customer-facing publishing should match Titan’s quoted Canadian configuration.
Request an SCM Action M machine quote.
Send Titan your frame sizes, frame types, production volume, current assembly process, squareness issues, pressing requirements, hydraulic/pneumatic setup, electrical service, and whether this press will pair with Windor NT1, WindorFlex, Formula Ten, or traditional profiling machinery.
