Professional CNC control in a compact, fully enclosed format.

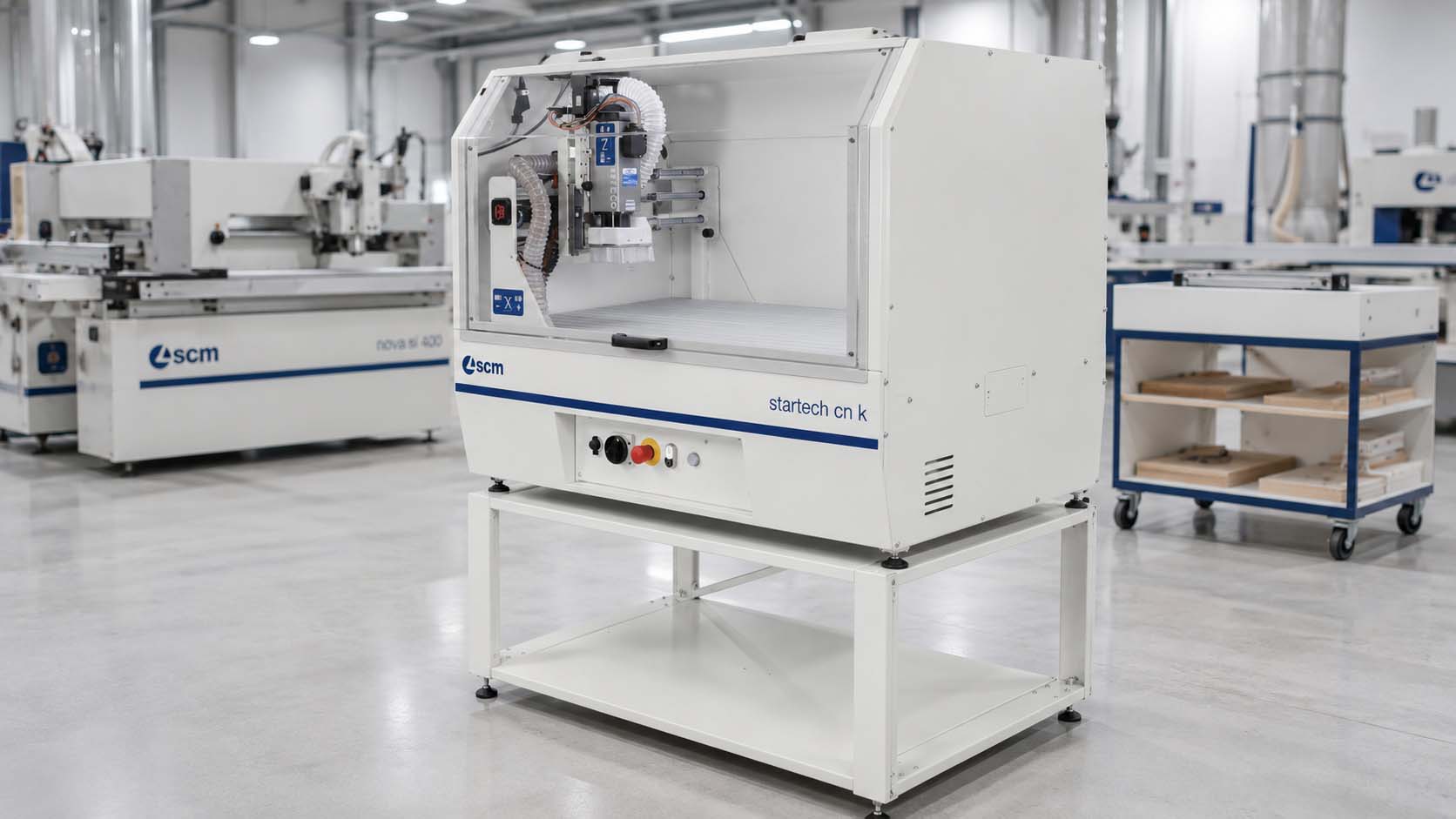

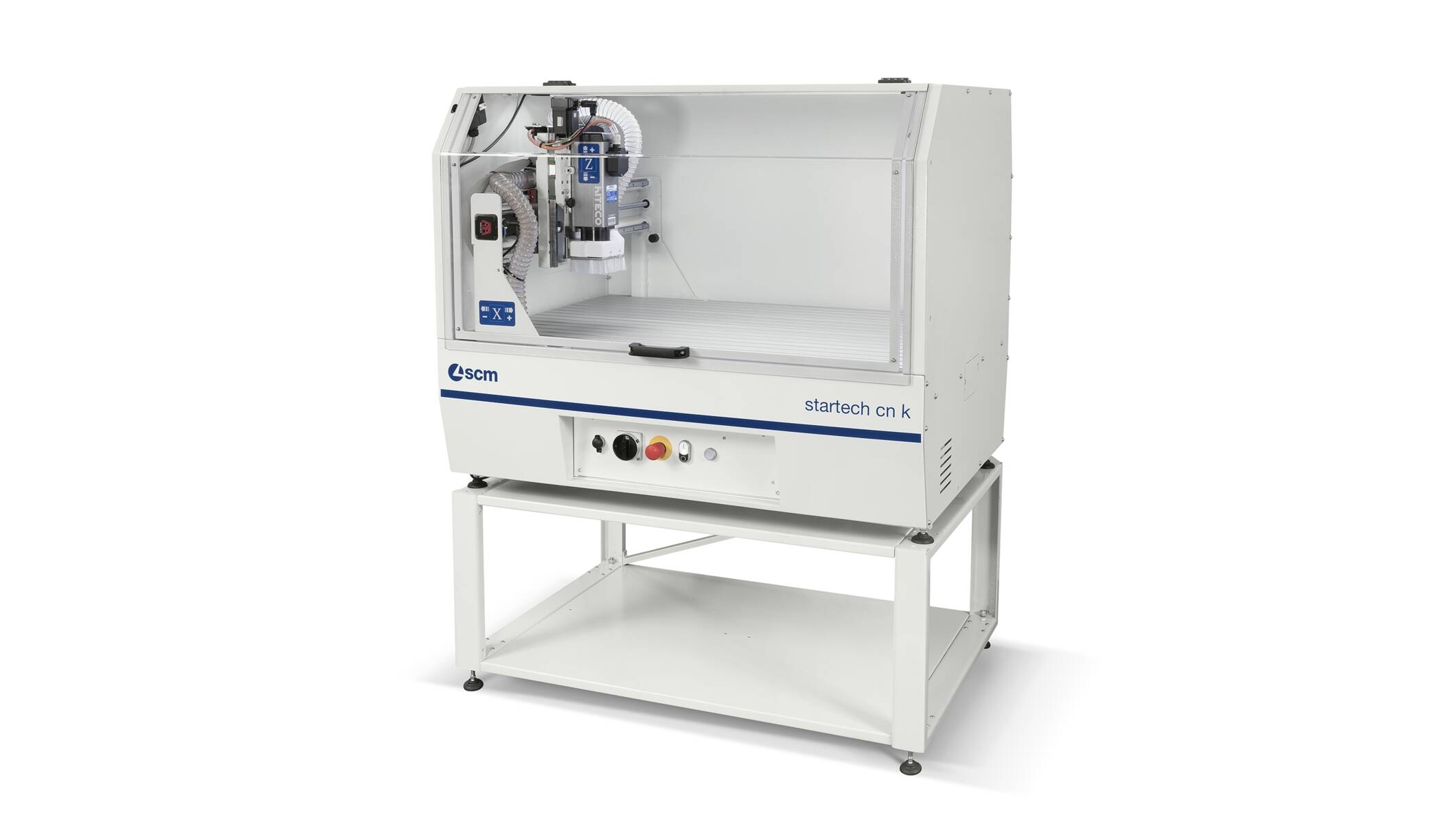

The SCM Startech CN K is a compact CNC machining centre for workshops,
signmakers, training environments, design teams, and custom manufacturers
that need professional routing and engraving without a full-size nesting platform.
Its 1170 × 760 mm worktable, three interpolating axes, 24,000 rpm
electrospindle, and 160 mm Z-axis workpiece clearance support detailed
milling, decorative panels, plaques, templates, prototypes, and small components.
A fully enclosed cabin with internal LED lighting supports operator protection
and chip containment, while the open virtual HMI accepts compatible G-code
generated by CAD/CAM software. An optional fourth axis adds lathe-style processing.
160 mmZ-Axis Workpiece Clearance
5 / 5 / 2.5X / Y / Z Speed · m/min
60 mmMaximum Tool Diameter
OptionalFourth Interpolating Axis
Capability Matrix
One compact CNC platform. Five creative and production roles.
The CN K combines controlled three-axis machining with an enclosed work area and an open programming workflow.
Supports concept models, test pieces, educational projects, design validation, and short-run development work.
Mode 05
Rotary Processing
The optional fourth interpolating axis adds lathe-style machining for cylindrical and creative workpieces.
Production Advantages
Built for controlled access, programming flexibility, and compact installation.
The machine packages professional CNC functions into a contained system suited to smaller workpieces and focused applications.
Fully Enclosed Cabin
The front-access enclosure supports operator protection and helps contain dust and chips during machining.
Open G-Code Workflow
The virtual HMI can import compatible G-code generated through CAD/CAM software for flexible programming.
Compact Professional Platform
Professional SCM machining capability is packaged for small-format work without the footprint of a full nesting centre.
Equipment Range
Lineup Positioning
Manual Production
Templates and Hand Routing
Suitable for occasional custom work, but dependent on operator skill and repeated manual setup.
Entry CNC Workflow
Open CNC Programming
Introduces repeatable digital machining, CAD/CAM workflow, and controlled toolpaths for smaller workpieces.
Compact Professional CNC
SCM Startech CN K
Combines an enclosed cabin, three interpolating axes, high-speed spindle, open programming, and optional rotary machining.
Technical Specifications
Startech CN K
Machine Profile
ManufacturerSCM
SeriesStartech
ModelCN K
Machine TypeCompact three-axis CNC machining centre
Work Area and Travel
Worktable1170 × 760 mm
X / Y / Z Travel915 × 610 × 176 mm
Z-Axis Clearance160 mm
Primary RoleSmall-format CNC machining
Spindle and Tooling
Electrospindle Power2.4 kW S6
Maximum Speed24,000 rpm
Maximum Tool Diameter60 mm
Maximum Tool-Holder Diameter16 mm
Axes and Motion
Axis ConfigurationThree interpolating axes
X / Y / Z Speed5 / 5 / 2.5 m/min
Optional AxisFourth interpolating axis
Optional ProcessingLathe-style rotary machining
Cabin and Operator Area
Machine CabinFully enclosed
AccessFront access door
Internal LightingLED lighting
EnvironmentControlled machining area
Programming and Applications
InterfaceOpen virtual HMI
Program ImportCompatible G-code from CAD/CAM software
ApplicationsMilling, engraving, decoration and signs
Development WorkPrototypes, training and custom parts
Production Environments
Where the Startech CN K Fits
A focused CNC platform for organizations that need accurate digital machining in a compact and controlled work area.
Small Shops and Custom Work
Brings detailed routing, templates, plaques, decorative components, and repeatable small-format work into the shop.
Schools and Training Labs
Supports CNC instruction, CAD/CAM training, prototype development, and supervised machining in an enclosed cabin.
Signmaking and Prototyping
Produces lettering, displays, plaques, branding elements, concept parts, design models, and development components.
Compact CNC · Controlled Workspace
A professional CNC station that fits naturally into focused production environments.
The Startech CN K packages accurate three-axis machining, high spindle speed,
and open programming into a clean enclosed platform with straightforward access.
It gives operators a dedicated place for milling, engraving, signage, prototypes,
and small components while keeping the machining area visually controlled and contained.
For shops, schools, and design teams building CNC capability, the CN K creates
a practical bridge between manual methods and larger production machining centres.
