A compact CNC joinery platform for cabinet-door manufacturers producing Miter Door and Face Frame joints with head machining, longitudinal machining, pendulum operation, and Maestro Active Joint control.
Compact CNC machining for repeatable Miter Door and Face Frame joinery.

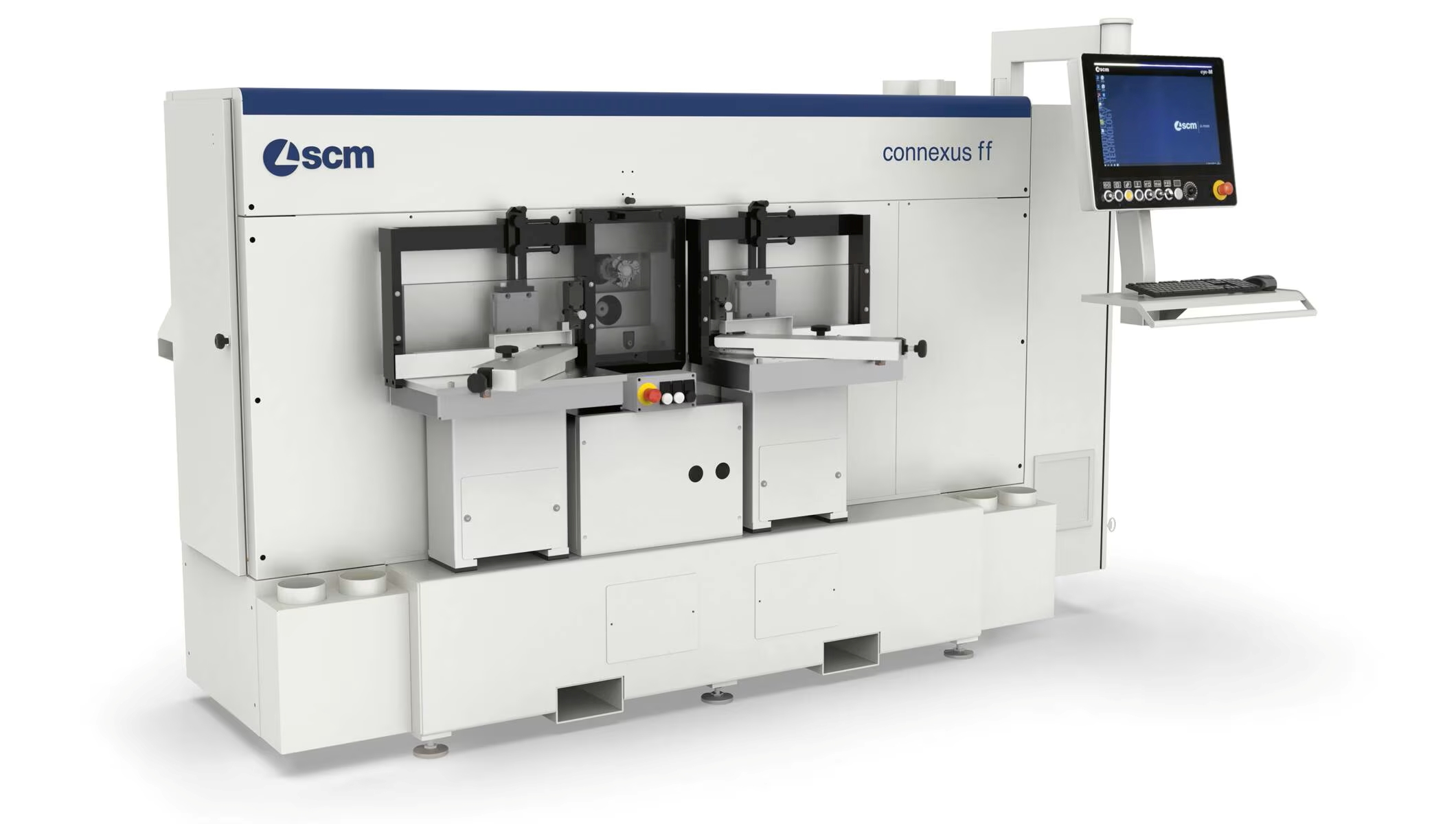

SCM Connexus FF is a CNC tenoning-mortising machine with a double-sided frame, developed for cabinet-door and face-frame component production.
The machine brings head machining and longitudinal machining into one compact platform. Front work benches support pendulum-mode head machining, allowing loading and unloading to alternate with the machining cycle.
The 21.5-inch eye-M touchscreen and Maestro Active Joint software organize CNC joint programming and operator control. Final configuration should confirm joint families, component sizes, ER40 and ER25 tooling requirements, fixtures, collets, software package, utilities, extraction, installation, training, warranty, and service.
1100 mmX-Axis Stroke
280 mmY-Axis Stroke
30 m/minX-Y Axis Speed
4.5 kWTenoning Electrospindle
Capability Matrix
Cabinet-Door CNC Joinery Modes
Configure Connexus FF around Miter Door and Face Frame programs, component dimensions, tooling, fixtures, pendulum workflow, and the surrounding door-production process.
Mode 01
Miter Door Joints
Supports repeat CNC machining for 45-degree miter-door joint programs and framed cabinet fronts.
Mode 02
Face Frame Joints
Machines face-frame rails, stiles, end joinery, and framed-front components with programmed control.
Mode 03
Pendulum Head Machining
Front benches support alternating loading and unloading while head machining continues on the opposite station.
Mode 04
Longitudinal Machining
Longitudinal operations are integrated into the same compact system to reduce separate-machine handling.
Mode 05
Maestro Active Joint
The eye-M touchscreen and Maestro Active Joint software support CNC joint setup and operator workflow.
Rails, stiles, end joinery, longitudinal machining, and face-frame component production.
Door & Component Production Cells
Dedicated lines combining joinery with profiling, sanding, clamping, finishing, tooling, and extraction.

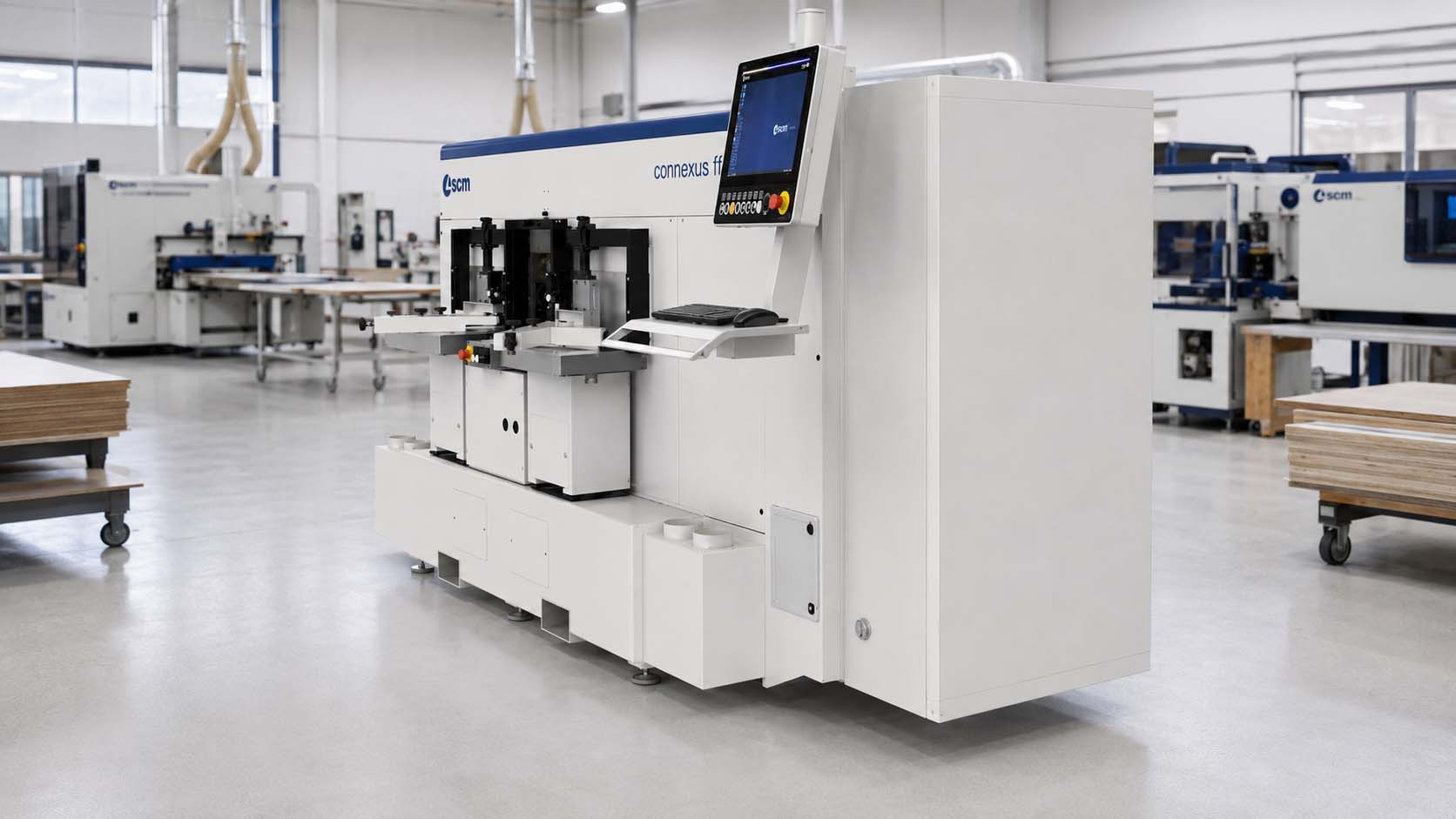

Compact CNC Joinery Cell
Bring Miter Door and Face Frame machining into one controlled production station.
Connexus FF combines the core joint families used in framed cabinet-door production with head machining, longitudinal machining, and a compact double-sided machine structure.
Pendulum front benches support alternating load-and-machine activity, while the eye-M interface and Maestro Active Joint software provide a focused CNC workflow for repeat joint programs.
Final configuration should confirm component sizes, joint families, tooling, fixtures, collets, software package, utilities, extraction, material flow, installation, startup, training, warranty, and service.
