Flexible CNC machining for manufacturers that need more than standard panel routing.

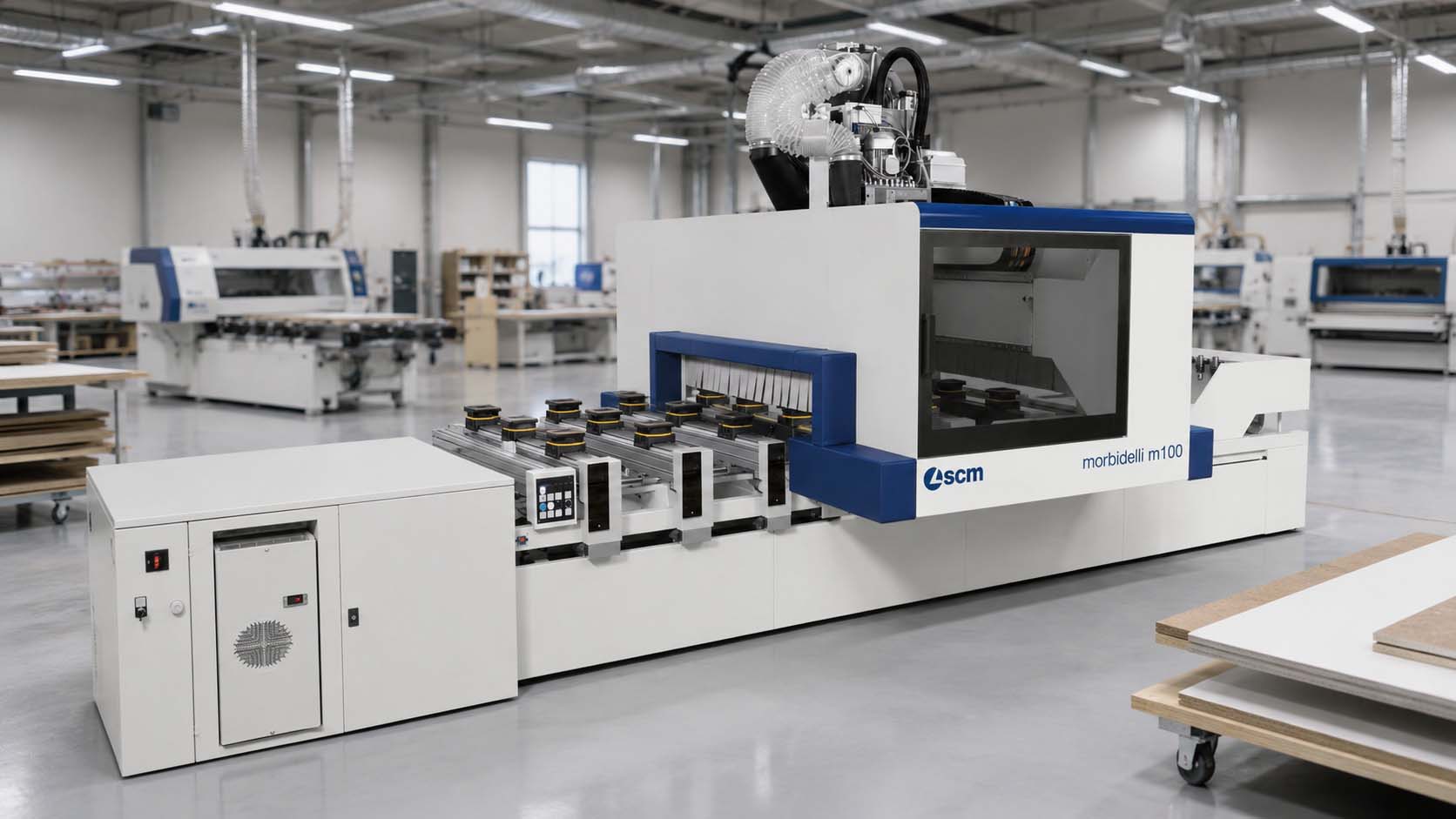

The SCM Morbidelli M100 / M200 platform combines routing,
drilling, profiling, grooving, shaped-part machining, and
available 5-axis capability in a configurable CNC centre.
The M100 provides working-area options up to 5510 × 1620 mm,
180 mm panel passage, up to 44 tool positions, and a compact
path into advanced workholding and tooling flexibility.
The M200 expands the platform with 250 mm panel passage and
up to 60 tool positions for applications requiring greater
clearance and more tools available on the machine.
Up to 5510 × 1620 mmWorking Area
15 kW / 20.5 hpMaximum Routing Power
44 / 60M100 / M200 Tool Capacity
21V / 12HMaximum Drilling Spindles
Capability Matrix
One configurable CNC platform. Five advanced machining roles.
The Morbidelli M100 / M200 supports routing, drilling, profiling, shaped work, available 5-axis machining, and specialized production units.
Available drilling packages support vertical and horizontal machining, grooving, hardware preparation, and construction details.
Mode 03
Available 5-Axis Machining
The available JQX direct-driven 5-axis head supports complex angles, profiles, shaped components, and heavy machining applications.
Mode 04
Doors, Windows and Shaped Parts
Processes kitchen doors, window components, stairs, profiles, furniture elements, single parts, and shaped solid-wood work.
Mode 05
Specialized Production Units
Available configurations can include dowel insertion with pearl glue, blade units, and up to four machining units.
Production Advantages
Designed around accessible workholding, advanced spindle capability, and productive tool management.
The M100 / M200 platform can be configured around workpiece access, machining complexity, tooling demands, and varied production requirements.
Pro-Space Access
Available Pro-Space layouts optimize machine access and allow ergonomic loading from around the worktable without perimeter protections.
Flexible Workholding
TV FLEXMATIC, FlexDrive, and multifunction worktable options support different panel, single-part, profile, and solid-wood workflows.
FAST14 Tool Change
Available FAST14 technology supports tool changes in less than 15 seconds to reduce non-cutting time during tooling-intensive work.
Equipment Range
Lineup Positioning
Dedicated Panel Routing
Nesting and Panel CNC Platforms
Well suited to sheet-based routing and drilling when pod-and-rail workholding, shaped solid wood, and advanced profile work are not primary requirements.
Flexible CNC Machining

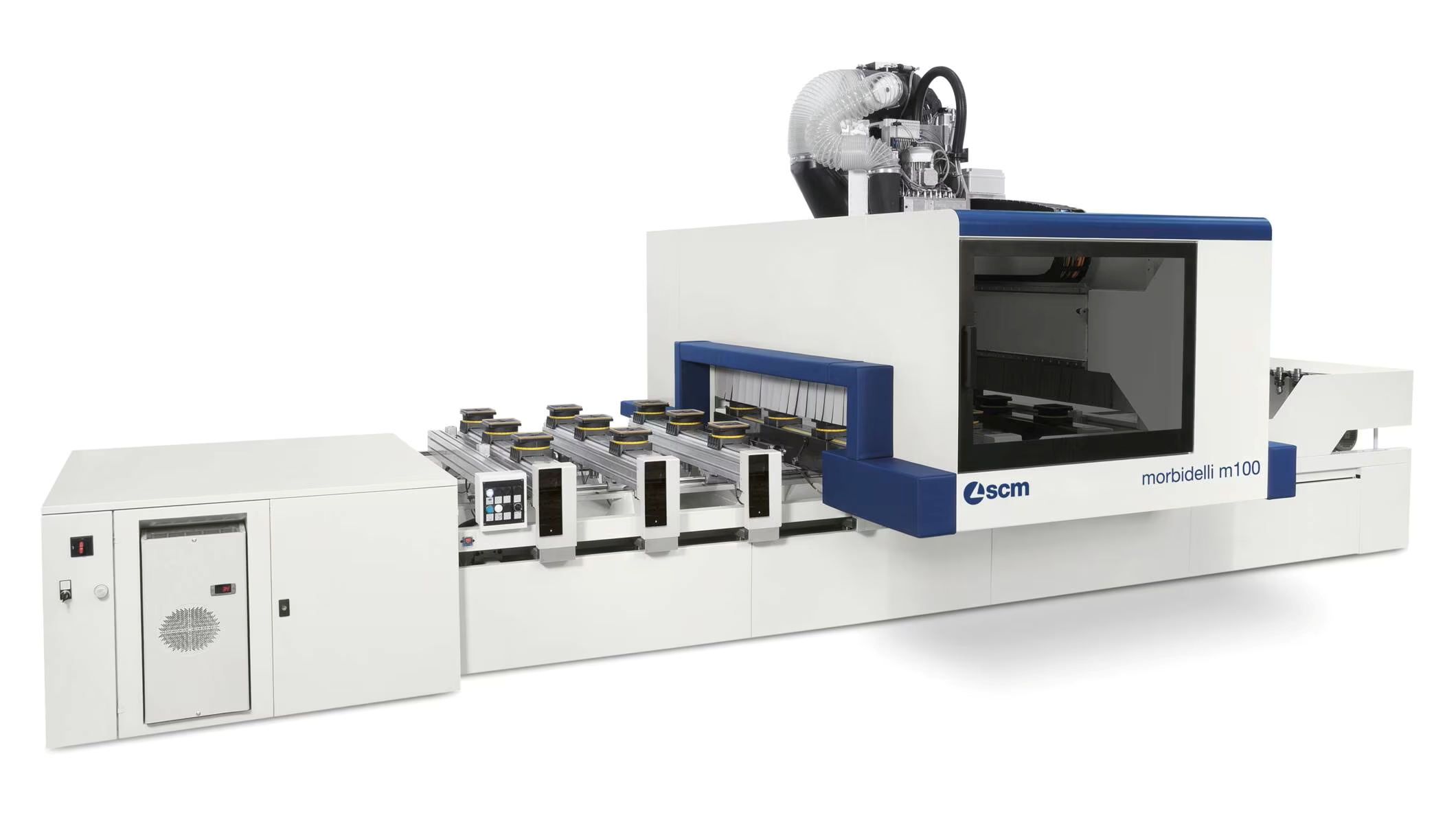

SCM Morbidelli M100
Provides flexible routing, drilling, workholding, up to 44 tool positions, and 180 mm panel passage in the more compact platform.
Expanded Flexible Production
SCM Morbidelli M200
Expands the platform to 250 mm panel passage and up to 60 tool positions for greater clearance and more complex tooling requirements.
Technical Specifications
Morbidelli M100 / M200
Machine Profile
ManufacturerSCM
SeriesMorbidelli
ModelsM100 / M200
Machine TypeCNC machining centre
Working Areas and Passage
M100 Working Areas3110 / 3710 / 5510 × 1320 or 1620 mm
M200 Working Areas3110 / 3710 / 5510 × 1620 mm
M100 Panel Passage180 mm
M200 Panel Passage250 mm
Routing and Spindle
Routing MotorUp to 15 kW / 20.5 hp
Spindle SpeedUp to 24,000 rpm
5-Axis HeadJQX available
Machine LayoutPro-Space configuration available
Drilling Package
Vertical Drilling SpindlesUp to 21 independent
Horizontal Drilling SpindlesUp to 12 independent
Drilling SpeedUp to 8,000 rpm
Drilling TechnologyRO.AX available
Tooling and Machining Units
M100 Tool PositionsUp to 44
M200 Tool PositionsUp to 60
FAST14 Tool ChangeAvailable · less than 15 seconds
Fits shaped solid-wood machining, angled work, profiling, rail-and-stile components, stair parts, and available 5-axis processes.
Flexible Production Departments
Consolidates routing, drilling, grooving, profiling, specialty units, workholding, and tool-intensive jobs into one configurable platform.
Flexible CNC · Advanced Workholding and Tooling
A machining platform built to make varied production feel organized, controlled, and capable.
The Morbidelli M100 / M200 combines routing, drilling, profiling,
workholding flexibility, large tool capacity, and available
five-axis machining in a professional pod-and-rail CNC platform.
The result is a cleaner relationship between part loading,
fixture setup, tool selection, machining access, and finished
component handling across high-mix production.
For manufacturers producing doors, windows, furniture, stairs,
profiles, panels, and solid-wood components, the platform creates
room to take on more varied work without fragmenting the workflow
across multiple dedicated machines.
