A customizable spindle moulder / shaper for demanding craftsmen and carpentries, combining a 1200 × 360 mm sliding table, four spindle speeds, substantial tooling capacity, and flexible fixed- or tilting-spindle configurations.
Flexible spindle-moulder production with cast-iron stability, four-speed tooling control, and a precision 1200 × 360 mm sliding table.

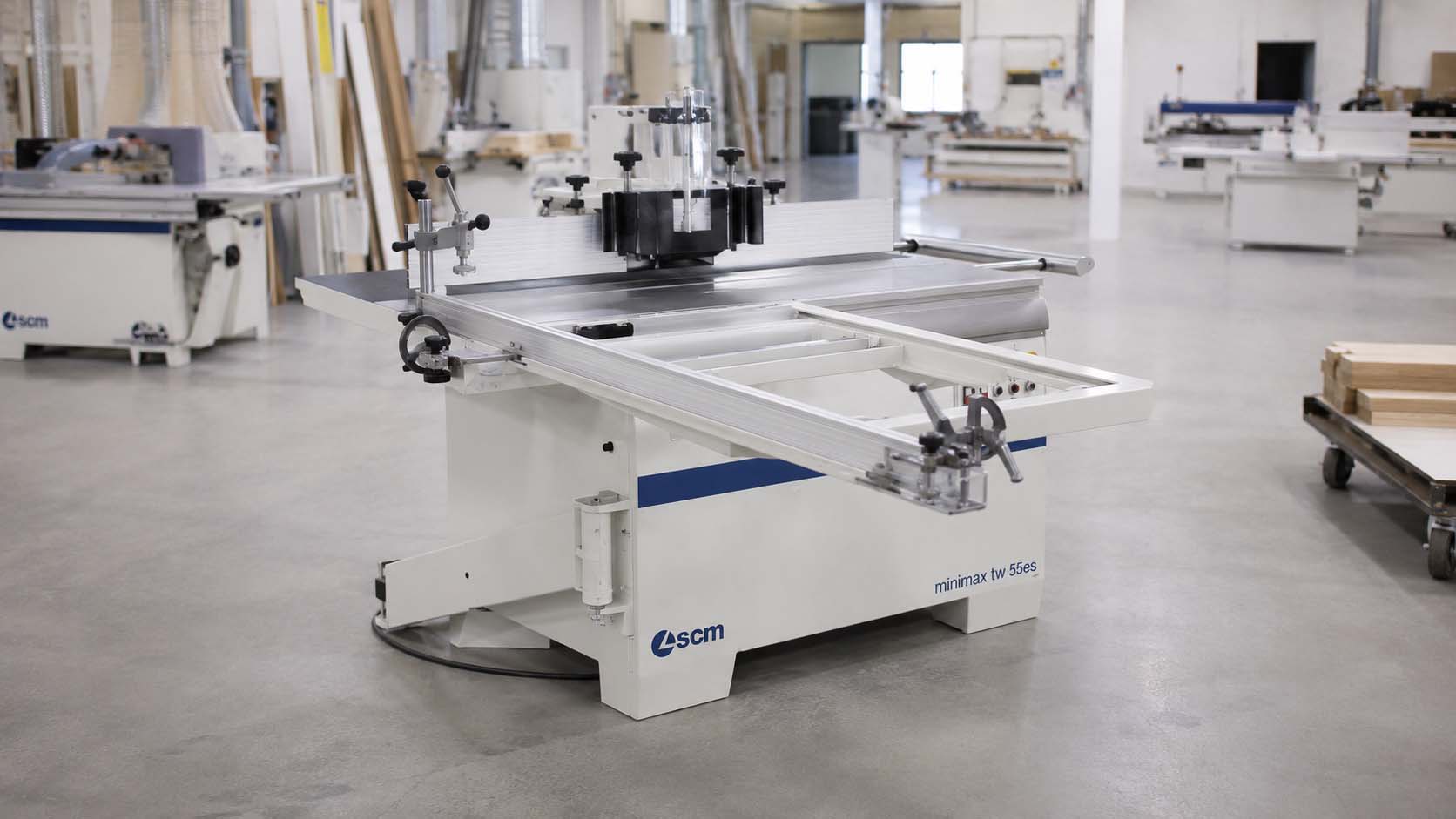

The SCM Minimax TW 55ES is a professional sliding-table spindle moulder for custom millwork, cabinet doors, furniture components, door and frame parts, stair work, mouldings, routing, and tenoning. Its compact Minimax footprint is paired with the rigidity and tooling support required for serious solid-wood machining.
The published platform provides 125 mm of useful spindle length, four spindle speeds at 3500, 6000, 8000, and 10000 rpm at 50 Hz, profiling-tool capacity from 210 to 240 mm, a 240 mm tool diameter retractable below the table at 90°, and tenoning-tool capacity up to 320 mm, or 300 mm for non-CE configurations.
The final machine package can be aligned around fixed- or tilting-spindle requirements, motor and electrical configuration, fence and hood systems, feeder preparation, tooling, guarding, extraction, installation, and service needs.
1200 × 360 mmSliding Table
125 mmUseful Spindle
4 Speeds3500–10000 rpm
320 mm max.Tenoning Tool
Capability Matrix
One sliding-table spindle moulder. Five practical production capabilities.
The Minimax TW 55ES combines four-speed spindle control, substantial tool diameter capacity, sliding-table support, and flexible fixed- or tilting-spindle configurations for varied solid-wood work.
Mode 01
Precision Profiling
Supports mouldings, cabinet-door profiles, frame components, furniture parts, and recurring custom profiles with tooling up to 240 mm maximum diameter.
Mode 02
Routing and Shaping
Four standard spindle speeds help match cutter diameter, material, and finish requirements across routing and general shaping operations.
Mode 03
Sliding-Table Tenoning
The 1200 × 360 mm sliding table supports controlled end work and tenoning with tooling up to 320 mm maximum diameter, or 300 mm for non-CE configurations.
Mode 04
Angled Profile Capability
A spindle tilting up to 45° toward the inside of the machine is available by configuration for angled profiles and added machining flexibility.
Mode 05
Repeatable Fence and Hood Setup
Micrometric fence adjustment, hood memory systems, feeder preparation, and optional control packages can be selected around the required workflow.
Production Advantages
Designed around stable shaping, smooth workpiece support, and flexible production setup.
The Minimax TW 55ES gives smaller professional shops a substantial shaping platform without requiring the footprint or investment of a larger Class or L’invincibile machine.
Cast-Iron Stability
The large spindle-moulder column is made entirely of cast iron to support rigidity and stable machining through profiling, routing, and tenoning work.
Precision Sliding-Table Support
The 360 mm-wide sliding table uses hardened steel guideways and mechanically secured guides for smooth travel and dependable support on larger parts.
Customizable Production Package
Fixed or tilting spindle, hood and fence options, feeder preparation, electrical package, tooling, and control accessories can be matched to the shop’s work.
Equipment Range
Lineup Positioning
Manual and Router-Based Work
Portable or Table-Router Profiling
Appropriate for isolated profiles, lighter tooling, and limited-volume custom work with manual part support.
Conventional Spindle Moulding
Dedicated Shaping and Feeder Work
Adds a stable industrial table, fence, spindle, and feeder-ready platform for recurring profiles and solid-wood production.
Flexible Sliding-Table Production
SCM Minimax TW 55ES
Combines a 1200 × 360 mm sliding table, four spindle speeds, substantial profile and tenoning capacity, and configurable fixed- or tilting-spindle capability.
Other FitsDoors / stairs / railings / custom joinery
Production Environments
Where the Minimax TW 55ES Fits
A practical SCM machine for shops that need flexible profiling, routing, and tenoning with sliding-table support and customizable spindle configurations.
Architectural Millwork and Custom Joinery
Strong for mouldings, frame parts, trim profiles, custom details, rails, and visible solid-wood components.
Cabinet Door and Furniture Production
Well suited to door components, cope-and-stick work, furniture parts, routing, and recurring profile families.
Door, Stair, and Railing Shops
A capable option for controlled end work, larger tenoning tools, angled profiles, and varied solid-wood joinery.
Sliding-Table Control · Flexible Shaping
A compact Minimax spindle moulder with the stability, tooling range, and part support required for serious custom production.
The Minimax TW 55ES brings a substantial cast-iron spindle platform and a smooth 1200 × 360 mm sliding table into a footprint that works well for demanding craft and production shops.
Its four spindle speeds, profile and tenoning capacity, configurable spindle tilt, and adjustable fence and hood systems allow the machine to cover a broad mix of moulding, routing, end-work, and joinery requirements.
The final package can be aligned around spindle configuration, motor and voltage, tooling, feeder support, fence and hood options, extraction, guarding, installation, and service.
