SCM Router Multilathe

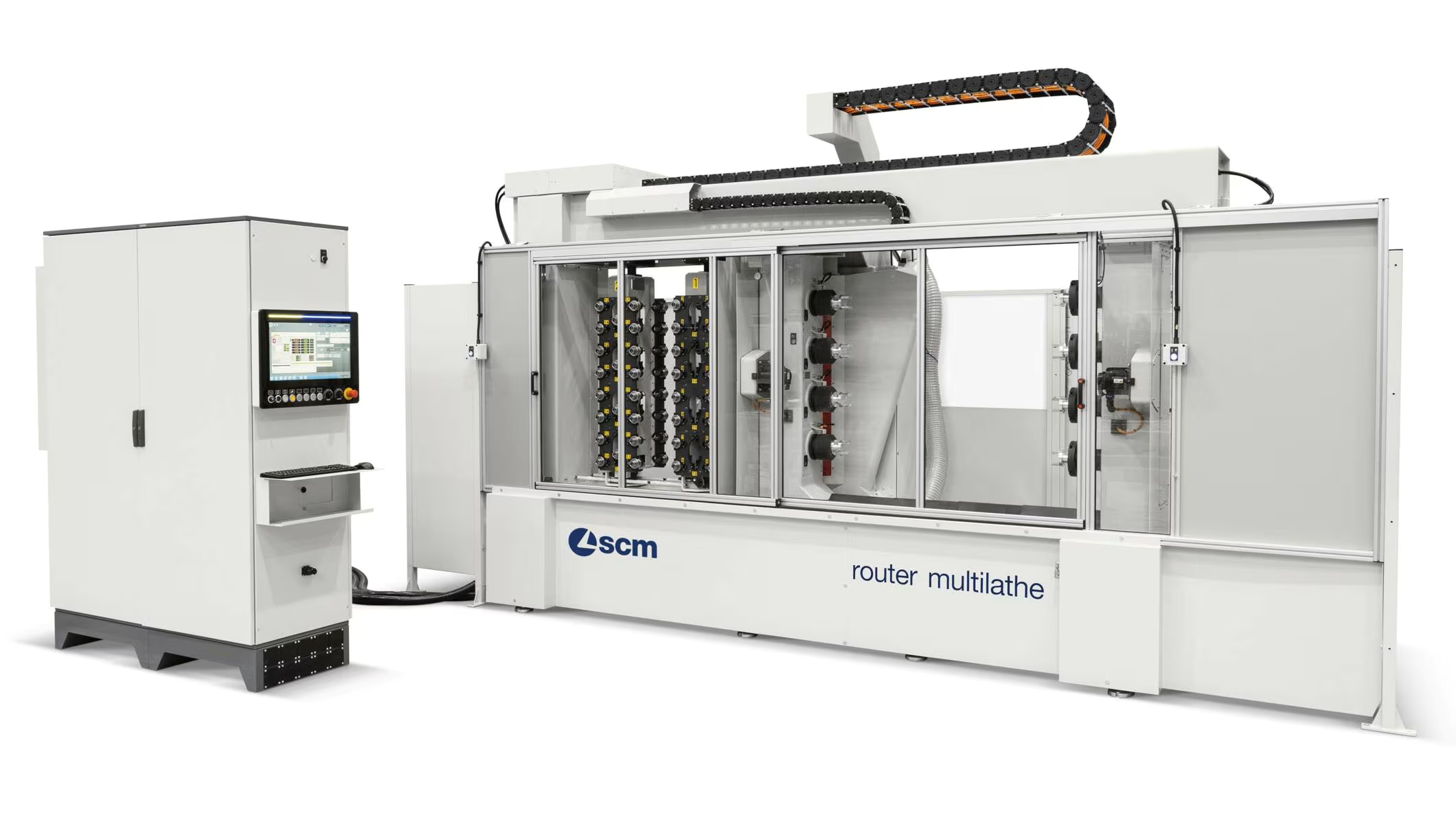

SCM Router Multilathe CNC Machining Centre
A high-output CNC machining centre with four NC-controlled workstations for simultaneous 5-axis routing, drilling, and turning of repeated solid-wood components.
Four-at-a-time CNC machining for repeated shaped and turned solid-wood components.
The SCM Router Multilathe is a specialized CNC machining centre for solid-wood elements. It is built around four workstations with NC-controlled rotating axes, allowing four identical workpieces to be machined simultaneously in one production cycle.
For Titan, this machine should not be positioned as a standard flat-table router or general-purpose CNC upgrade. It is a dedicated production platform for manufacturers producing repeated shaped, routed, drilled, turned, and 5-axis machined solid-wood parts where throughput, repeatability, finish quality, and reduced handling matter.
Best-fit shop profile
The Router Multilathe is the right machine conversation when the customer has repeatable component families and enough batch volume to make four simultaneous workstations a major production advantage.
Multi-station CNC routing, drilling, turning, and 5-axis shaping in one controlled production cycle.
The Router Multilathe gives production shops four simultaneous workstations, four 5-axis electrospindles, NC-controlled rotating axes, 13 kW maximum electrospindle power, 30000 rpm maximum spindle speed, 112-position automatic tool storage, and one-position machining for repeated component families.
Four-at-a-time output
Four workstations allow four identical components to be machined at the same time, improving throughput where repeated part families justify the cycle.
5-axis machining
Four electrospindles support 5-axis routing, drilling, turning, shaping, and finishing operations on complex solid-wood components.
Single-position processing
Routing, drilling, turning, and shaping can be completed in one cycle with one positioning, reducing handling and alignment variation.
112-tool storage
The large automatic tool store helps support complex component programs without constant manual tool changes between operations.
Built for furniture parts, stair components, railings, shaped millwork, and repeated solid-wood details.
The Router Multilathe is best suited for manufacturers producing batches of identical shaped components where four simultaneous stations reduce cycle time, labour handling, staging, and process variation.
Furniture Production
Strong fit for chair components, table components, legs, rails, shaped parts, curved or contoured elements, and repeated decorative details.
Stair & Railing Production
Built for balusters, rails, posts, handrail components, decorative turned parts, and repeated shaped components requiring rotational machining.
Architectural Millwork
Useful for custom solid-wood components, shaped trim details, decorative elements, specialty profiles, and repeat parts that benefit from one-position machining.
Solid-Wood Component Manufacturing
A production solution for repeated components where routing, drilling, turning, and shaping need to happen in one controlled cycle.
Decorative Component Production
Suitable for shaped details, turned elements, sculpted parts, repeated profiles, decorative rails, and complex linear components.
Specialty Batch Production
Best where batch size, repeated geometry, tool sequence, and part-family consistency allow the customer to use all four workstations effectively.
SCM Router Multilathe
A specialized CNC machining centre for high-output solid-wood component production with four workstations, NC-controlled rotating axes, and four 5-axis electrospindles.
The SCM Router Multilathe is a dedicated CNC machining centre for manufacturers producing repeated solid-wood components that require routing, drilling, turning, and 5-axis shaping. Unlike a standard flat-bed router, it is built around multiple workstations with NC-controlled rotating axes.
This machine is strongest when the customer has repeatable component families. Furniture parts, stair and railing components, shaped millwork elements, decorative solid-wood parts, and other repeated components can be machined in a single cycle with one positioning.
SCM lists the machine with four machining-unit electrospindles, each capable of 5-axis operations including routing, drilling, and turning. Official technical data lists maximum workpiece length at 1500 mm, minimum workpiece length at 300 mm, maximum electrospindle power at 13 kW, maximum spindle speed at 30000 rpm, electrospindle vertical centre distance at 272 mm, and tool storage capacity at 112 positions.
For operators, the machine is equipped with SCM’s eye-M touchscreen console using a 21-inch Full HD LCD display. For a production shop, this matters because multi-station CNC machining needs clear setup procedures, repeatable programs, and strong operator control.
Titan sales position
Position the Router Multilathe as a production-throughput machine built around four-at-a-time machining, one-position processing, reduced handling, repeatable 5-axis quality, and tooling/process planning for repeated shaped or turned solid-wood components.
Use the Router Multilathe when four-at-a-time rotational component machining is the production advantage.
This machine should be sold through a production-process discussion, not as a generic CNC router. The value comes from matching repeat part families, tooling, workholding, programming, and batch volume to the four-station machine architecture.
Good: Standard CNC Router
Best for general routed components, panels, flat work, drilling, cabinet parts, nested work, and standard pod-and-rail machining.
Better: 5-Axis CNC Centre
Best for complex shaping, angled operations, curved parts, solid-wood machining, and advanced component work where 5-axis control is required.
Best: Router Multilathe
Best when the customer needs four simultaneous stations for repeated rotational components with routing, drilling, turning, and 5-axis operations.
Router Multilathe specifications without table formatting.
Final published specifications should follow the quoted Titan/Canadian configuration. Confirm voltage, phase, footprint, weight, compressed air, dust extraction, software package, programming workflow, tooling, clamping, workholding, safety enclosure, delivery, installation, training, and service package before SKU-level publishing.
For manufacturers with repeatable solid-wood part families and enough batch volume to use all four stations.
The Router Multilathe should be sold as a process and throughput solution. The correct fit depends on part families, batch size, cycle-time expectations, workholding, tooling, dust collection, programming workflow, operator training, and service planning.
Strong fit for
Production shops that can justify the machine through repeated shaped or turned solid-wood components, consistent batch work, and reduced handling.
Confirm during quoting
This is a specialized CNC production platform. Final customer-facing publishing should match the quoted Titan/Canadian configuration.
Request an SCM Router Multilathe machine quote.
Send Titan your part families, batch sizes, material types, current routing / lathe / drilling workflow, workpiece length and diameter range, tooling needs, programming requirements, dust collection, shop power, and production goals. We will help confirm whether the Router Multilathe is the right multi-station CNC platform for your workflow.
