A semi-automatic 27-spindle multi-boring machine for accurate
32 mm line boring, horizontal drilling, angled drilling, hinge
preparation, and repeat panel setup.
Professional 32 mm line boring for shops that need repeatability without a full CNC workflow.

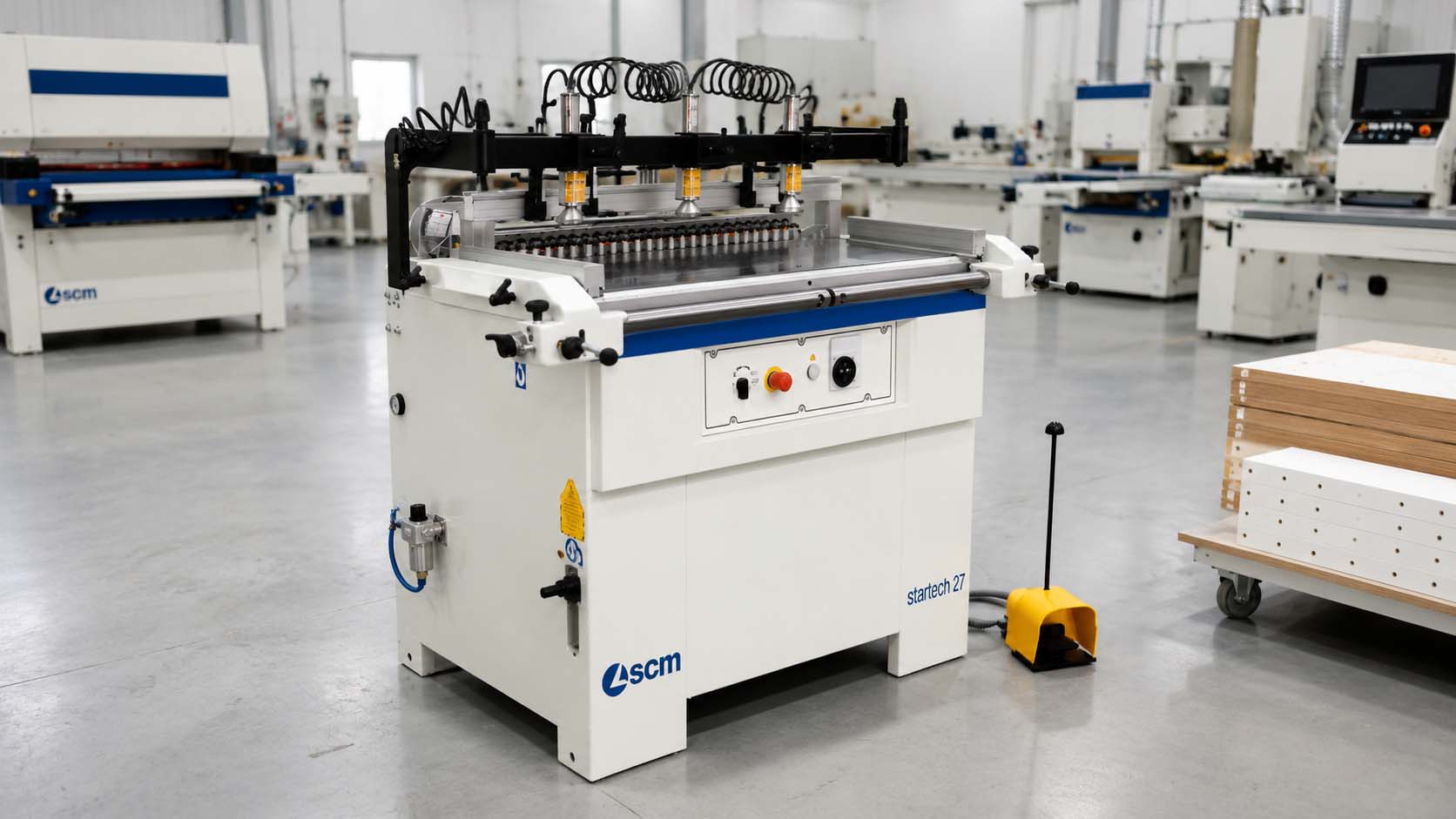

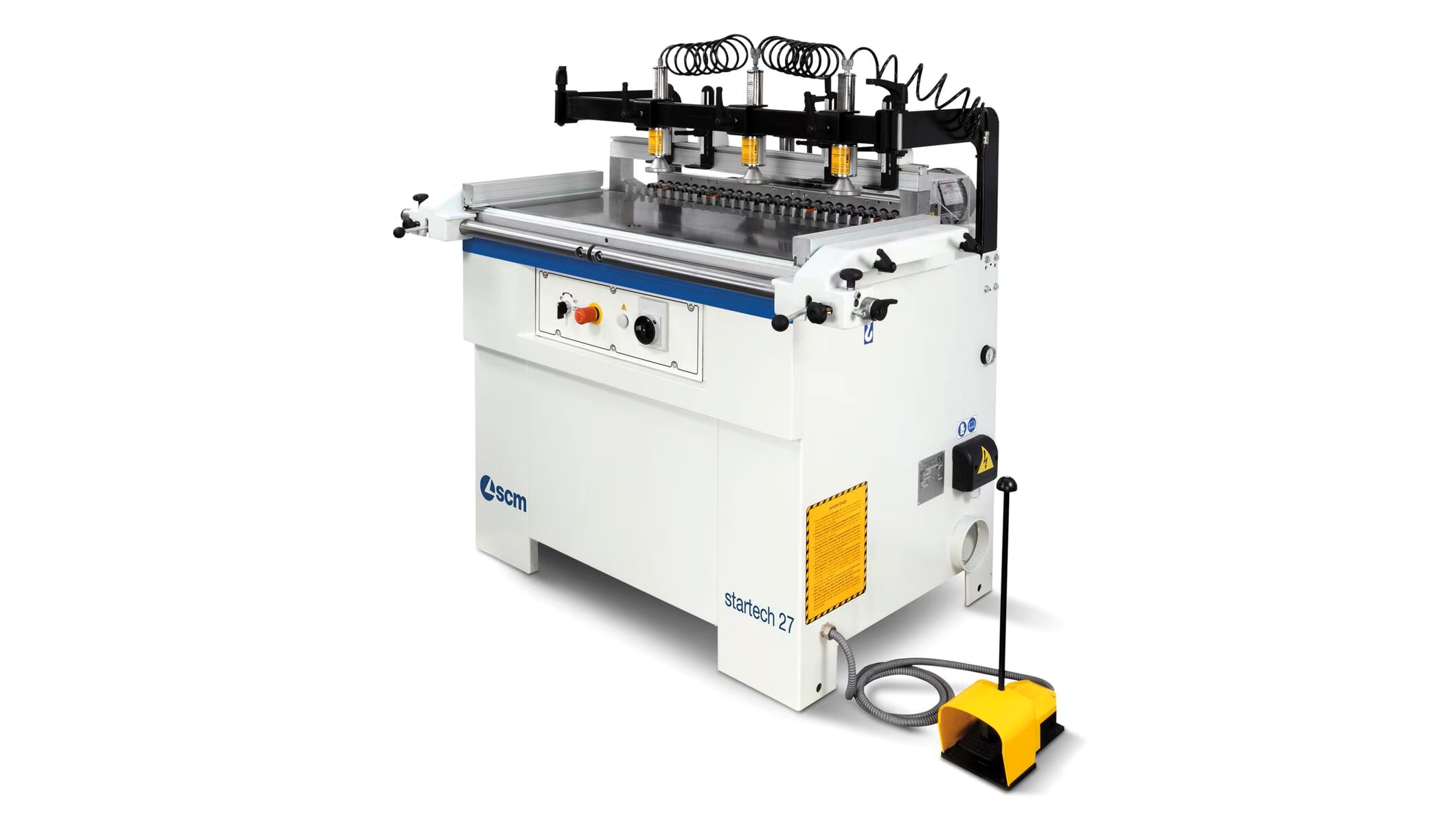

The SCM Startech 27 is a semi-automatic single-head multi-boring
machine for cabinet, closet, furniture, millwork, casework, and
panel-production environments.
Its 27-spindle head uses 32 mm centres and pneumatically rotates
through 0°, 45°, and 90° positions for vertical, angled, and
horizontal boring operations.
Quick-release spindle fittings, micrometric guide travel, a
nonius decimal scale, and a five-position depth turret support
efficient setup and repeat drilling work.
27Boring Spindles
32 mmSpindle Centre Distance
0° / 45° / 90°Pneumatic Head Rotation
10–85 mmPanel Thickness
Capability Matrix
One semi-automatic boring machine. Five focused drilling functions.
The Startech 27 combines 32 mm line boring, horizontal drilling, angled drilling, hinge flexibility, and repeatable setup control.
Mode 01
32 mm Line Boring
Supports European-style cabinet construction, shelf-pin rows, system holes, and repeated modular panel patterns.
Mode 02
Horizontal Boring
The rotating boring head supports edge drilling for dowels, connectors, construction holes, and panel assembly preparation.
Mode 03
Angled Drilling
The 45° head position supports angled boring applications within the machine’s verified operating range.
Mode 04
Available Hinge Drilling
Optional hinge units and related accessories can extend the machine for hinge-preparation requirements.
Mode 05
Repeat Depth Setup
A five-position revolving depth turret supports repeat drilling depths and faster recurring setup.
Production Advantages
Designed around fast adjustment, repeatable boring depth, and practical semi-automatic operation.
The Startech 27 strengthens everyday drilling consistency without introducing a full CNC programming workflow.
Quick-Release Spindle Fittings
Quick-release fittings support efficient spindle setup and practical changes between drilling patterns.
Micrometric Guide Travel
Micrometric adjustment and the nonius decimal scale help operators establish controlled repeat panel positioning.
Five-Position Depth Turret
The revolving depth turret supports repeat depth selection for recurring cabinet, closet, furniture, and casework drilling.
Equipment Range
Lineup Positioning
Manual Drilling
Jigs, Drill Presses and Handheld Tools
Suitable for low-volume work, with positioning, spacing, depth, and repeat setup managed manually.
Dedicated Line Boring
Semi-Automatic Multi-Boring
Adds a 27-spindle head, 32 mm spacing, pneumatic rotation, depth control, and repeat panel setup.
SCM Production Boring
SCM Startech 27
Combines line boring, horizontal boring, angled drilling, available hinge accessories, and repeatable setup in one machine.
A practical next step for shops moving beyond handheld jigs, drill presses, basic boring machines, and operator-dependent layouts.
Semi-Automatic Boring · Repeatable 32 mm Setup
A focused boring station that brings order and repeatability to everyday panel drilling.
The Startech 27 combines a 27-spindle head, 32 mm system spacing,
pneumatic head rotation, quick-release fittings, and controlled
depth adjustment in a compact production machine.
Operators gain a clear relationship between panel positioning,
drilling orientation, depth selection, and repeat work without
moving into a CNC programming environment.
For cabinet, closet, furniture, RTA, millwork, and casework shops,
it creates a professional bridge between manual drilling and
CNC-controlled panel machining.
