An electro-mechanical cabinet clamp for medium-volume cabinet and casework assembly with automatic setup, programmable pressing, rack-and-pinion squaring, and full-surface horizontal and vertical pressure.
Automatic cabinet squaring and programmable pressing for medium-volume assembly.

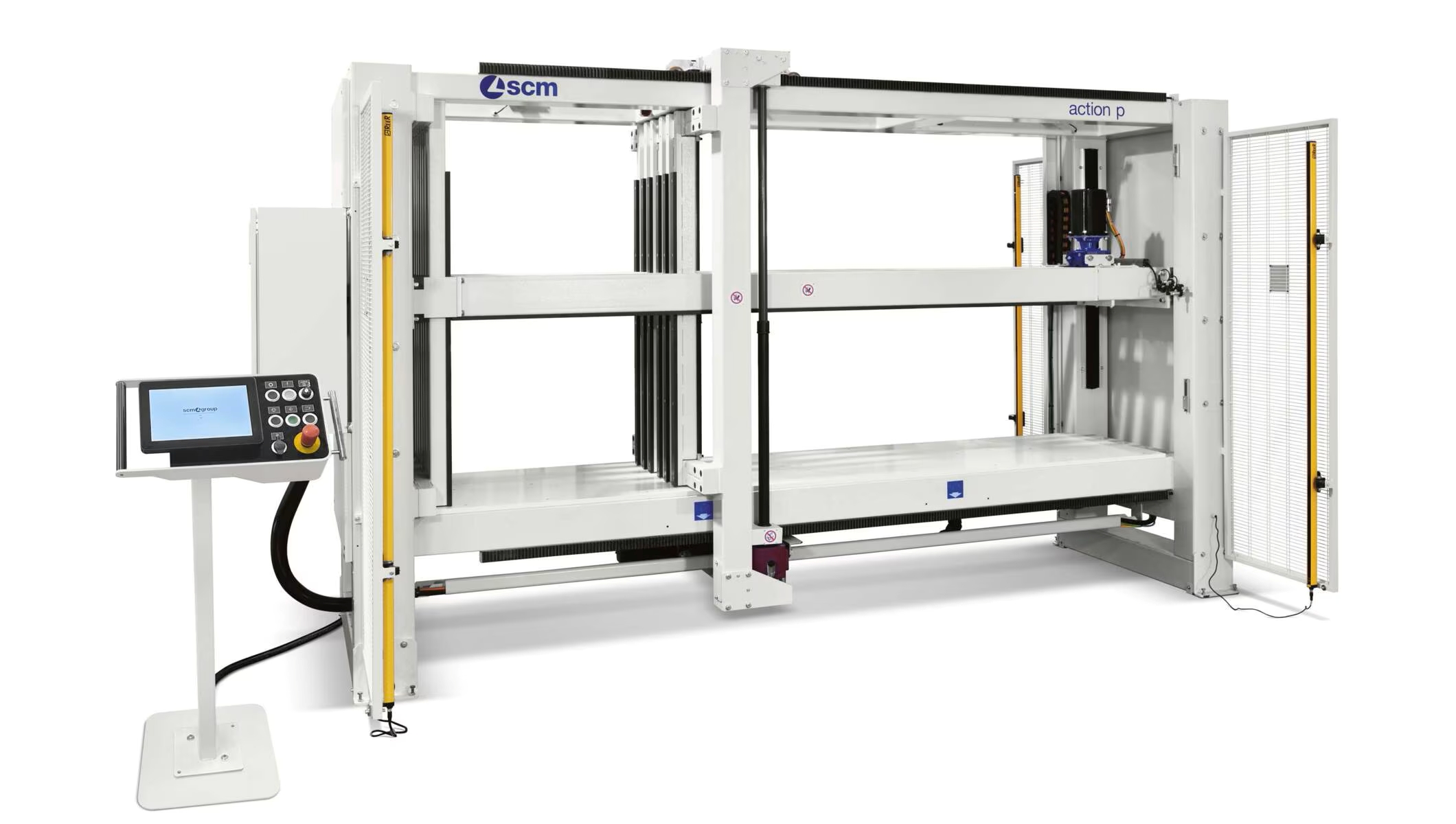

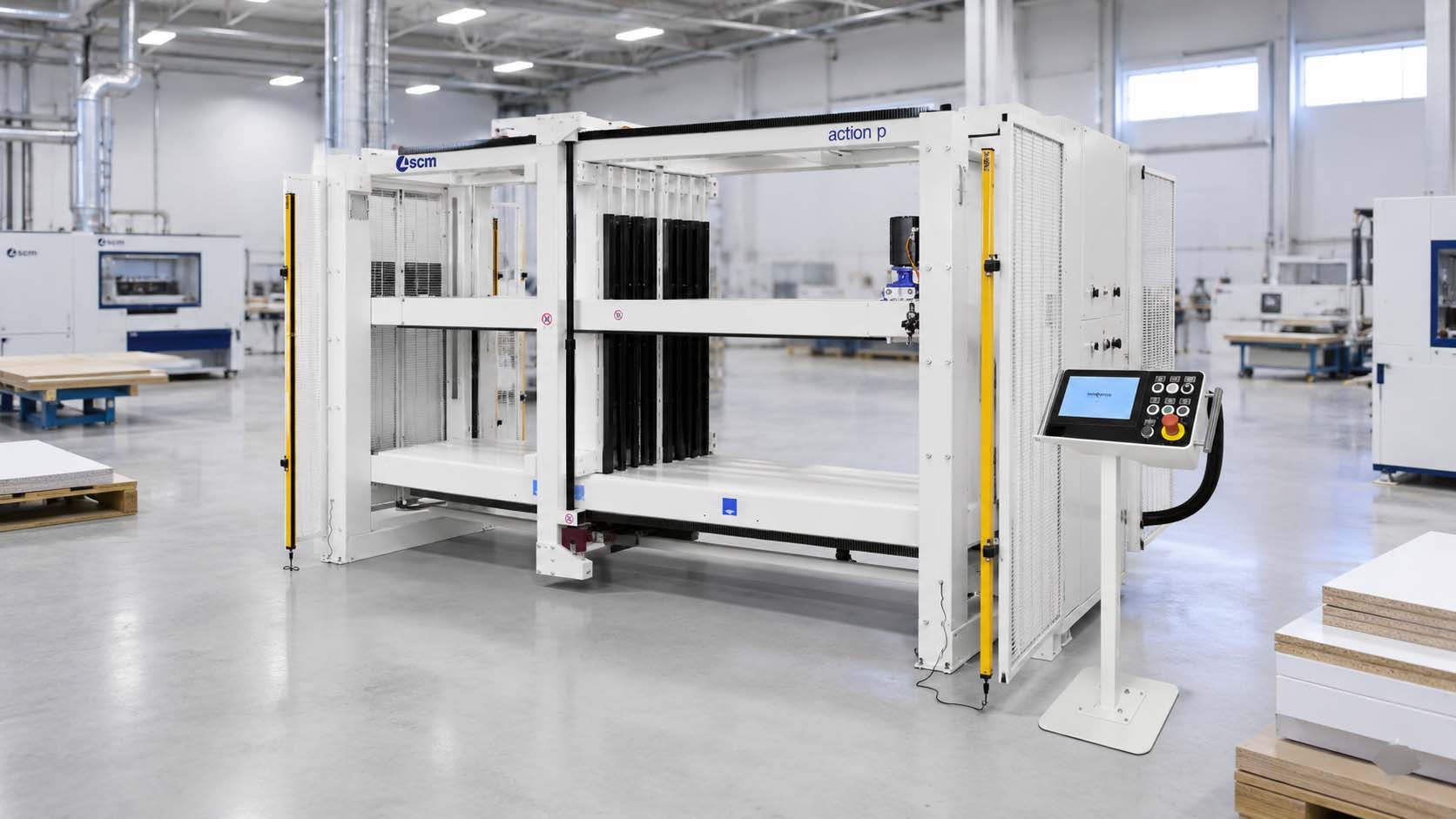

SCM Action P is an electro-mechanical clamp for assembling, squaring, and pressing cabinet boxes, casework, carcasses, storage products, and panel-based furniture.
Automatic setup reduces repeated manual clamp adjustment between cabinet sizes. Integrated rack-and-pinion squaring driven by a brushless motor supports repeatable box geometry, while horizontal and vertical pressure elements with single bars and a comb system distribute pressure across the cabinet surfaces.
Final configuration should confirm model size, cabinet dimensions, material and construction, pressing sequence, production volume, loading and unloading, electrical requirements, floor layout, installation, training, warranty, and service.
Approx. 50Cabinets per Shift
1200 kgSide Thrust
1500 kgVertical Thrust
9 kWInstalled Power
Capability Matrix
Cabinet Assembly & Pressing Modes
Configure Action P around cabinet dimensions, construction method, pressure requirements, pressing sequence, production rate, and the surrounding assembly workflow.
Mode 01
Automatic Setup
Reduces repeated manual adjustment when changing between cabinet and casework dimensions.
Mode 02
Programmable Pressing
Supports automatic pressing programs for pressure, cycle time, and pressure-sequence control.
Mode 03
Rack-and-Pinion Squaring
An integrated brushless-motor squaring system supports repeat cabinet-box geometry.
Mode 04
Horizontal & Vertical Pressure
Side and vertical thrust work together to square and press cabinet structures.
Mode 05
Comb-Style Surface Pressure
Single bars and a comb system help distribute effective pressure across cabinet surfaces.
Moves cabinet clamping into a higher-volume through-feed workflow with broader production-line integration.
Technical Specifications
SCM Action P
Machine Profile
Manufacturer
SCM
Series / Model
Action / Action P
Machine Type
Electro-mechanical cabinet clamp
Primary Use
Cabinet-box, casework, carcass and panel-furniture assembly
Working Range & Output
Model Sizes
2500 / 3050
Cabinet Range Reference
1200 × 800 mm
Output Positioning
Approx. 50 cabinets / shift
Loading / Unloading
Manual
Pressing System
Side Thrust
1200 kg
Vertical Thrust
1500 kg
Pressure Elements
Horizontal and vertical elements with single bars
Surface Pressure
Comb-style full-surface pressure system
Squaring & Setup
Setup Concept
Automatic setup
Squaring System
Integrated rack-and-pinion
Squaring Drive
Brushless motor
Pressing Programs
Pressure, cycle time and pressure-sequence programming
Power & Production Role
Installed Power
9 kW
Production Position
Medium-volume cabinet assembly
Product Families
Cabinet boxes, casework, closets, storage units and carcass furniture
Line Position
Dedicated cabinet assembly station between manual clamping and through-feed automation
Configuration & Support
Model Selection
Confirm Action P 2500 or 3050
Cabinet Requirements
Confirm box size, material, thickness, construction and pressure needs
Shop Requirements
Confirm electrical service, layout, loading, unloading and guarding
Support
Installation, startup, operator training, warranty and service
Production Environments
Where the Action P Fits
For cabinet and casework assembly departments that need programmable pressure and repeatable squaring without moving directly into through-feed clamping automation.
Cabinet Manufacturing
Final box assembly, squaring, pressing, and glue-up for production cabinet shops.
Commercial Casework
Office, healthcare, institutional, retail, hospitality, and architectural casework production.
Move cabinet squaring and pressure control into a repeatable programmed station.
Action P combines automatic setup, rack-and-pinion squaring, brushless-motor positioning, and programmable electro-mechanical pressing in one cabinet-assembly platform.
Horizontal and vertical pressure elements with single bars and a comb system support full-surface pressure across cabinet structures while retaining straightforward manual loading and unloading.
Final configuration should confirm model size, cabinet dimensions, construction method, material thickness, pressure sequence, production volume, electrical requirements, floor space, installation, startup, training, warranty, and service.
