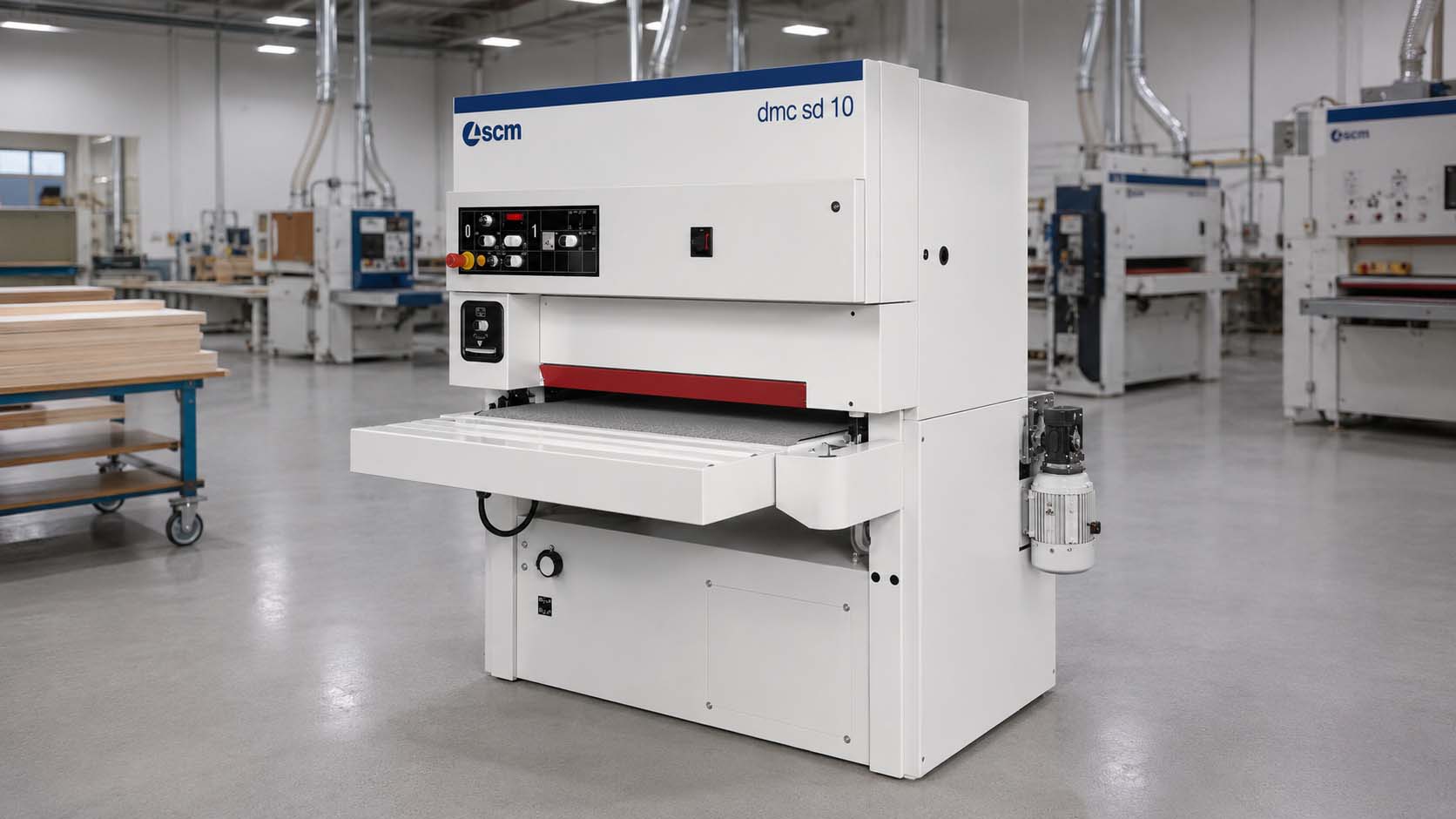

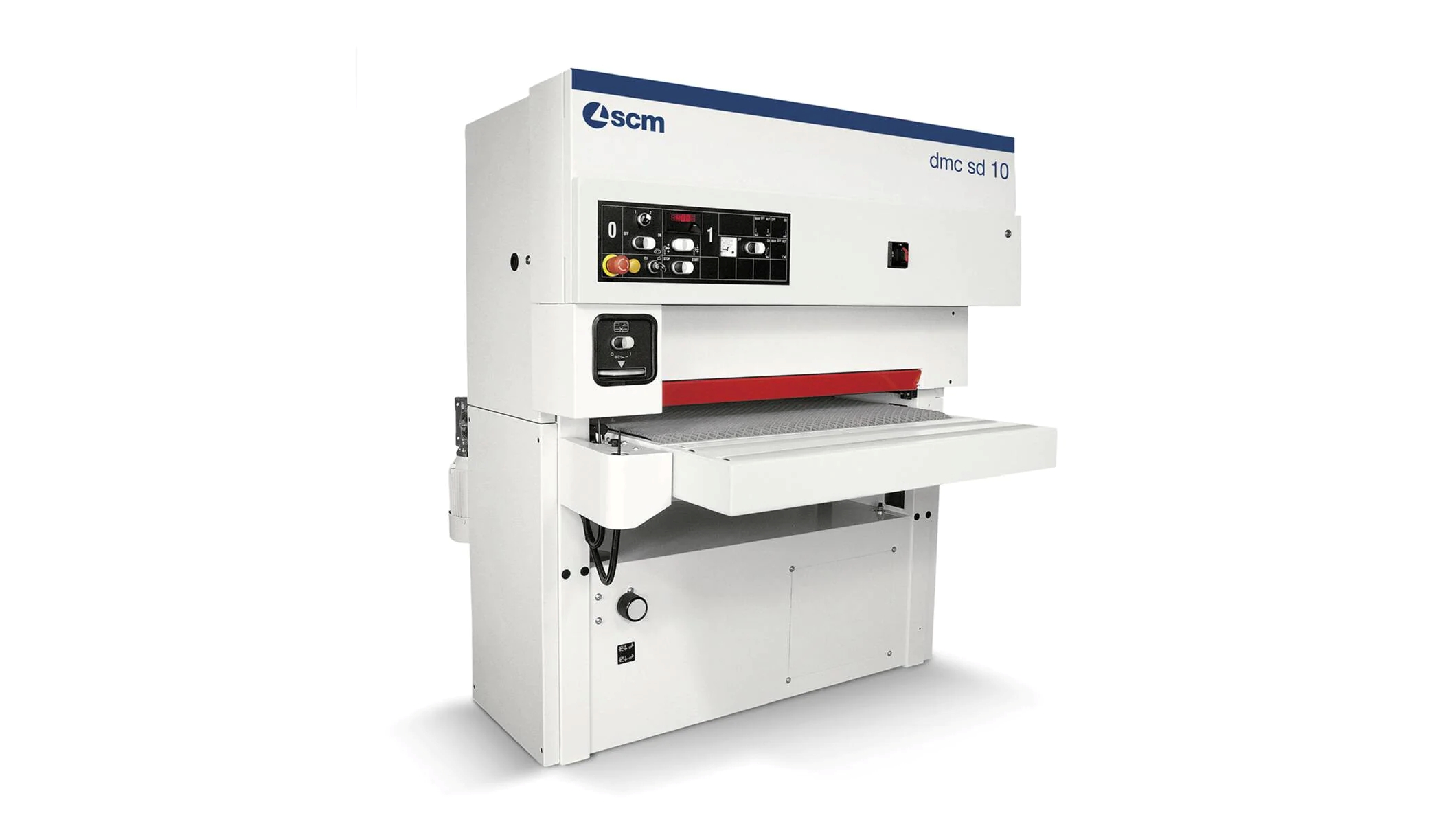

The SCM DMC SD 10 is a compact automatic wide-belt sanding and calibrating machine built for small woodworking companies that need precision calibration, clean sanding, and repeatable finish preparation. It is the entry point into SCM/DMC automatic wide-belt sanding and is positioned for craftsmen, small cabinet shops, custom furniture makers, joinery shops, millwork shops, veneer shops, solid wood shops, and smaller production teams.

The SD 10 is designed for shops that want a controlled sanding process without oversizing the machine investment. It helps reduce reliance on hand sanding, drum sanding, and inconsistent manual processes while giving operators a more stable machine workflow for solid wood panels, veneered panels, cabinet parts, shelves, gables, furniture components, doors, and custom woodworking parts.

Core public technical data lists the SD 10 with a 950 mm working width, 4–170 mm working thickness, 970 mm sanding belt width, 1525 mm sanding belt length, 5.5 kW standard main motor power, and 4.5 / 9 m/min feed belt speed. Configuration-specific packages may list higher motor power, so the final quoted motor package should be confirmed before publishing or quoting.

The common CS 95 combined-head configuration uses roller and pad capability to support multiple sanding requirements from solid wood panels to veneered panels and knotted solid wood calibration. Depending on the final build, the SD 10 may include automatic table positioning, diamond-profile transport belt, automatic feed conveyor centering, automatic abrasive-belt centering, electronic working-thickness positioning, automatic anti-dubbing pad control, and oscillating belt-cleaning blower capability.
