SCM Formula Clamp 2500

SCM Formula • Clamp 2500

SCM Formula Clamp 2500 Universal Hydraulic Clamp

A sturdy, general-purpose hydraulic clamping station for gluing and assembling frames, panels, doors, furniture components, face frames, and mixed joinery products.

2500 × 1800 mmWorking Area
1270 kg EachVertical Cylinder Thrust
770 kgHorizontal Thrust
Manometer + ValvePressure Control
Request Machine Quote

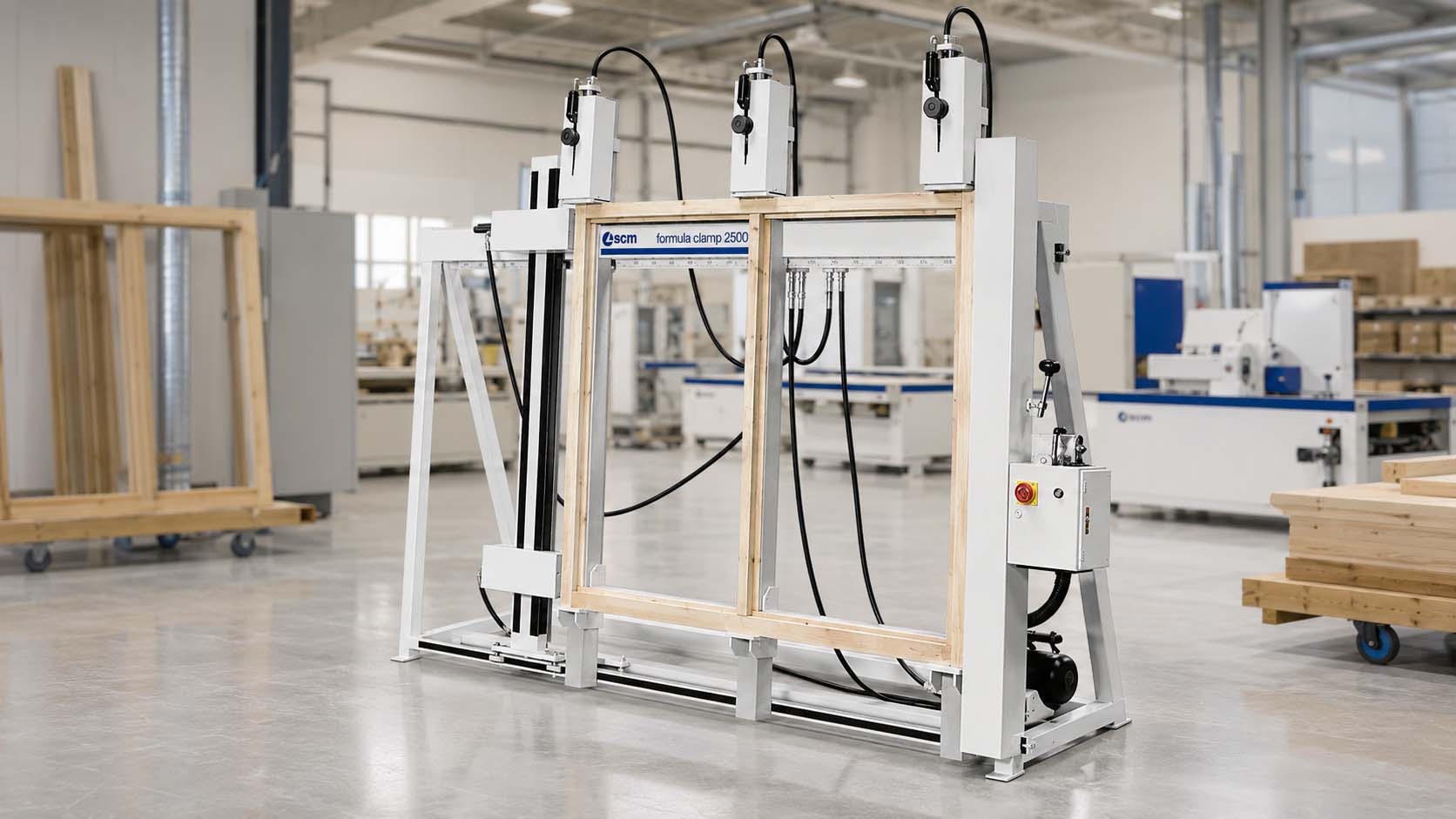

SCM Formula Clamp 2500 universal hydraulic clamp
Machine Overview

A dedicated hydraulic glue-up station for everyday joinery and furniture assembly.

SCM Formula Clamp 2500 is a universal hydraulic clamp for mixed assembly work in joinery, furniture, cabinet, and architectural millwork shops.

Its 2500 × 1800 mm working area supports frames, panels, doors, furniture components, face frames, fixtures, and custom assemblies. Quick vertical beam positioning simplifies setup, while hydraulic cylinders apply controlled vertical and horizontal pressure.

Pressure is managed with practical control levers, a pressure-reading manometer, and a locking valve. Final configuration should confirm cylinder count, hydraulic package, pressure requirements, supports, utilities, footprint, installation, training, warranty, and service.

2500 × 1800 mmWorking Area
1270 kg EachVertical Cylinder Thrust
770 kgHorizontal Thrust
150 / 120 mmVertical / Horizontal Stroke
Capability Matrix

Universal Hydraulic Clamping Modes

Match the Formula Clamp 2500 to the workpiece dimensions, assembly type, cylinder arrangement, pressure requirement, and glue-up workflow.

Mode 01

Frame Assembly

Supports furniture frames, face frames, door frames, fixtures, and custom rectangular assemblies.

Mode 02

Panel Glue-Up

The 2500 × 1800 mm work zone accommodates panels and mixed flat assembly projects.

Mode 03

Vertical Hydraulic Pressure

Vertical cylinders provide 1270 kg of listed thrust each with a 150 mm stroke.

Mode 04

Horizontal Hydraulic Pressure

The horizontal cylinder provides 770 kg of listed thrust with a 120 mm stroke.

Mode 05

Quick Beam Positioning

The vertical beam can be repositioned quickly to suit changing workpiece heights and assemblies.

Production Advantages

Controlled Pressure, Faster Setup & A Stable Assembly Platform

Formula Clamp 2500 consolidates mixed glue-up work into a dedicated hydraulic station without adding cabinet-specific or through-feed automation.

Quick Workpiece Setup

Rapid vertical beam positioning reduces repeated setup effort when moving between frames, panels, doors, and furniture parts.

Visible Pressure Management

Control levers, a manometer, and a locking valve support practical pressure adjustment and retention during glue-up.

Sturdy Clamping Structure

The machine frame and lower cast-iron supports provide a stable platform for general joinery assembly.

Equipment Range

Lineup Positioning

Manual Glue-Up

Bar Clamps, Pipe Clamps & Shop Fixtures

Suitable for basic assembly where distributed manual clamps, longer setup, and operator-managed pressure remain acceptable.

Dedicated Conventional Press

General-Purpose Assembly Clamp

Creates a defined glue-up station but may offer less working range, pressure visibility, or positioning flexibility.

SCM Formula Clamp 2500

Universal Hydraulic Joinery Clamp

Adds a 2500 × 1800 mm work zone, quick beam positioning, controlled hydraulic pressure, and vertical plus horizontal clamping.

Technical Specifications

SCM Formula Clamp 2500
Machine Profile
Manufacturer
SCM
Series / Model
Formula / Clamp 2500
Machine Type
Universal hydraulic joinery clamp
Titan SKU Reference
SCM-FC2500
Working Area & Stroke
Working Dimensions
2500 × 1800 mm
Vertical Cylinder Stroke
150 mm
Horizontal Cylinder Stroke
120 mm
Typical Workpieces
Frames, panels, doors, furniture parts and joinery assemblies
Hydraulic Thrust
Vertical Cylinder Thrust
1270 kg each
Horizontal Cylinder Thrust
770 kg
Clamping Direction
Vertical and horizontal
Cylinder Arrangement
Confirm required cylinder count and hydraulic package
Positioning & Control
Beam Positioning
Quick vertical beam positioning
Pressure Controls
Operating levers
Pressure Readout
Manometer
Pressure Retention
Locking valve
Production Applications
Frames & Doors
Furniture frames, face frames, door frames and custom assemblies
Panels
Panel glue-up and flat assembly work
Furniture & Millwork
Furniture components, fixtures and architectural woodwork
Production Style
Mixed custom, one-off, small-batch and repeat glue-up work
Configuration & Support
Confirm Before Quote
Hydraulic pump package, cylinder count, pressure range and supports
Utilities
Confirm regional electrical and hydraulic requirements
Shop Requirements
Confirm footprint, rigging, operator access and workflow
Support
Installation, startup, operator training, warranty and service
Production Environments

Where the Formula Clamp 2500 Fits

For woodworking operations that need one stable hydraulic station for varied frames, panels, doors, furniture parts, and custom assembly projects.

Joinery & Custom Woodworking

Mixed glue-up, frame assembly, doors, furniture parts, restoration components, and custom projects.

Cabinet & Architectural Millwork

Face frames, fixtures, specialty assemblies, shop-built frames, and non-standard millwork components.

Furniture & Frame Production

Furniture frames, table parts, panels, doors, and small-to-medium repeat glue-up work.

Universal Glue-Up Station

Bring mixed assembly work into one stable, pressure-controlled workstation.

Formula Clamp 2500 replaces scattered manual clamps with a dedicated frame, adjustable vertical beam, hydraulic cylinders, and a practical pressure-control panel.

The broad work area and combined vertical and horizontal clamping make the machine suitable for varied joinery products rather than one cabinet-only or door-only production process.

Final configuration should confirm workpiece range, cylinder count, pressure requirements, supports, hydraulic package, utilities, footprint, installation, startup, training, warranty, and service.

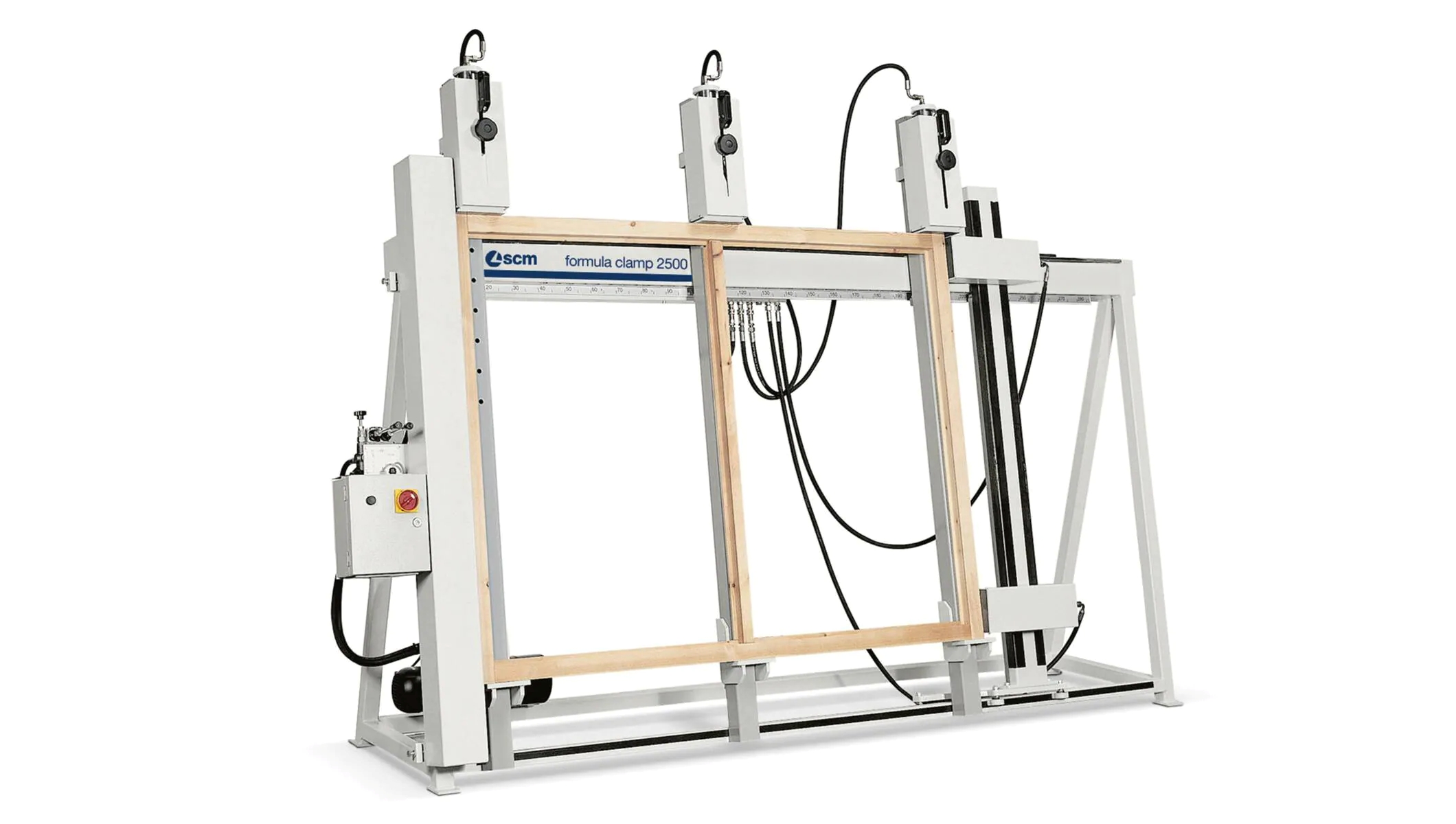

SCM Formula Clamp 2500 legacy universal hydraulic clamp presentation
