SCM Class S 630 – Class S 520

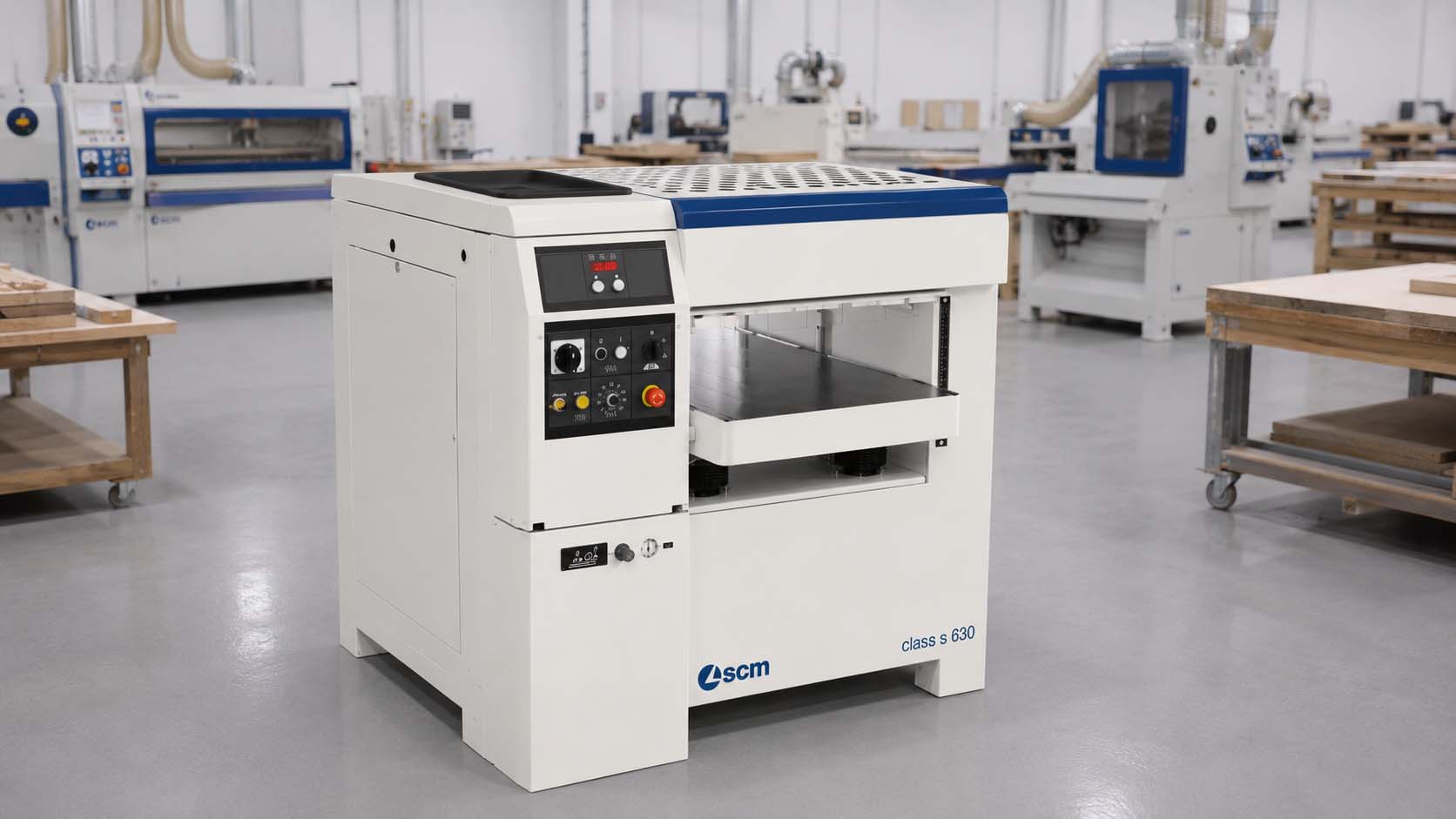

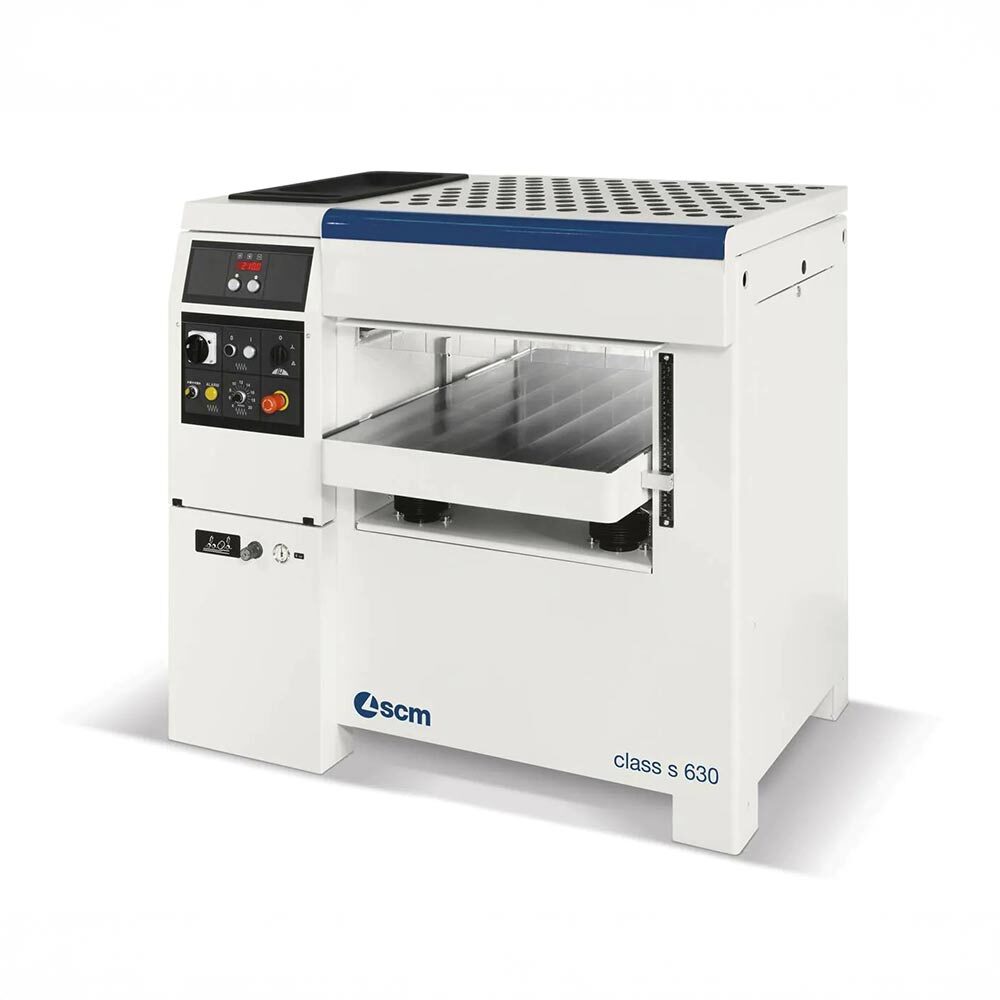

SCM Class S 630 / Class S 520 Thicknessing Planers
Professional Class-series thicknessing planers for cabinet, furniture, millwork, stair, door, joinery, and solid wood shops that need accurate stock thicknessing, reliable feeding, and clean surface quality.
Professional SCM Thicknessing for Daily Solid Wood Production
The SCM Class S 630 and Class S 520 give professional woodworking shops the control, stability, and finish quality needed for daily solid wood stock preparation. They are built for cabinet shops, furniture manufacturers, millwork shops, stair builders, door shops, joinery operations, and custom woodworking environments where accurate thickness, reliable feeding, and clean material preparation matter before machining, sanding, assembly, or finishing.
Key Advantages
The Class S range is the right planer conversation when the customer needs professional SCM stock preparation without moving all the way into the premium L’invincibile S 7 platform.
Two Capacity Options
The S 630 provides 630 mm working width for wider stock, while the S 520 provides Class-series performance in a narrower 520 mm format.
Pneumatic Roller Adjustment
Operator-adjustable roller pressure supports better feeding control across different species, removal amounts, and stock conditions.
Variable Feed Speed
4–20 m/min feed speed gives operators control over finish quality, stock removal, material species, and production pace.
Stable Worktable Movement
The worktable support system uses large-diameter screws and side linear guides for stable, precise table movement.
Applications
Solid Wood Thicknessing
Built for accurate thicknessing of solid wood boards, components, stair parts, door parts, furniture pieces, and production stock.
Cabinet & Furniture Production
Fits face-frame stock, rails, stiles, table components, drawer parts, edge-glued panels, cabinet components, and solid wood shop work.
Millwork & Joinery
Supports architectural millwork, door components, trim stock, stair components, custom joinery, and wider solid wood pieces.
Fine Wood & Mixed Batches
Interchangeable rollers allow the feed system to be reviewed for fine wood, minimum removal, and batches with mixed part thicknesses.
Machine Information
The SCM Class S 630 and SCM Class S 520 are professional Class-series thicknessing planers built for shops that need consistent stock thickness, strong feed control, and clean surface quality. They are practical production machines for solid wood preparation in cabinet, furniture, millwork, door, stair, joinery, and custom woodworking environments.
The two models share the same core working range: 3.5–300 mm planer working height, 8 mm maximum stock removal, 4–20 m/min feed speed, and 7 kW / 9.5 hp main motor power. The main difference is width and table size. The Class S 630 provides a 630 mm cutterhead working width with a 640 × 1000 mm worktable, while the Class S 520 provides a 520 mm cutterhead working width with a 530 × 900 mm worktable.
These machines are especially valuable where inconsistent stock thickness creates downstream problems such as poor joinery fit, extra sanding, CNC hold-down issues, assembly variation, visible surface defects, or finishing inconsistencies. The Class S platform gives operators more control over the stock-preparation process before parts move into machining, sanding, assembly, or finishing.
The feeding system is one of the strongest sales points. SCM highlights pneumatic roller adjustment, interchangeable feed rollers, and feeding rollers that move on connecting rods to support smoother linear feeding. The system is designed to help reduce workpiece stopping and surface notching when the machine is properly configured for the material and production requirement.
For Titan, the Class S 630 / S 520 should be positioned as the professional Class-series thicknessing solution below the premium L’invincibile S 7 and above lighter-duty shop planers. It is the right machine family for customers who need professional SCM planing performance, practical daily production capacity, and strong feeding control without stepping into the highest-end joinery-machine package.
S 630 vs S 520 Positioning
SCM Class S 630
Best for shops needing wider solid wood capacity, larger components, wider panels, stair parts, millwork parts, and heavier professional stock-prep capacity.
SCM Class S 520
Best for shops that want the same Class-series feed and finish advantages in a narrower format with a smaller working width and table footprint.
Production Positioning
Professional Stock Prep
Best when the customer needs consistent stock thickness, smooth surface preparation, and reliable daily solid wood processing.
Class-Series Value
Best when the customer needs professional SCM capacity without stepping all the way to the premium L’invincibile S 7 package.
Feeding Control Upgrade
Best when lighter-duty planers create feed inconsistency, workpiece stopping, surface notching, or finish-quality variation.
Technical Features
The Class S 630 / S 520 platform is a configurable professional thicknessing planer family. Final specifications depend on the exact model, cutterhead package, motor package, roller package, pneumatic adjustment package, Canadian electrical configuration, dust extraction setup, and installation requirements.
Vertical Displacement Across Three Rollers
Minimum Removal
Mixed-Thickness Batches
Controlled Feed Pressure
Precision Thickness Control
Repeatable Daily Stock Preparation
TERSA
XYLENT Spiral-Knife
Configuration-Dependent
Rails / Stiles
Solid Wood Components
Drawer Parts
Panels
Frames
Table Components
Visible Parts
Door Components
Stair Parts
Architectural Components
Inconsistent Feed Control
Manual Stock Prep Bottlenecks
TERSA
XYLENT
Other Quoted Configuration
Included Roller Package
Optional Roller Sets
Motor Package
Starter Knives / Cutters
Phase
Amperage
Transformer Requirements
Dust Outlet Size
Required CFM
Compressed Air
Machine Footprint
Weight
Infeed / Outfeed Clearance
Rigging
Installation
Commissioning
Training
Warranty / Service
Where the Class S 630 / S 520 Fits
The Class S 630 / S 520 fits professional shops that need reliable thickness control, practical SCM production capacity, variable feed speed, stable table movement, and stronger feeding control than lighter-duty planers can provide.
Cabinet & Furniture Shops
Strong fit for cabinet stock, furniture components, face-frame material, visible parts, table components, panels, and daily solid wood processing.
Millwork, Stair, Door & Joinery Shops
Supports architectural millwork, trim, door components, stair parts, joinery pieces, custom stock, and wider solid wood preparation.
Professional Planer Upgrades
Useful for shops upgrading from lighter-duty thicknessers into professional feed control, stable worktable movement, and Class-series capacity.
