A compact semi-automatic multiple-boring machine for accurate 32 mm cabinet drilling, shelf-pin lines, dowel holes, hinge positions, and horizontal, vertical, or 45° boring setups.
Accurate 32 mm boring without moving every drilling operation to CNC.

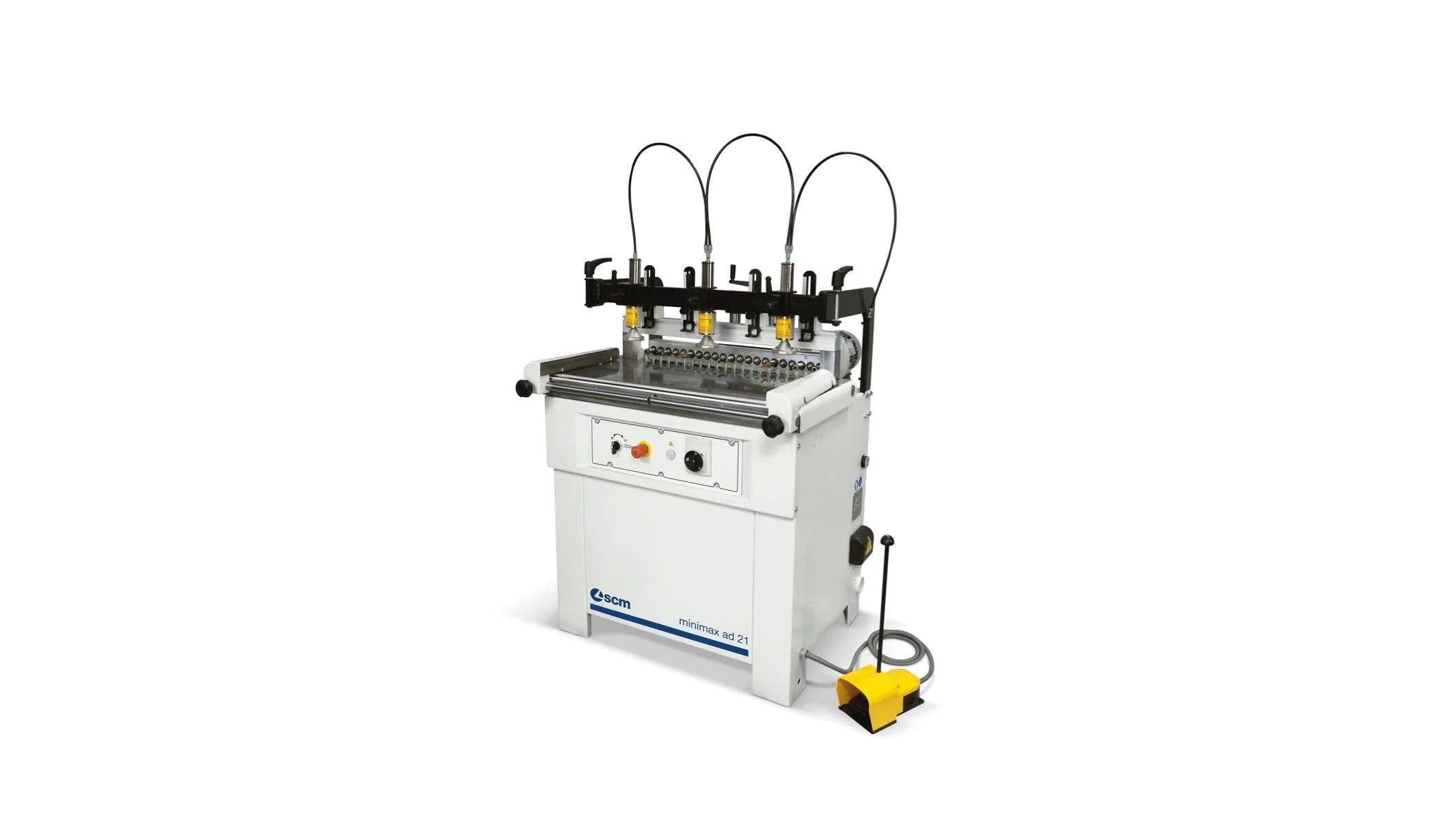

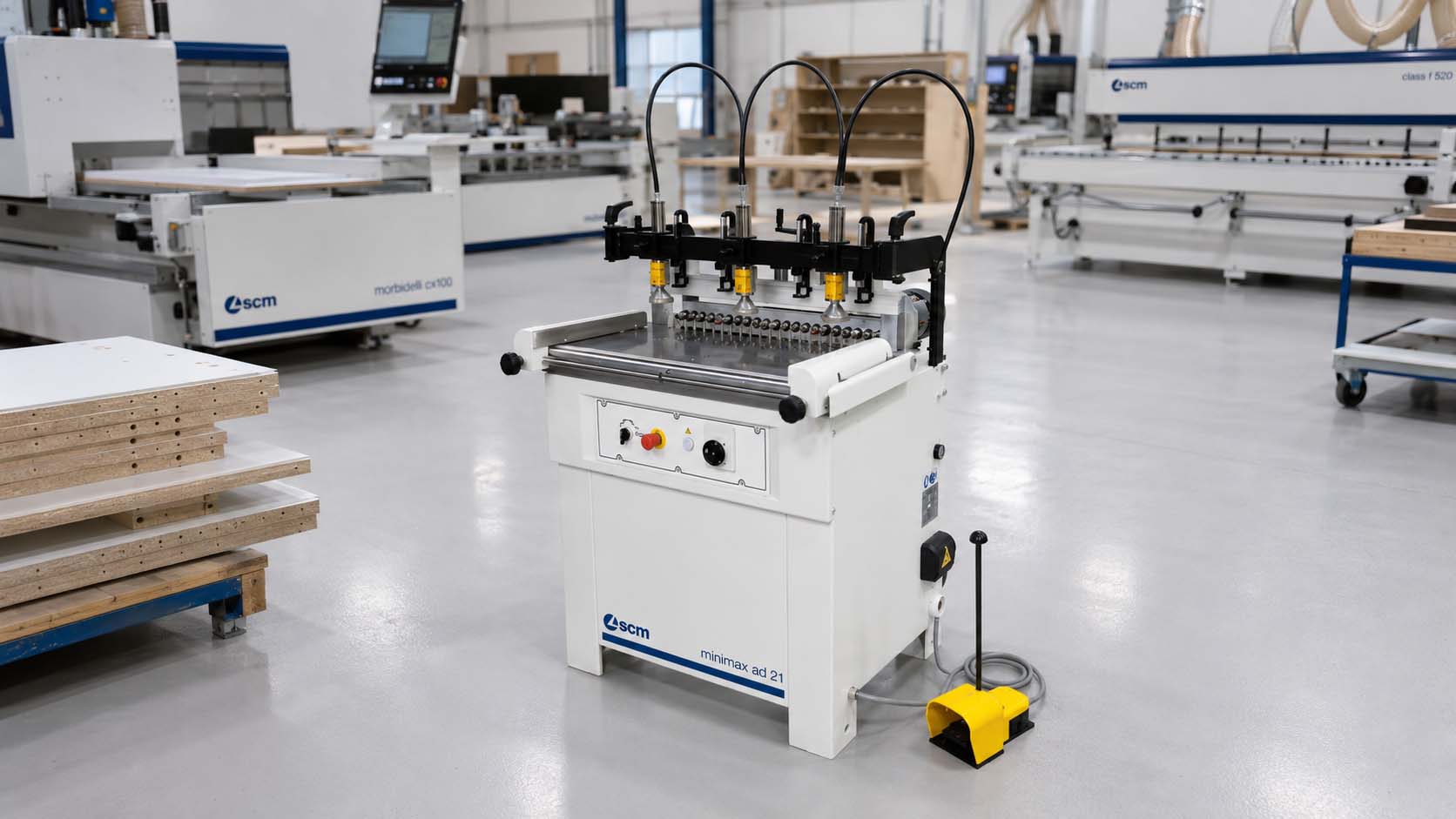

SCM MiniMax AD21 is a single-head multiple boring machine with 21 spindles, designed for cabinet shops, closet manufacturers, furniture makers, and professional woodworking operations requiring repeat hole patterns.
The 21-spindle layout uses 32 mm centre-to-centre spacing for system holes, shelf-pin lines, dowel boring, hinge positions, and related cabinet-component drilling. The head can be configured for horizontal, vertical, and 45° boring work.
A single-piece aluminum drilling head, two rectified cylindrical guides, and a five-position mechanical boring-depth revolver support stable operation and repeat setup. Final configuration should confirm bits, chucks, bushings, fences, angle requirements, compressed air, extraction, installation, training, warranty, and service.
21Boring Spindles
32 mmSpindle Spacing
2800 rpmSpindle Speed
833 mmMaximum Panel Width
Capability Matrix
Compact Multi-Boring Applications
Configure the AD21 around the shop’s hole patterns, panel sizes, drilling orientation, bits, chucks, fences, and production workflow.
Mode 01
32 mm System Boring
The 21-spindle head is arranged on 32 mm centres for repeat cabinet and furniture system-hole patterns.
Mode 02
Shelf-Pin Lines
Produce repeat adjustable-shelf patterns for cabinet sides, closet partitions, wardrobes, and storage components.
Mode 03
Dowel Boring
Support repeated dowel-hole positions for cabinet construction, furniture components, and frame assembly.
Mode 04
Hinge & Component Boring
Machine repeat hinge positions and related component holes within the verified tool and panel-capacity range.
Mode 05
Horizontal, Vertical & 45° Setup
Orient the boring head for the drilling direction required by cabinet, closet, furniture, or custom joinery work.
Production Advantages
Stable Drilling, Repeat Depth Control & Compact Workflow
The AD21 creates a defined professional boring station for shops that need more repeatability than manual jigs without the footprint and complexity of a CNC drilling centre.
Stable Drilling-Head Construction
The single-piece aluminum head and two rectified cylindrical guides support stability and consistent boring movement.
Five-Position Depth Revolver
The mechanical depth revolver helps operators return quickly to commonly used boring depths.
Dedicated Compact Station
The machine gives repetitive boring work a fixed production location beside panel sizing, edging, dowel assembly, or cabinet assembly.
Equipment Range
Lineup Positioning
Manual Drilling
Drill Presses, Portable Jigs & Templates
Suitable for very low-volume work where manual layout, repeated setup, and operator-dependent positioning remain acceptable.
Dedicated Boring Station
Single-Operation Fixtures & Benches
Creates a defined boring area but may still rely on separate templates, repeated fence setting, and individual hole operations.
SCM MiniMax AD21
21-Spindle Professional Boring
Adds 32 mm spindle spacing, multi-angle setup, mechanical depth selection, stable head guidance, and repeat multi-hole boring.
Dowel construction, hinge boring, repeated furniture-component drilling, and short-run custom patterns.
Compact Professional Boring Station
Replace repeated manual hole layout with a stable 21-spindle production process.
The MiniMax AD21 brings 32 mm system drilling, shelf-pin boring, dowel holes, hinge positions, and multi-angle setup into one compact machine.
Its 21-spindle head, stable guided construction, and mechanical depth revolver create a practical bridge between portable drilling jigs and a full CNC drilling centre.
Final configuration should confirm workpiece dimensions, hole patterns, boring angle, tooling, chucks, bushings, fences, compressed air, extraction, material flow, installation, startup, training, warranty, and service.
