SCM Gabbiani VSI
SCM Gabbiani / Vertical Panel Saw

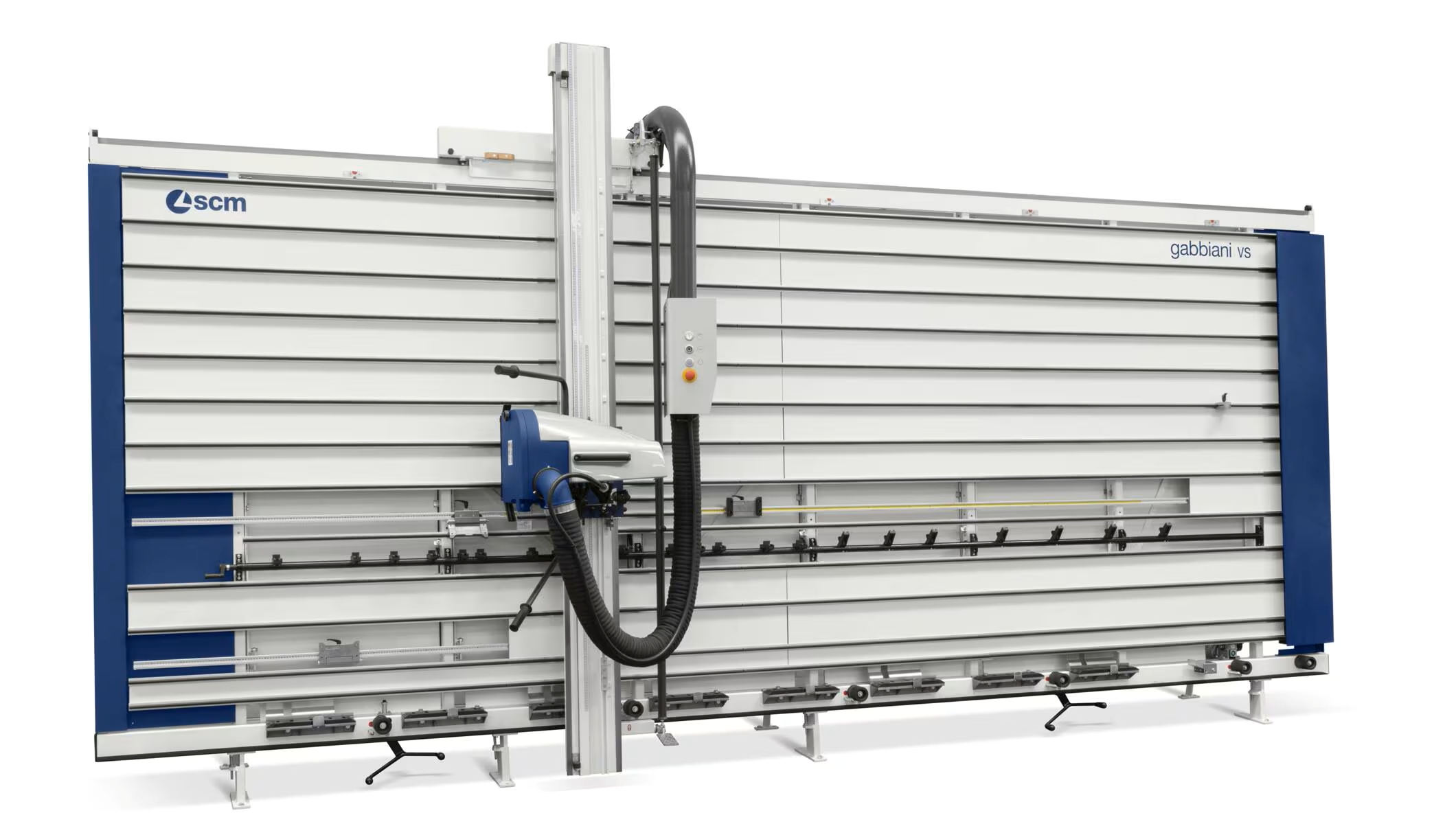

SCM Gabbiani VSI
Compact professional vertical panel saw with independent main blade and scoring unit for high-quality horizontal and vertical panel cutting.
The SCM Gabbiani VSI gives cabinet, furniture, closet, millwork, and panel-processing shops a space-efficient way to cut sheet goods while improving edge quality through independent main-blade and scorer motorization with mechanical scorer plunging.
Production Positioning
Compact vertical panel cutting with cleaner edges from an independent scoring system.

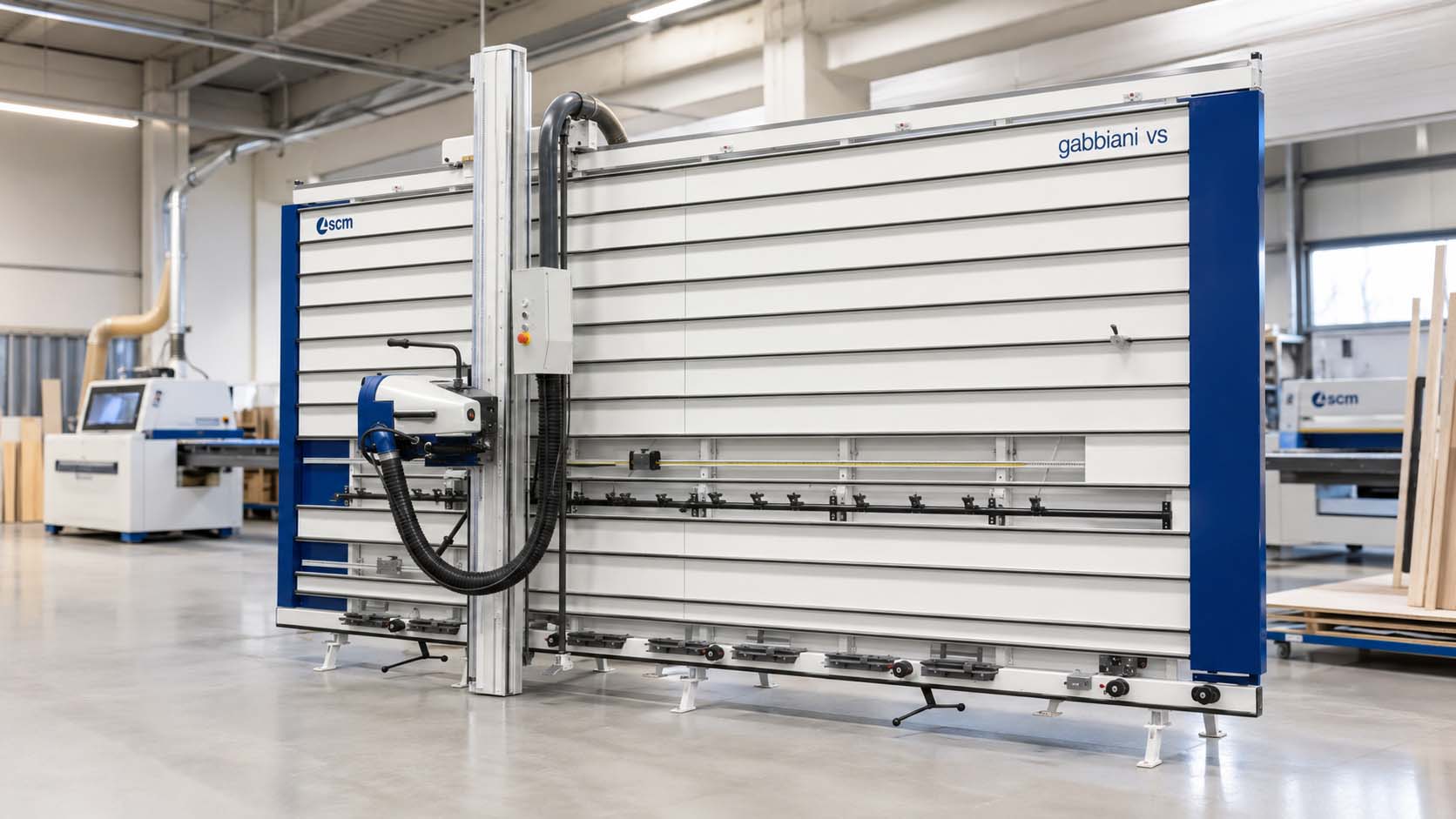

The SCM Gabbiani VSI is a professional vertical panel saw designed for shops that need accurate horizontal and vertical sheet cutting without dedicating the floor space required for a horizontal beam saw or sliding table saw workflow.
The VSI sits above basic single-blade vertical panel saw positioning because it uses independent motors for the main blade and scoring / engraving unit, along with mechanical scorer plunging. That makes it the stronger conversation when finished-edge quality matters on plywood, laminate, MDF, particleboard, melamine, and surface-sensitive panel materials.
For Titan, the Gabbiani VSI should be positioned as a compact SCM / Gabbiani panel-sizing solution for cabinet shops, closet manufacturers, furniture shops, architectural millwork shops, schools, and small-to-mid panel processors that need cleaner cuts and efficient use of production floor space.
Best-fit production environment
The Gabbiani VSI fits shops that need vertical panel cutting, improved edge quality, and a compact loading workflow before edgebanding, boring, CNC machining, or assembly.
Key Advantages
Independent scoring, vertical handling, and SCM Gabbiani frame stability.
The Gabbiani VSI is the right saw conversation when the customer wants compact vertical panel sizing but needs cleaner cut quality than a basic single-blade vertical saw.
Independent blade and scorer motors
The VSI’s main differentiator is independent motorization for the main blade and scoring unit, supporting cleaner edges on coated and surface-sensitive panels.
Mechanical scorer plunging
Mechanical scoring-unit insertion makes the VSI a stronger choice for shops that need better edge quality than a simple vertical panel saw can usually deliver.
Compact vertical format
The vertical layout keeps sheet goods upright, reducing the floor-space demand compared with horizontal cutting workflows in compact shops.
Electro-welded frame
The electro-welded frame supports strength and resistance to cutting stress, helping maintain stability during horizontal and vertical cuts.
Applications
Built for cabinet panels, closet parts, furniture components, millwork panels, and pre-cutting workflows.
The SCM Gabbiani VSI is suited for production areas that need compact sheet cutting, repeatability, and cleaner edges before downstream processing.
Cabinet & Closet Panel Cutting
Strong fit for cabinet sides, bottoms, shelves, stretchers, partitions, fillers, finished ends, closet components, and job-specific sheet goods.
Furniture Component Production
Useful for furniture panels, casework components, shelving, laminated panels, MDF components, plywood parts, and production blanks.
Millwork & Architectural Panels
Good fit for architectural panels, decorative panels, plywood sheets, back panels, wall panels, laminate-faced material, and custom millwork components.
Small-to-Mid Panel Processing
The vertical format works well where shop space is limited and the operation does not justify a full horizontal beam saw cell.
Pre-Cutting Before Edgebanding
The VSI can support panel sizing before edgebanding, boring, assembly, CNC finishing, or other downstream production steps.
Surface-Sensitive Sheet Goods
Independent scoring makes the VSI a stronger fit for laminate, melamine, veneer-faced materials, MDF, plywood, and other panels where edge quality matters.
Machine Information
A compact vertical panel saw with independent scoring for better edge quality.
The SCM Gabbiani VSI is designed for accurate horizontal and vertical panel cutting in a space-efficient vertical format.
The SCM Gabbiani VSI is part of SCM’s Gabbiani vertical panel saw range. It is designed for cutting wood-based panels in both horizontal and vertical directions while keeping the panel upright on a slightly inclined support base.
The VSI version is the higher cut-quality configuration in the vertical saw family because it uses independent motors for the main blade and scorer with mechanical plunging. This makes it a strong option for shops processing coated, laminated, or surface-sensitive materials where a cleaner finished edge is important.
The Gabbiani VSI is available in VSI32 and VSI42 formats. The VSI32 provides 3200 mm horizontal and vertical cut length, while the VSI42 provides 4200 mm horizontal and vertical cut length. Both versions list 60 mm maximum cutting thickness, 3.7 kW motor power, 250 mm blade diameter, 5300 rpm blade speed, 4 mechanical positioners for horizontal cuts, and 1 stop for vertical cuts.
The vertical panel saw format is especially useful for shops with limited production area. It gives the operator a compact cutting workflow for cabinet panels, furniture panels, closet panels, plywood, laminate, MDF, particleboard, solid wood panels, and similar sheet goods.
For public Titan positioning, the clean message is: compact panel sizing with improved cut quality from independent main-blade and scorer motorization, supported by an electro-welded vertical frame and practical 3200 mm or 4200 mm cutting capacities.
Technical Features
Core specification profile for the SCM Gabbiani VSI.
Final machine configuration should be confirmed against the exact Titan / Canadian quotation package, selected model size, electrical package, scoring package, and material-cutting requirements.
Where This Machine Fits
A compact vertical panel-sizing solution for shops that need cleaner cuts without a beam saw cell.
The Gabbiani VSI belongs in the conversation when the customer needs accurate panel cutting, upright sheet handling, space efficiency, and a stronger cut-quality package than a basic vertical panel saw.
Strong fit for
- Cabinet shops
- Closet manufacturers
- Furniture shops
- Architectural millwork shops
- Small-to-mid panel processors
- Schools and training shops
- Shops with limited floor space
- Shops cutting plywood, MDF, laminate, particleboard, and solid wood panels
- Businesses needing cleaner cuts than a basic single-blade vertical saw
- Operations sizing panels before edgebanding, boring, assembly, or CNC finishing
Confirm before quoting
- Exact model: VSI32 or VSI42
- Canadian voltage, phase, amperage, and transformer requirements
- Manual, electric, or pneumatic moving-table package
- Scoring unit blade diameter and scorer motor details
- Additional vertical stops and lower stops
- Lift-up rollers and panel support bars
- Small-panel support / tilting bar
- Dust extraction outlet size and required CFM
- Blade package for laminate, melamine, veneer, MDF, plywood, or solid wood panels
- Finished-edge expectation and required material mix
- Installed footprint, wall clearance, loading workflow, and material-handling equipment
- Safety guarding, Canadian compliance, delivery, installation, commissioning, training, warranty, and service package
Machine Quote Intake
Request a Gabbiani VSI quote profile.
Send Titan your panel-cutting requirements. The correct Gabbiani VSI package depends on required cut length, vertical cut height, material mix, scoring expectations, blade package, shop space, dust extraction, and installation environment.
