Enter one length, recall frequently used dimensions or run a programmed sequence from the s-PAD interface instead of repeatedly setting a manual stop.
Salvamac SalvaStop
CNC-assisted repeat cross-cutting
Legend crosscut saw + electronic positioningCombo / SalvaStop 100
A configurable crosscut system that combines a Salvamac Legend semi-automatic saw with the SalvaStop 100 numerical stop-and-push system for repeatable lengths, cutting lists and reduced measuring error.
Executive overview
Turn a proven crosscut saw into a programmed cutting centre.
Combo is Salvamac’s integrated package concept: a SalvaStop 100 electronic length stop and pusher working with a compatible Legend semi-automatic crosscut saw. The operator programs lengths at the touchscreen, positions the stock against the moving arm, and completes the guarded saw cycle without returning to a tape measure for every part.
STOP and PUSH modes
Up to 100 cutting lists
7-inch s-PAD control
USB and tele-service
A reinforced 100 × 100 mm anodized-aluminium beam, steel-reinforced toothed belt and closed-loop servo system create a durable positioning platform.
The SalvaStop positions the work while the Legend saw retains its enclosed cutting path, pneumatic workholding and two-hand guarded cutting workflow.
COMBO / SALVASTOP 100 / CONFIGURABLE LINE
System architecture
Electronic positioning matched to a Legend saw unit.
The SalvaStop carriage moves along an anodized-aluminium beam and operates as either a numerical stop or a pusher. The system can be supplied as a standalone positioning device or integrated with a compatible Legend crosscut saw, tables and guarding as a complete Combo line.
System typeCNC-assisted stop-and-push crosscut line
Positioning rangeUp to 6400 mm useful stroke
Common saw basesLegend 400 or Combo / SalvaStop 100 packages
Control7-inch s-PAD · STOP · PUSH · JOG
Positioning, control and cutting details
Machine and accessory gallery.

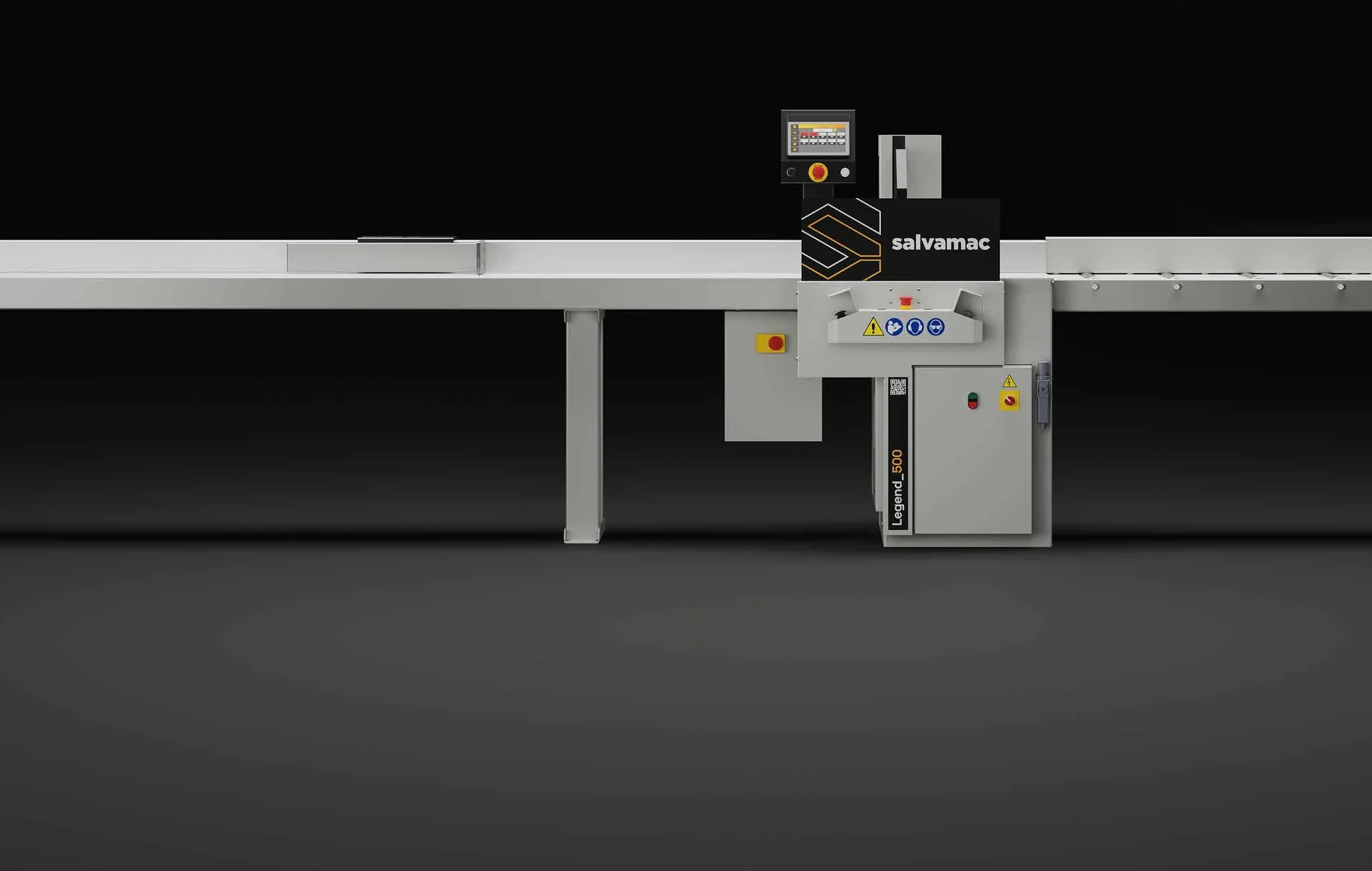

The official Salvamac imagery shows the complete Combo arrangement, the s-PAD operator station, the moving stop/pusher carriage and the guarded Legend saw controls that make up the integrated line.

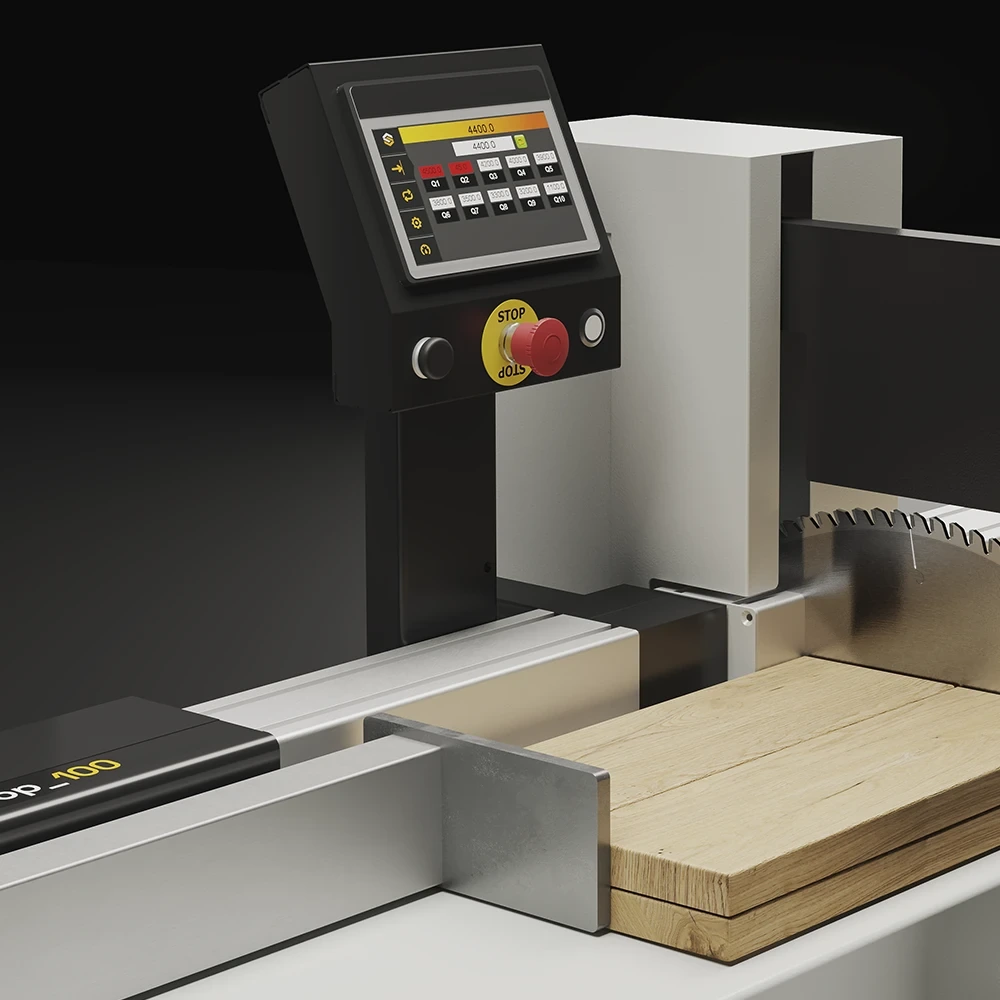

SalvaStop s-PAD control with emergency stop, moving arm and programmable positioning beside the cutting station.

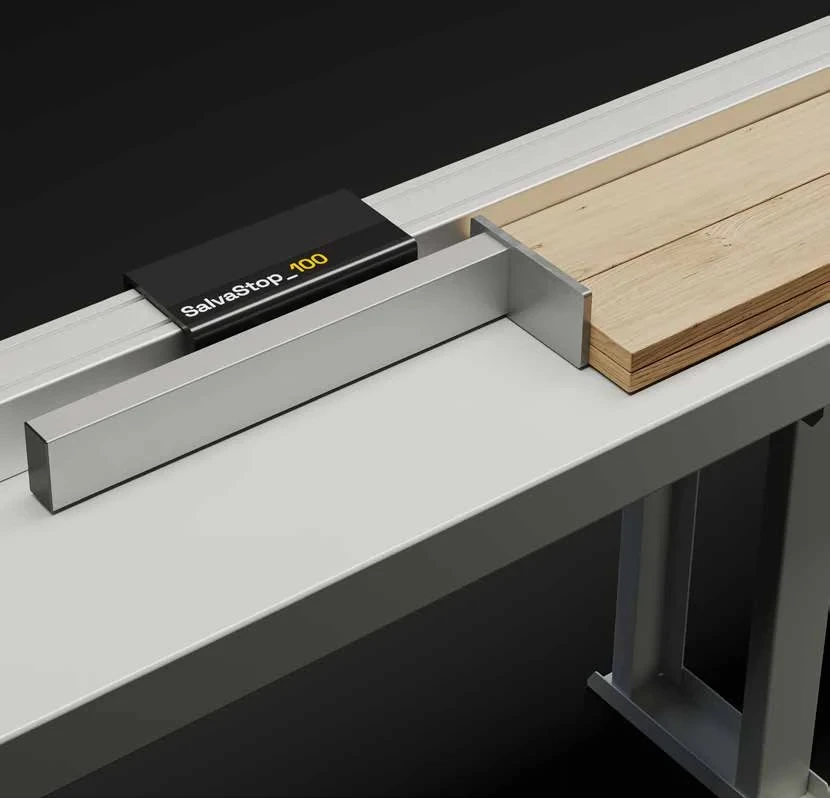

The moving arm can work as a numerical stop or as a pusher, depending on the selected production mode.

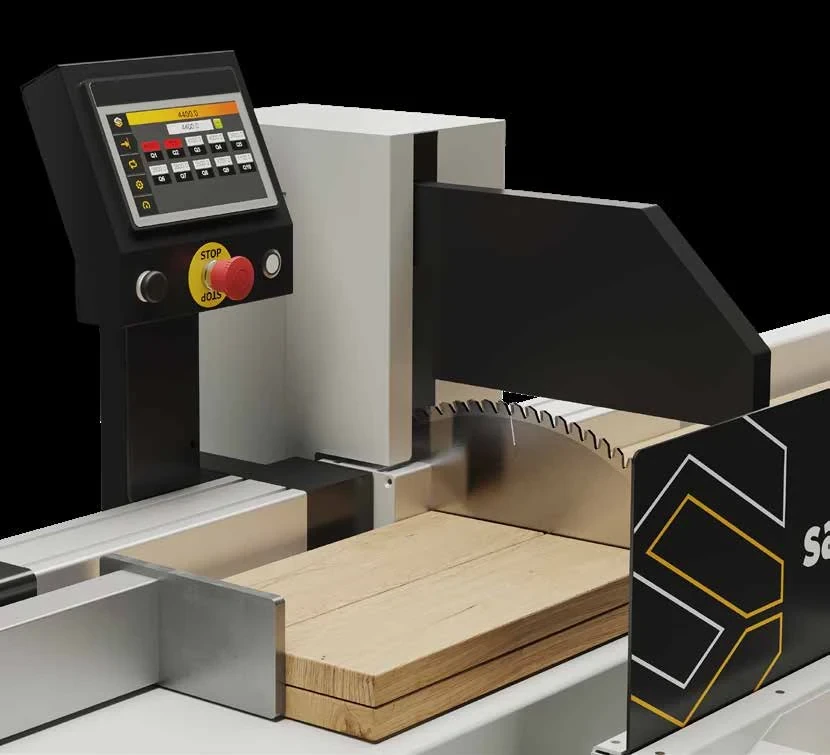

The integrated Legend saw retains pneumatic workholding, ergonomic controls and a guarded under-table cutting cycle.
Verified specification set
Technical data with source discipline.
System typeElectronic length stop and pusher integrated with a Salvamac Legend crosscut sawOfficial
Operating modesSTOP for target lengths, PUSH for programmed cycles, plus JOG and automatic zero settingVerified
Maximum total length / useful stroke7000 mm / 6400 mmOfficial
Documented working-length packages1400, 2400, 3400, 4400, 5400 or 6400 mmVerified
Maximum carriage speed60 m/minVerified
Closed-loop servo drive11 NmOfficial
Positioning capacity with roller conveyorUp to 100 kgOfficial
Positioning beam100 × 100 mm reinforced anodized aluminium profileOfficial
Carriage transmission32 mm toothed belt reinforced with steel stripsVerified
Pusher arm / end plate600 mm arm / 200 × 100 mm plateOfficial
Operator interface7-inch colour s-PAD touchscreenOfficial
Program capacityUp to 100 cutting lists in PUSH modeVerified
Connectivity and serviceUSB connection and internet-ready tele-serviceOfficial
SalvaStop power requirement230 V, 50 HzOfficial
Documented saw-base configurationsLegend 400 or Combo / SalvaStop 100 Combo packagesVerified
Optional production integrationLabel printer, barcode reader and company-software connectionOfficial
The Combo is a configurable system rather than one fixed machine size. Final cutting capacity comes from the selected Legend saw, while installed length depends on the chosen SalvaStop beam, infeed/outfeed tables, guarding and operator access.
Core features
Program the dimension, position the stock and cut the sequence.
The Combo system keeps the straightforward Legend cutting workflow while replacing repeated manual measuring with a servo-positioned stop and pusher.
STOP and PUSH production modes
Use STOP mode for one-off dimensions and recalled lengths, or PUSH mode for repeat cutting sequences with programmed lists.
Closed-loop servo positioning
The servo continually controls carriage position, supporting fast repositioning and repeatable motion even when the arm is exposed to external pressure.
s-PAD control and connectivity
The touchscreen provides rapid data entry, program access, diagnostics, USB transfer and internet-ready tele-service.
Commercial advantages
Faster changeovers
Repeat cutting lists
Configurable line length
Retain the Legend cutting platform
A practical step beyond manual stops and tape-measure cutting.
Move from one programmed length to the next without repeatedly loosening, measuring and resetting a manual stop.
Program recurring sequences and let the moving arm present each target dimension in order for the operator.
Select a useful stroke from 1.4 to 6.4 metres and match the tables to the incoming stock and finished-part workflow.
Gain electronic positioning while keeping the familiar guarded, pneumatic semi-automatic saw cycle.
Best-fit applications
Built for recurring lengths, mixed batches and operator-controlled cutting.
Combo is a strong fit where the material still benefits from a hands-on semi-automatic saw, but measuring and stop changes have become the production bottleneck.
Window and door components
Run repeated rails, stiles and frame members from programmed dimensions while retaining operator inspection at the saw.
Furniture and cabinet parts
Produce legs, rails, face-frame stock and solid-wood components across recurring or mixed cut lists.
Pallet and packaging production
Cycle through standardized packaging lengths without resetting a mechanical stop for every component size.
Garden buildings and timber kits
Manage repetitive framing lengths for sheds, cabins, fencing and outdoor structures in short-to-medium production runs.
Joinery and architectural millwork
Recall common dimensions quickly while preserving the flexibility needed for custom and high-mix work.
Standalone machine positioning
Use SalvaStop as an electronic stop or pusher with a compatible cutting or processing station when a full Combo saw package is not required.
Official Salvamac literature
Download the official Legend, SalvaStop and Combo catalogue.
The official Spanish/Portuguese catalogue includes the Legend saw range, SalvaStop 100 technical data, the Combo concept and the integrated CNC-assisted cutting-centre workflow.
Download brochure
Official full-system showcase
Quote Request
One line for positioning, workholding and repeat cross-cutting.

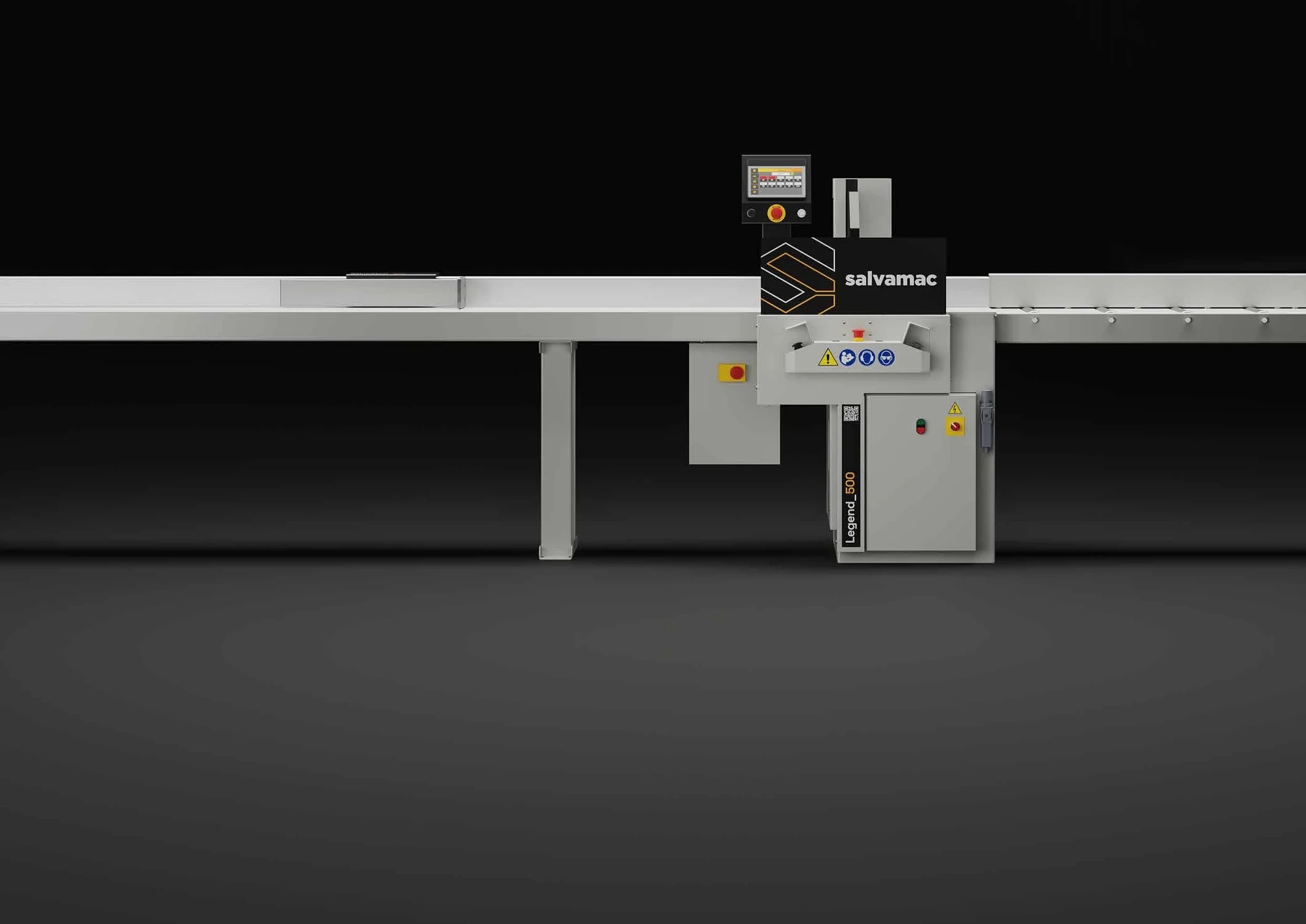

The official Salvamac showcase image presents a Legend saw integrated into the SalvaStop beam and table system, creating a compact CNC-assisted crosscut centre for programmed production lengths.
01Up to 6400 mm useful positioning stroke
0260 m/min maximum carriage speed
0311 Nm closed-loop servo drive
04STOP and PUSH software workflows
Titan machine qualification
Request a Combo / SalvaStop 100 quote.
Send Titan the stock section, incoming length, finished lengths, saw capacity requirement, preferred working stroke and production volume. We will qualify the Legend saw base, SalvaStop beam length, table layout and Canadian electrical package.
