A compact CNC drilling machine for vertical drilling, four-side
horizontal drilling, and X-axis grooving across cabinet, closet,
furniture, casework, training, and custom panel production.
Entry-level CNC drilling accuracy for shops moving beyond manual boring and template-based setup.

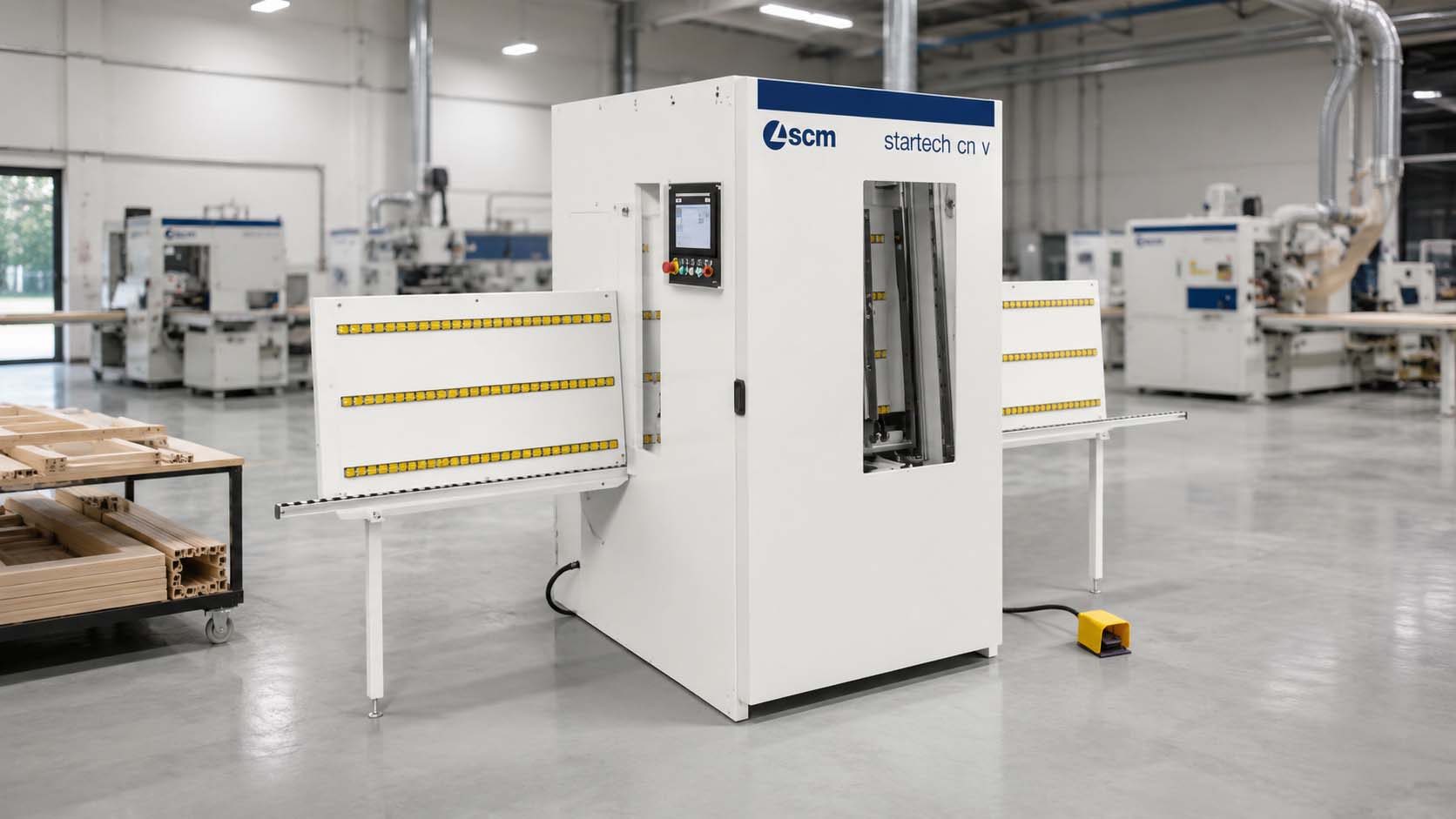

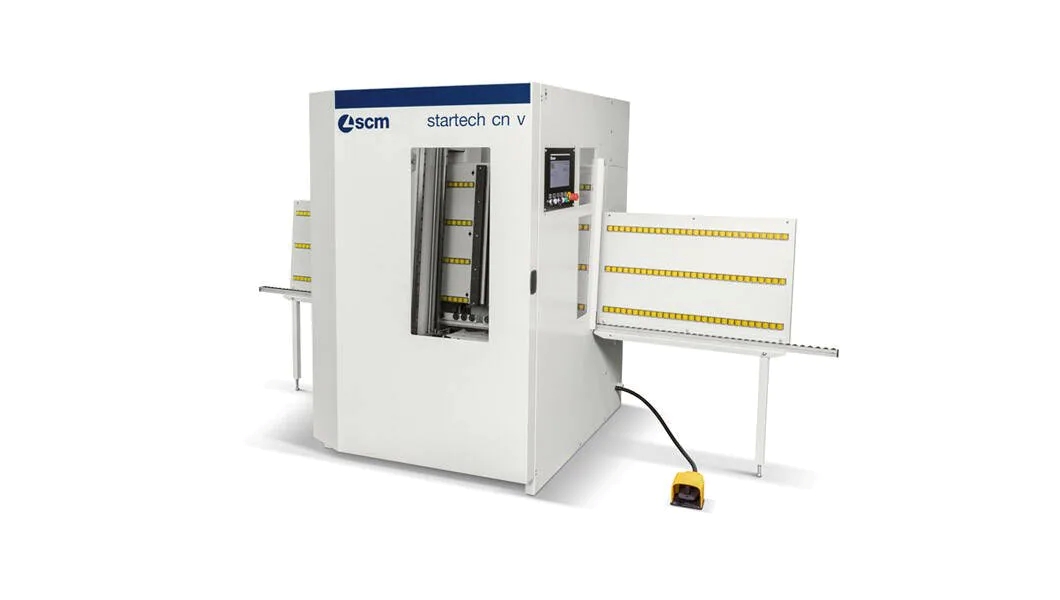

The SCM Startech CN V brings CNC-controlled vertical drilling,
horizontal drilling on all four panel sides, and X-axis grooving
into a compact production footprint of approximately 5.5 m².
It processes panels from 300 × 90 × 10 mm up to 3000 × 900 × 50 mm.
The fixed-table, mobile-workpiece concept supports a controlled machining
cycle with maximum X and Y axis speeds of 20 m/min.
A 10-inch touchscreen and SCM Maestro program import provide a practical
operator workflow for cabinet, closet, furniture, casework, training,
prototype, and custom panel environments.
Approx. 5.5 m²Compact Footprint
3000 × 900 × 50Maximum Panel · mm
20 m/minX / Y Axis Speed
7 + 4Vertical + Horizontal Spindles
Capability Matrix
One compact CNC station. Five focused panel-machining functions.
The Startech CN V combines surface drilling, four-side edge drilling, grooving, controlled workpiece movement, and touchscreen operation.
Mode 01
Vertical Drilling
Seven independent vertical spindles arranged 4X + 4Y with one shared spindle support common surface-hole patterns.
Mode 02
Four-Side Horizontal Drilling
Four horizontal spindles arranged 1 + 1 in X and 1 + 1 in Y support edge boring on all four panel sides.
Mode 03
X-Axis Grooving
A fixed 125 × 6 mm disc cutter supports programmed X-direction grooves for backs, dividers, and assembly details.
Mode 04
Mobile Workpiece Handling
The fixed-table, mobile-workpiece arrangement supports compact machine architecture and controlled panel positioning.
Mode 05
Touchscreen Workflow
A 10-inch touchscreen and Maestro program import support a straightforward path from prepared programs to machining.
Production Advantages
Designed around compact installation, controlled panel handling, and accessible CNC operation.
The CN V creates a practical upgrade path from operator-dependent boring into repeatable CNC drilling and grooving.
Compact 5.5 m² Footprint
Provides CNC drilling capability for smaller shops, training environments, and secondary production areas with limited floor space.
Floating-Opening Mobile Clamp
The mobile clamp supports panel movement and positioning while accommodating the machine’s compact fixed-table work concept.
Above-Panel Machining Head
The operating head works from above the panel, supporting access to vertical drilling, horizontal drilling, and grooving functions.
Equipment Range
Lineup Positioning
Manual Boring
Manual Drill and Boring Equipment
Suitable for lower-volume work, with hole locations, templates, positioning, and repeated setup managed by the operator.
Compact CNC Drilling
Programmed Panel Machining
Adds repeat vertical drilling, edge drilling on four sides, X-axis grooves, controlled panel movement, and touchscreen operation.
SCM Entry CNC Platform
SCM Startech CN V
Combines drilling, grooving, a compact 5.5 m² footprint, mobile-workpiece handling, and Maestro program import.
Technical Specifications
Startech CN V
Machine Profile
ManufacturerSCM
SeriesStartech
ModelCN V
Machine TypeCNC drilling machine
Panel Capacity
Maximum Panel3000 × 900 × 50 mm
Minimum Panel300 × 90 × 10 mm
FootprintApprox. 5.5 m²
Work ConceptFixed table / mobile workpiece
Vertical Drilling
Vertical Spindles7 independent
Vertical Layout4X + 4Y with shared spindle
Spindle Rotation4460 rpm
Operating PositionAbove-panel machining head
Horizontal Drilling and Grooving
Horizontal Spindles4 total
Horizontal Layout1 + 1 in X · 1 + 1 in Y
Integrated Blade125 × 6 mm
Blade Rotation5700 rpm
Motion and Workpiece Handling
X / Y Axis Speed20 m/min
TableFixed worktable
Workpiece MovementMobile workpiece
Panel ClampMobile clamp with floating opening
Drive and Control
Motor Power2.2 kW
Control10-inch touchscreen
Program WorkflowSCM Maestro program import
Primary FunctionsDrilling and X-axis grooving
Production Environments
Where the Startech CN V Fits
A compact first-step CNC drilling machine for repeatable hole patterns, four-side edge boring, and X-axis grooving.
Small Cabinet Shops
A practical upgrade for shops moving away from line drilling, drill presses, manual boring, and operator-positioned templates.
Closet, Furniture and Casework Production
Supports system holes, shelf pins, construction holes, furniture panels, storage components, and repeat assembly patterns.
Training and Custom Production
Fits schools, training departments, custom millwork shops, prototype areas, and production spaces with limited floor area.
Compact CNC · Four-Side Panel Drilling
A focused CNC drilling station built around repeatability and efficient use of shop space.
The Startech CN V combines vertical drilling, edge drilling on all four
sides, X-axis grooving, mobile-workpiece handling, and touchscreen control
in a compact enclosed machine.
Its fixed-table architecture and above-panel operating head create a clear
relationship between panel loading, program selection, machining, and part removal.
For cabinet, closet, furniture, custom, training, and casework environments,
it provides a professional bridge from manual boring into structured CNC production.
