One touchscreen environment manages cutting programs, optimization results, diagnostics, statistics and up to five quality classes.

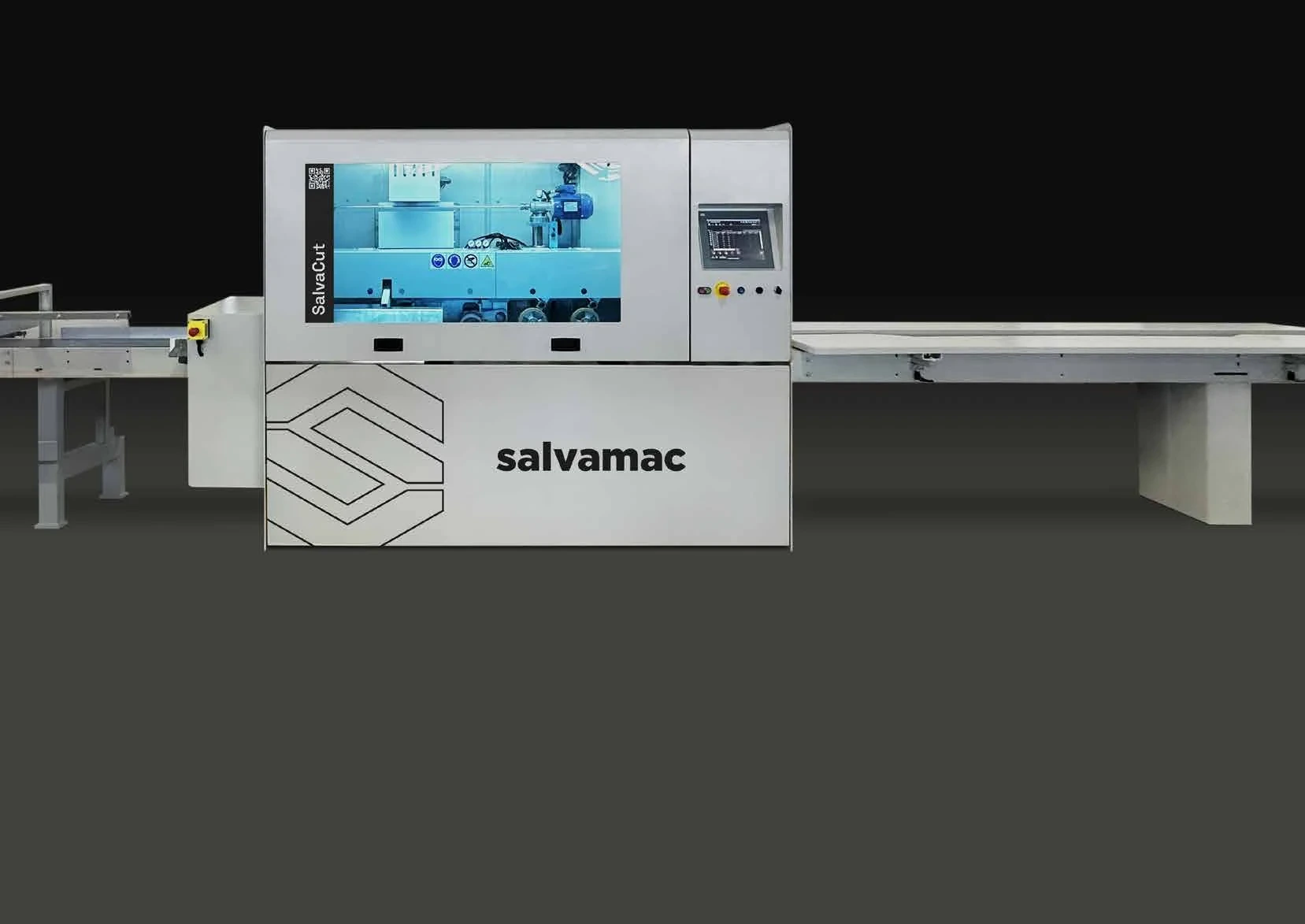

Salvamac SalvaCut 5000
Brushless high-speed optimization
Salvamac optimizer platformSalvaCut 5000
A high-speed optimizing crosscut saw with brushless cutting, dual traction and software-managed defect elimination for demanding solid-wood production.
Executive overview
The SalvaCut platform with brushless cutting.
SalvaCut 5000 is the higher-speed SalvaCut configuration. It combines a brushless cutting system with dual traction, two interconnected brushless feed motors and SALVA-OPTIM management for defect removal, quality control and repeatable component production.
200 m/min feed speed
Brushless cutting system
Dual traction feed
SALVA-OPTIM software
Upper rollers, a lower feed belt and independently managed brushless feed motors maintain controlled material movement at high production speed.
The cutting system is enclosed within the machine body, keeping the operator at the control station while the feed and cut sequence remains managed electronically.
SALVACUT 5000 / BRUSHLESS OPTIMIZER

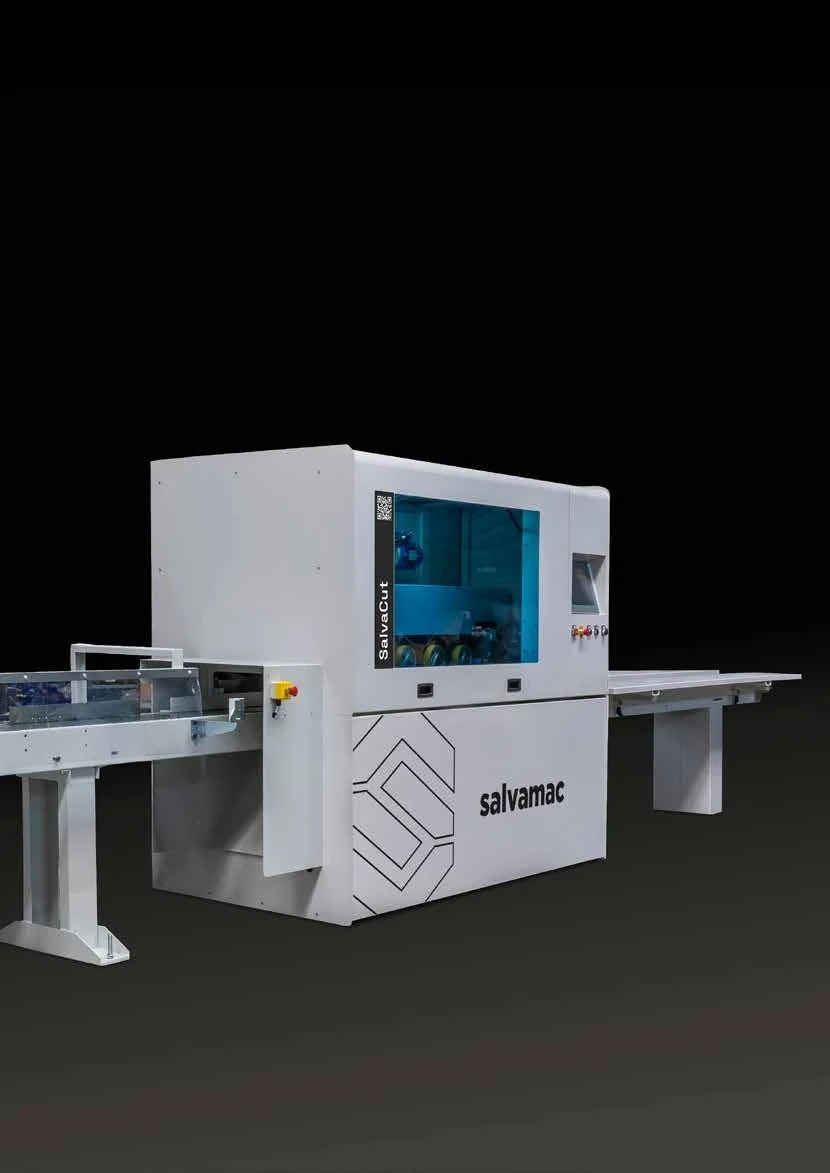

Machine architecture
High-speed feed. Electronic cutting control.
The machine uses dual traction with independently controlled upper rollers and a lower feed belt. Two independent, interconnected brushless feed motors support faster acceleration and precise positioning, while the SalvaCut 5000 adds a brushless cutting system for the saw cycle.
Machine typeHigh-speed optimizing crosscut saw
Published cutting section300 × 95 mm
Feed and cutting systemDual traction · brushless cutting
Control platformSALVA-OPTIM · touchscreen · up to 5 axes
Machine and production details
Machine and accessory gallery.
The SalvaCut 5000 is defined by its protected cutting chamber, dual-traction material handling, brushless feed architecture and software-managed optimization workflow.

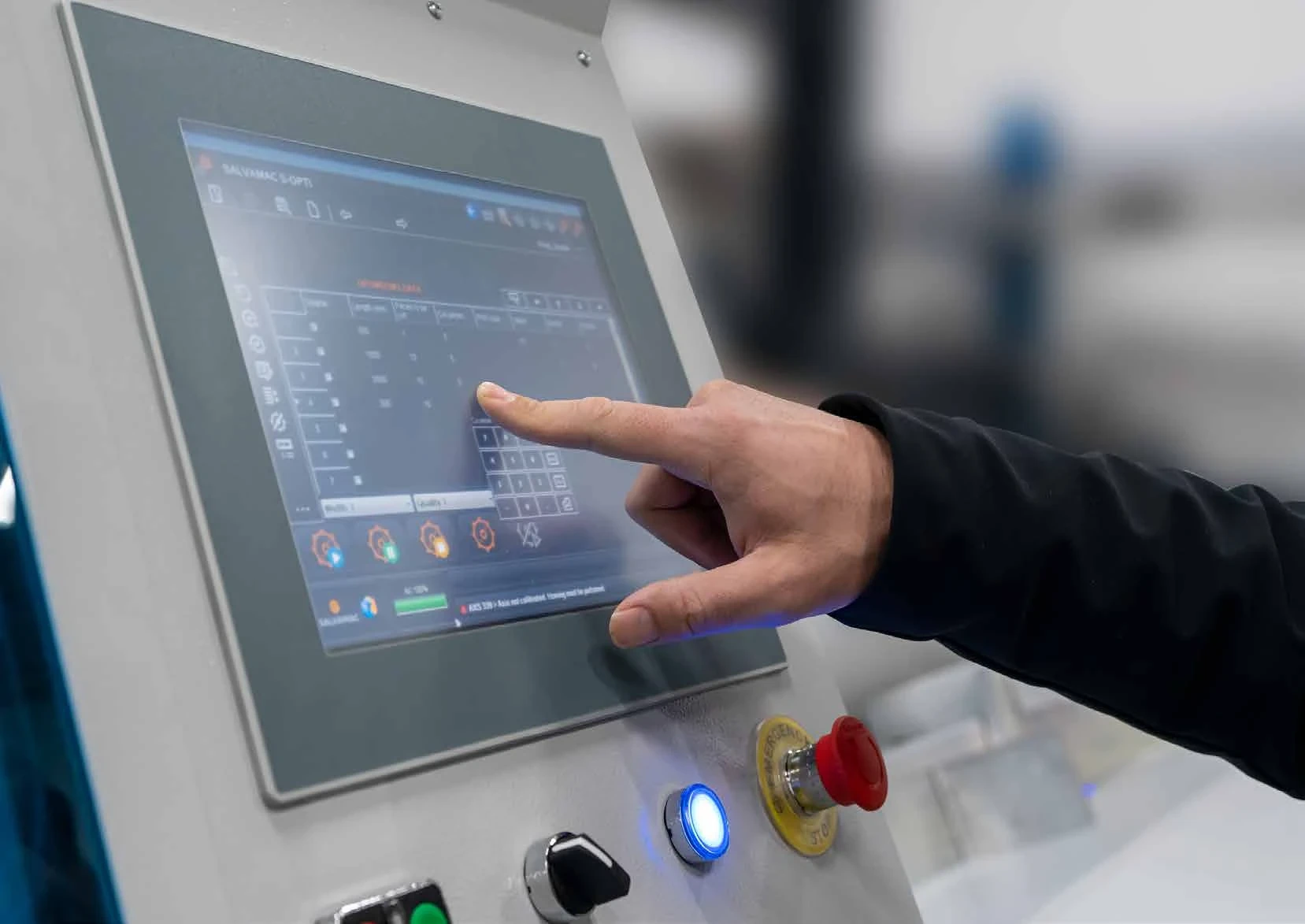

Protected cutting chamber and high-resistance touchscreen for program entry, diagnostics and production monitoring.

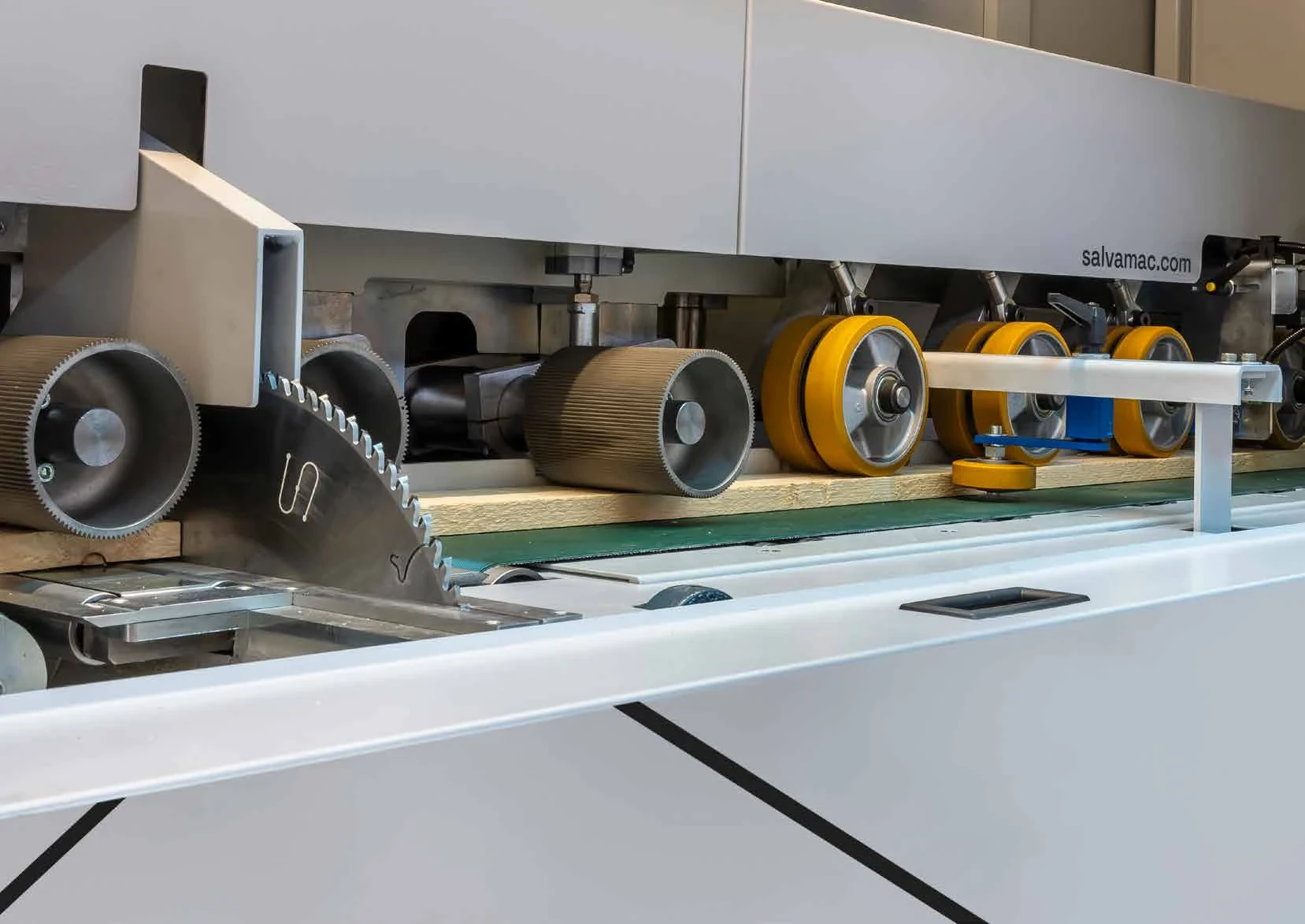

Dual traction combines upper rollers and a lower feed belt with independent management.
Official SalvaCut 5000 cutting section: 300 × 95 mm with the 500 mm blade configuration.
Verified specification set
Technical data with source discipline.
Machine typeHigh-speed optimizing crosscut saw for wood optimization and defect eliminationOfficial
Cutting systemBrushless motorOfficial
Published cutting section300 × 95 mmOfficial
Saw blade diameter500 mmOfficial
Blade motor power5.5 kWOfficial
Maximum feed speed200 m/minOfficial
Traction systemUpper rollers and lower feed belt with independent managementOfficial
Feed motorsTwo independent and interconnected brushless feeding motorsOfficial
Axis controlUp to 5 axesOfficial
Compressed-air pressure6 atmOfficial
Compressed-air consumption400 nlOfficial
Dust-extraction speed40 m/secOfficial
Management systemNumerical control and integrated computerOfficial
Optimization softwareSALVA-OPTIMOfficial
Cutting-quality managementComplete management of up to 5 cutting qualitiesOfficial
Production informationReal-time statistics, cutting results, diagnostics and video messagesOfficial
Connectivity and serviceUSB connection and internet-ready tele-service softwareOfficial
The 300 × 95 mm cutting section applies to the documented 500 mm blade configuration. Final installed line length depends on the selected infeed, outfeed, operator access and downstream handling layout.
Core features
Brushless performance from feed to cut.
SalvaCut 5000 is designed around the production demands that separate a basic optimizer from a high-speed industrial system: feed acceleration, electronic cutting control and software visibility.
Brushless cutting system
The SalvaCut 5000 replaces the pneumatic cutting system used on the 3000 with a brushless cutting motor designed for faster acceleration and precise electronic control.
Dual traction material feed
Upper rollers and the lower feed belt are independently managed to stabilize the workpiece while the two brushless feed motors drive positioning at high speed.
SALVA-OPTIM management
The numerical control and integrated computer manage optimization, up to five quality classes, real-time results, statistics, diagnostics and remote-service connectivity.
Commercial advantages
200 m/min feed platform
Brushless cutting control
Defect and quality optimization
Five-axis capability
A practical step beyond pneumatic optimizer cutting.
The higher published feed speed supports operations where throughput and short positioning cycles are central to the production case.
Electronic cutting replaces the pneumatic SalvaCut 5000 arrangement, giving the 5000 its distinct high-performance position in the family.
SALVA-OPTIM manages required lengths, quality classes and cutting results so production decisions are executed consistently at the machine.
The documented ability to control up to five axes supports more complex feed, cutting and production-line configurations.
Best-fit applications
Built for high-speed optimized component production.
SalvaCut 5000 fits production where defects and quality classes must be managed at high feed speed and the stock remains within the documented 300 × 95 mm cutting section.
Window and door components
Optimize rails, stiles and frame stock while removing marked defects before moulding, drilling, profiling or assembly.
Furniture component production
Convert long solid-wood blanks into repeatable legs, rails and frame parts where production speed and quality separation matter.
Rough-mill optimization
Increase control over defect removal and finished-length production ahead of finger jointing, moulding or CNC processing.
Joinery and architectural millwork
Manage mixed cut lists and recurring defects across higher-volume custom and semi-standard production.
Pallet and packaging components
Produce repeat lengths from compatible stock sections where high-speed feed and reliable cut-list execution improve workflow.
Secondary sawmill processing
Optimize dried or dimensioned solid wood into saleable or downstream-ready lengths within the machine’s published section.
Official Salvamac literature
Download the official SalvaCut catalogue.
The official English/Italian catalogue covers the SalvaCut 5000, SalvaCut 5000 and UltraCut platforms, including technical data, the 5000 cutting-section diagram and SALVA-OPTIM control information.
Download brochure

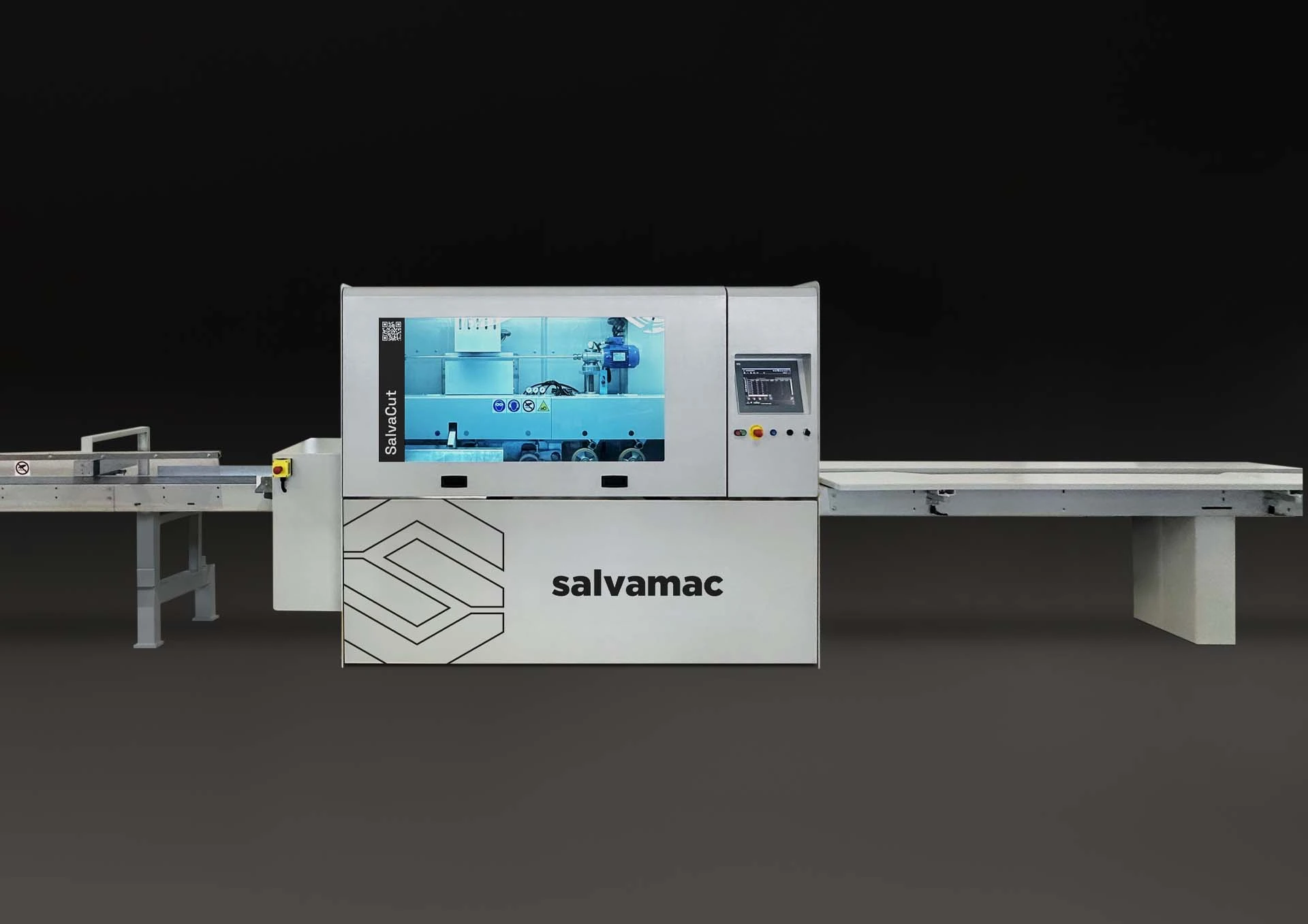

Complete optimizing platform
Quote Request
High-speed feed with brushless cutting.
The SalvaCut 5000 combines the protected machine body, dual-traction material handling, electronic cutting and SALVA-OPTIM control in a compact optimizer platform designed for demanding component production.
01200 m/min maximum feed speed
02Brushless cutting motor with 500 mm blade
03Published cutting section of 300 × 95 mm
04SALVA-OPTIM management with up to five axes and five cutting qualities
Titan machine qualification
Request a SalvaCut 5000 quote.
Send Titan the stock section, incoming lengths, target lengths, defect strategy, quality classes and expected volume. We will confirm machine fit, line layout, electrical configuration and downstream handling requirements.
